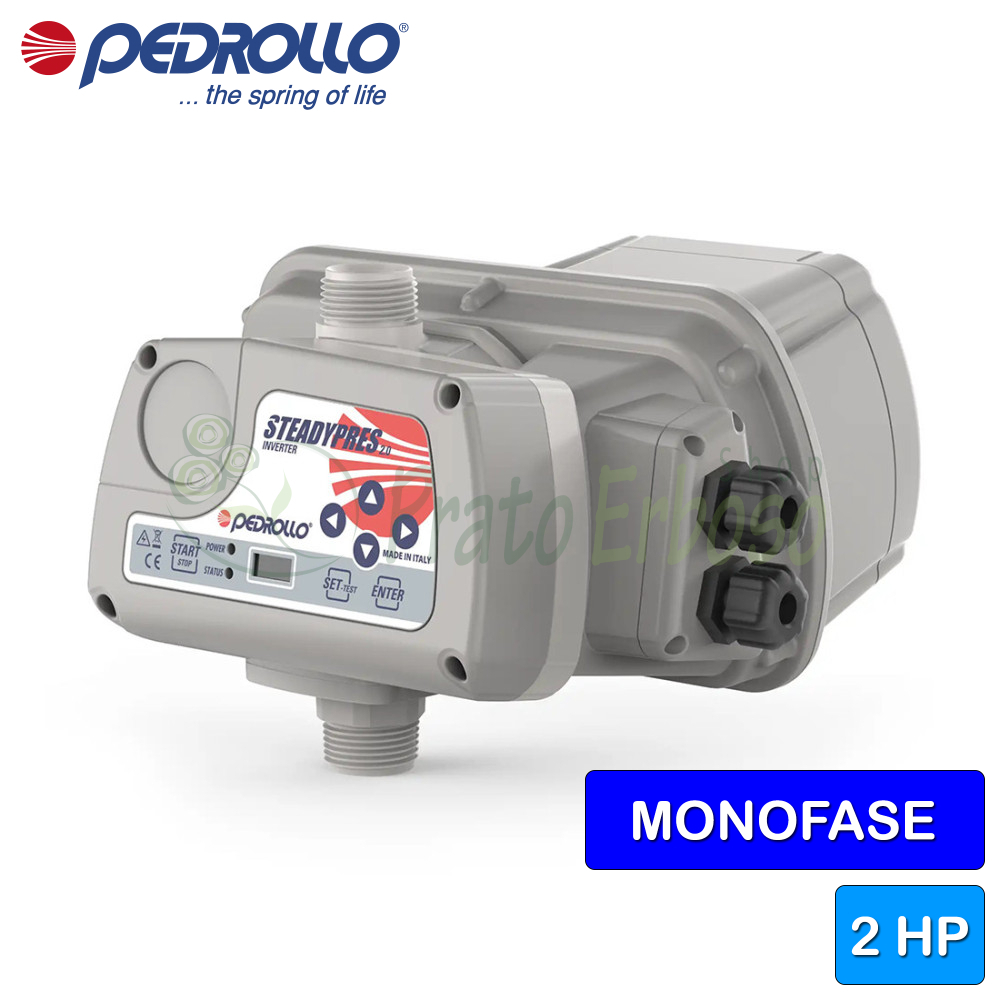

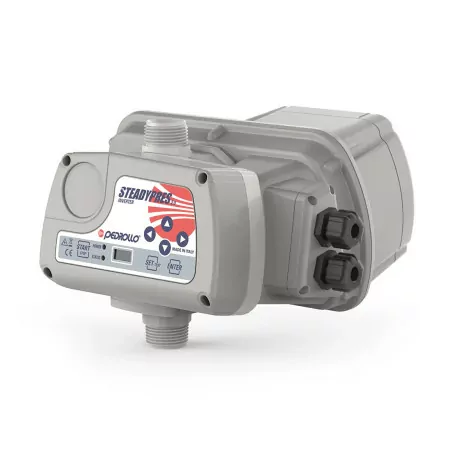

STEADYPRES MM 11 - 11 A single-phase inverter
Telephone support for information before purchasing.
After-sales assistance for product installation.
After-sales assistance in the correct use of the product.
Description
The STEADYPRES MM 11 inverter by Pedrollo is recommended for water supply in residential, commercial and irrigation sectors.
It adapts to any type of pressurization system, ensuring maximum comfort while increasing the life of the system and saving water.
The STEADYPRESS MM 11 modulates the value and frequency of the output voltage and allows the rotation speed of the motor to be varied according to the water required.
Protects against dry running, overcurrent, overvoltage, overtemperature and short circuit.
The display and keypad make the STEADYPRES MM 11 simple and intuitive to program.
Data sheet
- Power (HP)
- 2
- Suction mouth
- 1"
- Delivery mouth
- 1"
- Degree of protection
- IP 55
- Max. working pressure (bar)
- Output Voltage (Volts)
- Max. liquid temperature (°C)
- Line power supply
- single-phase
- Supply voltage (Volts)
- 230
- Engine power supply
- single phase
- Motor voltage
- 230 V
- Motor Phase Current (Amperes)
- 11
- Overcurrent protection
- Yes
- Amperometric protection
- Yes
- Short circuit protection
- Yes
- Dry running protection
- Yes
- Height (cm)
- 23.5
- Width (cm)
- 27.9
- Depth (cm)
- 24.1
- Weight (Kg)
- Warranty (years)
- 2
- Motor phase frequency (Hz)
- 50, 60
From the same brand and category
Related articles on blog
Compare with Similar Products
 STEADYPRES MM 11 - 11 A single-phase inverterThis product For single-phase pumps up to 2 HP. Single-phase/single-phase. |  Active Driver Plus M/M 1.5 - 11 A single-phase inverterFor single-phase pumps up to 2 HP. Single-phase/single-phase. |  PWM II 230 1 Basic DV/11 - 11 A single-phase inverterFor single-phase pumps up to 2 HP. Single-phase/single-phase. |  Sirio XP UNIVERSAL - 14 A Single-Phase InverterFor pumps up to 2.5 HP. Single-phase/single-phase. Single-phase/three-phase. | |
|---|---|---|---|---|
| Price | Price €779.58 -42% €452.16 | Price €623.42 | Price €623.42 | Price €333.18 |
| Power (HP) | Power (HP) 2 | Power (HP) 2 | Power (HP) 2 | Power (HP) 2.5 |
| Suction mouth | Suction mouth 1" | Suction mouth 1" 1/4 | Suction mouth 1" 1/4 | Suction mouth 1" 1/4 |
| Delivery mouth | Delivery mouth 1" | Delivery mouth 1" 1/2 | Delivery mouth 1" 1/2 | Delivery mouth 1" 1/4 |
| Degree of protection | Degree of protection IP 55 | Degree of protection IP 55 | Degree of protection IP 55 | Degree of protection IPX5 |
| Max. flow rate (l./min.) | Max. flow rate (l./min.) -- | Max. flow rate (l./min.) 300 | Max. flow rate (l./min.) 300 | Max. flow rate (l./min.) 150 |
| Max. working pressure (bar) | Max. working pressure (bar) -- | Max. working pressure (bar) -- | Max. working pressure (bar) -- | Max. working pressure (bar) -- |
| Output Voltage (Volts) | Output Voltage (Volts) -- | Output Voltage (Volts) -- | Output Voltage (Volts) -- | Output Voltage (Volts) , |
| Max. liquid temperature (°C) | Max. liquid temperature (°C) -- | Max. liquid temperature (°C) -- | Max. liquid temperature (°C) -- | Max. liquid temperature (°C) -- |
| Line power supply | Line power supply single-phase | Line power supply single-phase | Line power supply single-phase | Line power supply single-phase |
| Supply voltage (Volts) | Supply voltage (Volts) 230 | Supply voltage (Volts) 230 | Supply voltage (Volts) 230 | Supply voltage (Volts) 230 |
| Engine power supply | Engine power supply single phase | Engine power supply single phase | Engine power supply single phase | Engine power supply single phase, three-phase |
| Motor voltage | Motor voltage 230 V | Motor voltage 230 V | Motor voltage 230 V | Motor voltage 230 V |
| Motor Phase Current (Amperes) | Motor Phase Current (Amperes) 11 | Motor Phase Current (Amperes) 11 | Motor Phase Current (Amperes) 11 | Motor Phase Current (Amperes) 14 |
| Overcurrent protection | Overcurrent protection Yes | Overcurrent protection Yes | Overcurrent protection No | Overcurrent protection No |
| Amperometric protection | Amperometric protection Yes | Amperometric protection Yes | Amperometric protection Yes | Amperometric protection Yes |
| Short circuit protection | Short circuit protection Yes | Short circuit protection Yes | Short circuit protection Yes | Short circuit protection Yes |
| Dry running protection | Dry running protection Yes | Dry running protection Yes | Dry running protection Yes | Dry running protection Yes |
| Height (cm) | Height (cm) 23.5 | Height (cm) 28.2 | Height (cm) 28.2 | Height (cm) -- |
| Width (cm) | Width (cm) 27.9 | Width (cm) 23.7 | Width (cm) 23.7 | Width (cm) -- |
| Depth (cm) | Depth (cm) 24.1 | Depth (cm) 18.4 | Depth (cm) 18.4 | Depth (cm) -- |
| Weight (Kg) | Weight (Kg) -- | Weight (Kg) -- | Weight (Kg) -- | Weight (Kg) -- |
| Warranty (years) | Warranty (years) 2 | Warranty (years) 2 | Warranty (years) 2 | Warranty (years) 2 |
| Motor phase frequency (Hz) | Motor phase frequency (Hz) 50, 60 | Motor phase frequency (Hz) 50, 60 | Motor phase frequency (Hz) 50, 60 | Motor phase frequency (Hz) 50, 60 |
