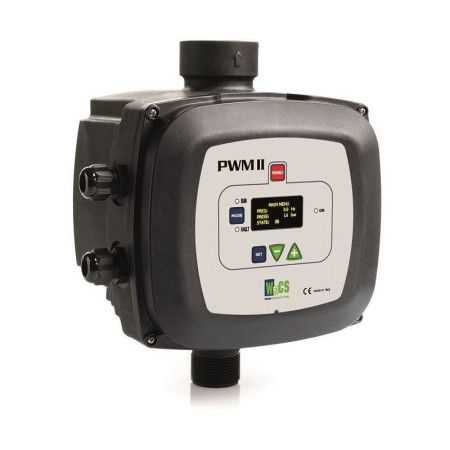

PWM II 230 1 Basic DV/11 - 11 A single-phase inverter
The WaCS PWM II 230 1 Basic DV/11 inverter for electric pumps maintains constant pressure as the flow varies by regulating the pump speed.
It has a flow sensor and a pressure sensor inside that allow it to know the operating conditions of the system instant by instant, ensuring constant pressure as conditions change.
The PWM II 230 1 Basic DV/11 inverter combines comfort and savings, integrates all the necessary protections for a pump, and is simple to install and configure. It guarantees maximum silence of the pump and an increase in its average life.
It can drive any type of pump and energy savings can reach up to 60%.
The PWM II 230 1 Basic DV/11 uses single-phase power for single-phase pumps up to 2 HP delivering a maximum current of 11 amps.
Ideal for domestic applications, especially where it is necessary to replace a pressure tank without changing the pump.
The inverter is supplied with input cables with a Schuko plug to connect to the electrical current and output cables with a Schuko socket to connect the pump.
- Power (HP)
- 2
- Suction mouth
- 1" 1/4
- Delivery mouth
- 1" 1/2
- Degree of protection
- IP 55
- Max. flow rate (l./min.)
- 300
- Max. working pressure (bar)
- Output Voltage (Volts)
- Max. liquid temperature (°C)
- Line power supply
- single-phase
- Supply voltage (Volts)
- 230
- Engine power supply
- single phase
- Motor voltage
- 230 V
- Motor Phase Current (Amperes)
- 11
- Overcurrent protection
- No
- Amperometric protection
- Yes
- Short circuit protection
- Yes
- Dry running protection
- Yes
- Height (cm)
- 28.2
- Width (cm)
- 23.7
- Depth (cm)
- 18.4
- Weight (Kg)
- Warranty (years)
- 2
- Motor phase frequency (Hz)
- 50, 60
-
€455.00 tax incl. -
€735.66 tax incl. -
€636.84 tax incl. -
€774.70 tax incl. -
€1,099.22 tax incl. -
€1,372.50 tax incl.
Compare with Similar Products
 PWM II 230 1 Basic DV/11 - 11 A single-phase inverterThis product For single-phase pumps up to 2 HP. Single-phase/single-phase. |  STEADYPRES MM 11 - 11 A single-phase inverterFor single-phase pumps up to 2 HP. Single-phase/single-phase. |  Active Driver Plus M/M 1.5 - 11 A single-phase inverterFor single-phase pumps up to 2 HP. Single-phase/single-phase. |  Sirio XP UNIVERSAL - 14 A Single-Phase InverterFor pumps up to 2.5 HP. Single-phase/single-phase. Single-phase/three-phase. | |
|---|---|---|---|---|
| Price | Price €623.42 | Price €779.58 -42% €452.16 | Price €623.42 | Price €333.18 |
| Power (HP) | Power (HP) 2 | Power (HP) 2 | Power (HP) 2 | Power (HP) 2.5 |
| Suction mouth | Suction mouth 1" 1/4 | Suction mouth 1" | Suction mouth 1" 1/4 | Suction mouth 1" 1/4 |
| Delivery mouth | Delivery mouth 1" 1/2 | Delivery mouth 1" | Delivery mouth 1" 1/2 | Delivery mouth 1" 1/4 |
| Degree of protection | Degree of protection IP 55 | Degree of protection IP 55 | Degree of protection IP 55 | Degree of protection IPX5 |
| Max. flow rate (l./min.) | Max. flow rate (l./min.) 300 | Max. flow rate (l./min.) -- | Max. flow rate (l./min.) 300 | Max. flow rate (l./min.) 150 |
| Max. working pressure (bar) | Max. working pressure (bar) -- | Max. working pressure (bar) -- | Max. working pressure (bar) -- | Max. working pressure (bar) -- |
| Output Voltage (Volts) | Output Voltage (Volts) -- | Output Voltage (Volts) -- | Output Voltage (Volts) -- | Output Voltage (Volts) , |
| Max. liquid temperature (°C) | Max. liquid temperature (°C) -- | Max. liquid temperature (°C) -- | Max. liquid temperature (°C) -- | Max. liquid temperature (°C) -- |
| Line power supply | Line power supply single-phase | Line power supply single-phase | Line power supply single-phase | Line power supply single-phase |
| Supply voltage (Volts) | Supply voltage (Volts) 230 | Supply voltage (Volts) 230 | Supply voltage (Volts) 230 | Supply voltage (Volts) 230 |
| Engine power supply | Engine power supply single phase | Engine power supply single phase | Engine power supply single phase | Engine power supply single phase, three-phase |
| Motor voltage | Motor voltage 230 V | Motor voltage 230 V | Motor voltage 230 V | Motor voltage 230 V |
| Motor Phase Current (Amperes) | Motor Phase Current (Amperes) 11 | Motor Phase Current (Amperes) 11 | Motor Phase Current (Amperes) 11 | Motor Phase Current (Amperes) 14 |
| Overcurrent protection | Overcurrent protection No | Overcurrent protection Yes | Overcurrent protection Yes | Overcurrent protection No |
| Amperometric protection | Amperometric protection Yes | Amperometric protection Yes | Amperometric protection Yes | Amperometric protection Yes |
| Short circuit protection | Short circuit protection Yes | Short circuit protection Yes | Short circuit protection Yes | Short circuit protection Yes |
| Dry running protection | Dry running protection Yes | Dry running protection Yes | Dry running protection Yes | Dry running protection Yes |
| Height (cm) | Height (cm) 28.2 | Height (cm) 23.5 | Height (cm) 28.2 | Height (cm) -- |
| Width (cm) | Width (cm) 23.7 | Width (cm) 27.9 | Width (cm) 23.7 | Width (cm) -- |
| Depth (cm) | Depth (cm) 18.4 | Depth (cm) 24.1 | Depth (cm) 18.4 | Depth (cm) -- |
| Weight (Kg) | Weight (Kg) -- | Weight (Kg) -- | Weight (Kg) -- | Weight (Kg) -- |
| Warranty (years) | Warranty (years) 2 | Warranty (years) 2 | Warranty (years) 2 | Warranty (years) 2 |
| Motor phase frequency (Hz) | Motor phase frequency (Hz) 50, 60 | Motor phase frequency (Hz) 50, 60 | Motor phase frequency (Hz) 50, 60 | Motor phase frequency (Hz) 50, 60 |
