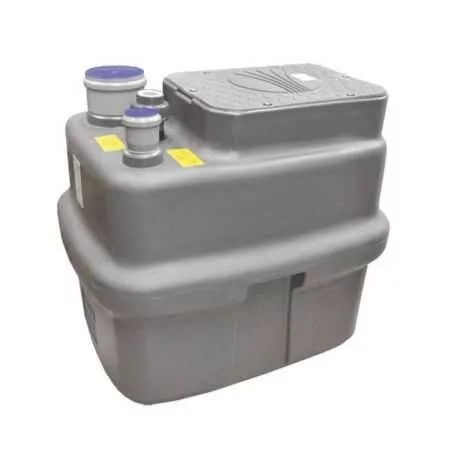

SAR 100-TOP 2 - 0.50 HP Rainwater Lifting Station

Name: SAR 100-TOP 2 - 0.50 HP Rainwater Lifting Station
Brand: Pedrollo
SKU: SAR 100-TOP 2
Price: 530.09 EUR
Availability: InStock

100 litre tank. Pedrollo TOP 2 pump. Discharge flow rate up to 220 l/min (13.2 m³/h). Head up to 8 m. 0.37 Kw (0.50 HP) motor.

Variants:

Make a purchase proposal

Telephone support for information before purchasing.

After-sales assistance for product installation.

Description

The SAR 100-TOP 2 is a rainwater storage and lifting station. It consists of a Pedrollo TOP 2 lifting pump and a 100-litre tank.

Data sheet

Motor connection: SINGLE PHASE
Power (HP): 0.50
Absorption at 230V (A): 2
Delivery port: 1 "1/4
Body Pump: Technopolymer
Impeller: Noryl
Motor shaft: Stainless steel EN 10088-3 1.4104
Check valve: Yes
Degree of protection: IP 68
Max flow (l./min.): 220
Max head (m.): 8
Tank capacity (liters): 100
Height (cm): 64.5
Width (cm): 50
Weight kg): 28.7
Guarantee: 2

Attachments

SAR data sheet

Construction and operating characteristics. Working curves, limits of use and dimensions of the Pedrollo SAR stations.

Download (1.23MB)

Models and performance SAR 100 clear water

GUY

single phase

SAR 100-TOP 2

SAR 100-TOP 3

SAR 100-TOP 4

SAR 100-TOP MULTI 1

SAR 100-TOP MULTI 2

SAR 100-TOP MULTI 3

SAR 100-RXm 2

SAR 100-RXm 3

SAR 100-DMm 10

SAR 100-DMm 20

SAR 100-DMm 30

POWER
KW	HP
0.37	0.50
0.55	0.75
0.75	1
0.37	0.50
0.55	0.75
0.55	0.75
0.37	0.50
0.55	0.75
0.75	1
0.75	1
1.1	1.5

RESERVOIR
liters
100
100
100
100
100
100
100
100
100
100
100

MAX CAPACITY
l / min
220
260
320
70
80
120
220
220
300
250
275

MAX HEAD
m
8
10
12.5
25
40
32
9.5
11.5
15.5
19
26

MOUTH
ingr.	exited
DN 110	1 1/4 "
DN 110	1 1/2 "
DN 110	1 1/4 "
DN 110	1 1/2 "

Compare with Similar Products

	SAR 100-TOP 2 - 0.50 HP Rainwater Lifting Station This product 100 litre tank. Pedrollo TOP 2 pump. Discharge flow rate up to 220 l/min (13.2 m³/h). Head up to 8 m. 0.37 Kw (0.50 HP) motor.	SAR 100-TOP 3 - 0.75 HP Rainwater Lifting Station Quick View 100 litre tank. Pedrollo TOP 3 pump. Discharge flow rate up to 260 l/min (15.6 m³/h). Head up to 10 m. 0.55 Kw (0.75 HP) motor.
Motor connection	Motor connection SINGLE PHASE	Motor connection SINGLE PHASE
Power (HP)	Power (HP) 0.50	Power (HP) 0.75
Absorption at 230V (A)	Absorption at 230V (A) 2	Absorption at 230V (A) 3.2
Delivery port	Delivery port 1 "1/4	Delivery port 1 "1/4
Body Pump	Body Pump Technopolymer	Body Pump Technopolymer
Impeller	Impeller Noryl	Impeller Noryl
Motor shaft	Motor shaft Stainless steel EN 10088-3 1.4104	Motor shaft Stainless steel EN 10088-3 1.4104
Check valve	Check valve Yes	Check valve Yes
Degree of protection	Degree of protection IP 68	Degree of protection IP 68
Max flow (l./min.)	Max flow (l./min.) 220	Max flow (l./min.) 260
Max head (m.)	Max head (m.) 8	Max head (m.) 10
Tank capacity (liters)	Tank capacity (liters) 100	Tank capacity (liters) 100
Height (cm)	Height (cm) 64.5	Height (cm) 64.5
Width (cm)	Width (cm) 50	Width (cm) 50
Weight kg)	Weight kg) 28.7	Weight kg) 30.1
Guarantee	Guarantee 2	Guarantee 2
