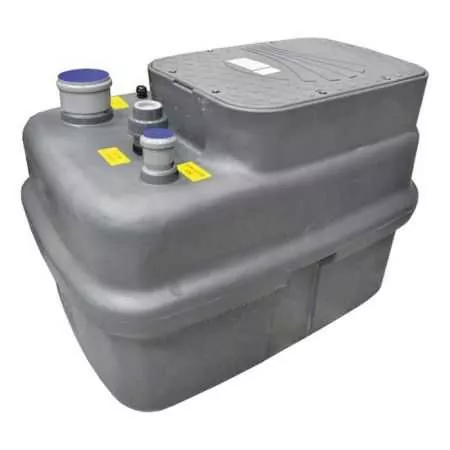

SAR 250-TOP 4- 1 HP Rainwater Lifting Station
250 litre tank. Pedrollo TOP 4 pump. Discharge flow rate up to 320 l/min (19.2 m³/h). Head up to 12.5 m. 0.75 Kw (1 HP) motor.
Telephone support for information before purchasing.
After-sales assistance for product installation.
Description
The SAR 250-TOP 4 is a rainwater storage and lifting station. It consists of a Pedrollo TOP 4 lifting pump and a 250-litre tank.
Data sheet
- Motor connection
- SINGLE PHASE
- Power (HP)
- 1
- Absorption at 230V (A)
- 4.5
- Delivery port
- 1 "1/2
- Body Pump
- Technopolymer
- Impeller
- Noryl
- Motor shaft
- Stainless steel EN 10088-3 1.4104
- Check valve
- Yes
- Degree of protection
- IP 68
- Max flow (l./min.)
- 320
- Max head (m.)
- 12.5
- Container capacity (liters)
- 250
- Tank capacity (liters)
- 250
- Employments
- slightly dirty waters
- Height (cm)
- 88.4
- Width (cm)
- 72.6
- Weight kg)
- 46.2
- Guarantee
- 2
Models and performance SAR 250 clear water
|
|
|
|
|
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Compare with Similar Products
 SAR 250-TOP 4- 1 HP Rainwater Lifting StationThis product 250 litre tank. Pedrollo TOP 4 pump. Discharge flow rate up to 320 l/min (19.2 m³/h). Head up to 12.5 m. 0.75 Kw (1 HP) motor. |  SAR 250-TOP 3 - 0.75 HP Rainwater Lifting Station250 litre tank. Pedrollo TOP 3 pump. Discharge flow rate up to 260 l/min (15.6 m³/h). Head up to 10 m. 0.55 Kw (0.75 HP) motor. |  LPS Precision - 90 degree angle retractable sprinklerTurret height 10 centimetres. Variable working range. | |
|---|---|---|---|
| Motor connection | Motor connection SINGLE PHASE | Motor connection SINGLE PHASE | Motor connection -- |
| Power (HP) | Power (HP) 1 | Power (HP) 0.75 | Power (HP) -- |
| Absorption at 230V (A) | Absorption at 230V (A) 4.5 | Absorption at 230V (A) 3.2 | Absorption at 230V (A) -- |
| Delivery port | Delivery port 1 "1/2 | Delivery port 1 "1/4 | Delivery port -- |
| Body Pump | Body Pump Technopolymer | Body Pump Technopolymer | Body Pump -- |
| Impeller | Impeller Noryl | Impeller Noryl | Impeller -- |
| Motor shaft | Motor shaft Stainless steel EN 10088-3 1.4104 | Motor shaft Stainless steel EN 10088-3 1.4104 | Motor shaft -- |
| Check valve | Check valve Yes | Check valve Yes | Check valve -- |
| Degree of protection | Degree of protection IP 68 | Degree of protection IP 68 | Degree of protection -- |
| Max flow (l./min.) | Max flow (l./min.) 320 | Max flow (l./min.) 260 | Max flow (l./min.) -- |
| Max head (m.) | Max head (m.) 12.5 | Max head (m.) 10 | Max head (m.) -- |
| Max range (m) | Max range (m) -- | Max range (m) -- | Max range (m) 4.6 |
| Container capacity (liters) | Container capacity (liters) 250 | Container capacity (liters) 250 | Container capacity (liters) -- |
| Tank capacity (liters) | Tank capacity (liters) 250 | Tank capacity (liters) 250 | Tank capacity (liters) -- |
| Angolo di lavoro | Angolo di lavoro -- | Angolo di lavoro -- | Angolo di lavoro 90 |
| Employments | Employments slightly dirty waters | Employments slightly dirty waters | Employments -- |
| Height (cm) | Height (cm) 88.4 | Height (cm) 88.4 | Height (cm) -- |
| Width (cm) | Width (cm) 72.6 | Width (cm) 72.6 | Width (cm) -- |
| Attack size | Attack size -- | Attack size -- | Attack size 1/2 " |
| Weight kg) | Weight kg) 46.2 | Weight kg) 42.6 | Weight kg) -- |
| Guarantee | Guarantee 2 | Guarantee 2 | Guarantee -- |
| Type of attack | Type of attack -- | Type of attack -- | Type of attack male |
