SAR 250-TOP 5 - 1.25 HP Rainwater Lifting Station

250 litre tank. Pedrollo TOP 5 pump. Discharge flow rate up to 360 l/min (21.6 m³/h). Head up to 15 m. 0.92 Kw (1.25 HP) motor.

€913.90 Tax included

€749.10 Tax excluded

€1,661.64-45%

Variants:
SAR 250-TOP 3 - Stazione di sollevamento acqua piovana da 0.75 HP
SAR 250-TOP 4- Stazione di sollevamento acqua piovana da 1 HP
SAR 250-TOP 5 - Stazione di sollevamento acqua piovana da 1.25 HP
There are no reviews yet
Close
Make a purchase proposal

Your Offer is sent.

Your Offer is accepted, please check your inbox.

SAR 250-TOP 5 - 1.25 HP Rainwater Lifting Station
  • Use dot instead of comma

Loading

Telephone support for information before purchasing.
After-sales assistance for product installation.
Description

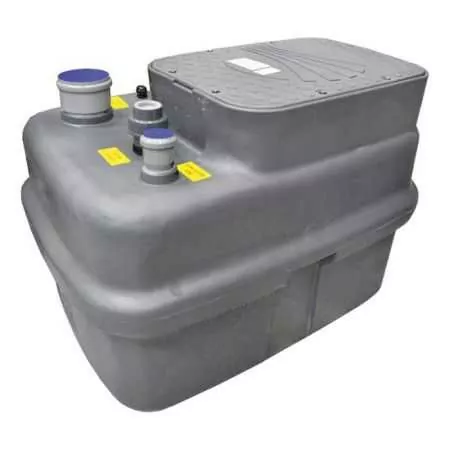

The SAR 250-TOP 5 is a rainwater storage and lifting station. It consists of a Pedrollo TOP 5 lifting pump and a 250-litre tank.

Data sheet
Pedrollo
SAR 250-TOP 5
10 Items
Motor connection
SINGLE PHASE
Power (HP)
1.25
Absorption at 230V (A)
5.5
Delivery mouth
1 "1/2
Pump body
Technopolymer
Impeller
Noryl
Crankshaft
Stainless steel EN 10088-3 1.4104
Check valve
Yes
Degree of protection
IP 68
Max. flow rate (l./min.)
360
Max. head (m.)
15
Container capacity (litres)
250
Tank capacity (litres)
250
Jobs
slightly dirty waters
Height (cm)
88.4
Width (cm)
72.6
Weight (Kg)
46.2
Warranty (years)
2
Attachments

SAR data sheet

Construction and operating characteristics. Working curves, limits of use and dimensions of the Pedrollo SAR stations.

file_download Download (1.23MB)

Buy it with

  • SAR 250-TOP 5 - 1.25 HP Rainwater Lifting Station
  • +
  • SAR 40-TEX 2 - 0.50 HP Waste Water Lifting Station
  • +
  • SAR 100-TOP 3-VORTEX - 0.75 HP Waste Water Lifting Station
  • €1,843.24-10 %
    Total price: €1,658.92
Models and performance SAR 250 clear water
GUY
single phase
SAR 250-TOP 3
SAR 250-TOP 4
SAR 250-TOP 5
SAR 250-RXm 3
SAR 250-RXm 4
SAR 250-RXm 5
SAR 250-Dm 30
SAR 250-Dm 20
SAR 250-Dm 30
POWER
KWHP
0.550.75
0.751
0.921.25
0.550.75
0.751
1.11.5
0.751
0.751
1.11.5
