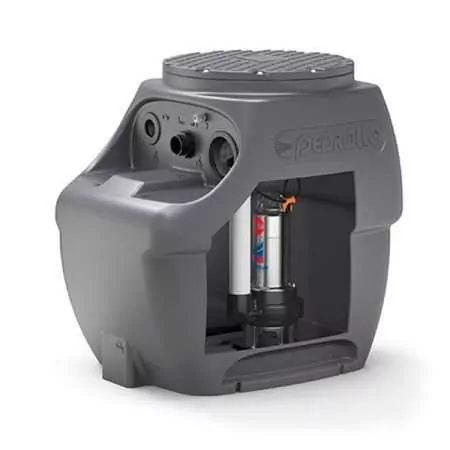

SAR 250-VXm 15/50 - 1.5 HP Waste Water Lifting Station
250 litre tank. Pedrollo VXm 15/50 pump. Discharge flow rate up to 650 l/min (39 m³/h). Head up to 11 m. 1 Kw (1.5 HP) motor.
Telephone support for information before purchasing.
After-sales assistance for product installation.
Description
The SAR 250-VXm 15/50 is a rainwater storage and lifting station. It consists of a Pedrollo VXm 15/50 lifting pump and a 250-litre tank.
Data sheet
- Motor connection
- SINGLE PHASE
- Power (HP)
- 1.5
- Absorption at 230V (A)
- 7.1
- Delivery mouth
- 2"
- Pump body
- Technopolymer
- Impeller
- Noryl
- Crankshaft
- Stainless steel EN 10088-3 1.4104
- Check valve
- No
- Degree of protection
- IP 68
- Max. flow rate (l./min.)
- 650
- Max. head (m.)
- 11
- Container capacity (litres)
- 250
- Tank capacity (litres)
- 250
- Jobs
- slightly dirty waters
- Height (cm)
- 88.4
- Width (cm)
- 72.6
- Weight (Kg)
- 53
- Warranty (years)
- 2
