SAR 550-Dm 30 - 1.5 HP Rainwater Lifting Station

550 litre tank. Pedrollo Dm 30 pump. Discharge flow rate up to 275 l/min (16.5 m³/h). Head up to 26 m. 1.1 Kw (1.5 HP) motor.

€2,274.69 Tax included

€1,864.50 Tax excluded

€4,135.80-45%

Variants:
SAR 550-Dm 10 - Stazione di sollevamento acqua piovana da 1 HP
SAR 550-Dm 20 - Stazione di sollevamento acqua piovana da 1 HP
SAR 550-Dm 30 - Stazione di sollevamento acqua piovana da 1.5 HP
There are no reviews yet
Close
Make a purchase proposal

Your Offer is sent.

Your Offer is accepted, please check your inbox.

SAR 550-Dm 30 - 1.5 HP Rainwater Lifting Station
  • Use dot instead of comma

Loading

Telephone support for information before purchasing.
After-sales assistance for product installation.
Description

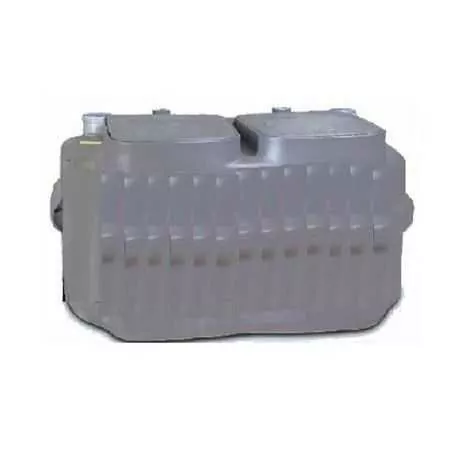

The SAR 550-Dm 30 is a rainwater storage and lifting station. It consists of a Pedrollo Dm 30 lifting pump and a 550-liter tank.

Data sheet
Pedrollo
SAR 550-Dm 30
10 Items
Motor connection
SINGLE PHASE
Power (HP)
1.5
Absorption at 230V (A)
7.2
Delivery mouth
1 "1/2
Pump body
Technopolymer
Impeller
Technopolymer
Crankshaft
Stainless steel EN 10088-3 1.4104
Check valve
Yes
Degree of protection
IP 68
Max. flow rate (l./min.)
275
Max. head (m.)
26
Container capacity (litres)
550
Tank capacity (litres)
550
Jobs
slightly dirty waters
Height (cm)
88.4
Width (cm)
147.6
Weight (Kg)
105.7
Warranty (years)
2
Attachments

SAR data sheet

Construction and operating characteristics. Working curves, limits of use and dimensions of the Pedrollo SAR stations.

file_download Download (1.23MB)

Buy it with

  • SAR 550-Dm 30 - 1.5 HP Rainwater Lifting Station
  • +
  • SAR 100-TOP 3-VORTEX - 0.75 HP Waste Water Lifting Station
  • +
  • SAR 40-TEX 2 - 0.50 HP Waste Water Lifting Station
  • €3,204.03-10 %
    Total price: €2,883.63
Models and performance SAR 550 clear water
GUY
single phase
SAR 550-TOP 4
SAR 550-TOP 5
SAR 550-RXm 4
SAR 550-RXm 5
SAR 550-Dm 30
SAR 550-Dm 20
SAR 550-Dm 30
POWER
KWHP
0.751
0.921.25
0.751
1.11.5
0.751
0.751
1.11.5
