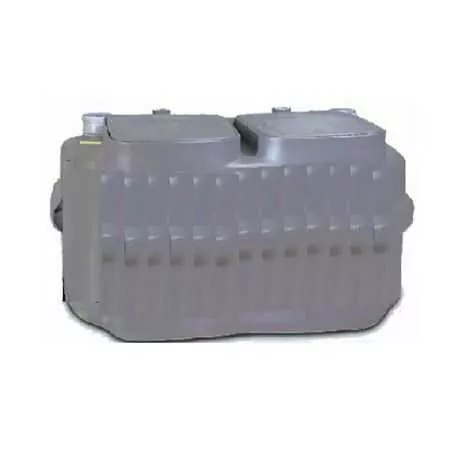

SAR 550-TOP 4 - 1 HP Rainwater Lifting Station
550 litre tank. Pedrollo TOP 4 pump. Discharge flow rate up to 320 l/min (19.2 m³/h). Head up to 12.5 m. 0.75 Kw (1 HP) motor.
Telephone support for information before purchasing.
After-sales assistance for product installation.
Description
The SAR 550-TOP 4 is a rainwater storage and lifting station. It consists of a Pedrollo TOP 4 lifting pump and a 550-litre tank.
Data sheet
- Motor connection
- SINGLE PHASE
- Power (HP)
- 1
- Absorption at 230V (A)
- 4.5
- Delivery port
- 1 "1/2
- Body Pump
- Technopolymer
- Impeller
- Noryl
- Motor shaft
- Stainless steel EN 10088-3 1.4104
- Check valve
- no
- Degree of protection
- IP 68
- Max flow (l./min.)
- 320
- Max head (m.)
- 12.5
- Container capacity (liters)
- 550
- Tank capacity (liters)
- 550
- Employments
- slightly dirty waters
- Height (cm)
- 88.4
- Width (cm)
- 147.6
- Weight kg)
- 96
- Guarantee
- 2
Models and performance SAR 550 clear water
|
|
|
|
|
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Compare with Similar Products
 SAR 550-TOP 4 - 1 HP Rainwater Lifting StationThis product 550 litre tank. Pedrollo TOP 4 pump. Discharge flow rate up to 320 l/min (19.2 m³/h). Head up to 12.5 m. 0.75 Kw (1 HP) motor. |  SAR 550-TOP 5 - 1.25 HP Rainwater Lifting Station550 litre tank. Pedrollo TOP 5 pump. Discharge flow rate up to 360 l/min (21.6 m³/h). Head up to 15 m. 0.92 Kw (1.25 HP) motor. | |
|---|---|---|
| Motor connection | Motor connection SINGLE PHASE | Motor connection SINGLE PHASE |
| Power (HP) | Power (HP) 1 | Power (HP) 1.25 |
| Absorption at 230V (A) | Absorption at 230V (A) 4.5 | Absorption at 230V (A) 5.5 |
| Delivery port | Delivery port 1 "1/2 | Delivery port 1 "1/2 |
| Body Pump | Body Pump Technopolymer | Body Pump Technopolymer |
| Impeller | Impeller Noryl | Impeller Noryl |
| Motor shaft | Motor shaft Stainless steel EN 10088-3 1.4104 | Motor shaft Stainless steel EN 10088-3 1.4104 |
| Check valve | Check valve no | Check valve no |
| Degree of protection | Degree of protection IP 68 | Degree of protection IP 68 |
| Flow rate min. (l./min.) | Flow rate min. (l./min.) -- | Flow rate min. (l./min.) 20 |
| Max flow (l./min.) | Max flow (l./min.) 320 | Max flow (l./min.) 360 |
| Min head (m.) | Min head (m.) -- | Min head (m.) 2.5 |
| Max head (m.) | Max head (m.) 12.5 | Max head (m.) 15 |
| Container capacity (liters) | Container capacity (liters) 550 | Container capacity (liters) -- |
| Tank capacity (liters) | Tank capacity (liters) 550 | Tank capacity (liters) 550 |
| Employments | Employments slightly dirty waters | Employments -- |
| Height (cm) | Height (cm) 88.4 | Height (cm) 71.5 |
| Width (cm) | Width (cm) 147.6 | Width (cm) 135 |
| Depth (cm) | Depth (cm) -- | Depth (cm) 97 |
| Weight kg) | Weight kg) 96 | Weight kg) 95.2 |
| Guarantee | Guarantee 2 | Guarantee 2 |
