SAR 550-VXm 10/50 - 1 HP Waste Water Lifting Station

Name: SAR 550-VXm 10/50 - 1 HP Waste Water Lifting Station
Brand: Pedrollo
SKU: SAR 550-VXm 10/50
Price: 2315.62 EUR
Availability: InStock

550 litre tank. Pedrollo VXm 10/50 pump. Discharge flow rate up to 550 l/min (33 m³/h). Head up to 8.5 m. 0.75 Kw (1 HP) motor.

Variants:

Make a purchase proposal

Telephone support for information before purchasing.

After-sales assistance for product installation.

Description

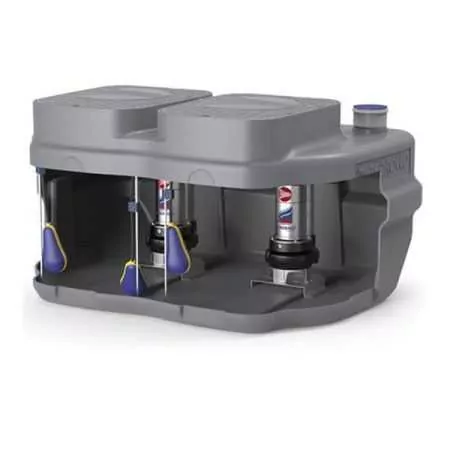

The SAR 550-VXm 10/50 is a rainwater storage and lifting station. It consists of a Pedrollo VXm 10/50 lifting pump and a 550-litre tank.

Data sheet

Motor connection: SINGLE-PHASE
Power (HP): 1
Absorption at 230V (A): 5.0
Delivery mouth: 2"
Pump body: Technopolymer
Impeller: AISI 304 stainless steel
Crankshaft: Stainless steel EN 10088-3 1.4104
Check valve: No
Degree of protection: IP 68
Max. flow rate (l./min.): 550
Max. head (m.): 8.5
Container capacity (liters): 550
Tank capacity (liters): 550
Jobs: slightly dirty waters
Height (cm): 88.4
Width (cm): 147.6
Weight (Kg): 105.1
Warranty (years): 2

Attachments

SAR data sheet

Construction and operating characteristics. Working curves, limits of use and dimensions of the Pedrollo SAR stations.

Download (1.23MB)

Models and performance SAR 550 sewage

GUY

single phase

SAR 550-RXm 4/40

SAR 550-RXm 5/40

SAR 550-VXm 10/35-ST

SAR 550-VXm 10/50-ST

SAR 550-BCm 10/50-ST

SAR 550-VXm 10/35

SAR 550-VXm 15/35

SAR 550-VXm 10/50

SAR 550-VXm 15/50

SAR 550-BCm 10/50

SAR 550-BCm 15/50

SAR 550-TRm 0.75

SAR 550-TRm 1.1

SAR 550-TRm 1.5

POWER
KW	HP
0.75	1
1.1	1.5
0.75	1
0.75	1
0.75	1
0.75	1
1.1	1.5
0.75	1
1.1	1.5
0.75	1
1.1	1.5
0.75	1
1.1	1.5
1.5	2

RESERVOIR
liters
550
550
550
550
550
550
550
550
550
550
550
550
550
550

MAX CAPACITY
l / min
280
380
400
550
600
400
500
550
650
600
750
125
140
270

MAX HEAD
m
9.5
12.5
10.5
9.5
11
10
13.5
8.5
11
11
14
15
21.5
25

MOUTH
ingr.	exited
DN 110	1 1/2 "
DN 110	2"
DN 110	1 1/2 "
DN 110	2"
DN 110	2"
DN 110	1 1/2 "

Compare with Similar Products

	SAR 550-VXm 10/50 - 1 HP Waste Water Lifting Station This product 550 litre tank. Pedrollo VXm 10/50 pump. Discharge flow rate up to 550 l/min (33 m³/h). Head up to 8.5 m. 0.75 Kw (1 HP) motor.
Price	Price €4,210.22 -45% €2,315.62
Motor connection	Motor connection SINGLE-PHASE
Power (HP)	Power (HP) 1
Absorption at 230V (A)	Absorption at 230V (A) 5.0
Delivery mouth	Delivery mouth 2"
Pump body	Pump body Technopolymer
Impeller	Impeller AISI 304 stainless steel
Crankshaft	Crankshaft Stainless steel EN 10088-3 1.4104
Check valve	Check valve No
Degree of protection	Degree of protection IP 68
Max. flow rate (l./min.)	Max. flow rate (l./min.) 550
Max. head (m.)	Max. head (m.) 8.5
Container capacity (liters)	Container capacity (liters) 550
Tank capacity (liters)	Tank capacity (liters) 550
Jobs	Jobs slightly dirty waters
Height (cm)	Height (cm) 88.4
Width (cm)	Width (cm) 147.6
Weight (Kg)	Weight (Kg) 105.1
Warranty (years)	Warranty (years) 2
