SAR 550-VXm 10/50-ST - 1 HP Waste Water Lifting Station
550 litre tank. Pedrollo VXm 10/50-ST pump. Discharge flow rate up to 550 l/min (33 m³/h). Head up to 9.5 m. 0.75 Kw (1 HP) motor.
There are no reviews yet
Telephone support for information before purchasing.
After-sales assistance for product installation.
Description

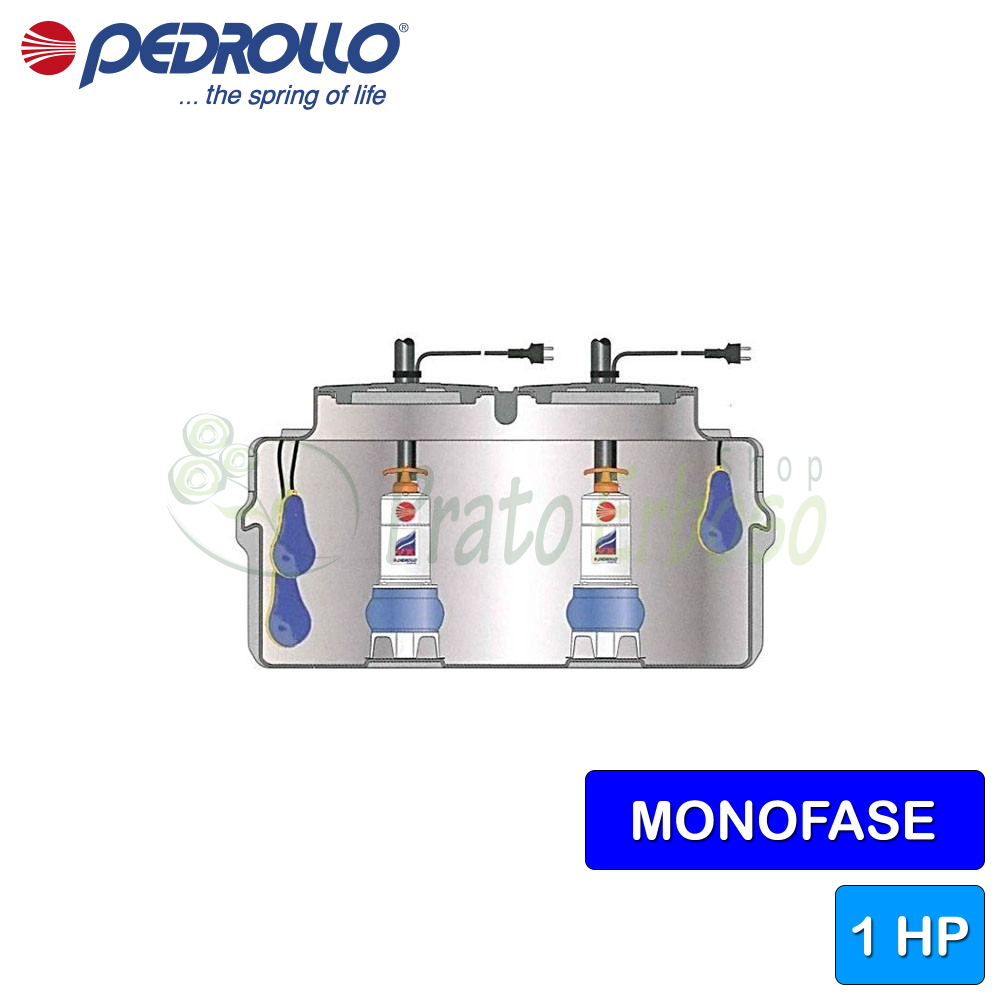

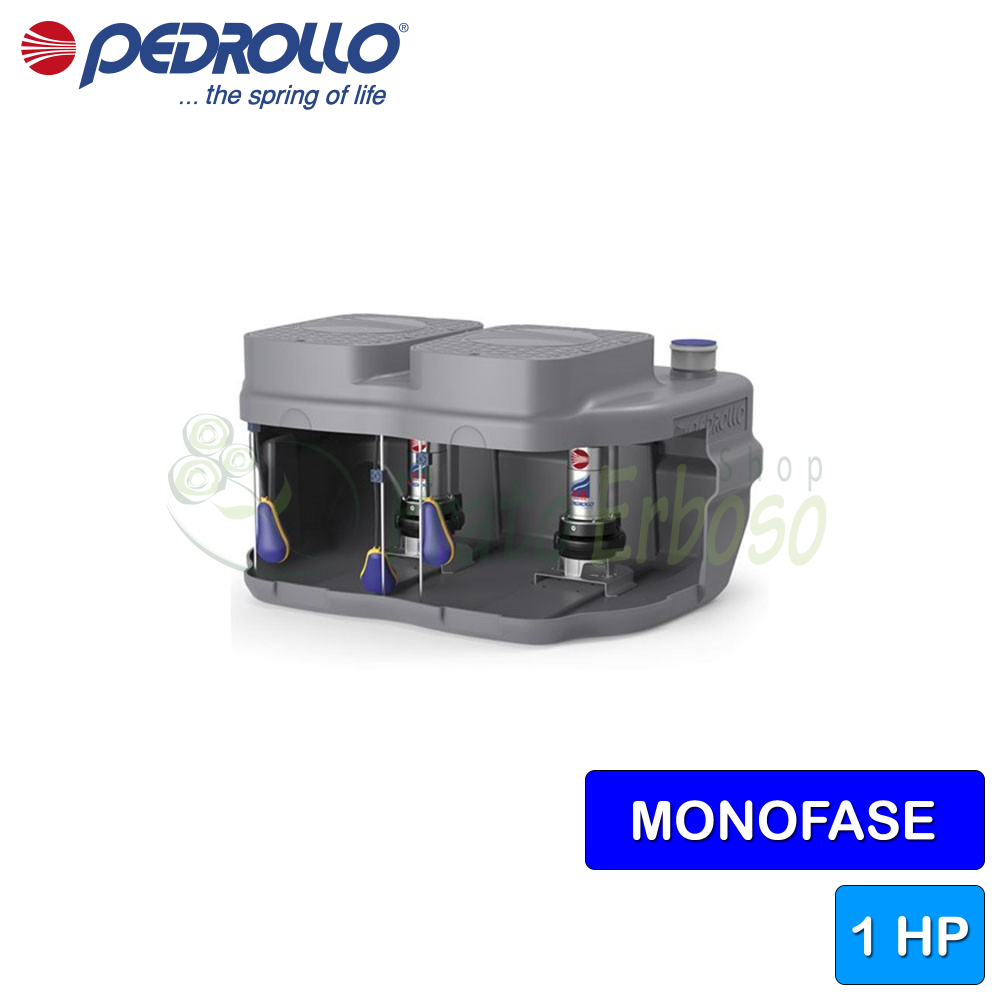

The SAR 550-VXm 10/50-ST is a rainwater storage and lifting station. It consists of a Pedrollo VXm 10/50-ST lifting pump and a 550-litre tank.
Data sheet
- Motor connection
- SINGLE PHASE
- Power (HP)
- 1
- Absorption at 230V (A)
- 5.0
- Delivery mouth
- 2"
- Pump body
- Technopolymer
- Impeller
- Noryl
- Crankshaft
- AISI 431 stainless steel
- Check valve
- No
- Degree of protection
- IP 68
- Max. flow rate (l./min.)
- 550
- Max. head (m.)
- 9.5
- Container capacity (litres)
- 550
- Tank capacity (litres)
- 550
- Jobs
- slightly dirty waters
- Height (cm)
- 88.4
- Width (cm)
- 147.6
- Weight (Kg)
- 121
- Warranty (years)
- 2
Models and performance SAR 550 sewage
|
|
|
|
|
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
