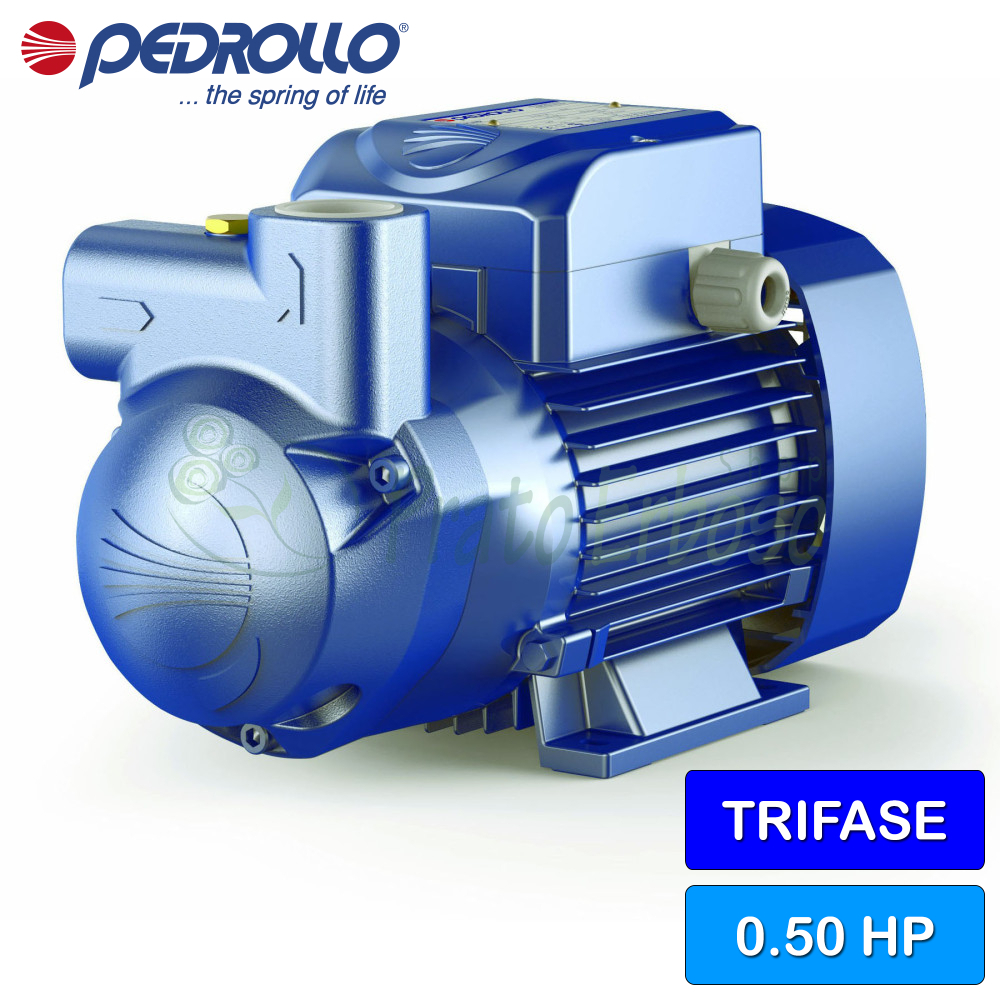

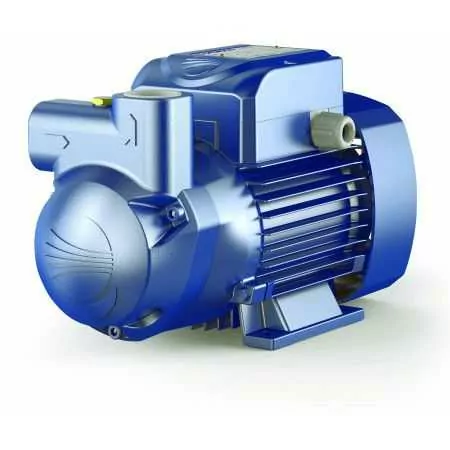

CK 50 - 0.50 HP three-phase self-priming liquid ring electric pump
Flow rate up to 40 l/min (2.4 m³/h). Head up to 35 m. Motor 0.37 Kw (0.50 HP).
Telephone support for information before purchasing.
Reinforced packaging to reduce transport damage.
After-sales assistance for product installation.
We supply all spare parts on this product.
Description
They are recommended for pumping diesel/naphtha, clean water without abrasive particles and liquids that are chemically non-aggressive for the materials from which the pump is made.
Thanks to their specific operating principle, they are an easy solution in all cases where a compact self-priming pump is required or the liquid flow is poor or irregular or mixed with air.
Installation must be carried out indoors or in any case protected from the elements.
Data sheet
- Motor connection
- THREE-PHASE
- Power (Kw)
- 0.37
- Power (HP)
- 0.50
- Absorption at 230V (A)
- 2.1
- Absorption at 400V (A)
- 1.2
- Suction mouth
- 3/4 "
- Delivery mouth
- 3/4 "
- Pump body
- Cast iron
- Impeller
- Brass
- Number of impellers
- 1
- Crankshaft
- Stainless steel EN 10088-3 1.4104
- Check valve
- No
- Degree of protection
- IP 44
- Min. flow rate (l./min.)
- 5
- Max. flow rate (l./min.)
- 40
- Min. head (m.)
- 5
- Max. head (m.)
- 35
- Jobs
- water supply, pressurization systems
- Max. liquid temperature (°C)
- 90
- Height (cm)
- 15.2
- Width (cm)
- 12
- Depth (cm)
- 25.4
- Weight (Kg)
- 6.9
- Warranty (years)
- 2
CK Models and Performance
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Construction data of the CK series
Bearings
| Pump side motor bearing | 6201 ZZ |
| Opposite side engine bearing | 6201 ZZ |
Tree holding
| Type of seal | Single Mechanical Seal |
| Shrinkage DN1=450 DN2=350 | AR-12V |
| LP diameter | 12 |
| LP fixed ring | Ceramic |
| LP rotating ring | Graphite |
| LP elastomer | Viton |
Materials
| 1.0 - Pump body | Cast iron GJL 200 EN 1561 |
| 2.1 - Seal holder cover | Brass CW617N EN 12165 |
| 3.0 - Impeller | Brass CW617N EN 12165 |
| 4.0 - Pump shaft | Stainless steel EN 1.4057 (AISI 431) |
| 6.0 - Motor holder | EN-AB 46100 aluminium |
| 6.1 - Engine cover | EN-AB 46100 aluminium |
| 7.0 - Lantern | EN-AB 46100 aluminium |
