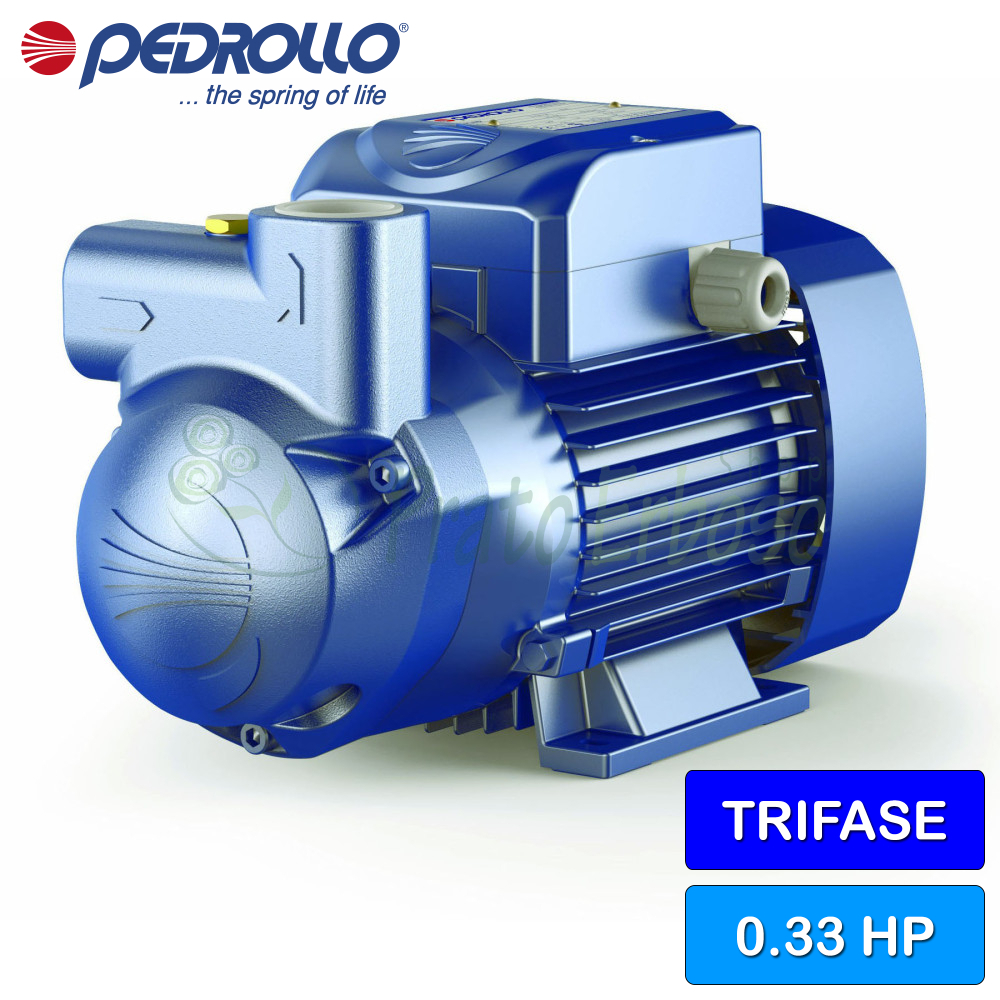

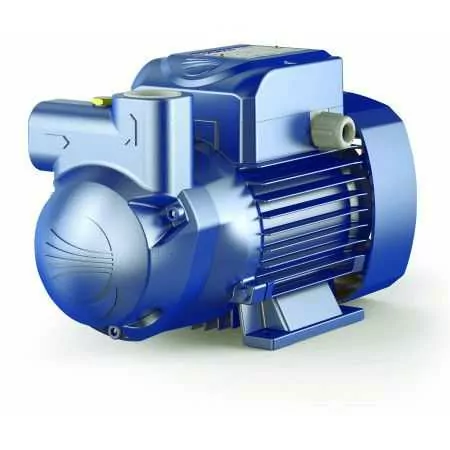

CK 50-BP - Three-phase self-priming liquid ring electric pump

Name: CK 50-BP - Three-phase self-priming liquid ring electric pump
Brand: Pedrollo
SKU: CK 50-BP
Price: 189.64 EUR
Availability: InStock

Flow rate up to 40 l/min (2.4 m³/h). Head up to 20 m. Motor 0.25 Kw (0.33 HP).

Make a purchase proposal

Telephone support for information before purchasing.

Reinforced packaging to reduce transport damage.

After-sales assistance for product installation.

We supply all spare parts on this product.

Description

They are recommended for pumping diesel/naphtha, clean water without abrasive particles and liquids that are chemically non-aggressive for the materials from which the pump is made.

Thanks to their specific operating principle, they are an easy solution in all cases where a compact self-priming pump is required or the liquid flow is poor or irregular or mixed with air.

Installation must be carried out indoors or in any case protected from the elements.

Data sheet

Motor connection: THREE-PHASE
Power (Kw): 0.25
Power (HP): 0.33
Absorption at 230V (A): 2.1
Absorption at 400V (A): 1.2
Suction mouth: 3/4 "
Delivery port: 3/4 "
Body Pump: Cast iron
Impeller: Brass
Number of impellers: 1
Motor shaft: Stainless steel EN 10088-3 1.4104
Check valve: no
Degree of protection: IP 44
Flow rate min. (l./min.): 5
Max flow (l./min.): 40
Min head (m.): 5
Max head (m.): 35
Employments: water supply, pressurization systems
Liquid temperature max. (° C): 90
Height (cm): 15.2
Width (cm): 12
Depth (cm): 25.8
Weight kg): 6.9
Guarantee: 2

Attachments

Technical data sheet CK

Construction and operating characteristics. Working curves, limits of use and dimensions of the Pedrollo CK series pumps.

Download (266.67KB)

CK models and performance

GUY

single phase

CK 50

CK 50-BP

CK 80

CK 90

POWER
KW	HP
0.37	0.50
0.25	0.33
0.55	0.75
0.75	1

PERFORMANCE
Q litres/min	H meters
5 ÷ 40	35 ÷ 5
5 ÷ 40	20 ÷ 5
5 ÷ 50	48 ÷ 10
5 ÷ 50	51 ÷ 13

MOUTH
wait.	send.
3/4"	3/4"
1"	1"

Q	m³/hour	0	0.3	0.6	0.9	1.2	1.5	1.8	2.1	2.4	3.0
Q	l/min	0	5	10	15	20	25	30	35	40	50
H	meters	35	31	27	24	20	16	13	9	5
		20	20	20	20	20	16	13	9	5
		48	46	42	38	34	30	26	22	18	10
		51	49	45	41	37	33	29	25	21	13
