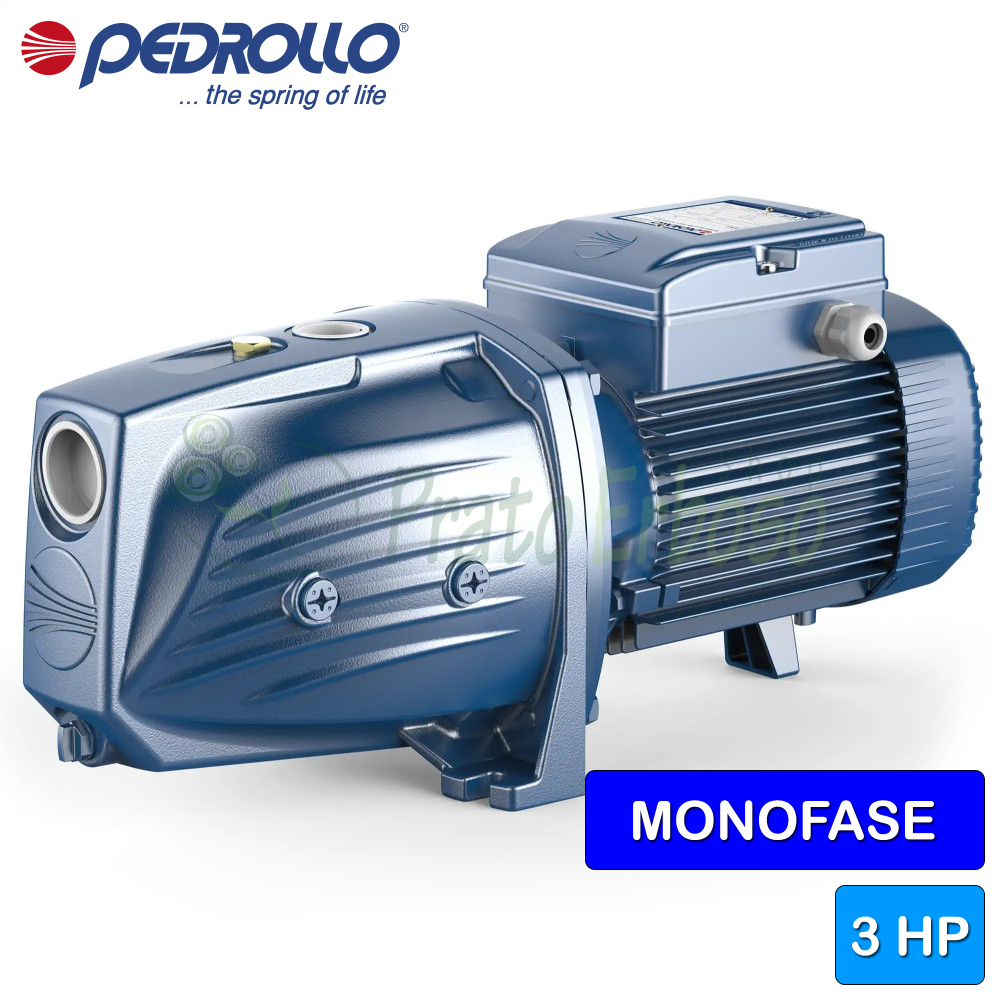

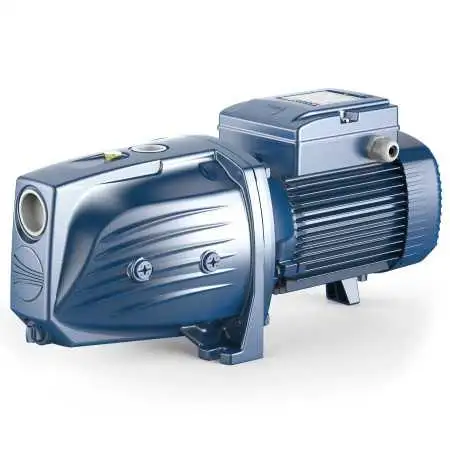

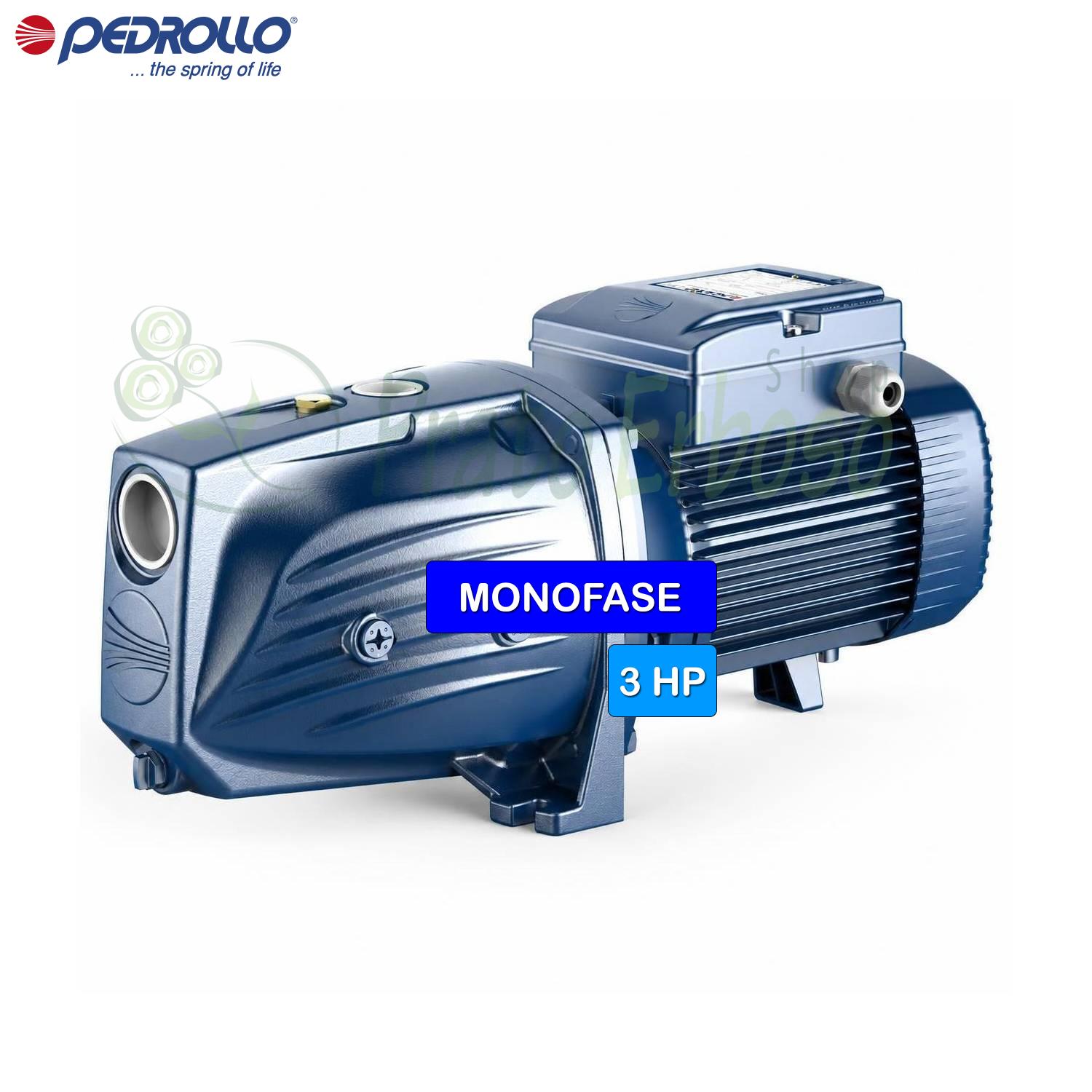

JSWm 3AL - 3 HP Single Phase Self-Priming Electric Pump
Flow rate up to 160 l/min (4.8 m³/h). Head up to 64 m. Motor 2.2 Kw (3 HP).
The self-priming electric pump JSWm 3AL by Pedrollo is recommended for pumping clean water in domestic applications.
Designed to suck water even in the presence of air mixed with the pumped liquid.
Due to its reliability, the JSWm 3AL is especially recommended for water distribution in conjunction with small or medium pressure tanks, for irrigation of vegetable gardens and gardens, etc.
The flow rate ranges from 30 to 160 liters per minute. The head ranges from 36 to 64 meters.
The suction capacity of the JSWm 3AL is up to 9 metres.
It must be powered by a single-phase voltage, has a horsepower of 3 HP and the temperature of the liquid to be pumped ranges from -15 degrees centigrade up to +40.
The JSWm 3AL has a pump body made of cast iron, the impeller and the motor body in stainless steel. These materials give the pump good strength, resistance and allow it to last over time.
Installation must be carried out in well-ventilated closed places or in any case protected from the elements.
- Motor connection
- SINGLE PHASE
- Power (Kw)
- 2.2
- Power (HP)
- 3
- Absorption at 230V (A)
- Suction mouth
- 1 "1/4
- Delivery port
- 1 "
- Body Pump
- Cast iron
- Impeller
- AISI 304 stainless steel
- Number of impellers
- 1
- Motor shaft
- AISI 304 stainless steel
- Check valve
- no
- Degree of protection
- IP 44
- Flow rate min. (l./min.)
- Max flow (l./min.)
- Min head (m.)
- Max head (m.)
- Employments
- water supply, fire prevention systems, washing systems, pressurization systems, irrigation, transfer of tanks
- Liquid temperature max. (° C)
- Motor voltage
- 230 V
- Height (cm)
- Width (cm)
- Depth (cm)
- Weight kg)
- Guarantee
- 2
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Bearings
| Pump side motor bearing | 6204 ZZ |
| Opposite side engine bearing | 6204 ZZ |
Tree holding
| Type of seal | Single Mechanical Seal |
| Shrinkage DN1=450 DN2=350 | FN-18 |
| LP diameter | 18 |
| LP fixed ring | Graphite |
| LP rotating ring | Ceramic |
| LP elastomer | NBR |
Materials
| 1.0 - Pump body | Cast iron GJL 200 EN 1561 |
| 2.1 - Seal holder cover | Cast iron GJL 200 EN 1561 |
| 3.0 - Impeller | Stainless steel EN 1.4301 (AISI 304) |
| 3.1 - Ejector group | Reinforced technopolymer |
| 4.0 - Pump shaft | Stainless steel EN 1.4057 (AISI 431) |
| 6.0 - Motor holder | EN-AB 46100 aluminium |
| 7.0 - Lantern | EN-AB 46100 aluminium |
