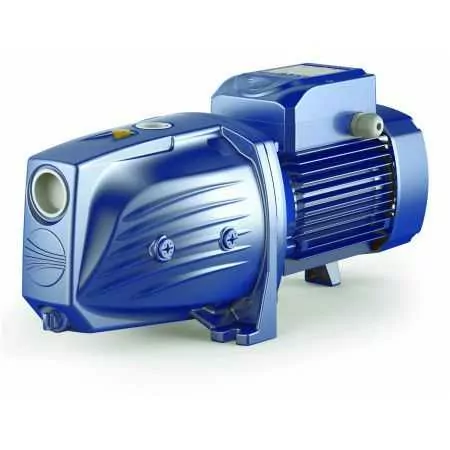

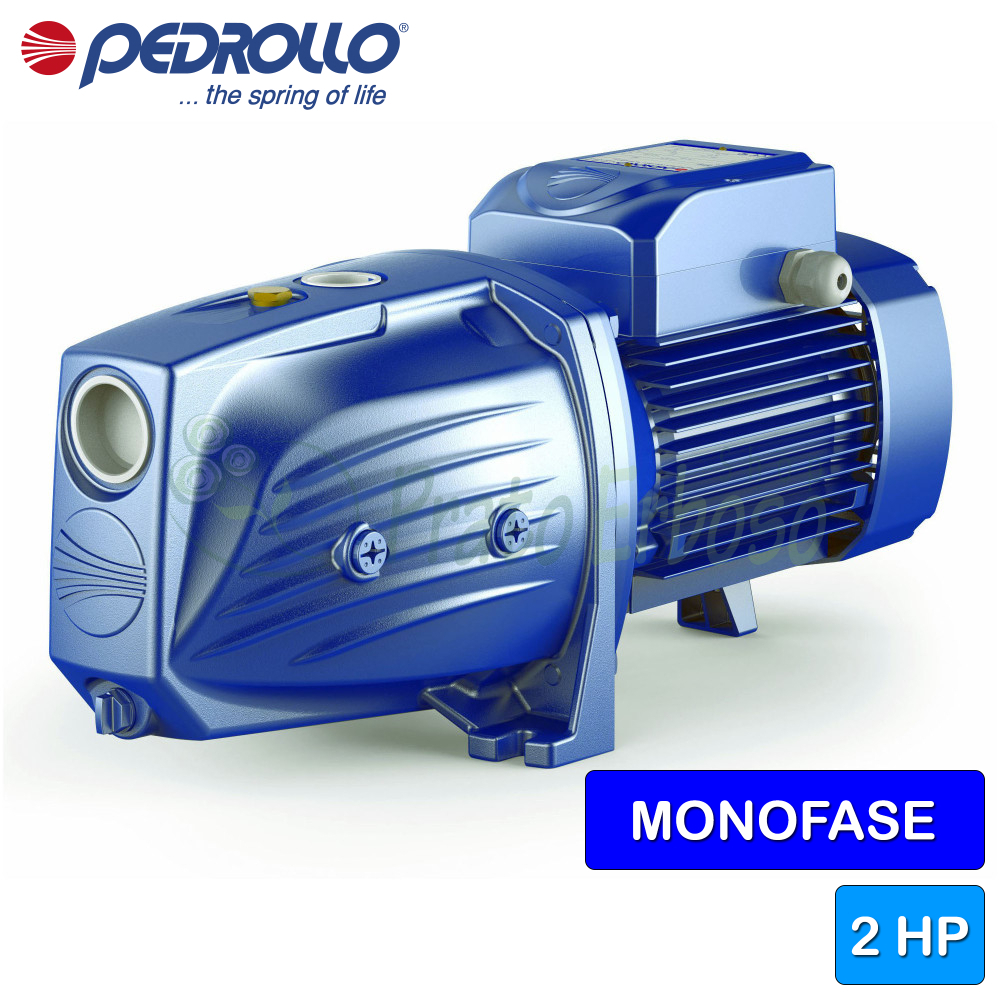

JSWm 3BL - 2 HP Single Phase Self-Priming Electric Pump

Name: JSWm 3BL - 2 HP Single Phase Self-Priming Electric Pump
Brand: Pedrollo
SKU: JSWm 3BL
Price: 339.65 EUR
Availability: InStock
Rating: 5 (1 reviews)

Flow rate up to 160 l/min (9.6 m³/h). Head up to 51 m. 1.5 Kw (2 HP) motor.

Make a purchase proposal

Telephone support for information before purchasing.

Reinforced packaging to reduce transport damage.

After-sales assistance for product installation.

We supply all spare parts on this product.

Description

It is recommended for pumping clean water and liquids that are not chemically aggressive towards the materials from which the pump is made.

The JSW self-priming pump is designed to suck water even in the presence of air mixed with the pumped liquid.

Due to its reliability and ease of use, it is recommended for domestic use, especially for water distribution in conjunction with small or medium-sized pressure tanks, for irrigation of vegetable gardens and gardens, etc.

Installation must be carried out indoors or in any case protected from the elements.

Data sheet

Motor connection: SINGLE PHASE
Power (Kw): 1.5
Power (HP): 2
Min. flow rate (l./min.): 30
Max. flow rate (l./min.): 160
Min. head (m.): 24
Max. head (m.): 51
Max. liquid temperature (°C): +40°C
Weight (Kg): 26.5

Attachments

Technical data sheet JSW3

Construction and operating characteristics. Working curves, limits of use and dimensions of the Pedrollo JSW3 series pumps.

Download (737.54KB)

JSWm 3 Models and Performance

GUY

three-phase

JSWm 3CH

JSWm 3BH

JSWm 3CM

JSWm 3BM

JSWm 3CL

JSWm 3BL

POWER
KW	HP
1.1	1.5
1.5	2
1.1	1.5
1.5	2
1.1	1.5
1.5	2

PERFORMANCE
Q litres/min	H meters
10 ÷ 80	62 ÷ 30
10 ÷ 80	73 ÷ 38
10 ÷ 120	54 ÷ 20
10 ÷ 120	63 ÷ 30
30 ÷ 160	44 ÷ 14
30 ÷ 160	51 ÷ 24

MOUTH
wait.	send.
1 1/4"	1"

Q	m³/hour	0	0.6	1.2	1.8	2.4	3.0	3.6	4.2	4.8	6.0	7.2	8.4	9.6
Q	l/min	0	10	20	30	40	50	60	70	80	100	120	140	160
H	meters	62	55	49	45	41	38	35	32	30
		73	68	62	56.5	52	48	44	41	38
		54	-	46	43	39.5	36.5	34	31	28.5	24	20
		63	-	56	53	49.5	47.5	44	41	39	34	30
		44	-	-	39	37	34	32	30	28	24	21	17	14
		64	-	-	58	56	54	52	50	48	45	41.5	38.5	36

Construction data of the JSW 3 series

Bearings

Pump side motor bearing	6204 ZZ
Opposite side engine bearing	6204 ZZ

Tree holding

Type of seal	Single Mechanical Seal
Shrinkage DN1=450 DN2=350	FN-18
LP diameter	18
LP fixed ring	Graphite
LP rotating ring	Ceramic
LP elastomer	NBR

Materials

1.0 - Pump body	Cast iron GJL 200 EN 1561
2.1 - Seal holder cover	Cast iron GJL 200 EN 1561
3.0 - Impeller	Stainless steel EN 1.4301 (AISI 304)
3.1 - Ejector group	Reinforced technopolymer
4.0 - Pump shaft	Stainless steel EN 1.4057 (AISI 431)
6.0 - Motor holder	EN-AB 46100 aluminium
7.0 - Lantern	EN-AB 46100 aluminium
