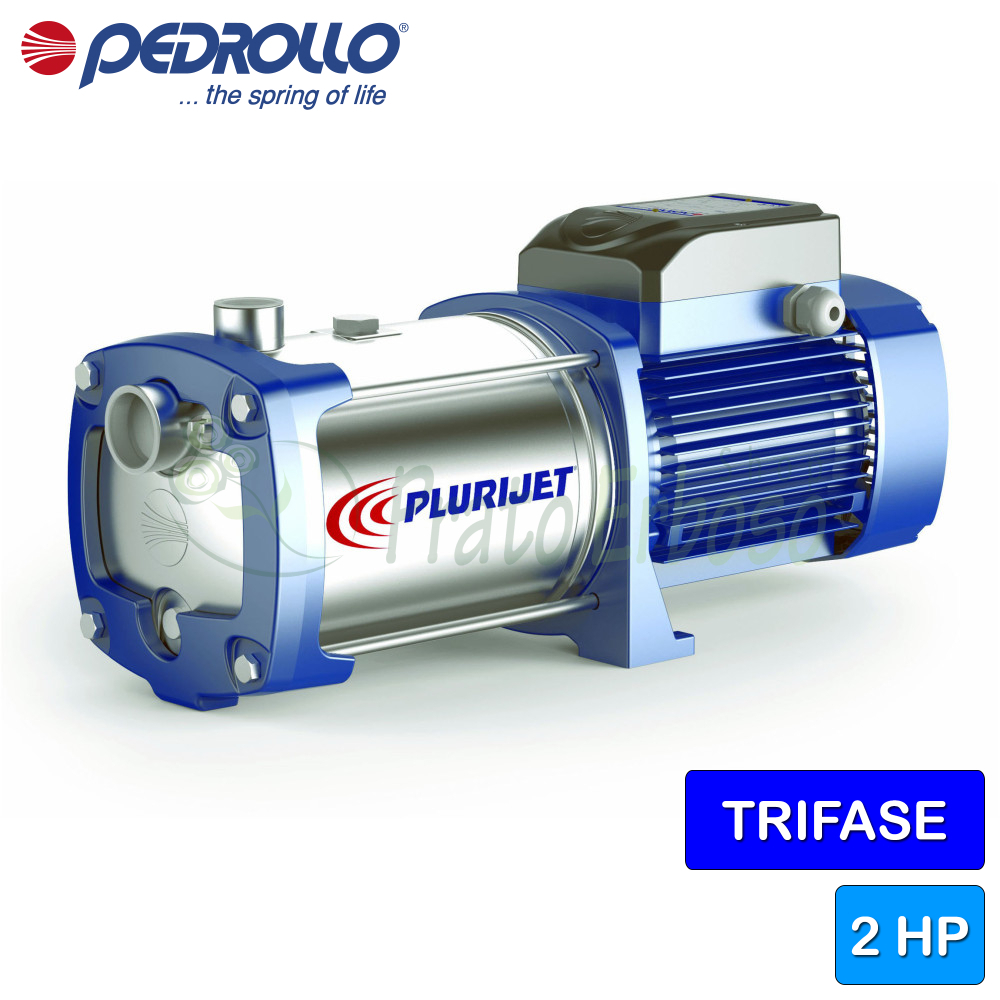

PLURIJET 4/200 - 2 HP three-phase self-priming multi-impeller electric pump
Flow rate up to 200 l/min (12 m³/h). Head up to 58 m. 1.5 kW (2 HP) motor.
Delivery Options
| Carrier | Description | Estimated Delivery | |
|---|---|---|---|
 | Mail Boxes - 2 giorni | This courier delivers within 48 hours from the moment we entrust the products to him. | Thursday 29 October - Friday 30 October |
 | Poste Italiane - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust them with the products. | Thursday 29 October - Friday 30 October |
 | DHL - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust the products to him. | Thursday 29 October - Friday 30 October |
 | Poste Italiane - 3 giorni punto di ritiro | This courier delivers within 24/72 hours from the moment we entrust them with the products. | Thursday 29 October |
Carrier: Mail Boxes - 2 giorni
Description: This courier delivers within 48 hours from the moment we entrust the products to him.
Estimated delivery:
Thursday 29 October - Friday 30 October
Carrier: Poste Italiane - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust them with the products.
Estimated delivery:
Thursday 29 October - Friday 30 October
Carrier: DHL - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust the products to him.
Estimated delivery:
Thursday 29 October - Friday 30 October
Carrier: Poste Italiane - 3 giorni punto di ritiro
Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.
Estimated delivery:
Thursday 29 October
PLURIJET 3/200 - 1.5 HP three-phase self-priming multi-impeller electric pump
PLURIJET 4/200 - 2 HP three-phase self-priming multi-impeller electric pump
PLURIJET 5/200 - 2.5 HP three-phase self-priming multi-impeller electric pump
PLURIJET 6/200 - 3 HP three-phase self-priming multi-impeller electric pump -
Telephone support for information before purchasing. -
Reinforced packaging to reduce transport damage. -
After-sales assistance for product installation. -
We supply all spare parts on this product.
The PLURIJET 4/200 self-priming electric pump from the PLURIJET series by Pedrollo is recommended for sucking clean water even in the presence of air mixed with the pumped liquid.
Versatile thanks to its excellent suction capacity which can guarantee priming up to 9 metres deep.
Perfect for reliability, silence, and low consumption, it's the perfect choice for home applications.
The PLURIJET 4/200 is suitable for water pressurization and distribution activities in conjunction with pressure tanks, for rainwater recovery and for irrigation systems.
Pedrollo 's use of stainless steel in construction guarantees maximum hygiene as all components in contact with water are made of stainless steel.
- Jobs
- water supply, pressurization systems, irrigation
- Motor connection
- THREE-PHASE
- Power (Kw)
- 1.5
- Power (HP)
- 2
- Absorption at 230V (A)
- 8.1
- Current consumption at 400V (A)
- 4.7
- Pump body
- AISI 304 stainless steel
- Impeller
- AISI 304 stainless steel
- Number of impellers
- 4
- Crankshaft
- Stainless steel EN 10088-3 1.4104
- Check valve
- No
- Minimum flow rate (l./min.)
- 5
- Max. flow rate (l./min.)
- 200
- Min. head (m.)
- 17
- Max. head (m.)
- 58
- Max. liquid temperature (°C)
- +40°C
- Degree of protection
- IP 44
- Suction mouth
- 1" 1/4
- Delivery mouth
- 1"
- Height (cm)
- 22.8
- Width (cm)
- 52.3
- Depth (cm)
- 18.5
- Weight (Kg)
- 18.7
- Warranty (years)
- 2
Use and formulation of products
- Jobs
- water supply, pressurization systems, irrigation
Engine and mechanical performance
- Motor connection
- THREE-PHASE
- Power (Kw)
- 1.5
- Power (HP)
- 2
- Absorption at 230V (A)
- 8.1
- Current consumption at 400V (A)
- 4.7
Pump components and construction
- Pump body
- AISI 304 stainless steel
- Impeller
- AISI 304 stainless steel
- Number of impellers
- 4
- Crankshaft
- Stainless steel EN 10088-3 1.4104
- Check valve
- No
Hydraulic performance and filtration
- Minimum flow rate (l./min.)
- 5
- Max. flow rate (l./min.)
- 200
- Min. head (m.)
- 17
- Max. head (m.)
- 58
Liquids and pumping conditions
- Max. liquid temperature (°C)
- +40°C
Safety and protection
- Degree of protection
- IP 44
Installation and connections
- Suction mouth
- 1" 1/4
- Delivery mouth
- 1"
Dimensions and weight
- Height (cm)
- 22.8
- Width (cm)
- 52.3
- Depth (cm)
- 18.5
- Weight (Kg)
- 18.7
Packaging, maintenance, and warranty
- Warranty (years)
- 2
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Bearings
| Pump side motor bearing | 6304 2RS-C3 |
| Opposite side engine bearing | 6204 ZZ-C3E |
Tree holding
| Type of seal | Single Mechanical Seal |
| Shrinkage DN1=450 DN2=350 | FN-18 |
| LP diameter | 18 |
| LP fixed ring | Graphite |
| LP rotating ring | Ceramic |
| LP elastomer | NBR |
Materials
| 1.0 - Pump body | Stainless steel EN 1.4301 (AISI 304) |
| 2.1 - Seal holder cover | Stainless steel EN 1.4301 (AISI 304) |
| 3.0 - Impeller | Stainless steel EN 1.4301 (AISI 304) |
| 4.0 - Pump shaft | Stainless steel EN 1.4057 (AISI 431) |
| 5.1 - Diffuser | Stainless steel EN 1.4301 (AISI 304) |
| 5.2 - Wear ring | PTFE |
| 6.0 - Motor carrier | EN-AB 46100 aluminium |
| 7.0 - Lantern | EN-AB 46100 aluminium |
Compare with Similar Products
 PLURIJET 4/200 - 2 HP three-phase self-priming multi-impeller electric pumpThis product Flow rate up to 200 l/min (12 m³/h). Head up to 58 m. 1.5 kW (2 HP) motor. |  JSW 3BL - 2 HP three-phase self-priming electric pump Flow rate up to 160 l/min (9.6 m³/h). Head up to 51 m. 1.5 Kw (2 HP) motor. | |
|---|---|---|
| Price | Price €1,068.72 -42% €619.86 | Price €640.50 -42% €371.49 |
| Jobs | Jobs water supply, pressurization systems, irrigation | Jobs water supply, pressurization systems, irrigation, washing systems, tank transfer, fire prevention systems |
| Motor connection | Motor connection THREE-PHASE | Motor connection THREE-PHASE |
| Power (Kw) | Power (Kw) 1.5 | Power (Kw) 1.1 |
| Power (HP) | Power (HP) 2 | Power (HP) 2 |
| Absorption at 230V (A) | Absorption at 230V (A) 8.1 | Absorption at 230V (A) 6.4 |
| Current consumption at 400V (A) | Current consumption at 400V (A) 4.7 | Current consumption at 400V (A) 3.7 |
| Pump body | Pump body AISI 304 stainless steel | Pump body Cast iron |
| Impeller | Impeller AISI 304 stainless steel | Impeller Brass |
| Number of impellers | Number of impellers 4 | Number of impellers 1 |
| Crankshaft | Crankshaft Stainless steel EN 10088-3 1.4104 | Crankshaft Stainless steel EN 10088-3 1.4104 |
| Check valve | Check valve No | Check valve No |
| Minimum flow rate (l./min.) | Minimum flow rate (l./min.) 5 | Minimum flow rate (l./min.) 30 |
| Max. flow rate (l./min.) | Max. flow rate (l./min.) 200 | Max. flow rate (l./min.) 160 |
| Min. head (m.) | Min. head (m.) 17 | Min. head (m.) 24 |
| Max. head (m.) | Max. head (m.) 58 | Max. head (m.) 51 |
| Max. liquid temperature (°C) | Max. liquid temperature (°C) +40°C | Max. liquid temperature (°C) +40°C |
| Degree of protection | Degree of protection IP 44 | Degree of protection IP 44 |
| Suction mouth | Suction mouth 1" 1/4 | Suction mouth 1" 1/4 |
| Delivery mouth | Delivery mouth 1" | Delivery mouth 1" |
| Height (cm) | Height (cm) 22.8 | Height (cm) 24.1 |
| Width (cm) | Width (cm) 52.3 | Width (cm) 20.6 |
| Depth (cm) | Depth (cm) 18.5 | Depth (cm) 52.2 |
| Weight (Kg) | Weight (Kg) 18.7 | Weight (Kg) 25.5 |
| Warranty (years) | Warranty (years) 2 | Warranty (years) 2 |
