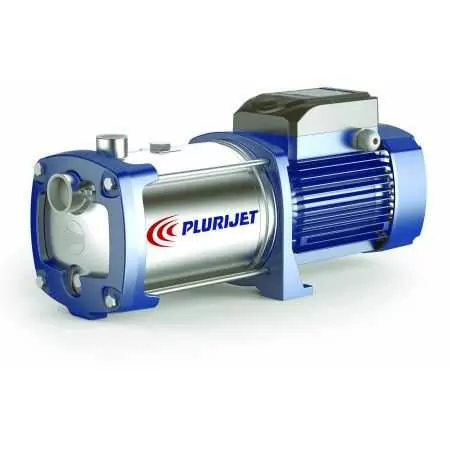

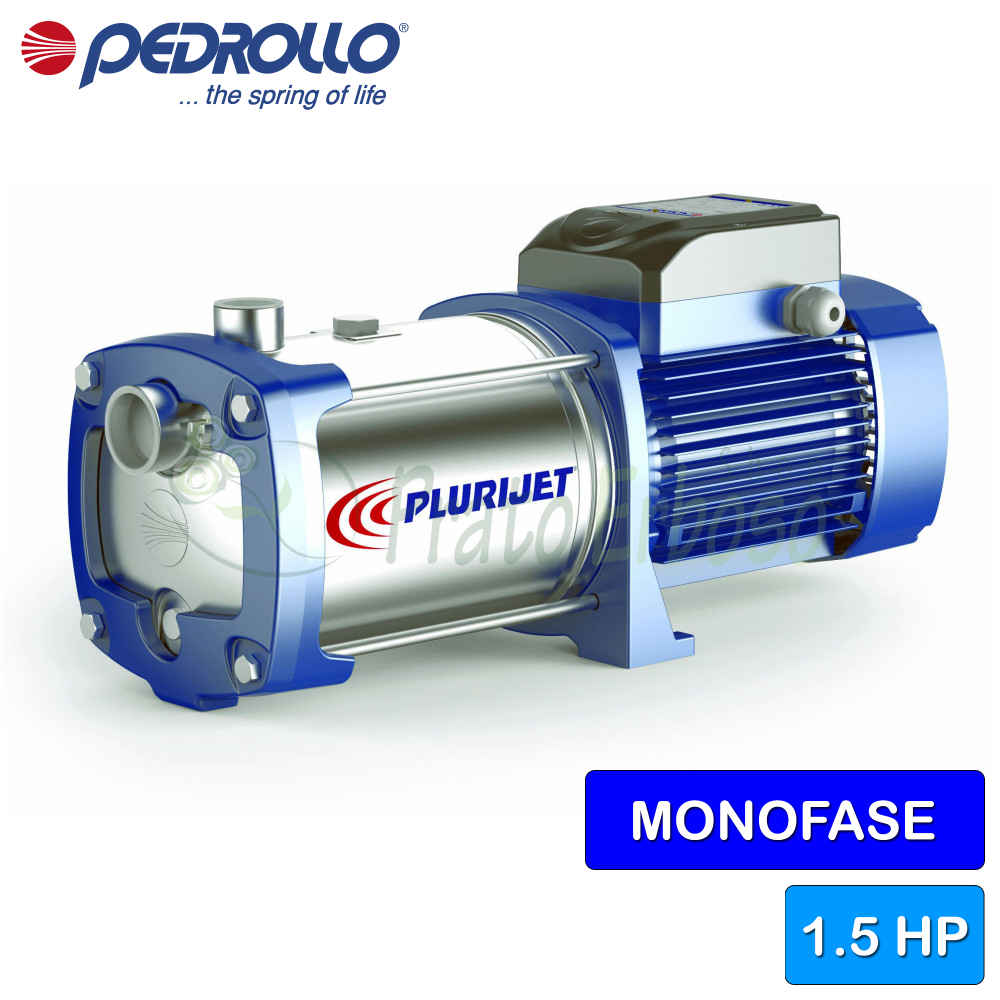

PLURIJETm 3/200 - 1.5 HP single-phase self-priming multi-impeller electric pump

Name: PLURIJETm 3/200 - 1.5 HP single-phase self-priming multi-impeller electric pump
Brand: Pedrollo
SKU: PLURIJETm 3/200
Price: 527.16 EUR
Availability: InStock

Flow rate up to 200 l/min (12 m³/h). Head up to 44 m. 1.1 Kw (1.5 HP) motor.

Variants:

Make a purchase proposal

Telephone support for information before purchasing.

Reinforced packaging to reduce transport damage.

After-sales assistance for product installation.

We supply all spare parts on this product.

Description

The PLURIJET self-priming pumps are designed to suck water even in the presence of air mixed with the pumped liquid.

Due to their silence, reliability and low energy consumption, they are recommended for domestic and civil use, in particular for the pressurization and distribution of water in combination with pressure tanks, for the recovery of rainwater, for irrigation systems, etc.

They are recommended for sucking clean water even in the presence of air mixed with the pumped liquid and liquids that are chemically non-aggressive for the materials constituting the pump.

Installation must be carried out indoors or in any case protected from the elements.

Data sheet

Motor connection: SINGLE PHASE
Power (Kw): 1.5
Power (HP): 1.5
Absorption at 230V (A): 8.5
Capacitor: 31.5 µF450 VL
Suction mouth: 1 "1/4
Delivery port: 1 "
Body Pump: AISI 304 stainless steel
Impeller: AISI 304 stainless steel
Number of impellers: 3
Motor shaft: Stainless steel EN 10088-3 1.4104
Check valve: no
Degree of protection: IP 44
Flow rate min. (l./min.): 5
Max flow (l./min.): 200
Min head (m.): 13
Max head (m.): 44
Employments: water supply, pressurization systems, irrigation
Liquid temperature max. (° C): 40
Height (cm): 22.8
Width (cm): 49.7
Depth (cm): 18.5
Weight kg): 17.6
Guarantee: 2

Attachments

PLURIJET 90-130-200 data sheet

Construction and operating characteristics. Working curves, limits of use and dimensions of the Pedrollo PLURIJET 90-130-200 series pumps.

Download (390.87KB)

Models and performances PLURIJETm 90-130-200

GUY

single phase

PLURIJETm 5/90

PLURIJETm 6/90

PLURIJETm 3/130

PLURIJETm 4/130

PLURIJETm 5/130

PLURIJETm 3/200

PLURIJETm 4/200

PLURIJETm 5/200

POWER
KW	HP
1.1	1.5
1.5	2
1.1	1.5
1.5	2
1.8	2.5
1.1	1.5
1.5	2
1.8	2.5

PERFORMANCE
Q litres/min	H meters
5 ÷ 90	80 ÷ 38
5 ÷ 90	96 ÷ 45
5 ÷ 130	49 ÷ 24
5 ÷ 130	65 ÷ 31
5 ÷ 130	81 ÷ 39
5 ÷ 200	44 ÷ 13
5 ÷ 200	58 ÷ 17
5 ÷ 200	73 ÷ 22

MOUTH
wait.	send.
1"	1"

Q	m³/hour	0	0.3	0.6	1.2	2.4	3.6	5.4	6.0	7.8	8.4	9.6	10.8	12
Q	l/min	0	2	5	10	15	20	25	30	33	35	40	50	90
H	meters	80	78	77	74	67	57	38
		96	94	Ninety two	88	80	69	45
		49	49	48.5	47.5	45	42.5	36	33.5	24
		65	65	64	63	60	56	46	43	31
		81	81	80.5	79	75	70	59	54	39
		44	43.5	43.5	43	42	40.5	37	35	29	27.5	23	18	13
		58	57.5	57.5	57	55	52.5	47	45	38	35.5	30	24	17
		87	86	85.5	85	82	78	69	67	57	53	45	36	26

Construction data of the PLURIJET 90-130-200

Bearings

Pump side motor bearing	6304 2RS-C3
Opposite side engine bearing	6204 ZZ-C3E

Tree holding

Type of seal	Single Mechanical Seal
Shrinkage DN1=450 DN2=350	FN-18
LP diameter	18
LP fixed ring	Graphite
LP rotating ring	Ceramic
LP elastomer	NBR

Materials

1.0 - Pump body	Stainless steel EN 1.4301 (AISI 304)
2.1 - Seal holder cover	Stainless steel EN 1.4301 (AISI 304)
3.0 - Impeller	Stainless steel EN 1.4301 (AISI 304)
4.0 - Pump shaft	Stainless steel EN 1.4057 (AISI 431)
5.1 - Diffuser	Stainless steel EN 1.4301 (AISI 304)
5.2 - Wear ring	PTFE
6.0 - Motor carrier	EN-AB 46100 aluminium
7.0 - Lantern	EN-AB 46100 aluminium
