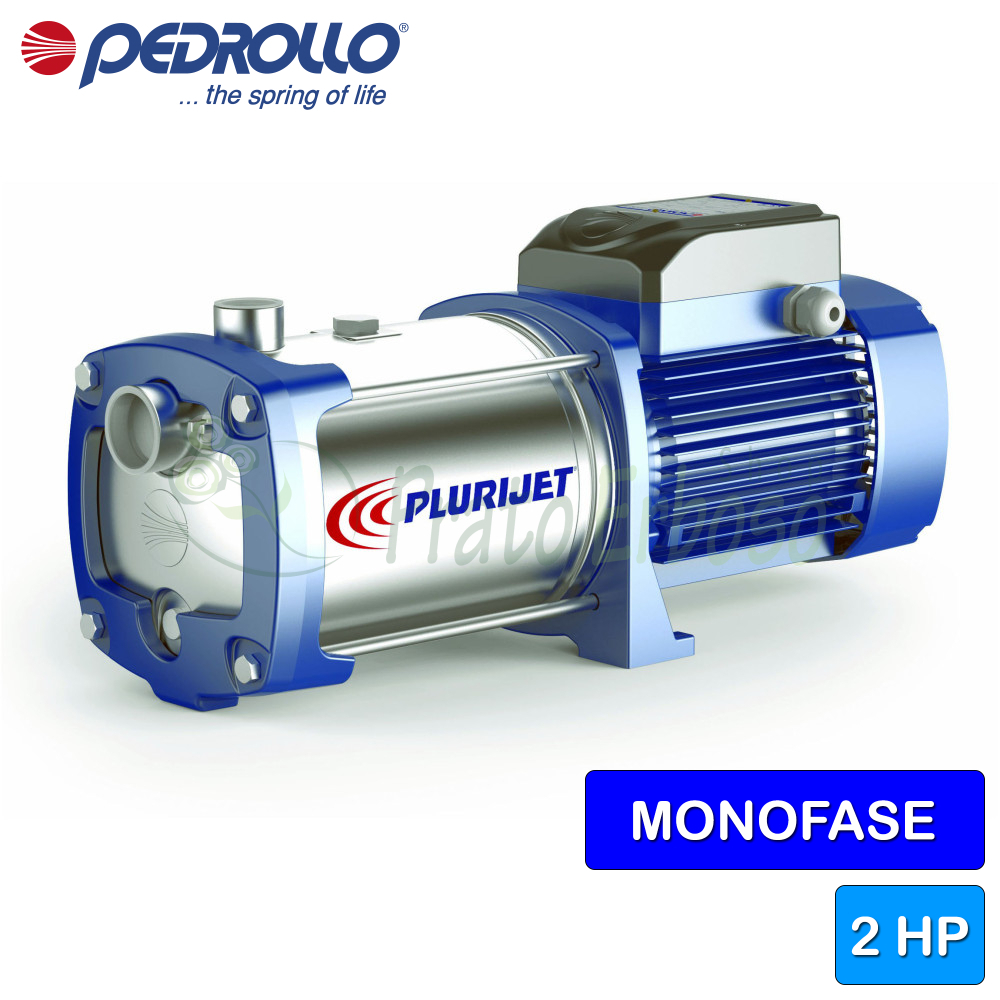

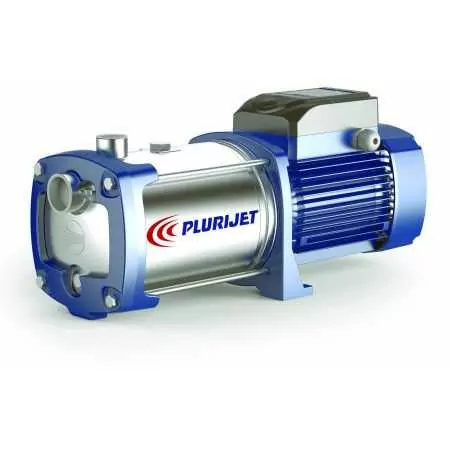

PLURIJETm 4/200 - 2 HP single-phase self-priming multi-impeller electric pump
Flow rate up to 200 l/min (12 m³/h). Head up to 58 m. 1.5 Kw (2 HP) motor.
The PLURIJET self-priming pumps are designed to suck water even in the presence of air mixed with the pumped liquid.
Due to their silence, reliability and low energy consumption, they are recommended for domestic and civil use, in particular for the pressurization and distribution of water in combination with pressure tanks, for the recovery of rainwater, for irrigation systems, etc.
They are recommended for sucking clean water even in the presence of air mixed with the pumped liquid and liquids that are chemically non-aggressive for the materials constituting the pump.
Installation must be carried out indoors or in any case protected from the elements.
- Motor connection
- SINGLE PHASE
- Power (Kw)
- 1.5
- Power (HP)
- 2
- Absorption at 230V (A)
- 10.5
- Capacitor
- 45 µF450 VL
- Suction mouth
- 1 "1/4
- Delivery mouth
- 1 "
- Pump body
- AISI 304 stainless steel
- Impeller
- AISI 304 stainless steel
- Number of impellers
- 4
- Crankshaft
- Stainless steel EN 10088-3 1.4104
- Check valve
- No
- Degree of protection
- IP 44
- Min. flow rate (l./min.)
- 5
- Max. flow rate (l./min.)
- 200
- Min. head (m.)
- 17
- Max. head (m.)
- 58
- Jobs
- water supply, pressurization systems, irrigation
- Max. liquid temperature (°C)
- 40
- Height (cm)
- 22.8
- Width (cm)
- 52.3
- Depth (cm)
- 18.5
- Weight (Kg)
- 19.7
- Warranty (years)
- 2
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Bearings
| Pump side motor bearing | 6304 2RS-C3 |
| Opposite side engine bearing | 6204 ZZ-C3E |
Tree holding
| Type of seal | Single Mechanical Seal |
| Shrinkage DN1=450 DN2=350 | FN-18 |
| LP diameter | 18 |
| LP fixed ring | Graphite |
| LP rotating ring | Ceramic |
| LP elastomer | NBR |
Materials
| 1.0 - Pump body | Stainless steel EN 1.4301 (AISI 304) |
| 2.1 - Seal holder cover | Stainless steel EN 1.4301 (AISI 304) |
| 3.0 - Impeller | Stainless steel EN 1.4301 (AISI 304) |
| 4.0 - Pump shaft | Stainless steel EN 1.4057 (AISI 431) |
| 5.1 - Diffuser | Stainless steel EN 1.4301 (AISI 304) |
| 5.2 - Wear ring | PTFE |
| 6.0 - Motor carrier | EN-AB 46100 aluminium |
| 7.0 - Lantern | EN-AB 46100 aluminium |
