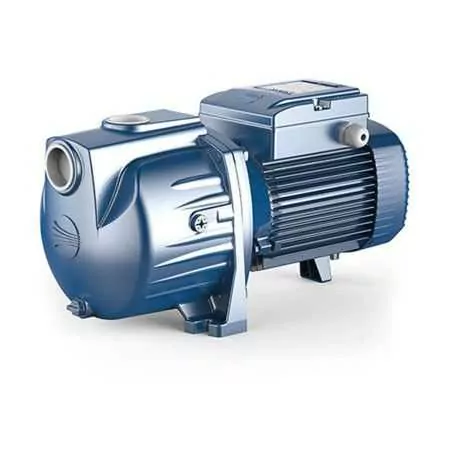

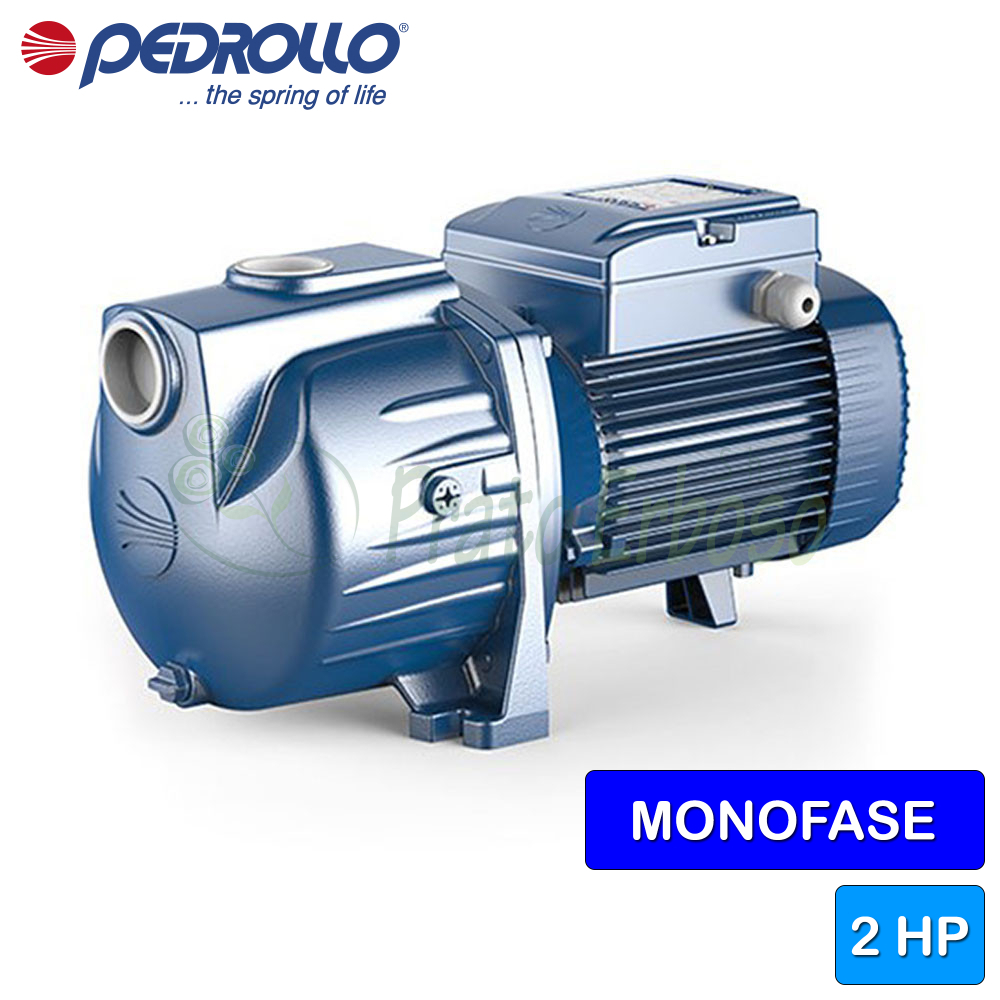

SKRm 1.5 - 2 HP single-phase self-priming electric pump
Flow rate up to 300 l/min (18 m³/h). Head up to 25.5 m. 1.5 Kw (2 HP) motor.
The Pedrollo SKRm 1.5 self-priming electric pump is recommended for pumping clean water and liquids that are chemically non-aggressive for the materials from which the pump is made.
It has a flow rate that varies from 50 to 300 litres per minute with a head of 15 to 25.5 metres.
It is designed to suck water even in the presence of air mixed with the pumped liquid. For their reliability and ease of use, they are recommended for domestic and civil use, especially for the distribution of water in combination with pressure tanks, for irrigation of vegetable gardens and gardens.
Installation must be carried out indoors or in any case protected from the elements.
- Motor connection
- SINGLE PHASE
- Power (Kw)
- 1.5
- Power (HP)
- 2
- Absorption at 230V (A)
- 2.8
- Suction mouth
- 1 "1/2
- Delivery port
- 1 "1/2
- Body Pump
- Cast iron
- Impeller
- Noryl
- Number of impellers
- 1
- Motor shaft
- AISI 431 stainless steel
- Check valve
- no
- Degree of protection
- IP 44
- Flow rate min. (l./min.)
- 5
- Max flow (l./min.)
- 60
- Min head (m.)
- 10
- Max head (m.)
- 35
- Employments
- water supply, pressurization systems, transfer of tanks
- Liquid temperature max. (° C)
- 40
- Motor voltage
- 230 V
- Height (cm)
- 18.2
- Width (cm)
- 18.2
- Depth (cm)
- 36.1
- Weight kg)
- 7.1
- Guarantee
- 2
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||
Bearings
| Pump side motor bearing | 6204 ZZ |
| Opposite side engine bearing | 6204 ZZ |
Tree holding
| Type of seal | Single Mechanical Seal |
| Pump side model | FN-18 |
| LP diameter | 18 |
| LP fixed ring | Graphite |
| LP rotating ring | Ceramic |
| LP elastomer | NBR |
Materials
| 1.0 - Pump body | Cast iron GJL 200 EN 1561 |
| 2.1 - Seal holder cover | Cast iron GJL 200 EN 1561 |
| 3.0 - Impeller | Reinforced technopolymer |
| 4.0 - Pump shaft | Stainless steel EN 1.4057 (AISI 431) |
| 5.1 - Diffuser | Reinforced technopolymer |
| 6.0 - Motor holder | EN-AB 46100 aluminium |
| 7.0 - Lantern | EN-AB 46100 aluminium |
