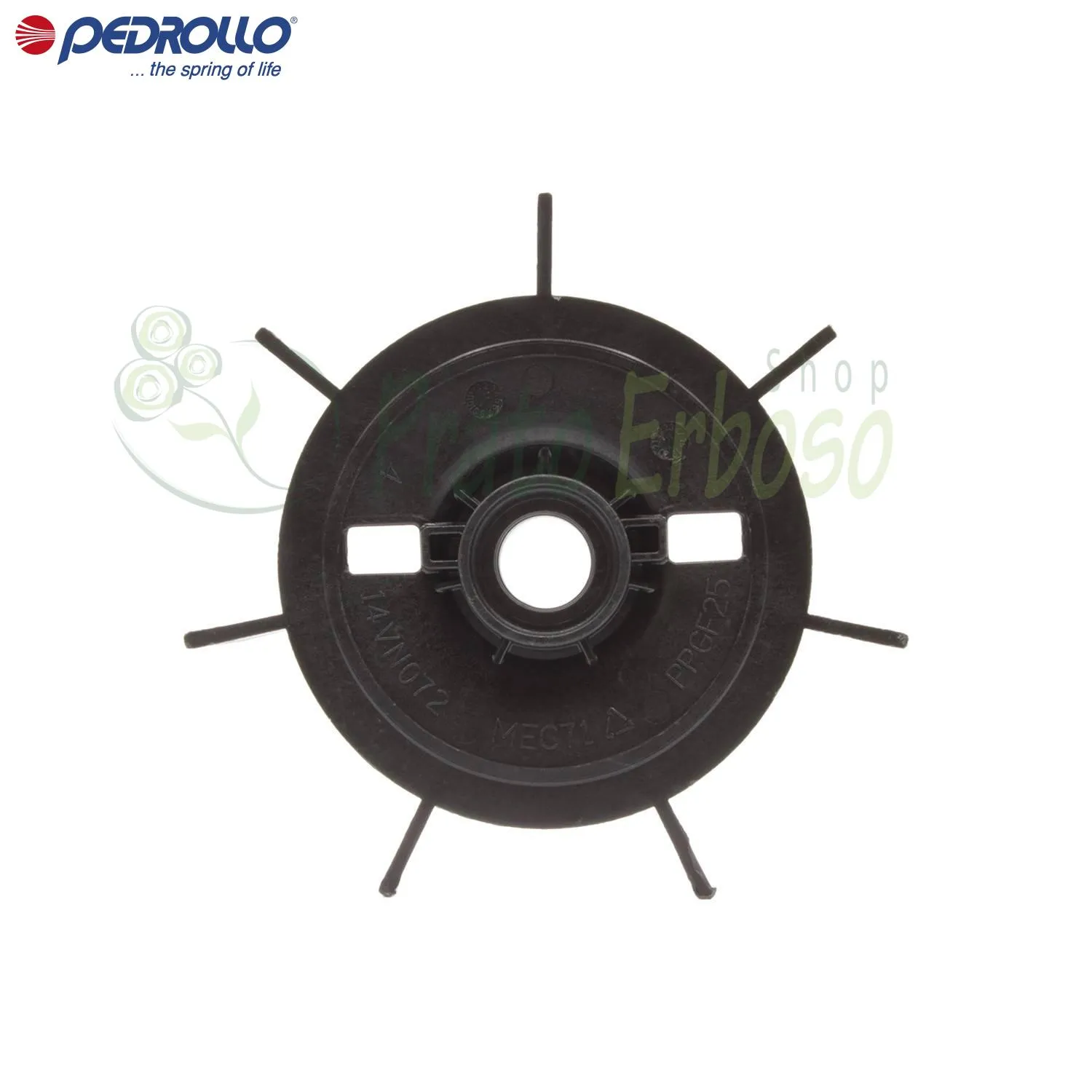

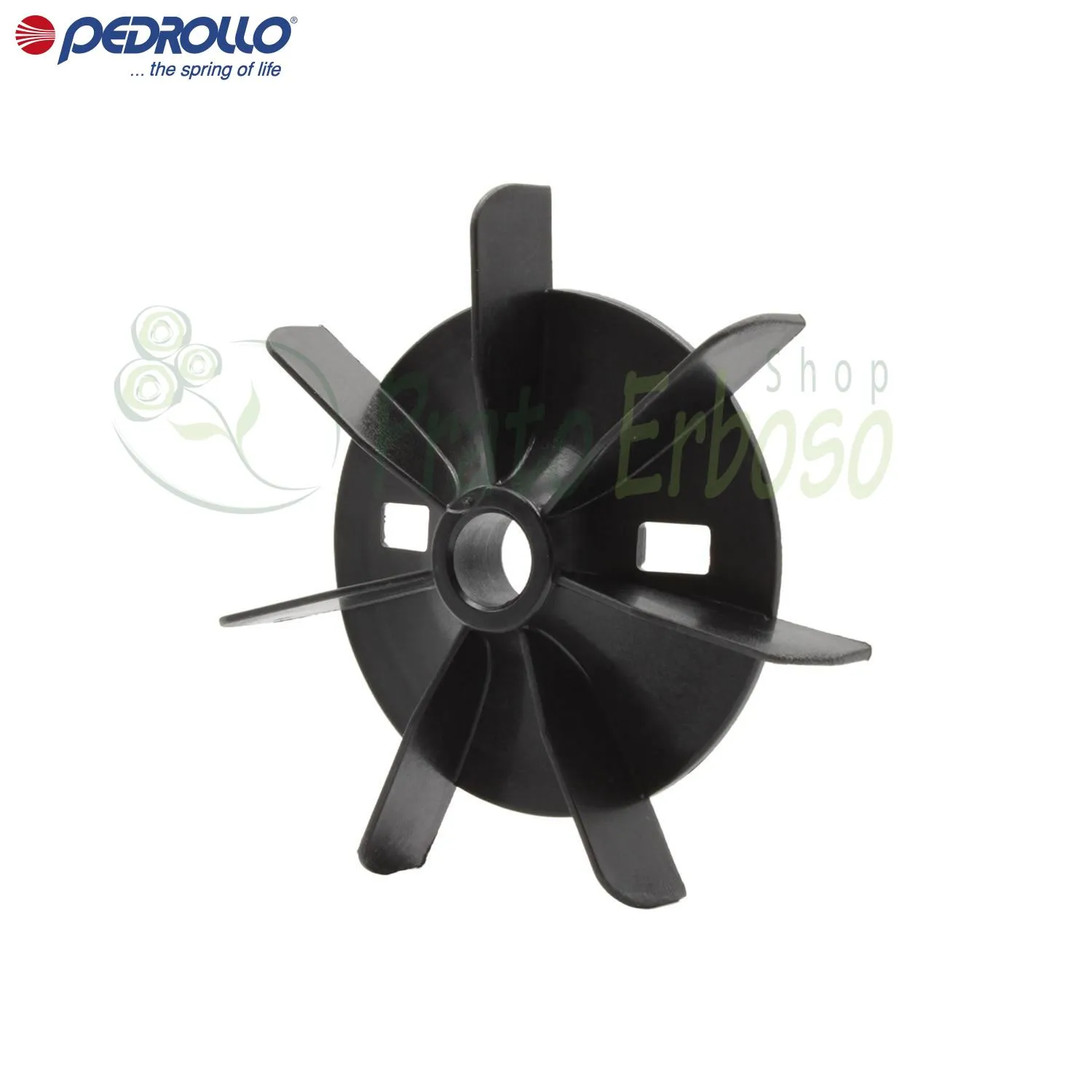

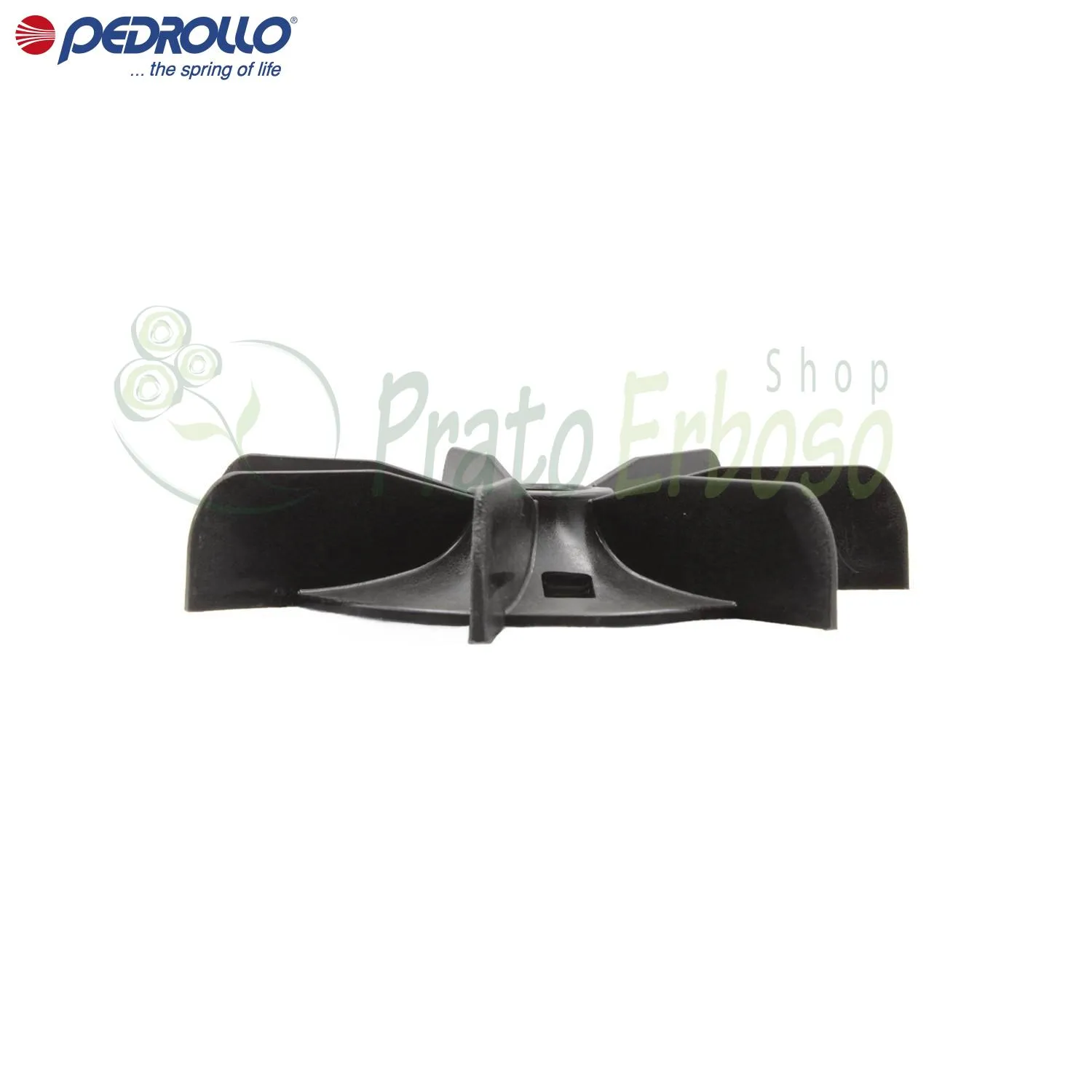

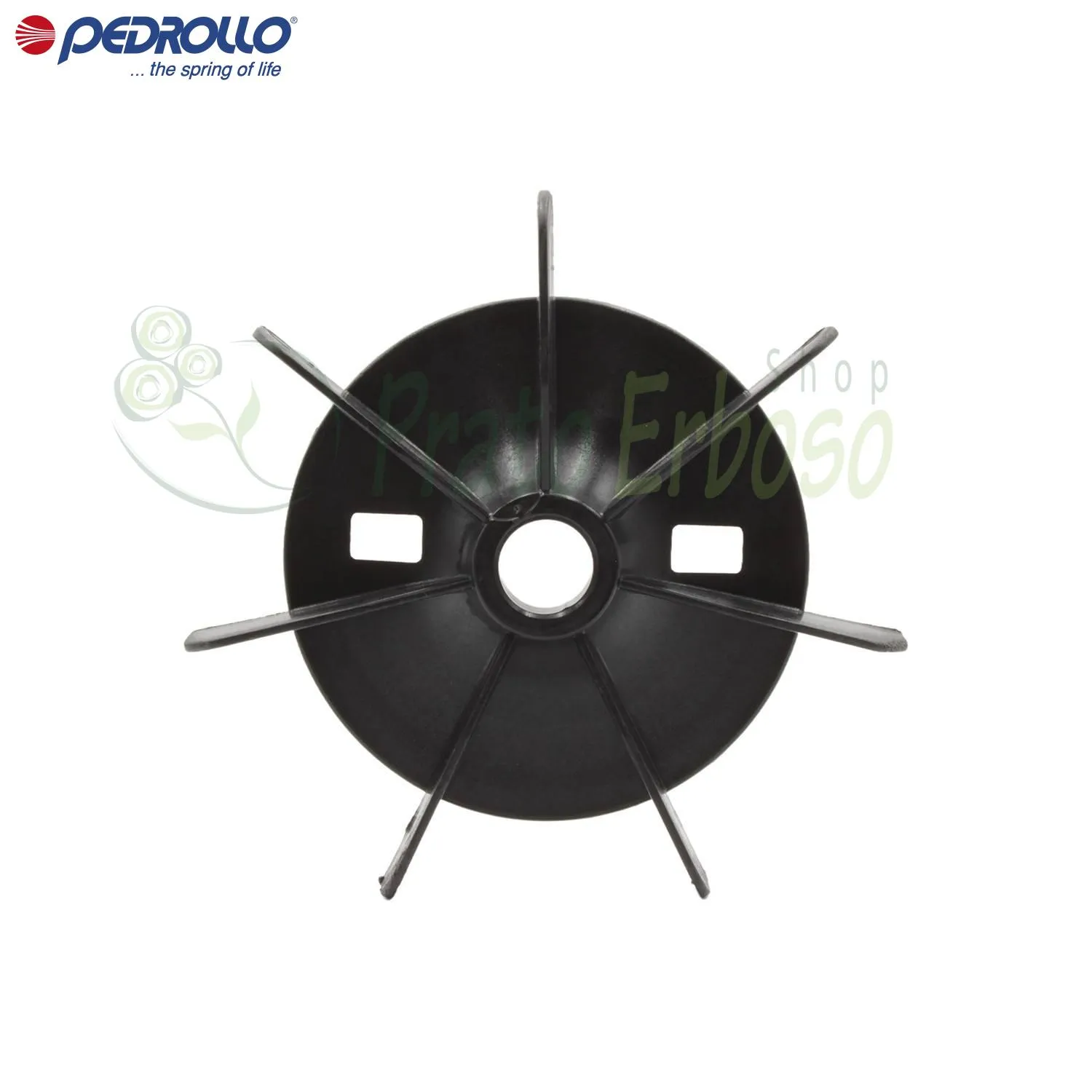

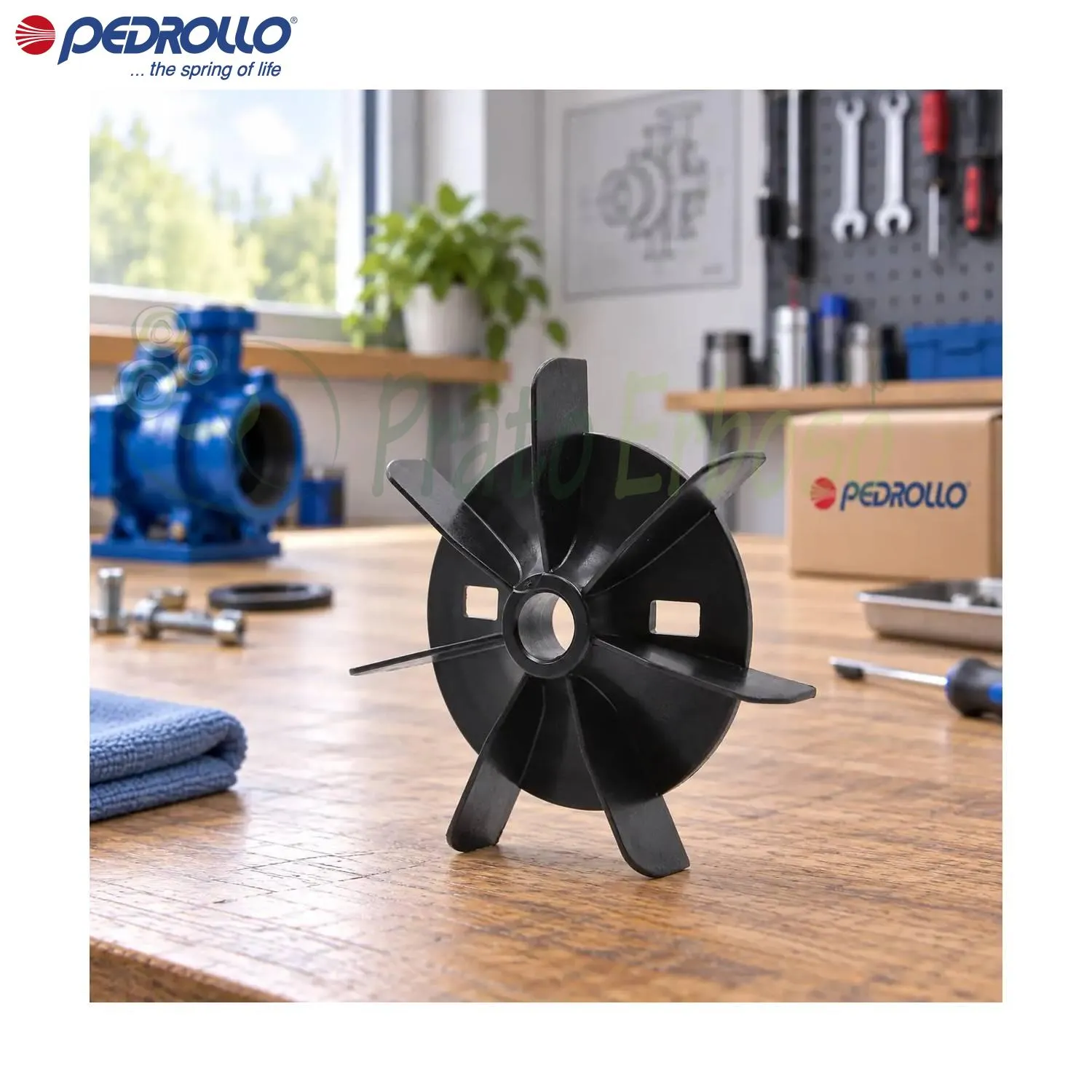

FAN-71 - Fan for electric pump, 14.5 mm shaft

The Pedrollo FAN-71 fan is recommended for cooling the motor of Pedrollo electric pumps.

The fan has a diameter of 114 mm and a height of 20 mm. The crankshaft diameter is 14.5 mm.

The FAN-71 fan rotates together with the shaft and generates the airflow needed to cool the engine during.

During operation, the motor generates heat, mainly due to electrical losses in the windings and mechanical losses.

The FAN-71 directly exploits the rotation of the shaft. Its blades move the ambient air and produce a forced flow of cooling around the motor.

The air is guided by the fan cover and circulated over the outer surface of the engine. This increases the heat exchange between the engine and the ambient air.

The FAN-71 serves to maintain the engine temperature within suitable operating conditions.

It is mounted on the rear shaft of the electric motor.

It's important to keep the fan in top condition. If it's broken, cracked, warped, or blocked, airflow will decrease, which could increase engine temperatures.

Made of plastic material, Pedrollo has created a lightweight fan, with low rotational inertia, resistant to corrosion and easily manufactured with blades and hub in a single element.

Original spare part compatible with the electric pumps PK 70, PK 80, PK 90, PKS 70, PKS 80, PQ 70, PQ 80, PQ 90, PV 70-90, PQA 70, PQA 72, PQA 80, PQA 82, PQA 90, CP 150-158, AL-RED 135, CP 150-ST4, CP 150-ST6, CP 158-ST4, CP 158-ST6, HF 51A, HF 5B, HF 4, NGA 1B, NGA 1A, NGA 1B-PRO, NGA 1A-PRO, 2CP 25/130N, CK 80E, CK 90E, CK 90E-INT, CKR 80E, CKRM 90E, CKR 90E, JSW 2C, JSW 2CM, JSW 2B, JSW 2A, JSW 2CL, JSW 2AX, JCR 2A, JCR 2B, JCR 2CL, JCR 2C, JCR 15M, PLURIJET 4/100-N, 4CP 100, 4CP 100-C, 4CR 100-N, 5CR 80-N, 5CR 80, 4CR 100, 5CR 100 by Pedrollo .
