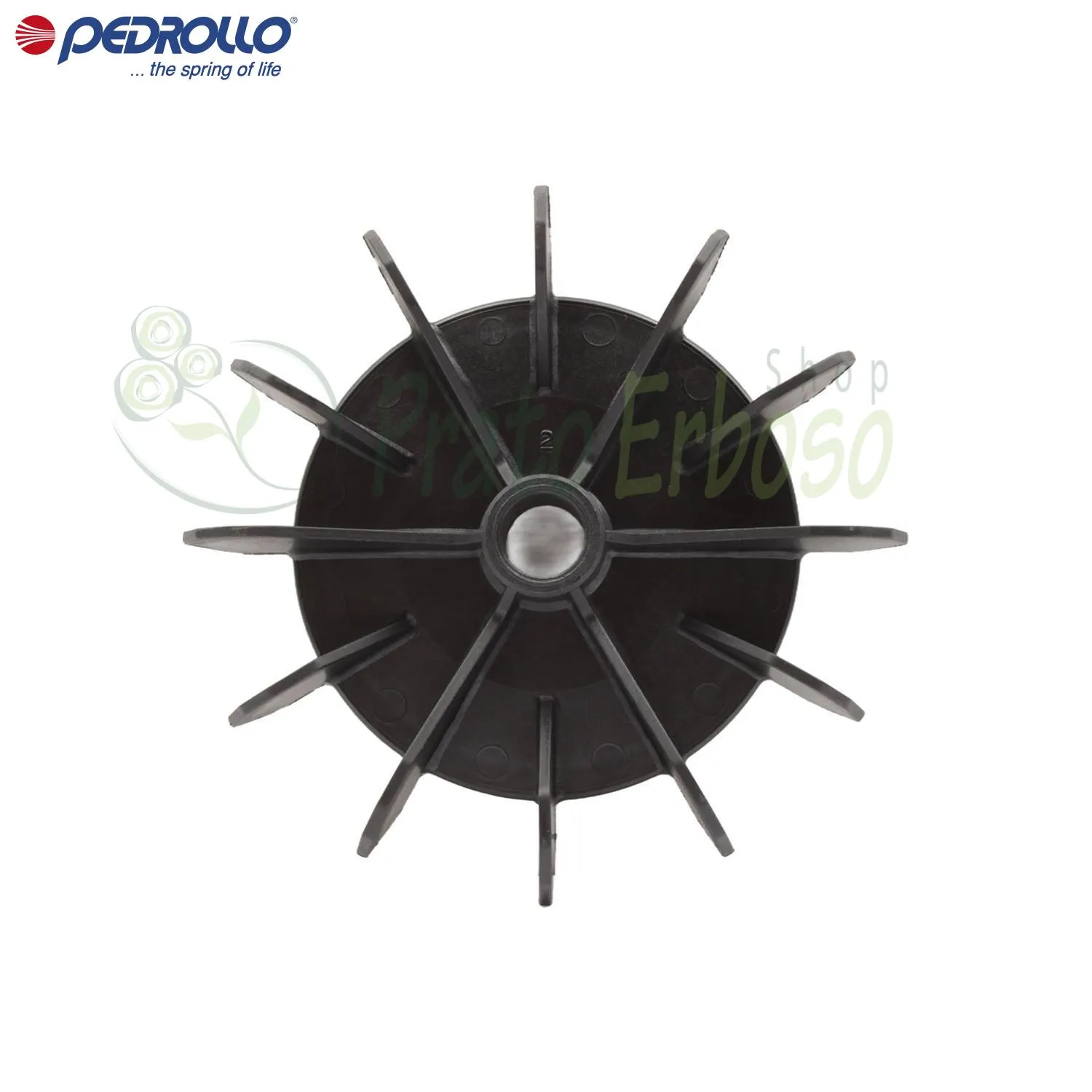

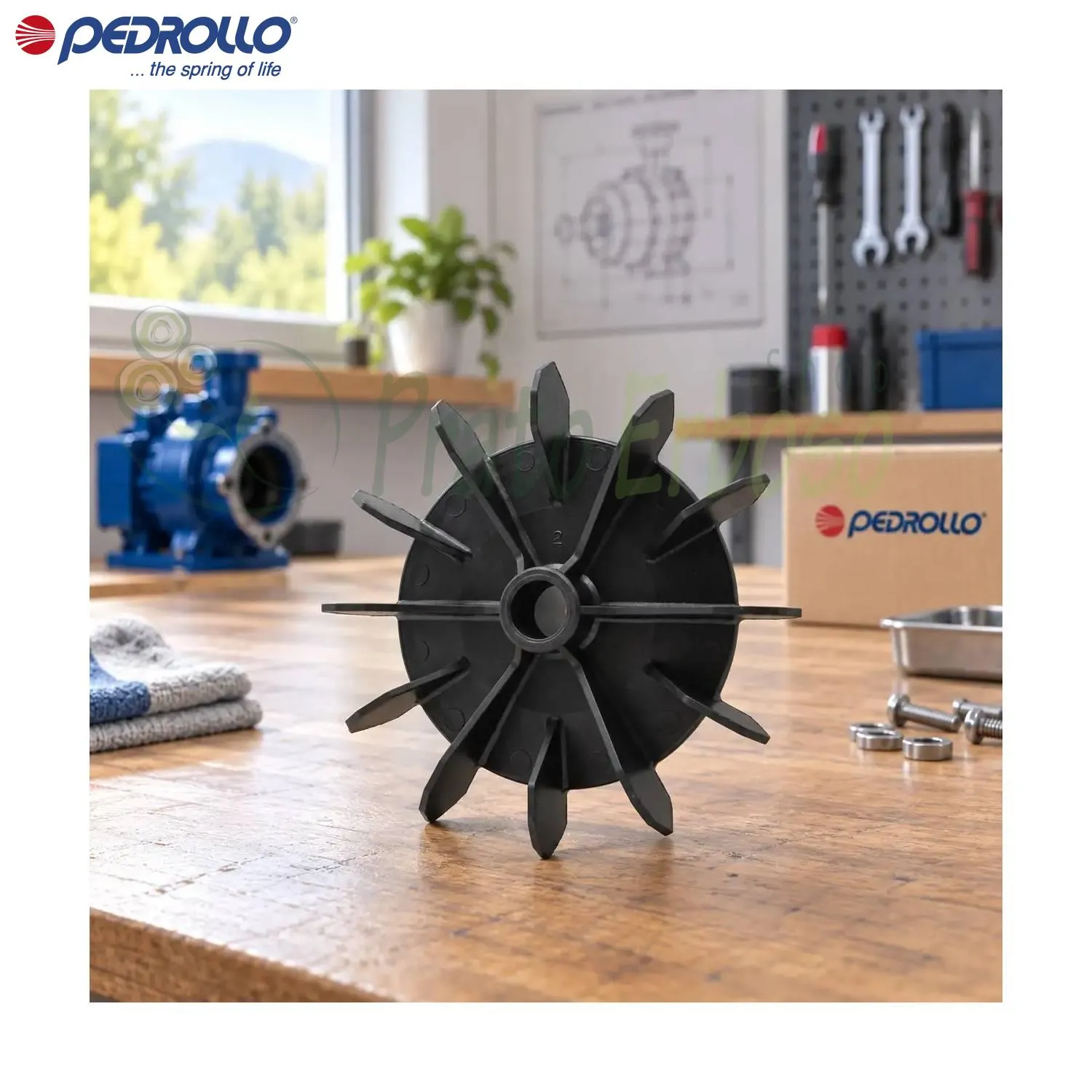

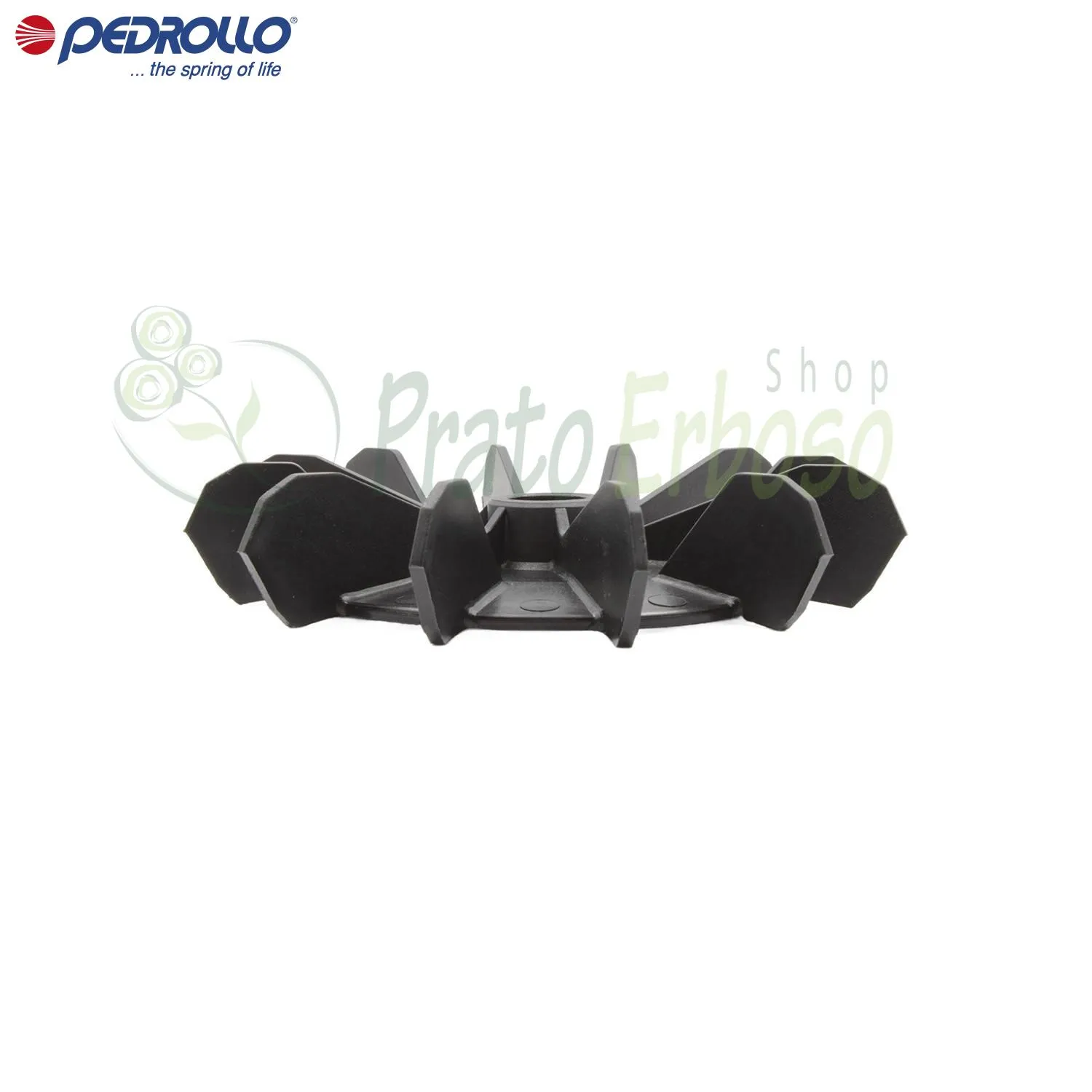

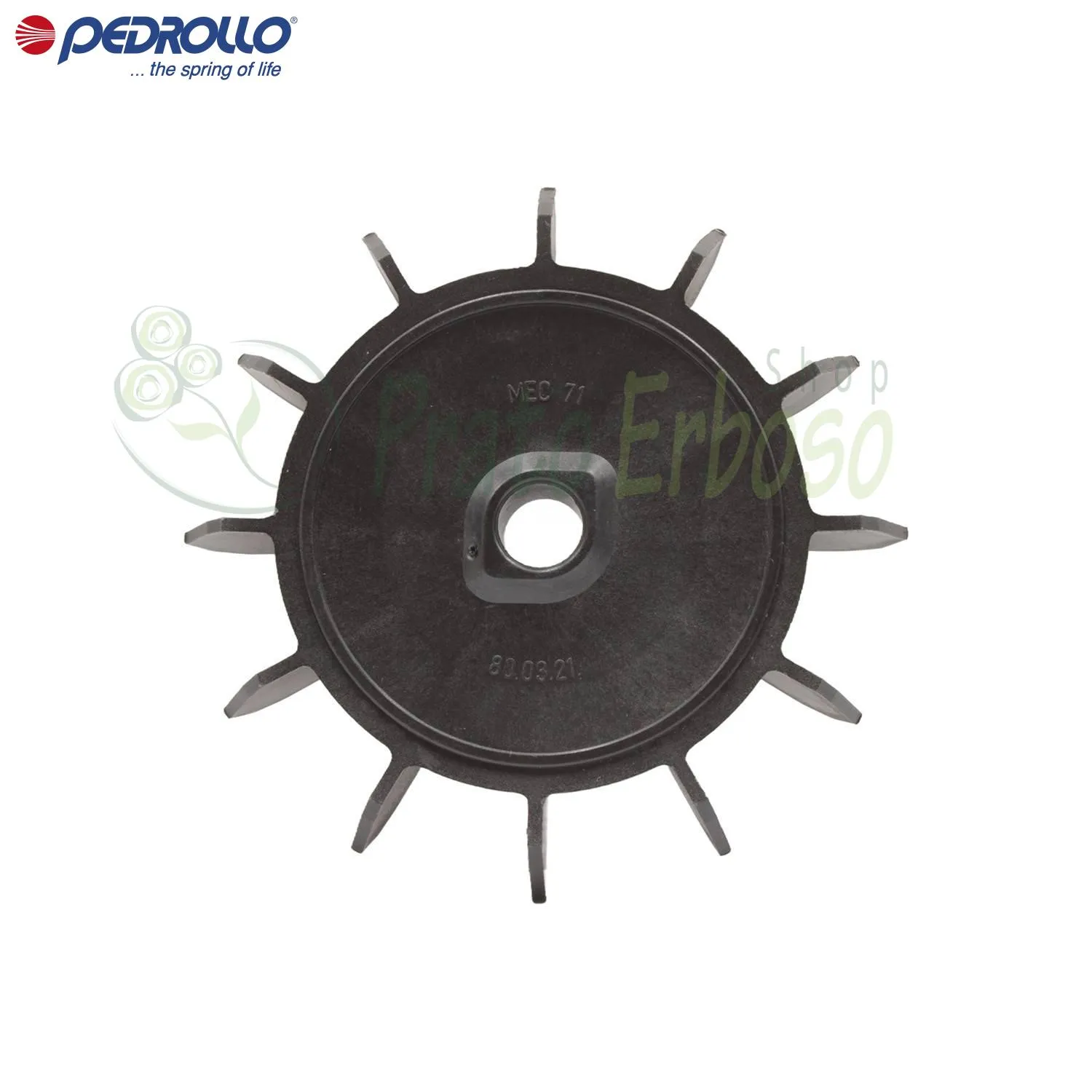

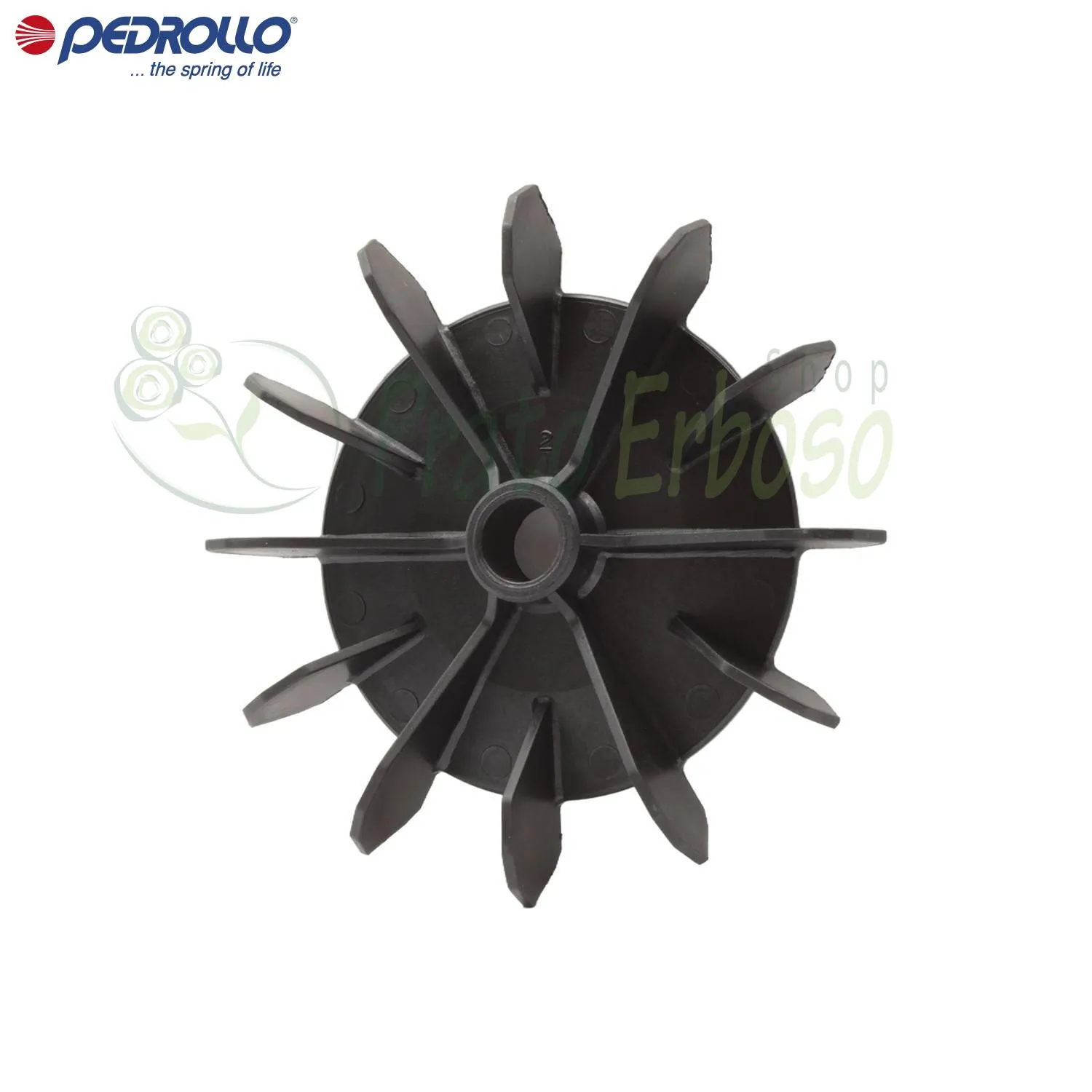

FAN-71R - Fan for electric pump, 14.5 mm shaft

The Pedrollo FAN-71R fan is recommended for cooling the motor of Pedrollo electric pumps.

The fan has a diameter of 125 mm and a height of 24 mm. The crankshaft diameter is 14.5 mm.

The FAN-71R fan rotates with the shaft and generates the airflow needed to cool the engine during operation.

During operation, the motor generates heat, mainly due to electrical losses in the windings and mechanical losses.

The FAN-71R directly exploits the rotation of the shaft. Its blades move the ambient air and produce a forced flow of cooling around the motor.

The air is guided by the fan cover and circulated over the outer surface of the engine. This increases the heat exchange between the engine and the ambient air.

The FAN-71R is used to maintain the engine temperature within suitable operating conditions.

It is mounted on the rear shaft of the electric motor.

It's important to keep the fan in top condition. If it's broken, cracked, warped, or blocked, airflow will decrease, which could increase engine temperatures.

Made of plastic material, Pedrollo has created a lightweight fan, with low rotational inertia, resistant to corrosion and easily manufactured with blades and hub in a single element.

Original spare part compatible with the electric pumps PK 70, PK 80, PK 90, PKS 70, PKS 80, PQ 70, PQ 80, PQA 70, PQA 72, PQA 80, PQA 82, PQA 90, PQ 70-Bz, PQ 80-Bz, PQ 90-Bz, CP 150, CP 152, CP 158, CP 158-Bz, CP 150X, CP 152X, CP 158X, CP 158-Bz, AL-RED 135, HF 51B, HF 51A, HF 5C, HF 5B, HF 5A, HF 4, NGA 1B, NGA 1A, NGA 1BX, NGA 1AX, PRO-NGA 1B, PRO-NGA 1A, NF 128B, NF 128A, NF 128AR, 2 CP 25/130N, 2CP 25/130NX, CK 80 E, CK 90E, CK 80 E-INT, CK 90E-INT, CKR 80E, CKR 90E, CKR 100E, CKR 80E-INT, CKR 90E-INT, CKR 100E-INT, JSW 10H, JSW 10HX, JSW 12H, JSW 12HX, JSW 15H, JSW 15HX, JSW 10M, JSW 10MX, JSW 12M, SW 12MX, JSW 15M, JSW 15MX, JCR 10H, JCR 12H, JCR 15H, JCR 10M, JCR 12M, JCR 15M, 4CP 100E by Pedrollo .
