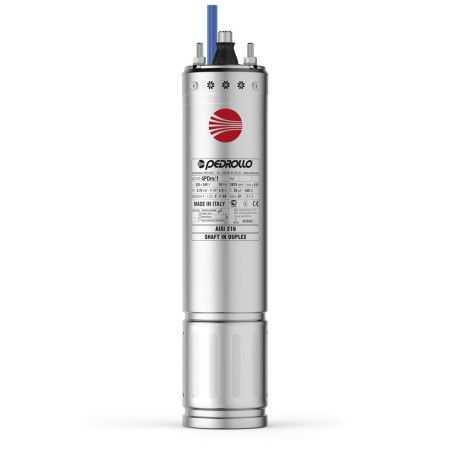

4PD/1.5 - 4" 1.5 HP 3-phase 400 V rewindable motor OFFER
Power: 1.1 Kw (1.5 HP). Voltage: 230 V / 50 Hz to 400 V / 50Hz. Current: 3 to 5 A. RPM: 2780/min.
Original spare part for 4SR10/7-N, 4SR12/7-N, 4SR15/6-N, 4HR10/7, 4HR14/6, 4HR18/4.
There are no reviews yet
Telephone support for information before purchasing.
After-sales assistance for product installation.
Description
The PEDROLLO PD electric motor for the 4SR Submersible Pump models is the driving force of the entire pump body.
Specially sized for the pump it will have to tow, it guarantees the best performance.
It is a food-grade rewindable submersible motor in an oil bath, complete with a 1.5m.
Insulation class F and IP68 protection class appropriate for use.
Original spare part for 4SR10/7-N, 4SR12/7-N, 4SR15/6-N, 4HR10/7, 4HR14/6, 4HR18/4.
Data sheet
- Motor connection
- THREE-PHASE
- Power (HP)
- 1.5
- Absorption at 400V (A)
- 3.4
- Crankshaft
- Duplex stainless steel
- Degree of protection
- IP 68
- Cable length (m)
- 4
- Jobs
- fire prevention systems, irrigation, pressurization systems, water supply
- Max. liquid temperature (°C)
- +35°C
- Height (cm)
- 37.1
- External diameter (cm)
- 9.2
- Weight (Kg)
- 9.4
- Warranty (years)
- 2
