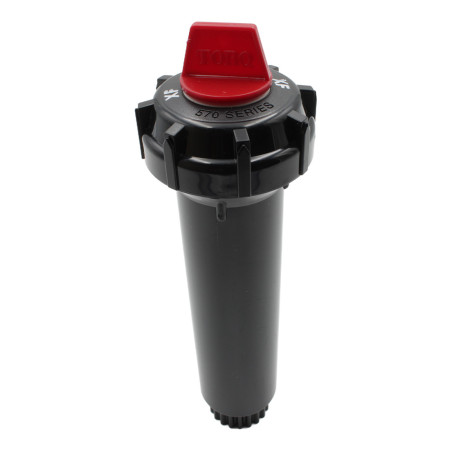

570Z-4P-XF - 10cm Pop-up Sprinkler

Turret height 10 centimeters. WITHOUT NOZZLE. With X-Flow device.

€7.70 Tax included

€6.31 Tax excluded

€8.10-5%

Variants:
570Z-4P - Irrigatore a scomparsa da 10 cm
570Z-4P-COM - Irrigatore a scomparsa da 10 cm
570Z-4LP - Irrigatore a scomparsa da 10 cm
570Z-4P-XF - Irrigatore a scomparsa da 10 cm
570Z-4P-PRX - Irrigatore a scomparsa da 10 cm
(5/5) out of 1 total ratings
Read the reviews
Close
Make a purchase proposal

Your Offer is sent.

Your Offer is accepted, please check your inbox.

570Z-4P-XF - 10cm Pop-up Sprinkler
  • Use dot instead of comma

Loading

Telephone support for information before purchasing.
After-sales assistance for product installation.
Description

The 570Z-4P-XF sprinkler from Toro Irrigation features an X-flow device built into the turret that limits water loss by 99% if the nozzle is removed or damaged, eliminating potential erosion or safety issues.

The nozzle and dry filter can be replaced or serviced while the system is running.

It is equipped with a sealing device that is active even at very low pressures and allows washing only during the turret retraction phase.

The 570Z-4P-XF sprinkler is ideal for small gardens and green areas.

The XFlow device limits water flow by up to 2% in case of tampering.

Data sheet
570Z-4P-XF
279 Items
0090258042822
102-2828
Min. flow rate (l./min.)
Max. flow rate (l./min.)
Max. working pressure ( bar )
Min. working pressure ( bar )
Max. range (m)
5.5
Turret height (cm.)
10
Height (cm)
Attack size
1/2 "
Type of attack
female
Attachments

570Z Series Datasheet

User manual with installation and operation instructions for the 570Z Series sprinklers from TORO Irrigazione .

file_download Download (69.46KB)

Buy it with

  • 570Z-4P-XF - 10cm Pop-up Sprinkler
  • +
  • TVAN-12 - Variable angle nozzle with 3.7 m throw
  • +
  • TVAN-17 - Variable angle nozzle with 5.2 m throw
  • €12.66-10 %
    Total price: €11.39
Features 570Z XF
Patented X-Flow device for closing the water

Patented X-Flow device for closing the water

It is built into the turret and limits water loss by 99% should the nozzle be removed or damaged, thus eliminating the concern of potential for erosion or safety. It allows the removal of the nozzle or the filter as well as the "dry" maintenance, while the system is in operation.

Leak-Free Cleaning Gasket

Leak-Free Cleaning Gasket

Prevents pop-up leaks by allowing multiple sprinklers to be installed on the same line.

Advanced Thrust Spring and Cleaning Seal

Advanced Retraction Spring and Cleaning Seal

Robust retraction spring and improved sealing material ensure excellent turret retraction on all 570Z models.

Integrated check valve

Integrated check valve

The valve is easily installed in the laboratory or in the field. Maintains up to 3m of elevation gain.

Small Size Hat (50 mm.)

Small Size Hat (50 mm.)

By being less visible, it reduces damage from exposure or vandalism.
