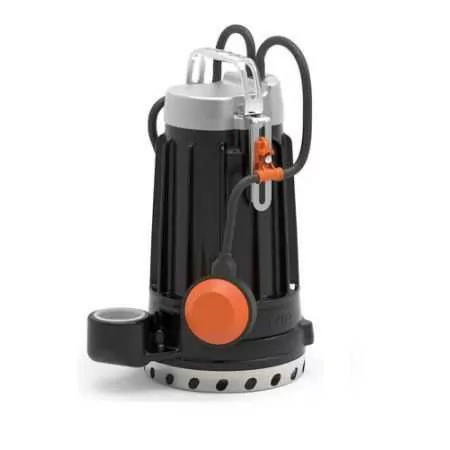

DCm 20 - 1 HP single-phase cast iron electric pump for clear water
Flow rate up to 250 l/min (15 m³/h). Head up to 20 m. 0.75 Kw (1 HP) motor.
Delivery Options
| Carrier | Description | Estimated Delivery | |
|---|---|---|---|
 | Mail Boxes - 2 giorni | This courier delivers within 48 hours from the moment we entrust the products to him. | Tuesday 24 February - Wednesday 25 February |
 | Poste Italiane - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust them with the products. | Tuesday 24 February - Wednesday 25 February |
 | DHL - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust the products to him. | Tuesday 24 February - Wednesday 25 February |
 | Poste Italiane - 3 giorni punto di ritiro | This courier delivers within 24/72 hours from the moment we entrust them with the products. | Tuesday 24 February |
 | Ritiro in negozio | Choose where to collect your order within 24/48 hours. | Tuesday 24 February |
Carrier: Mail Boxes - 2 giorni
Description: This courier delivers within 48 hours from the moment we entrust the products to him.
Estimated delivery:
Tuesday 24 February - Wednesday 25 February
Carrier: Poste Italiane - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust them with the products.
Estimated delivery:
Tuesday 24 February - Wednesday 25 February
Carrier: DHL - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust the products to him.
Estimated delivery:
Tuesday 24 February - Wednesday 25 February
Carrier: Poste Italiane - 3 giorni punto di ritiro
Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.
Estimated delivery:
Tuesday 24 February
Carrier: Ritiro in negozio
Description: Choose where to collect your order within 24/48 hours.
Estimated delivery:
Tuesday 24 February
The DCm 20 submersible electric pump from Pedrollo 's DC series is the right choice when looking for a high-quality product.
It guarantees high performance and reliability.
Recommended for installations in the domestic, civil, industrial sectors and in particular for fixed automatic ones.
The DCm 20 stands out from the others in that it can operate continuously even when partially uncovered.
The supplied cable is 10 meters long.
- Motor connection
- SINGLE-PHASE
- Power (Kw)
- 0.75
- Power (HP)
- 1
- Absorption at 230V (A)
- 5.7
- Capacitor
- 20 µF 450 VL
- Delivery mouth
- 1" 1/2
- Pump body
- Cast iron
- Impeller
- Technopolymer
- Number of impellers
- 1
- Crankshaft
- AISI 431 stainless steel
- Check valve
- No
- Degree of protection
- IP 68
- Minimum flow rate (l./min.)
- 25
- Max. flow rate (l./min.)
- 250
- Min. head (m.)
- 8
- Max. head (m.)
- 20
- Cable length (m.)
- 10
- Jobs
- drainage, drying up, slightly dirty waters
- Max. liquid temperature (°C)
- +40°C
- Height (cm)
- 32.2
- Weight (Kg)
- 17
- Warranty (years)
- 2
|
|
|
|
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Bearings
| Pump side motor bearing | 6203 ZZ |
| Opposite side engine bearing | 6203 ZZ |
Tree holding
| Type of seal | Double mechanical seal in oil chamber |
| LM diameter | 14 |
| LM fixed ring | Silicon carbide |
| LM rotating ring | Graphite |
| LM elastomer | NBR |
| Shrinkage DN1=450 DN2=350 | MG1-14D SIC |
| LP diameter | 14 |
| LP fixed ring | Silicon carbide |
| LP rotating ring | Silicon carbide |
| LP elastomer | NBR |
Materials
| 1.0 - Pump body | Cast iron GJL 200 EN 1561 |
| 2.2 - Suction cover | Stainless steel EN 1.4301 (AISI 304) |
| 3.0 - Impeller | Reinforced technopolymer |
| 4.0 - Pump shaft | Stainless steel EN 1.4057 (AISI 431) |
| 6.0 - Motor holder | Cast iron GJL 200 EN 1561 |
| 6.1 - Engine cover | Reinforced technopolymer |
| 7.0 - Lantern | Stainless steel EN 1.4301 (AISI 304) |
| 8.0 - Suction Grid/Filter | Stainless steel EN 1.4301 (AISI 304) |
Compare with Similar Products
 DCm 20 - 1 HP single-phase cast iron electric pump for clear waterThis product Flow rate up to 250 l/min (15 m³/h). Head up to 20 m. 0.75 Kw (1 HP) motor. |  DCm 10 - 1 HP single-phase cast iron electric pump for clear waterFlow rate up to 300 l/min (18 m³/h). Head up to 16 m. 0.75 Kw (1 HP) motor. |  DCm 30 - 1.5 HP single-phase cast iron electric pump for clear waterFlow rate up to 275 l/min (16.5 m³/h). Head up to 26 m. 1.1 kW (1.5 HP) motor. |  DCm 42 - 2 HP single-phase cast iron electric pump for clear waterFlow rate up to 500 l/min (30 m³/h). Head up to 31 m. 1.5 kW (2 HP) motor. | |
|---|---|---|---|---|
| Price | Price €559.98 -42% €324.79 | Price €547.78 -42% €317.71 | Price €616.10 -42% €357.34 | Price €1,633.58 -42% €947.48 |
| Motor connection | Motor connection SINGLE-PHASE | Motor connection SINGLE-PHASE | Motor connection SINGLE-PHASE | Motor connection SINGLE-PHASE |
| Power (Kw) | Power (Kw) 0.75 | Power (Kw) 0.75 | Power (Kw) 1.1 | Power (Kw) 1.5 |
| Power (HP) | Power (HP) 1 | Power (HP) 1 | Power (HP) 1.5 | Power (HP) 2 |
| Absorption at 230V (A) | Absorption at 230V (A) 5.7 | Absorption at 230V (A) 4.7 | Absorption at 230V (A) 7.2 | Absorption at 230V (A) 7.2 |
| Capacitor | Capacitor 20 µF 450 VL | Capacitor 20 µF 450 VL | Capacitor 25 µF 450 VL | Capacitor 25 µF 450 VL |
| Delivery mouth | Delivery mouth 1" 1/2 | Delivery mouth 1" 1/2 | Delivery mouth 1" 1/2 | Delivery mouth 1" 1/2 |
| Pump body | Pump body Cast iron | Pump body Cast iron | Pump body Cast iron | Pump body Cast iron |
| Impeller | Impeller Technopolymer | Impeller Technopolymer | Impeller Technopolymer | Impeller AISI 304 stainless steel |
| Number of impellers | Number of impellers 1 | Number of impellers 1 | Number of impellers 1 | Number of impellers 1 |
| Crankshaft | Crankshaft AISI 431 stainless steel | Crankshaft AISI 431 stainless steel | Crankshaft AISI 431 stainless steel | Crankshaft AISI 431 stainless steel |
| Check valve | Check valve No | Check valve No | Check valve No | Check valve No |
| Degree of protection | Degree of protection IP 68 | Degree of protection IP 68 | Degree of protection IP 68 | Degree of protection IP 68 |
| Minimum flow rate (l./min.) | Minimum flow rate (l./min.) 25 | Minimum flow rate (l./min.) 25 | Minimum flow rate (l./min.) 25 | Minimum flow rate (l./min.) 25 |
| Max. flow rate (l./min.) | Max. flow rate (l./min.) 250 | Max. flow rate (l./min.) 300 | Max. flow rate (l./min.) 275 | Max. flow rate (l./min.) 275 |
| Min. head (m.) | Min. head (m.) 8 | Min. head (m.) 3 | Min. head (m.) 9 | Min. head (m.) 9 |
| Max. head (m.) | Max. head (m.) 20 | Max. head (m.) 16 | Max. head (m.) 26 | Max. head (m.) 26 |
| Cable length (m.) | Cable length (m.) 10 | Cable length (m.) 10 | Cable length (m.) 10 | Cable length (m.) 10 |
| Jobs | Jobs drainage, drying up, slightly dirty waters | Jobs drainage, drying up, slightly dirty waters | Jobs drainage, drying up | Jobs drainage, drying up |
| Max. liquid temperature (°C) | Max. liquid temperature (°C) +40°C | Max. liquid temperature (°C) +40°C | Max. liquid temperature (°C) +40°C | Max. liquid temperature (°C) +40°C |
| Height (cm) | Height (cm) 32.2 | Height (cm) 32.2 | Height (cm) 33.7 | Height (cm) 33.7 |
| Width (cm) | Width (cm) -- | Width (cm) -- | Width (cm) -- | Width (cm) -- |
| Depth (cm) | Depth (cm) -- | Depth (cm) -- | Depth (cm) -- | Depth (cm) -- |
| Weight (Kg) | Weight (Kg) 17 | Weight (Kg) 16.9 | Weight (Kg) 18.8 | Weight (Kg) 18.8 |
| Warranty (years) | Warranty (years) 2 | Warranty (years) 2 | Warranty (years) 2 | Warranty (years) 2 |
