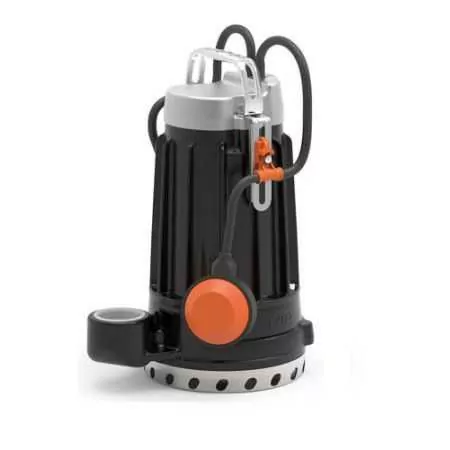

DC 30 - 1.5 HP three-phase cast iron electric pump for clear water
Flow rate up to 275 l/min (16.5 m³/h). Head up to 26 m. 1.1 Kw (1.5 HP) motor.
Telephone support for information before purchasing.
Reinforced packaging to reduce transport damage.
After-sales assistance for product installation.
We supply all spare parts on this product.
Description
New version of the DC series completely designed and made even more reliable with the introduction of the double mechanical seal and the cataphoresis treatment of all cast iron parts.
The DC submersible pumps, built in cast iron of considerable thickness, exceptional strength, resistance to abrasion and durability over time, are recommended for draining clear or slightly dirty water.
They stand out for their robustness and reliability in fixed installations with automatic operation.
Data sheet
- Motor connection
- THREE-PHASE
- Power (Kw)
- 1.1
- Power (HP)
- 1.5
- Absorption at 400V (A)
- 3.0
- Delivery port
- 1 "1/2
- Body Pump
- Cast iron
- Impeller
- Technopolymer
- Number of impellers
- 1
- Motor shaft
- AISI 431 stainless steel
- Check valve
- no
- Degree of protection
- IP 68
- Flow rate min. (l./min.)
- 25
- Max flow (l./min.)
- 275
- Min head (m.)
- 9
- Max head (m.)
- 26
- Cable length (m)
- 10
- Employments
- drainage, drying up, slightly dirty waters
- Liquid temperature max. (° C)
- 40
- Height (cm)
- 33.7
- Weight kg)
- 17.8
- Guarantee
- 2
DC models and performance
|
|
|
|
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Construction data of the DC 30
Bearings
| Pump side motor bearing | 6203 ZZ |
| Opposite side engine bearing | 6203 ZZ |
Tree holding
| Type of seal | Double Seal: Mechanical and Lip with oil chamber |
| Engine side model | Lip seal |
| LM diameter | 16 |
| LM elastomer | NBR |
| Shrinkage DN1=450 DN2=350 | ST1-14 SIC |
| LP diameter | 14 |
| LP fixed ring | Ceramic |
| LP rotating ring | Silicon carbide |
| LP elastomer | NBR |
Materials
| 1.0 - Pump body | Cast iron GJL 200 EN 1561 |
| 2.2 - Suction cover | Stainless steel EN 1.4301 (AISI 304) |
| 3.0 - Impeller | Reinforced technopolymer |
| 4.0 - Pump shaft | Stainless steel EN 1.4057 (AISI 431) |
| 6.0 - Motor holder | Cast iron GJL 200 EN 1561 |
| 6.1 - Engine cover | Reinforced technopolymer |
| 7.0 - Lantern | Stainless steel EN 1.4301 (AISI 304) |
| 8.0 - Suction Grid/Filter | Stainless steel EN 1.4301 (AISI 304) |
