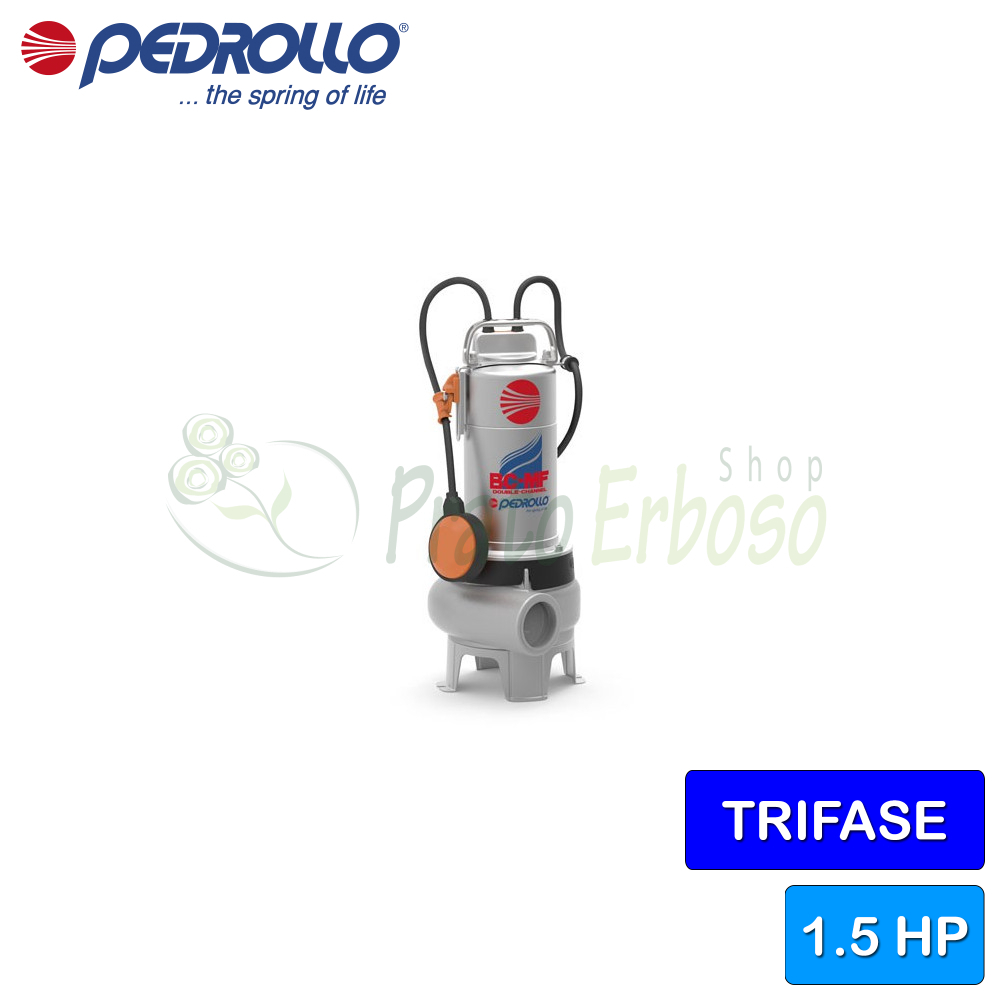

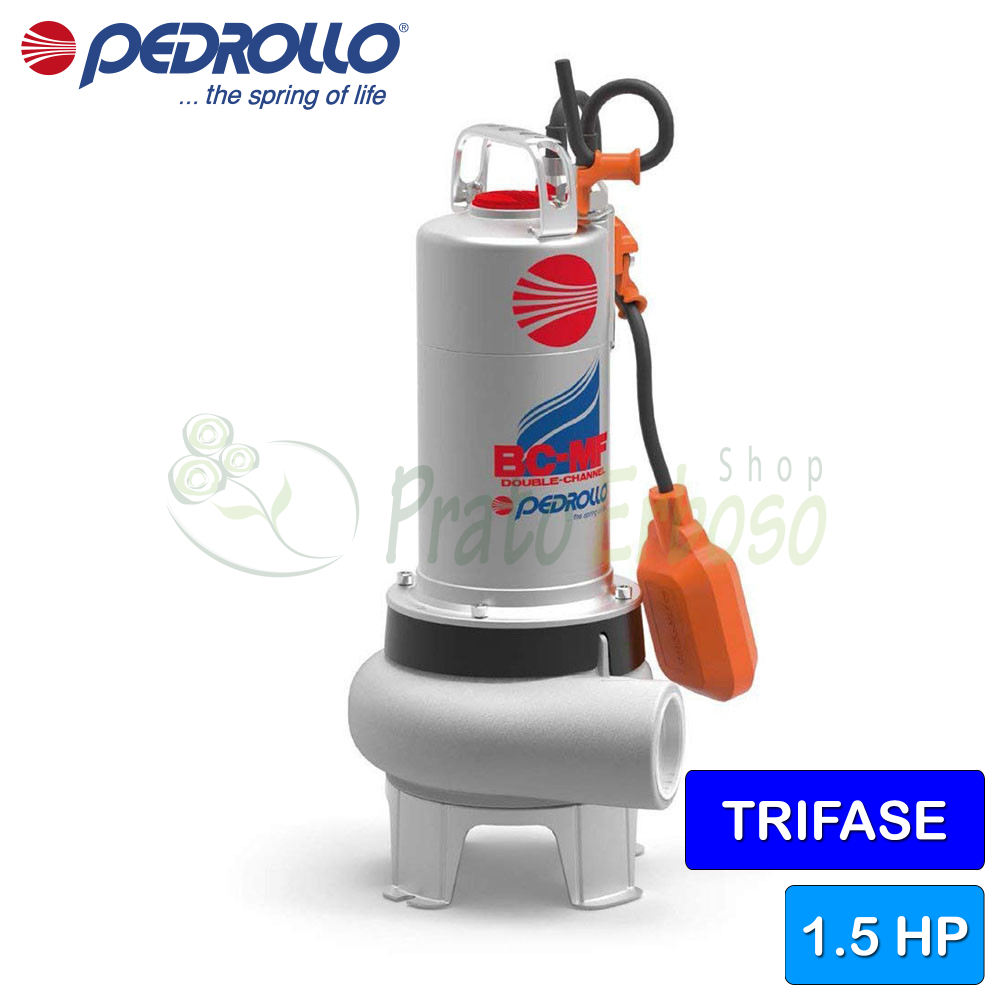

BC 15/50-MF - 1.5 HP three-phase, dual-channel sewage pump
Flow rate up to 750 l/min (45 m³/h). Head up to 15 m. 1.1 kW (1.5 HP) motor.
Telephone support for information before purchasing.
Reinforced packaging to reduce transport damage.
After-sales assistance for product installation.
We supply all spare parts on this product.
Description
The BC 15/50-MF submersible electric pump from the BC-MF series by Pedrollo is recommended for draining dirty and sewage water.
The dual-channel impeller allows for pumping liquids containing suspended solids up to 50 mm in size. This is the most efficient solution for wastewater drainage.
The geometry of the volute and impeller allows for excellent performance and high efficiency which translates into significant savings.
The BC 15/50-MF is made entirely of micro-cast stainless steel which gives it particular resistance to corrosion and abrasion.
The right choice when looking for quality that guarantees efficiency and long life.
Data sheet
- Motor connection
- THREE-PHASE
- Power (Kw)
- 1.1
- Power (HP)
- 1.5
- Current consumption at 400V (A)
- 3.2
- Delivery mouth
- 2"
- Pump body
- AISI 304 stainless steel
- Impeller
- AISI 304 stainless steel
- Number of impellers
- 1
- Crankshaft
- AISI 304 stainless steel
- Check valve
- No
- Degree of protection
- IP 68
- Minimum flow rate (l./min.)
- 50
- Max. flow rate (l./min.)
- 750
- Min. head (m.)
- 2
- Max. head (m.)
- 15
- Cable length (m.)
- 10
- Jobs
- drainage, drying up, slightly dirty waters
- Max. liquid temperature (°C)
- +40°C
- Height (cm)
- 44.7
- Weight (Kg)
- 14.3
- Warranty (years)
- 2
BC-MF models and performances
|
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Construction data of the BC 15/50-MF series
Bearings
| Pump side motor bearing | 6203 2RS - C3 |
| Opposite side engine bearing | 6203 ZZ |
Tree holding
| Type of seal | Double mechanical seal in oil chamber |
| LM diameter | 14 |
| LM fixed ring | Silicon carbide |
| LM rotating ring | Graphite |
| LM elastomer | NBR |
| Shrinkage DN1=450 DN2=350 | MG1-14D SIC |
| LP diameter | 14 |
| LP fixed ring | Silicon carbide |
| LP rotating ring | Silicon carbide |
| LP elastomer | NBR |
Materials
| 1.0 - Pump body | Stainless steel EN 1.4404 (AISI 316L) |
| 1.4 - Basic | Stainless steel EN 1.4301 (AISI 304) |
| 3.0 - Impeller | Stainless steel EN 1.4301 (AISI 304) |
| 4.0 - Pump shaft | Stainless steel EN 1.4404 (AISI 316L) |
| 6.0 - Motor holder | Stainless steel EN 1.4301 (AISI 304) |
| 6.1 - Engine cover | Stainless steel EN 1.4301 (AISI 304) |
| 7.0 - Lantern | Cast iron GJL 200 EN 1561 |
