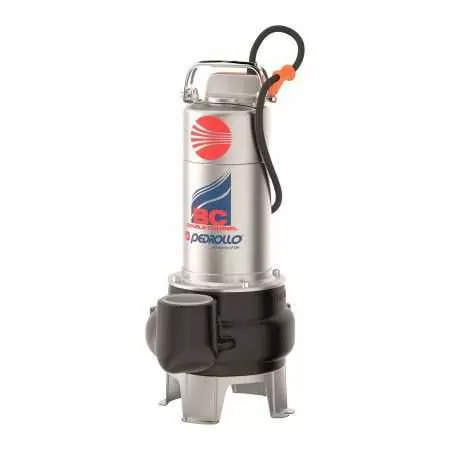

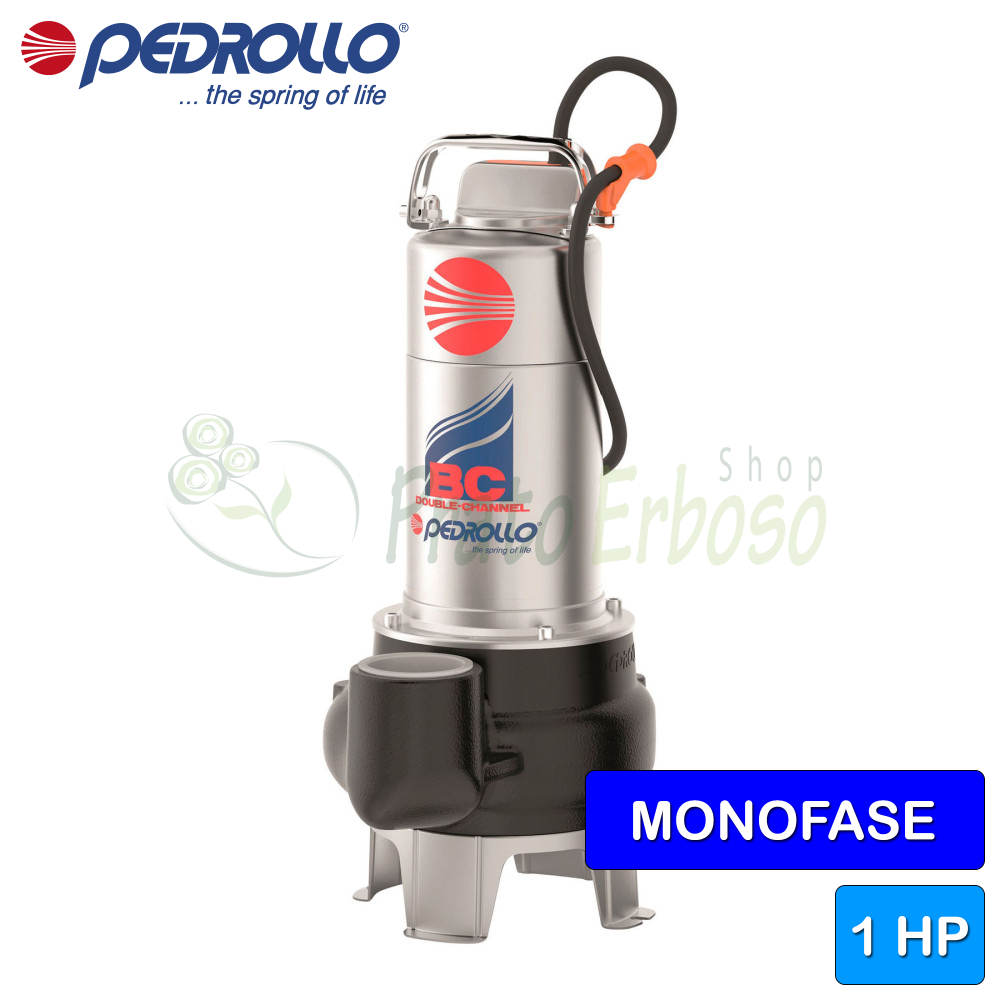

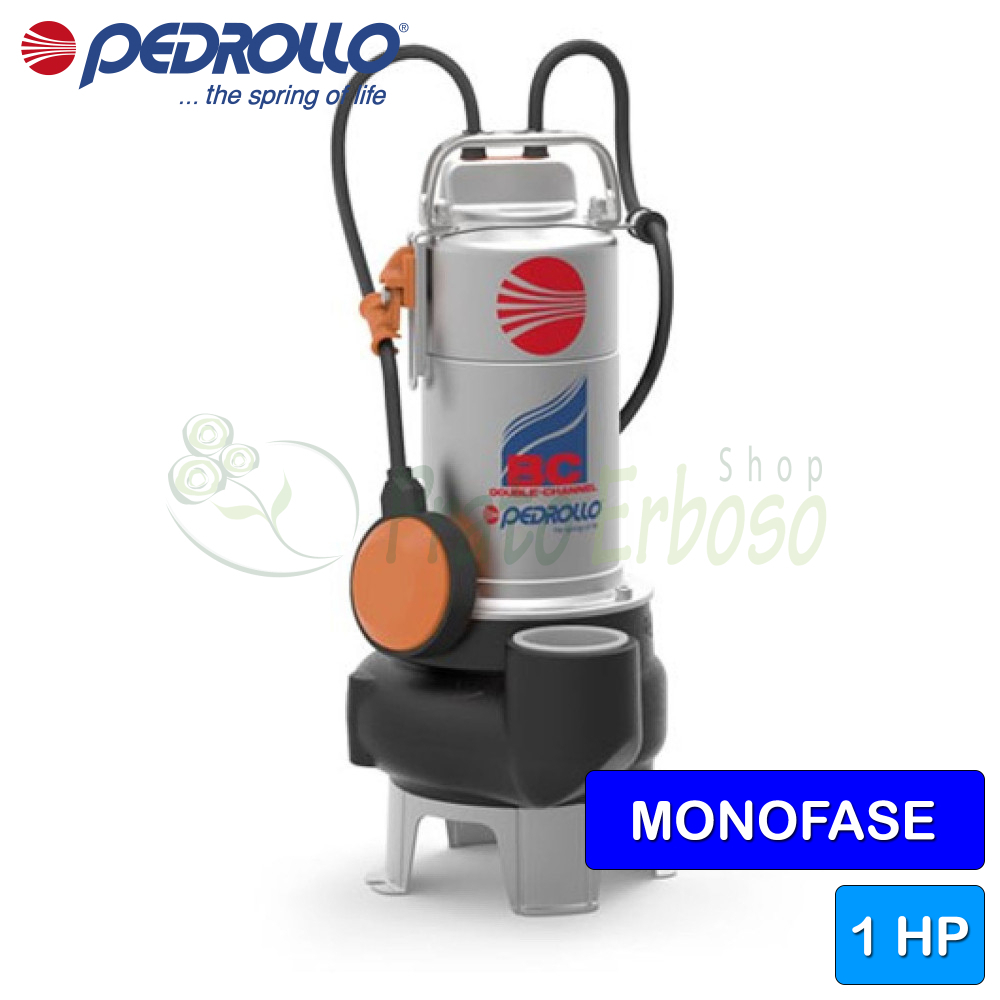

BCm 10/50 (10m) - 1 HP single-phase DOUBLE-CHANNEL electric pump for waste water
Flow rate up to 600 l/min (36 m³/h). Head up to 12 m. 0.75 Kw (1 HP) motor. 10 meters of cable with shuko plug.
The BC submersible pump is recommended for draining dirty and sewage water in the domestic and civil sectors. It is equipped with a DOUBLE-CHANNEL stainless steel impeller that allows the pumping of liquids with the presence of suspended solids up to Ø 50 mm, with short fibers.
It is suitable for conveying waste water and sewage, waste water, surface water, water mixed with mud in uses such as: holiday homes, villas and single-family homes.
This pump stands out for its reliability, especially in fixed installations with automatic operation.
- Motor connection
- SINGLE PHASE
- Power (Kw)
- 0.75
- Power (HP)
- 1
- Absorption at 230V (A)
- 5
- Capacitor
- 20 µF450 VL
- Delivery port
- 2"
- Body Pump
- Cast iron
- Impeller
- AISI 304 stainless steel
- Number of impellers
- 1
- Motor shaft
- AISI 431 stainless steel
- Check valve
- no
- Degree of protection
- IP 68
- Flow rate min. (l./min.)
- 50
- Max flow (l./min.)
- 600
- Min head (m.)
- 2
- Max head (m.)
- 12
- Cable length (m)
- 10
- Employments
- drainage, slightly dirty waters
- Liquid temperature max. (° C)
- 40
- Height (cm)
- 43.1
- Weight kg)
- 14.9
- Guarantee
- 2
|
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
