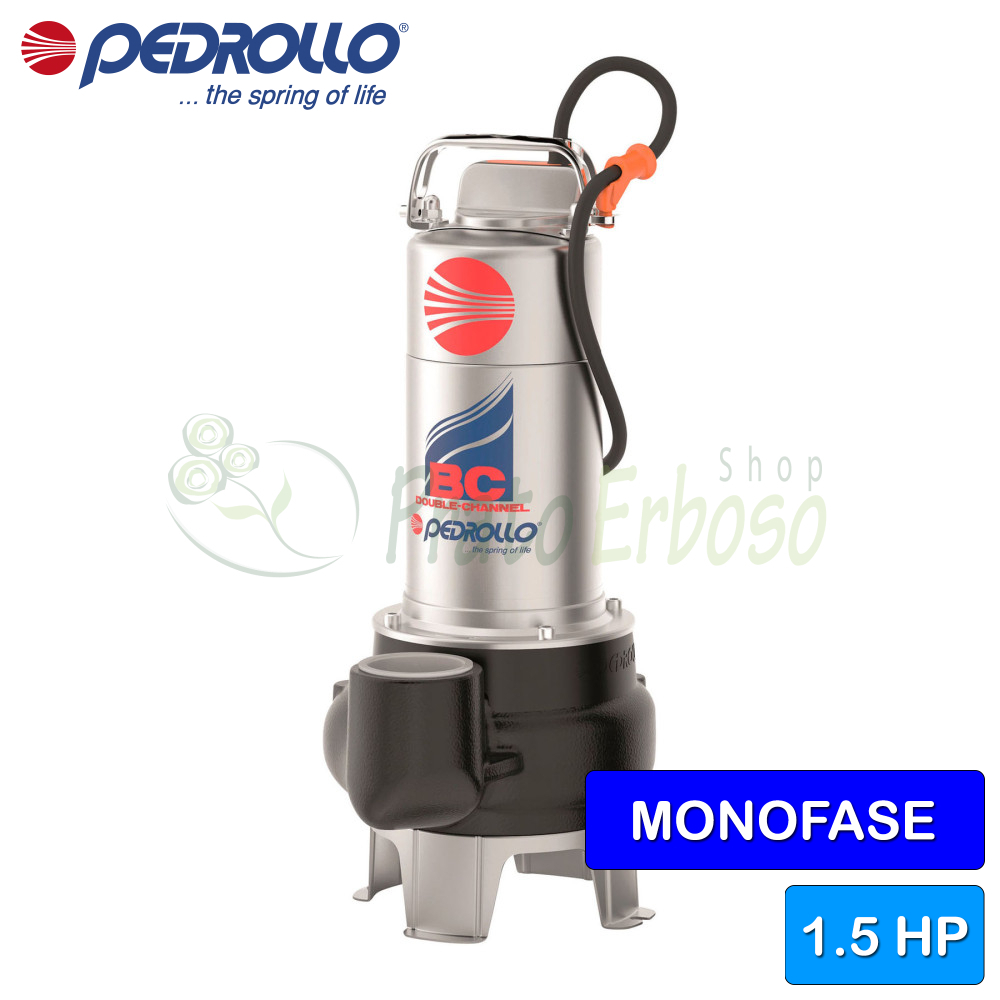

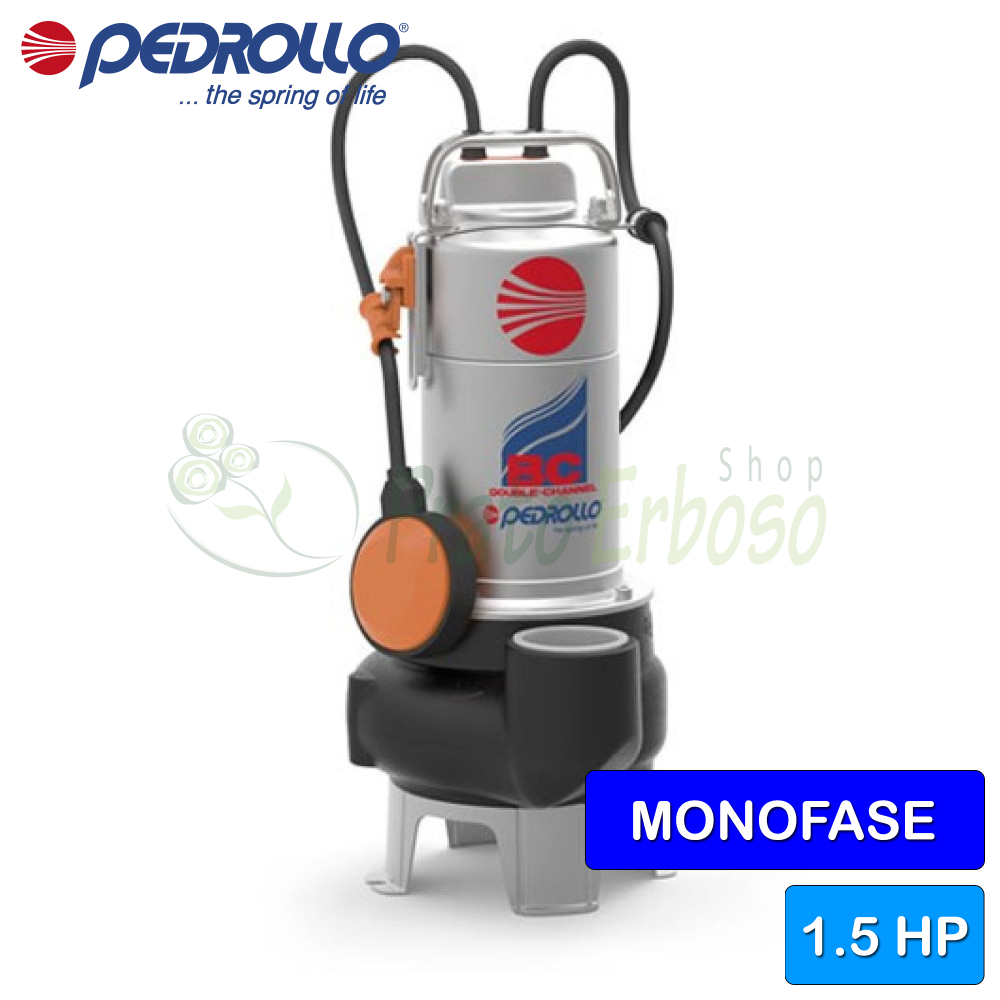

BCm 15/50 - 1.5 HP single-phase, dual-channel electric pump for waste water
Flow rate up to 750 l/min (45 m³/h). Head up to 15 m. 1.1 kW (1.5 HP) motor.
The BCm 15/50 submersible electric pump from Pedrollo 's BC series allows for excellent performance and high energy efficiency.
It allows the drainage of dirty and sewage water with suspended solids with a diameter of up to 50 millimetres.
Recommended for domestic, civil and industrial installations.
Suitable for conveying waste water and sewage, waste water, surface water, water mixed with sludge in holiday homes, villas and single-family homes.
The BCm 15/50 is the right choice when conditions become challenging and high performance is sought.
- Motor connection
- SINGLE-PHASE
- Power (Kw)
- 1.1
- Power (HP)
- 1.5
- Absorption at 230V (A)
- 8.2
- Capacitor
- 25 µF 450 VL
- Delivery mouth
- 2"
- Pump body
- Cast iron
- Impeller
- AISI 304 stainless steel
- Number of impellers
- 1
- Crankshaft
- AISI 431 stainless steel
- Check valve
- No
- Degree of protection
- IP 68
- Minimum flow rate (l./min.)
- 50
- Max. flow rate (l./min.)
- 750
- Min. head (m.)
- 2
- Max. head (m.)
- 15
- Cable length (m.)
- 5
- Jobs
- drainage, slightly dirty waters
- Max. liquid temperature (°C)
- +40°C
- Height (cm)
- 44.7
- Weight (Kg)
- 16.4
- Warranty (years)
- 2
|
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Bearings
| Pump side motor bearing | 6203 2RS - C3 |
| Opposite side engine bearing | 6203 ZZ |
Tree holding
| Type of seal | Double mechanical seal in oil chamber |
| LM diameter | 14 |
| LM fixed ring | Silicon carbide |
| LM rotating ring | Graphite |
| LM elastomer | NBR |
| Shrinkage DN1=450 DN2=350 | MG1-14D SIC |
| LP diameter | 14 |
| LP fixed ring | Silicon carbide |
| LP rotating ring | Silicon carbide |
| LP elastomer | NBR |
Materials
| 1.0 - Pump body | Cast iron GJL 200 EN 1561 |
| 1.4 - Basic | Stainless steel EN 1.4301 (AISI 304) |
| 3.0 - Impeller | Stainless steel EN 1.4301 (AISI 304) |
| 4.0 - Pump shaft | Stainless steel EN 1.4057 (AISI 431) |
| 6.0 - Motor holder | Stainless steel EN 1.4301 (AISI 304) |
| 6.1 - Engine cover | Stainless steel EN 1.4301 (AISI 304) |
| 7.0 - Lantern | Cast iron GJL 200 EN 1561 |
