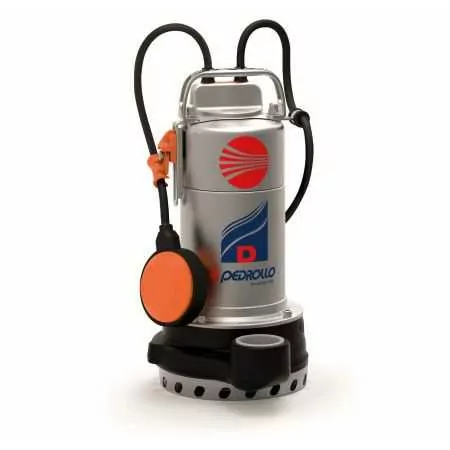

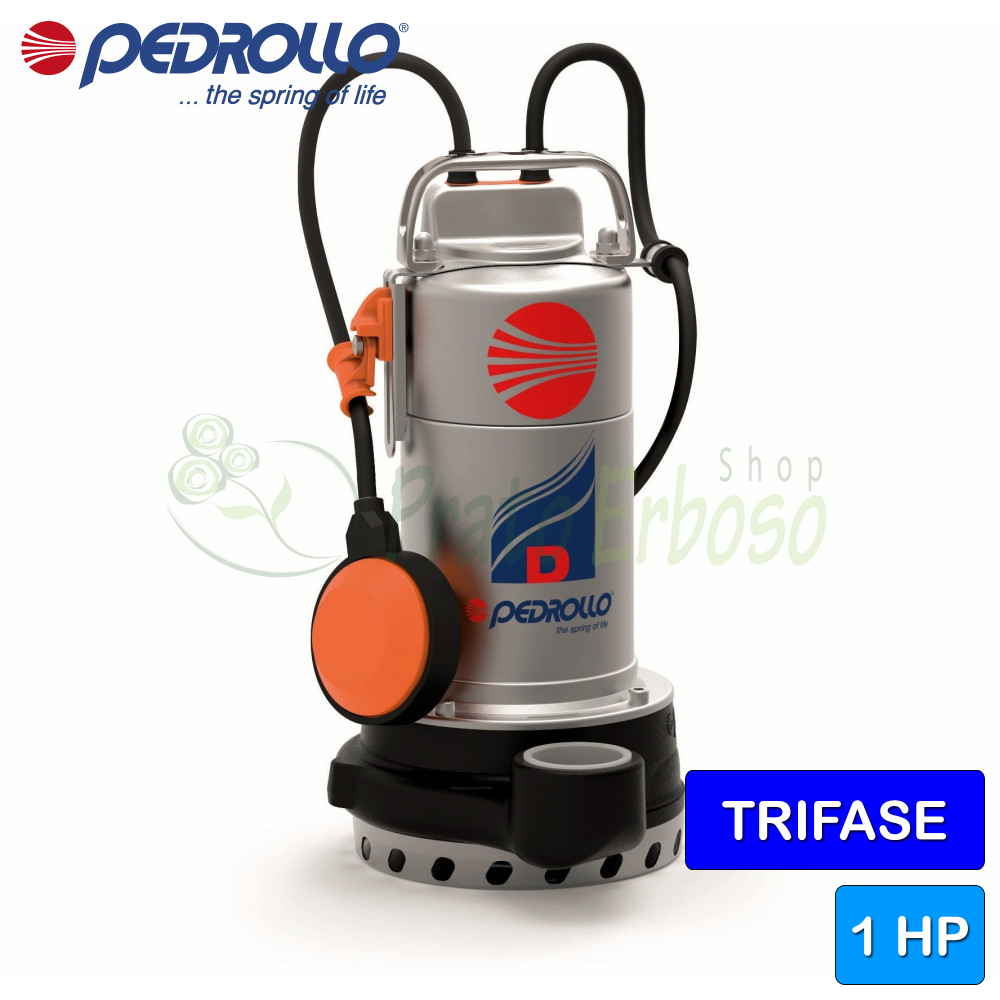

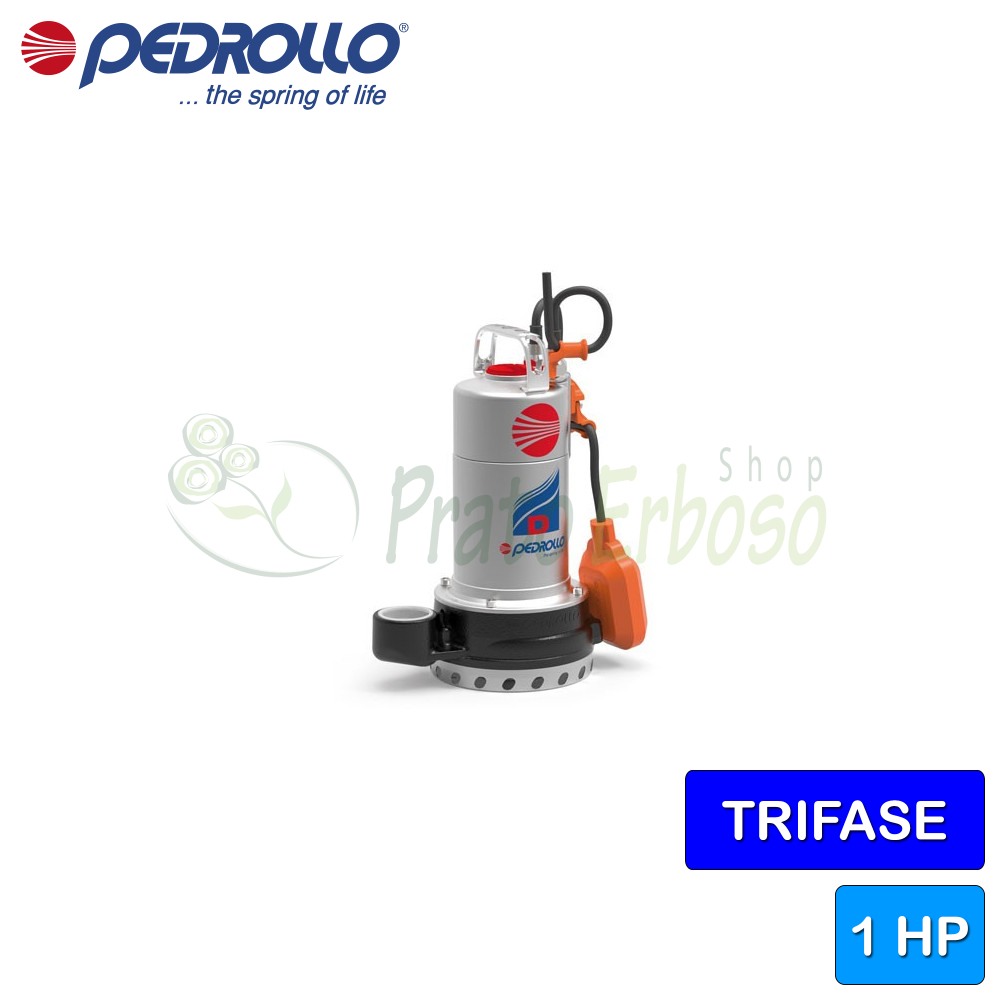

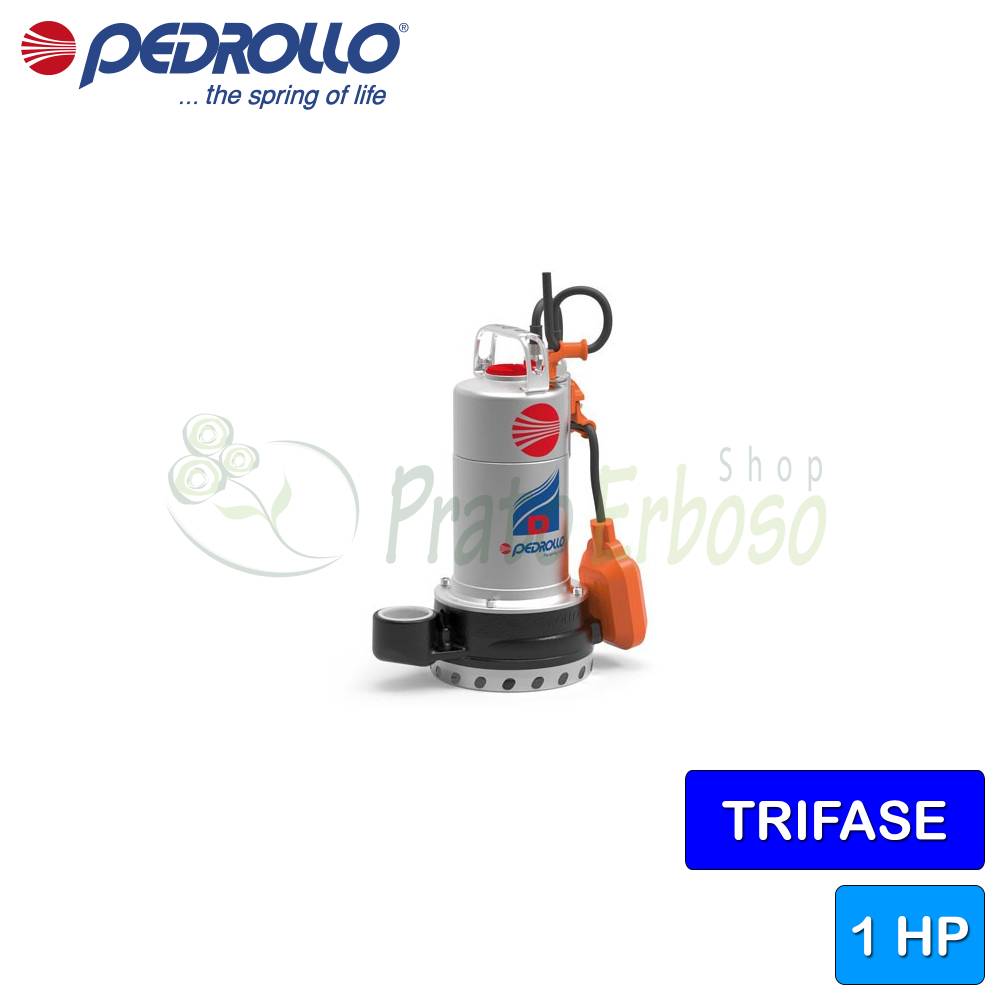

D 20 (10m) - 1 HP three-phase clear water pump
Flow rate up to 250 l/min (15 m³/h). Head up to 20 m. 0.75 Kw (1 HP) motor. 10 meters of cable with shuko plug.
Variants:
Buy it now and receive it between tomorrow and 03-04-2025 with Mail Boxes - 2 giorni
There are no reviews yet
Telephone support for information before purchasing.
Reinforced packaging to reduce transport damage.
After-sales assistance for product installation.
We supply all spare parts on this product.
Description
Designed for the drainage of clear or slightly dirty water, it is recommended for domestic, civil and professional use for the drainage of flooded areas such as basements, garages, for emptying swimming pools and tanks, for the disposal of non-filthy waste water.
This pump stands out for its reliability, especially in fixed installations with automatic operation.
Data sheet
- Motor connection
- THREE-PHASE
- Power (Kw)
- 0.75
- Power (HP)
- 1
- Absorption at 400V (A)
- 2.4
- Delivery mouth
- 1 "1/2
- Pump body
- Cast iron
- Impeller
- Technopolymer
- Number of impellers
- 1
- Crankshaft
- AISI 431 stainless steel
- Check valve
- No
- Degree of protection
- IP 68
- Min. flow rate (l./min.)
- 25
- Max. flow rate (l./min.)
- 250
- Min. head (m.)
- 8
- Max. head (m.)
- 20
- Cable length (m)
- 10
- Jobs
- drainage, drying up
- Max. liquid temperature (°C)
- 40
- Height (cm)
- 34.4
- Weight (Kg)
- 11.9
- Warranty (years)
- 2
Models and performance D
|
|
|
|
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Construction data of the D series
Bearings
| Pump side motor bearing | 6203 ZZ |
| Opposite side engine bearing | 6203 ZZ |
Tree holding
| Type of seal | Double mechanical seal in oil chamber |
| LM diameter | 14 |
| LM fixed ring | Silicon carbide |
| LM rotating ring | Graphite |
| LM elastomer | NBR |
| Shrinkage DN1=450 DN2=350 | MG1-14D SIC |
| LP diameter | 14 |
| LP fixed ring | Silicon carbide |
| LP rotating ring | Silicon carbide |
| LP elastomer | NBR |
Materials
| 1.0 - Pump body | Cast iron GJL 200 EN 1561 |
| 2.2 - Suction cover | Stainless steel EN 1.4301 (AISI 304) |
| 3.0 - Impeller | Reinforced technopolymer |
| 4.0 - Pump shaft | Stainless steel EN 1.4057 (AISI 431) |
| 6.0 - Motor holder | Stainless steel EN 1.4301 (AISI 304) |
| 6.1 - Engine cover | Stainless steel EN 1.4301 (AISI 304) |
| 7.0 - Lantern | Stainless steel EN 1.4301 (AISI 304) |
| 8.0 - Suction Grid/Filter | Stainless steel EN 1.4301 (AISI 304) |
Compare with Similar Products
 D 20 (10m) - 1 HP three-phase clear water pumpThis product Flow rate up to 250 l/min (15 m³/h). Head up to 20 m. 0.75 Kw (1 HP) motor. 10 meters of cable with shuko plug. |  D 8 (10m) - 0.75 HP three-phase clear water pumpFlow rate up to 250 l/min (15 m³/h). Head up to 13 m. 0.55 Kw (0.75 HP) motor. 10 meters of cable. |  D 10 (10m) - 1 HP three-phase clear water pumpFlow rate up to 300 l/min (13.2 m³/h). Head up to 16 m. 0.75 Kw (1 HP) motor. 10 meters of cable with. |  D-30 - Pump for clear water three-phaseFlow rates up to 275 l/min (16.5 m3/h). Head up to 26 m. Motor 1.1 Kw (1.5 HP). | |
|---|---|---|---|---|
| Motor connection | Motor connection THREE-PHASE | Motor connection THREE-PHASE | Motor connection THREE-PHASE | Motor connection THREE-PHASE |
| Power (Kw) | Power (Kw) 0.75 | Power (Kw) 0.55 | Power (Kw) 0.75 | Power (Kw) -- |
| Power (HP) | Power (HP) 1 | Power (HP) 0.75 | Power (HP) 1 | Power (HP) 1.5 |
| Capacitor | Capacitor -- | Capacitor 20 µF450 VL | Capacitor -- | Capacitor -- |
| Absorption at 400V (A) | Absorption at 400V (A) 2.4 | Absorption at 400V (A) 1.6 | Absorption at 400V (A) 2.0 | Absorption at 400V (A) 3.0 |
| Delivery mouth | Delivery mouth 1 "1/2 | Delivery mouth 1 "1/2 | Delivery mouth 1 "1/2 | Delivery mouth 1 "1/2 |
| Pump body | Pump body Cast iron | Pump body Cast iron | Pump body AISI 304 stainless steel | Pump body Cast iron |
| Impeller | Impeller Technopolymer | Impeller Technopolymer | Impeller Technopolymer | Impeller Technopolymer |
| Number of impellers | Number of impellers 1 | Number of impellers 1 | Number of impellers 1 | Number of impellers 1 |
| Crankshaft | Crankshaft AISI 431 stainless steel | Crankshaft AISI 431 stainless steel | Crankshaft AISI 431 stainless steel | Crankshaft AISI 431 stainless steel |
| Check valve | Check valve No | Check valve No | Check valve No | Check valve No |
| Degree of protection | Degree of protection IP 68 | Degree of protection IP 68 | Degree of protection IP 68 | Degree of protection IP 68 |
| Min. flow rate (l./min.) | Min. flow rate (l./min.) 25 | Min. flow rate (l./min.) 25 | Min. flow rate (l./min.) 25 | Min. flow rate (l./min.) 25 |
| Max. flow rate (l./min.) | Max. flow rate (l./min.) 250 | Max. flow rate (l./min.) 300 | Max. flow rate (l./min.) 300 | Max. flow rate (l./min.) 275 |
| Min. head (m.) | Min. head (m.) 8 | Min. head (m.) 3 | Min. head (m.) 3 | Min. head (m.) 9 |
| Max. head (m.) | Max. head (m.) 20 | Max. head (m.) 13 | Max. head (m.) 16 | Max. head (m.) 26 |
| Cable length (m) | Cable length (m) 10 | Cable length (m) 10 | Cable length (m) 10 | Cable length (m) 10 |
| Jobs | Jobs drainage, drying up | Jobs drainage, drying up | Jobs drainage, drying up | Jobs drainage, drying up |
| Max. liquid temperature (°C) | Max. liquid temperature (°C) 40 | Max. liquid temperature (°C) 40 | Max. liquid temperature (°C) 40 | Max. liquid temperature (°C) 40 |
| Height (cm) | Height (cm) 34.4 | Height (cm) 34.4 | Height (cm) 34.4 | Height (cm) 35.5 |
| Weight (Kg) | Weight (Kg) 11.9 | Weight (Kg) 11.7 | Weight (Kg) 11.7 | Weight (Kg) 14 |
| Warranty (years) | Warranty (years) 2 | Warranty (years) 2 | Warranty (years) 2 | Warranty (years) 2 |
