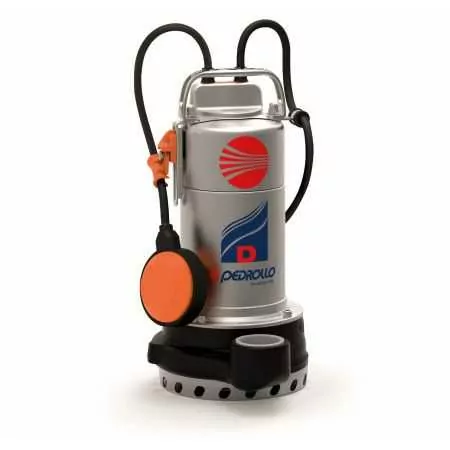

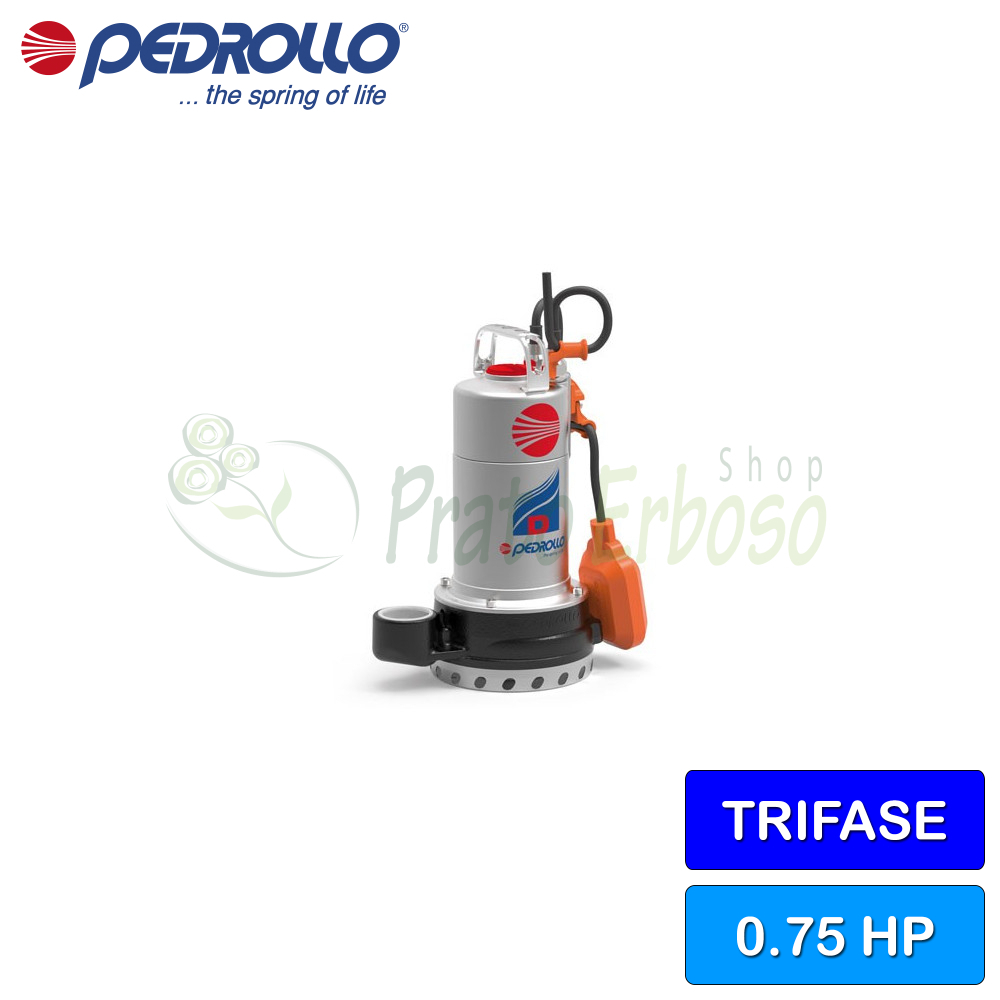

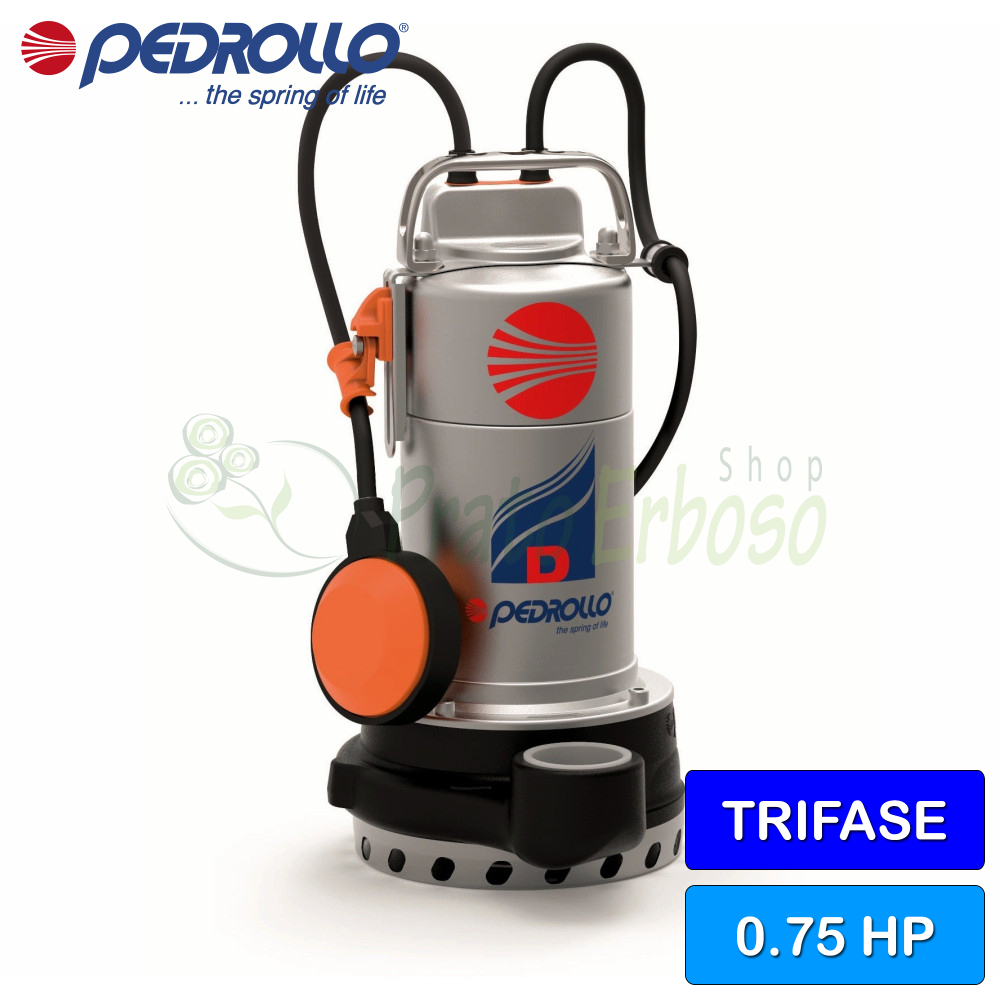

D 8 (10m) - 0.75 HP three-phase clear water pump
Flow rate up to 250 l/min (15 m³/h). Head up to 13 m. 0.55 Kw (0.75 HP) motor. 10 meters of cable.
Telephone support for information before purchasing.
Reinforced packaging to reduce transport damage.
After-sales assistance for product installation.
We supply all spare parts on this product.
Description
Designed for the drainage of clear or slightly dirty water, it is recommended for domestic, civil and professional use for the drainage of flooded areas such as basements, garages, for emptying swimming pools and tanks, for the disposal of non-filthy waste water.
This pump stands out for its reliability, especially in fixed installations with automatic operation.
Data sheet
- Motor connection
- THREE-PHASE
- Power (Kw)
- 0.55
- Power (HP)
- 0.75
- Capacitor
- 20 µF450 VL
- Absorption at 400V (A)
- 1.6
- Delivery port
- 1 "1/2
- Body Pump
- Cast iron
- Impeller
- Technopolymer
- Number of impellers
- 1
- Motor shaft
- AISI 431 stainless steel
- Check valve
- no
- Degree of protection
- IP 68
- Flow rate min. (l./min.)
- 25
- Max flow (l./min.)
- 300
- Min head (m.)
- 3
- Max head (m.)
- 16
- Cable length (m)
- 10
- Employments
- drainage, drying up
- Liquid temperature max. (° C)
- 40
- Height (cm)
- 34
- Weight kg)
- 11.7
- Guarantee
- 2
Models and performance D
|
|
|
|
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Construction data of the D series
Bearings
| Pump side motor bearing | 6203 ZZ |
| Opposite side engine bearing | 6203 ZZ |
Tree holding
| Type of seal | Double mechanical seal in oil chamber |
| LM diameter | 14 |
| LM fixed ring | Silicon carbide |
| LM rotating ring | Graphite |
| LM elastomer | NBR |
| Shrinkage DN1=450 DN2=350 | MG1-14D SIC |
| LP diameter | 14 |
| LP fixed ring | Silicon carbide |
| LP rotating ring | Silicon carbide |
| LP elastomer | NBR |
Materials
| 1.0 - Pump body | Cast iron GJL 200 EN 1561 |
| 2.2 - Suction cover | Stainless steel EN 1.4301 (AISI 304) |
| 3.0 - Impeller | Reinforced technopolymer |
| 4.0 - Pump shaft | Stainless steel EN 1.4057 (AISI 431) |
| 6.0 - Motor holder | Stainless steel EN 1.4301 (AISI 304) |
| 6.1 - Engine cover | Stainless steel EN 1.4301 (AISI 304) |
| 7.0 - Lantern | Stainless steel EN 1.4301 (AISI 304) |
| 8.0 - Suction Grid/Filter | Stainless steel EN 1.4301 (AISI 304) |
