MCm 15/45 - 1.5 HP single-phase, dual-channel electric sewage pumps
Flow rate up to 750 l/min (45 m³/h). Head up to 15 m. 1.1 kW (1.5 HP) motor.
Delivery Options
| Carrier | Description | Estimated Delivery | |
|---|---|---|---|
 | Mail Boxes - 2 giorni | This courier delivers within 48 hours from the moment we entrust the products to him. | Tuesday 24 February - Wednesday 25 February |
 | Poste Italiane - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust them with the products. | Tuesday 24 February - Wednesday 25 February |
 | DHL - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust the products to him. | Tuesday 24 February - Wednesday 25 February |
 | Poste Italiane - 3 giorni punto di ritiro | This courier delivers within 24/72 hours from the moment we entrust them with the products. | Monday 23 February |
 | Ritiro in negozio | Choose where to collect your order within 24/48 hours. | Monday 23 February |
Carrier: Mail Boxes - 2 giorni
Description: This courier delivers within 48 hours from the moment we entrust the products to him.
Estimated delivery:
Tuesday 24 February - Wednesday 25 February
Carrier: Poste Italiane - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust them with the products.
Estimated delivery:
Tuesday 24 February - Wednesday 25 February
Carrier: DHL - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust the products to him.
Estimated delivery:
Tuesday 24 February - Wednesday 25 February
Carrier: Poste Italiane - 3 giorni punto di ritiro
Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.
Estimated delivery:
Monday 23 February
Carrier: Ritiro in negozio
Description: Choose where to collect your order within 24/48 hours.
Estimated delivery:
Monday 23 February

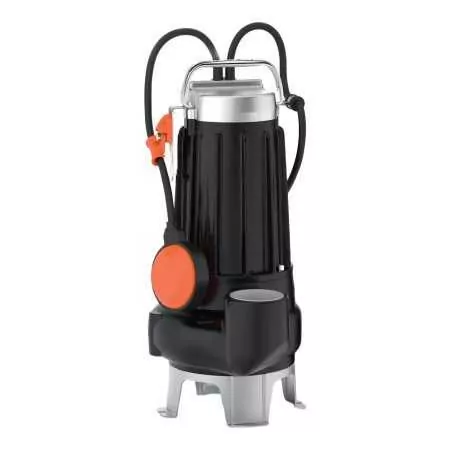

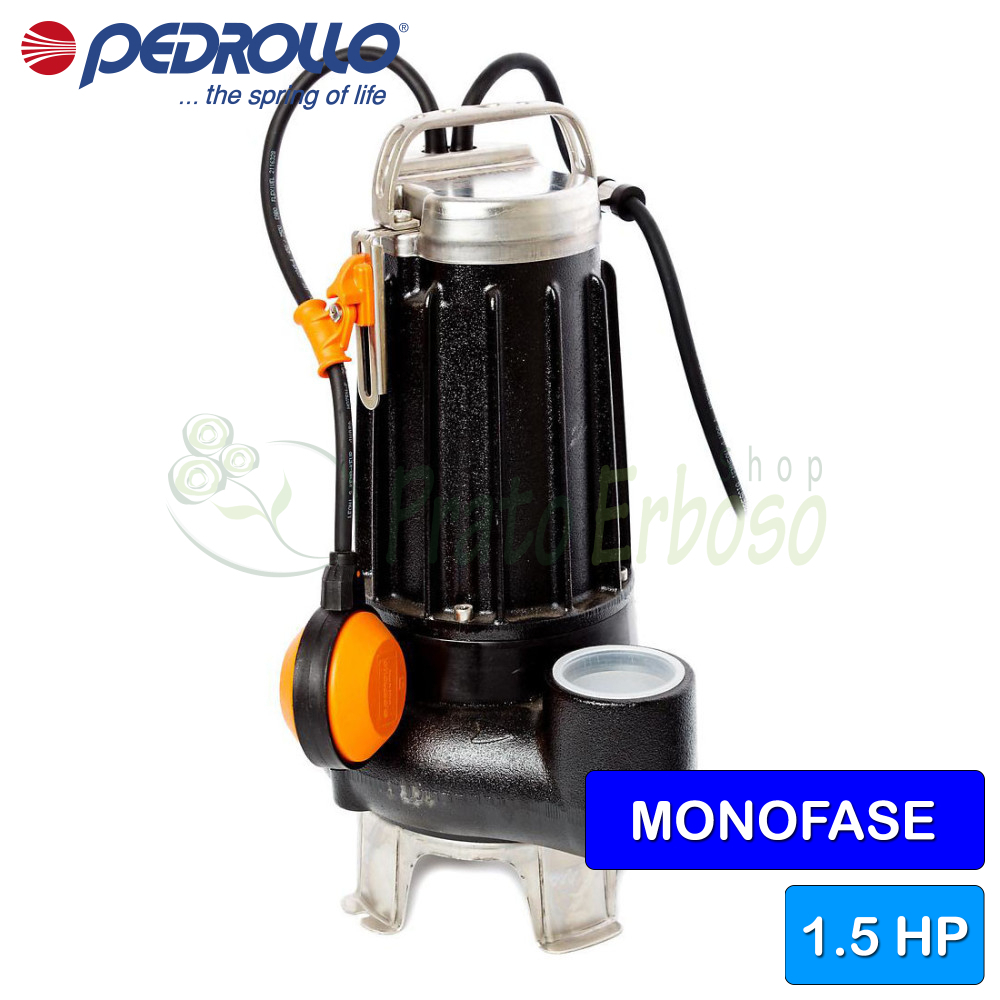

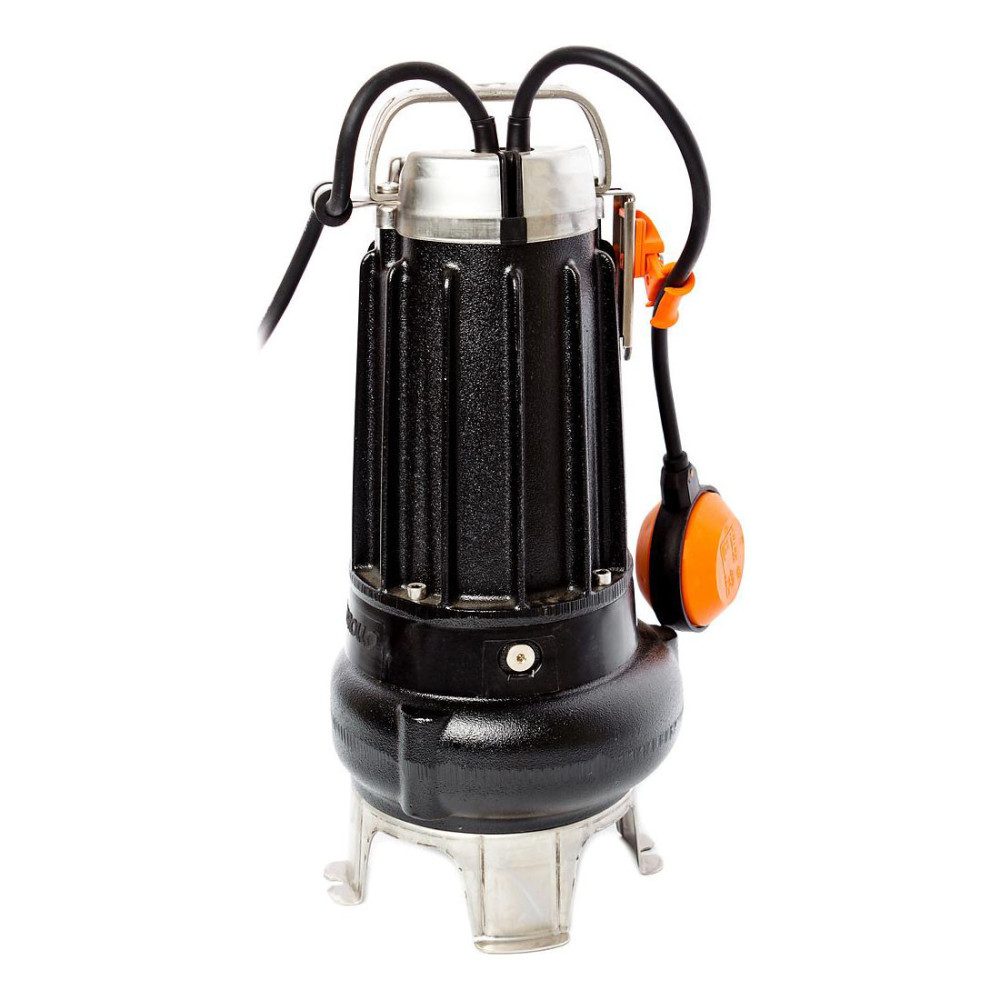

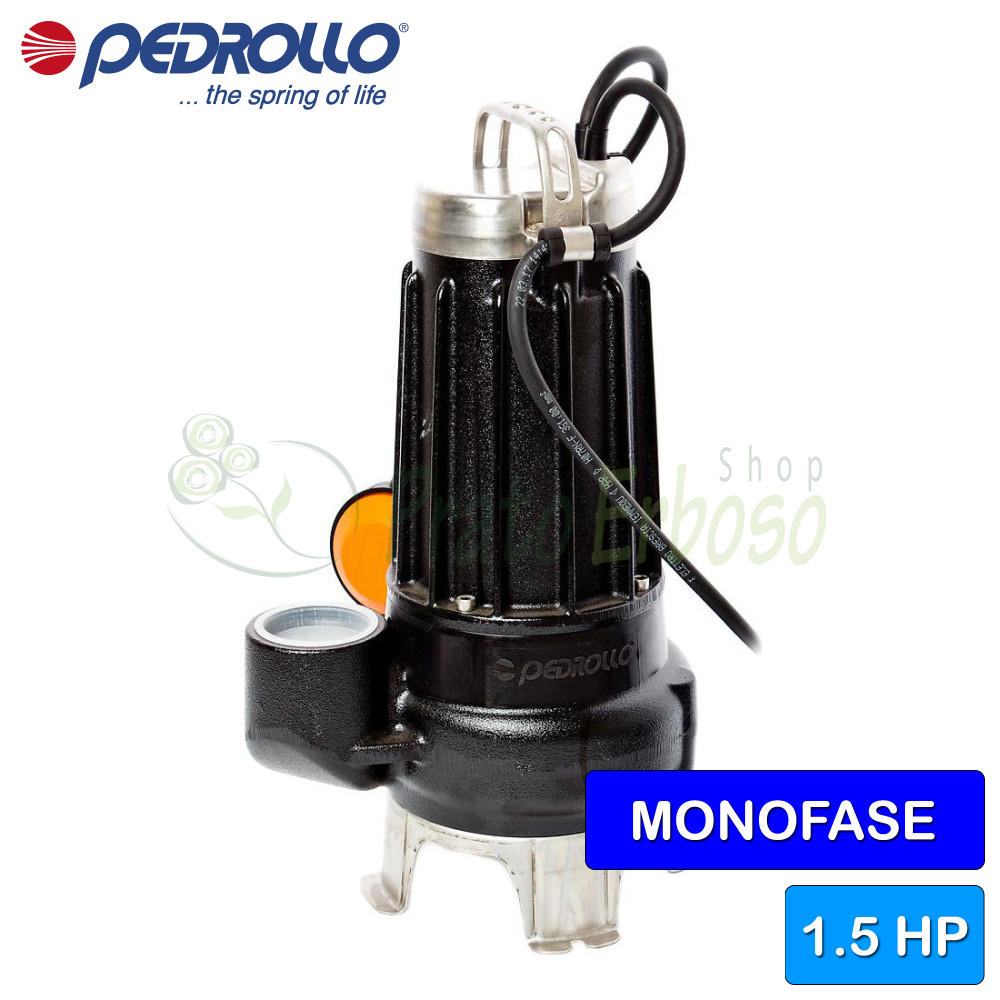

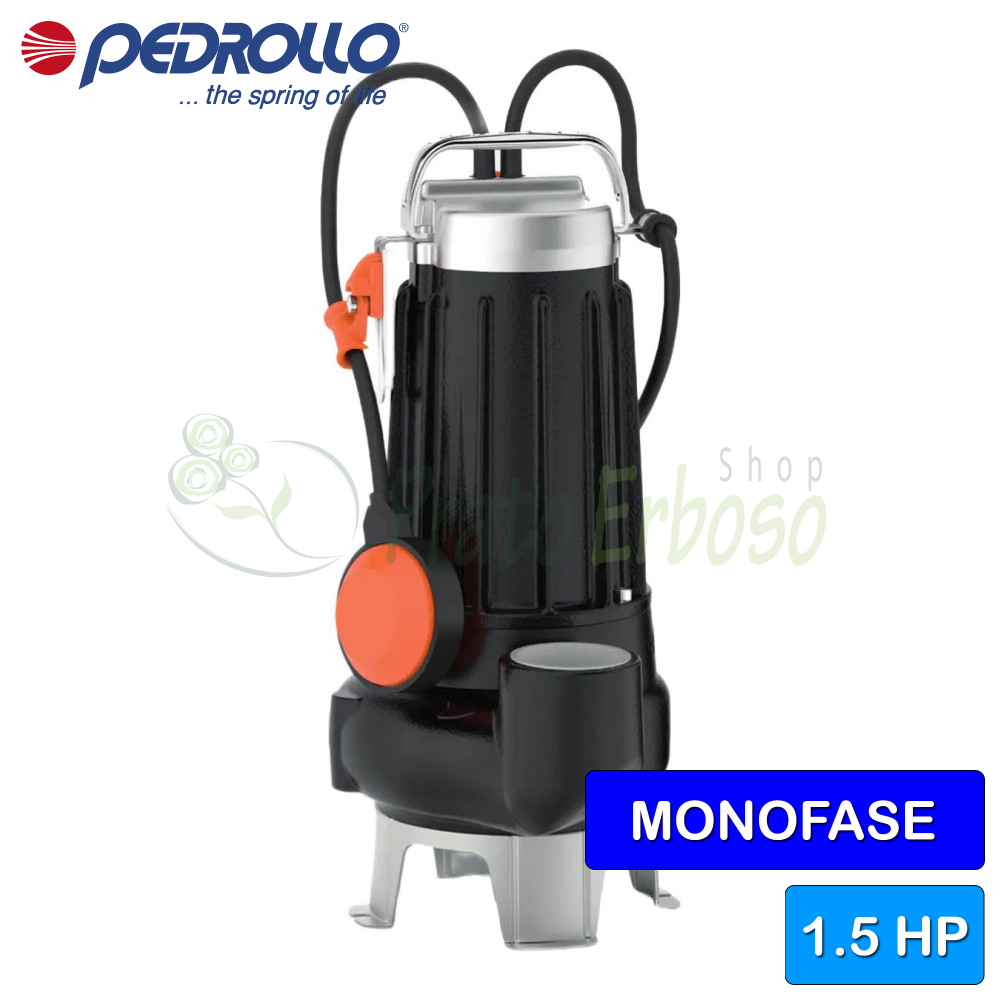

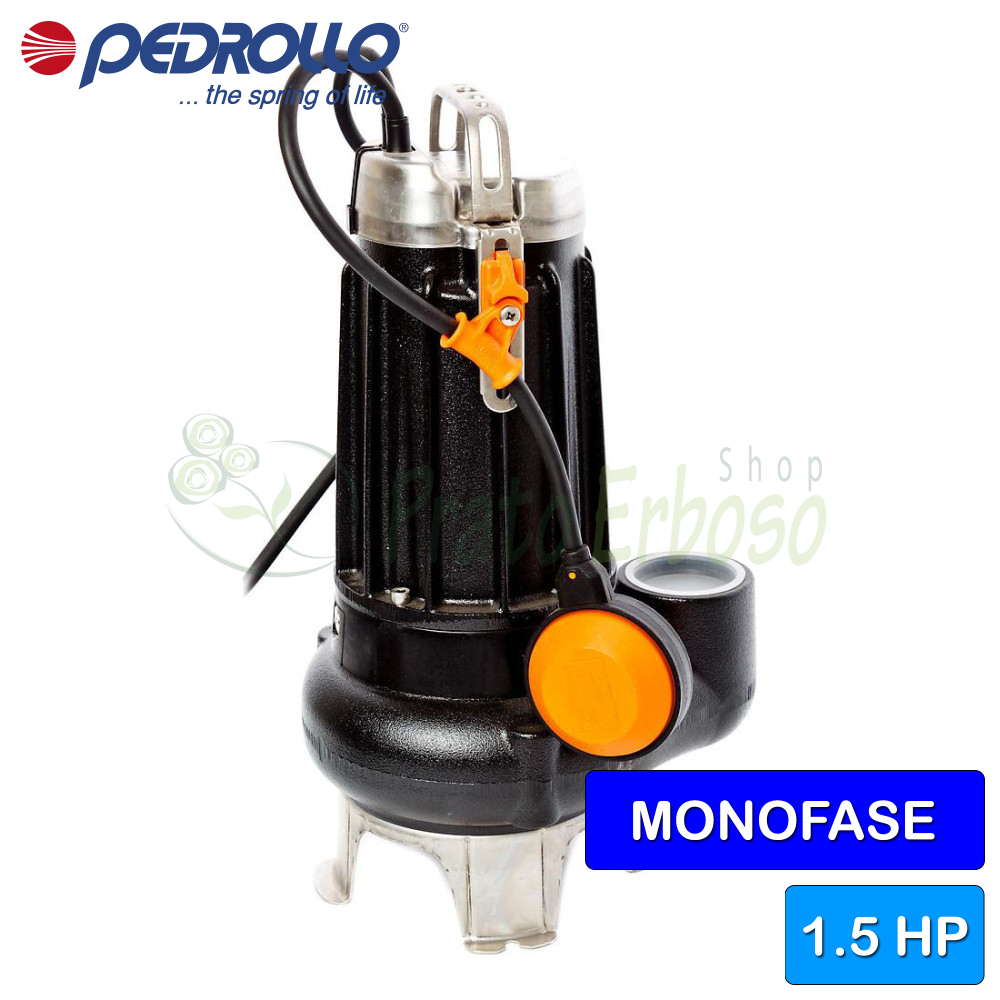

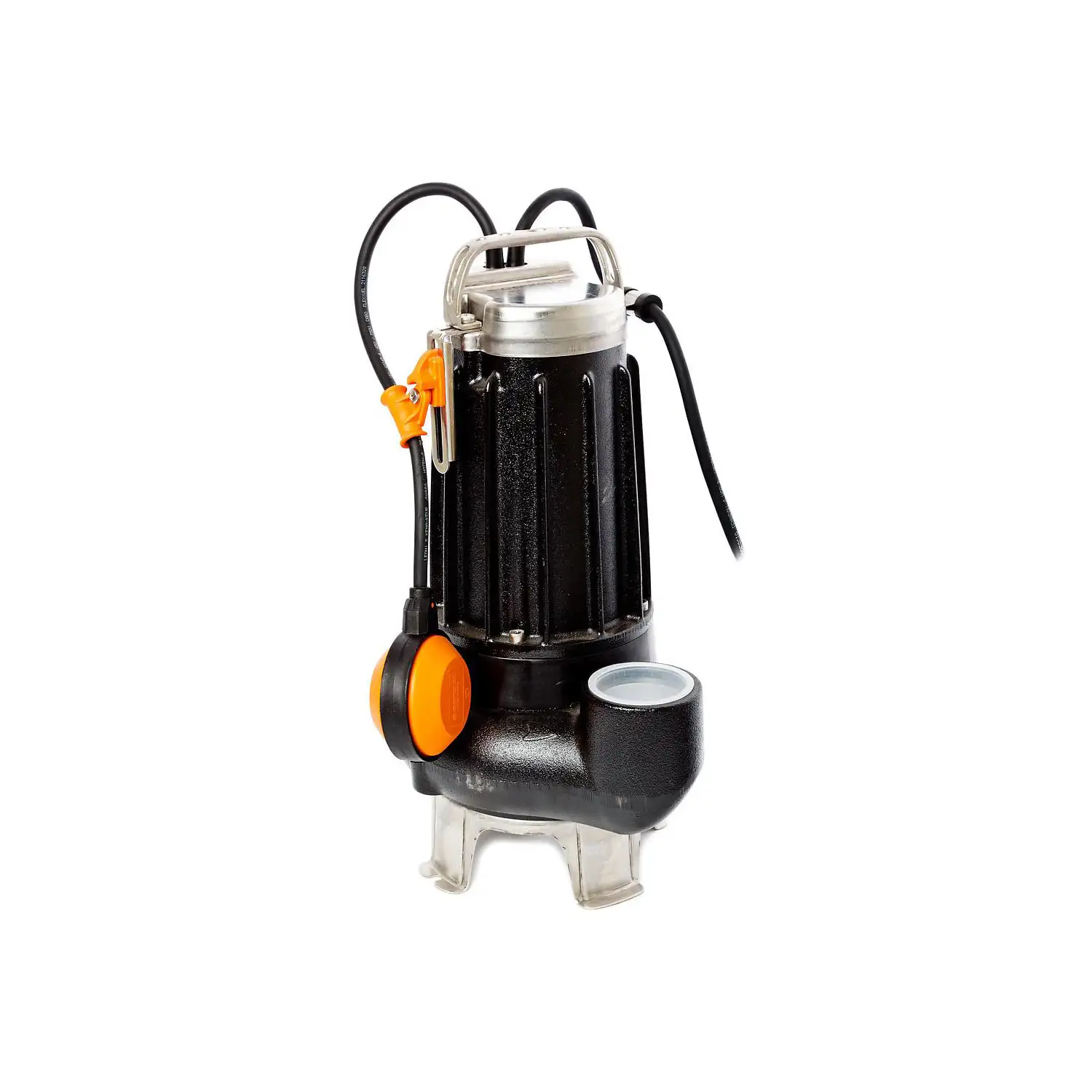

The MCm 15/45 submersible electric pump from the MC series by Pedrollo is particularly suitable for continuous service installations.
Recommended for civil and domestic installations for activities with wastewater.
Suitable for draining water containing suspended solids up to 50 millimetres in diameter.
Made of thick cast iron which provides strength and abrasion resistance.
The MCm 15/45 is the right choice when looking for a robust and reliable electric pump.
- Motor connection
- SINGLE-PHASE
- Power (Kw)
- 1.1
- Power (HP)
- 1.5
- Absorption at 230V (A)
- 8.2
- Capacitor
- 25 µF 450 VL
- Delivery mouth
- 2"
- Pump body
- Cast iron
- Impeller
- AISI 304 stainless steel
- Number of impellers
- 1
- Crankshaft
- AISI 431 stainless steel
- Check valve
- No
- Degree of protection
- IP 68
- Minimum flow rate (l./min.)
- 50
- Max. flow rate (l./min.)
- 750
- Min. head (m.)
- 2
- Max. head (m.)
- 15
- Cable length (m.)
- 10
- Jobs
- drainage, drying up, slightly dirty waters
- Max. liquid temperature (°C)
- +40°C
- Height (cm)
- 42.8
- Weight (Kg)
- 20.1
- Warranty (years)
- 2
|
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Bearings
| Pump side motor bearing | 6203 ZZ |
| Opposite side engine bearing | 6203 ZZ |
Tree holding
| Type of seal | Double mechanical seal in oil chamber |
| Engine side model | MG1-14D SIC |
| LM diameter | 14 |
| LM fixed ring | Silicon carbide |
| LM rotating ring | Graphite |
| LM elastomer | NBR |
| LP diameter | 14 |
| LP fixed ring | Silicon carbide |
| LP rotating ring | Silicon carbide |
| LP elastomer | NBR |
Materials
| 1.0 - Pump body | Cast iron GJL 200 EN 1561 |
| 1.4 - Basic | Stainless steel EN 1.4301 (AISI 304) |
| 3.0 - Impeller | Stainless steel EN 1.4301 (AISI 304) |
| 4.0 - Pump shaft | Stainless steel EN 1.4057 (AISI 431) |
| 6.0 - Motor holder | Cast iron GJL 200 EN 1561 |
| 6.1 - Engine cover | Reinforced technopolymer |
| 7.0 - Lantern | Stainless steel EN 1.4301 (AISI 304) |
Compare with Similar Products
 MCm 15/45 - 1.5 HP single-phase, dual-channel electric sewage pumpsThis product Flow rate up to 750 l/min (45 m³/h). Head up to 15 m. 1.1 kW (1.5 HP) motor. |  MCm 10/45 - 1 HP single-phase, dual-channel electric sewage pumpsFlow rate up to 600 l/min (36 m³/h). Head up to 12 m. 0.75 Kw (1 HP) motor. | |
|---|---|---|
| Price | Price €735.66 -42% €426.68 | Price €680.76 -42% €394.84 |
| Motor connection | Motor connection SINGLE-PHASE | Motor connection SINGLE-PHASE |
| Power (Kw) | Power (Kw) 1.1 | Power (Kw) 0.75 |
| Power (HP) | Power (HP) 1.5 | Power (HP) 1 |
| Absorption at 230V (A) | Absorption at 230V (A) 8.2 | Absorption at 230V (A) 5.0 |
| Capacitor | Capacitor 25 µF 450 VL | Capacitor 20 µF 450 VL |
| Delivery mouth | Delivery mouth 2" | Delivery mouth 2" |
| Pump body | Pump body Cast iron | Pump body Cast iron |
| Impeller | Impeller AISI 304 stainless steel | Impeller AISI 304 stainless steel |
| Number of impellers | Number of impellers 1 | Number of impellers 1 |
| Crankshaft | Crankshaft AISI 431 stainless steel | Crankshaft AISI 431 stainless steel |
| Check valve | Check valve No | Check valve No |
| Degree of protection | Degree of protection IP 68 | Degree of protection IP 68 |
| Minimum flow rate (l./min.) | Minimum flow rate (l./min.) 50 | Minimum flow rate (l./min.) 50 |
| Max. flow rate (l./min.) | Max. flow rate (l./min.) 750 | Max. flow rate (l./min.) 600 |
| Min. head (m.) | Min. head (m.) 2 | Min. head (m.) 2 |
| Max. head (m.) | Max. head (m.) 15 | Max. head (m.) 12 |
| Cable length (m.) | Cable length (m.) 10 | Cable length (m.) 10 |
| Jobs | Jobs drainage, drying up, slightly dirty waters | Jobs drainage, drying up, slightly dirty waters |
| Max. liquid temperature (°C) | Max. liquid temperature (°C) +40°C | Max. liquid temperature (°C) +40°C |
| Height (cm) | Height (cm) 42.8 | Height (cm) 41.3 |
| Weight (Kg) | Weight (Kg) 20.1 | Weight (Kg) 18.8 |
| Warranty (years) | Warranty (years) 2 | Warranty (years) 2 |
