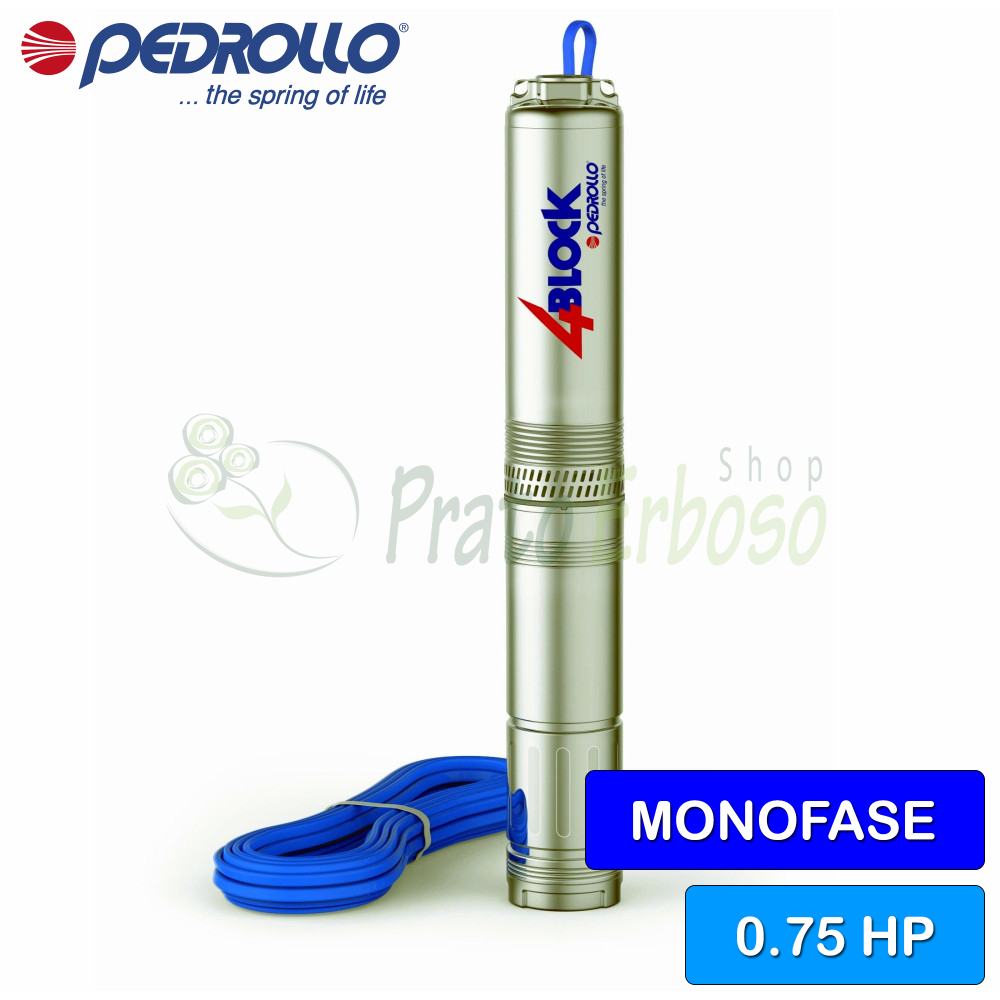

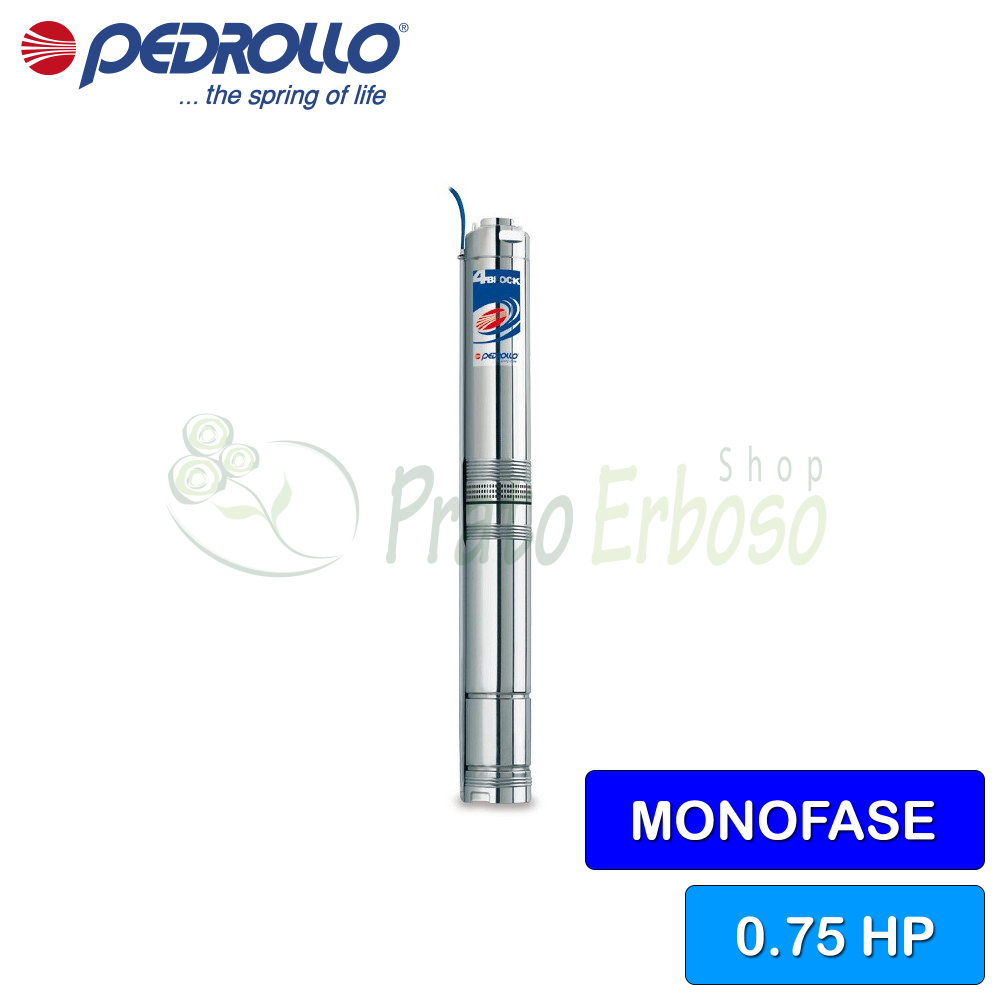

4BLOCKm 2/10 (20m) - 0.75 HP single-phase submersible electric pump

Flow rate up to 60 l/min (3.6 m³/h). Head up to 78 m. 0.55 kW (0.75 HP) motor. 20 m cable.

€357.34 Tax included

€292.90 Tax excluded

€616.10-42%

Variants:
4BLOCKm 2/7 (20m) - Elettropompa sommersa monofase da 0.50 HP
4BLOCKm 2/10 (20m) - Elettropompa sommersa monofase da 0.75 HP
4BLOCKm 2/13 (20m) - Elettropompa sommersa monofase da 1 HP
4BLOCKm 2/18 (20m) - Elettropompa sommersa monofase da 1.5 HP
Close
Make a purchase proposal

Your Offer is sent.

Your Offer is accepted, please check your inbox.

4BLOCKm 2/10 (20m) - 0.75 HP single-phase submersible electric pump
  • Use dot instead of comma

Loading

Telephone support for information before purchasing.
Reinforced packaging to reduce transport damage.
After-sales assistance for product installation.
We supply all spare parts on this product.
Description

The 4-BLOCKm 2/10 submersible electric pump from Pedrollo 's 4-BLOCK series has independent floating impellers that make the presence of sand irrelevant.

It has a minimum efficiency index that far exceeds ErP requirements.

The 4-inch monoblock is top-of-the-line in terms of performance for its category.

The 4-BLOCKm 2/10 can be installed up to 100 metres below water level both horizontally and vertically.

Solid and robust thanks to Pedrollo 's use of AISI 304 and 431 stainless steel, technopolymer, brass and noryl.

Data sheet
Pedrollo
4BLOCKm 2/10 20m
16 Items
49M42209LA1
Motor connection
SINGLE-PHASE
Power (Kw)
0.55
Power (HP)
0.75
Absorption at 230V (A)
4.0
Capacitor
20 µF 450 VL
Delivery mouth
1" 1/4
Pump body
AISI 304 stainless steel
Impeller
Delrin
Number of impellers
9
Pump shaft
AISI 304 stainless steel
Check valve
Yes
Degree of protection
IP 68
Minimum flow rate (l./min.)
10
Max. flow rate (l./min.)
60
Min. head (m.)
29.5
Max. head (m.)
78
Cable length (m.)
20
Jobs
water supply, pressurization systems, irrigation
Max. liquid temperature (°C)
+35°C
Height (cm)
65.7
External diameter (cm)
10
Weight (Kg)
12.4
Warranty (years)
2
Attachments

4BLOCK technical sheet

Construction and operating characteristics. Operating curves, operating limits, and dimensions of Pedrollo 4BLOCK series pumps.

file_download Download (1.55MB)

Frequently bought together

  • 4BLOCKm 2/10 (20m) - 0.75 HP single-phase submersible electric pump
  • +
  • 4BLOCKm 2/13 (20m) - 1 HP single-phase submersible electric pump
  • +
  • EASYPRESS-BLU - Electronic pressure regulator
  • €809.22-10 %
    Total price: €728.30
4BLOCKm 2 models and performances
TYPE
three phase
4BLOCKm 2/6
4BLOCKm 2/9
4BLOCKm 2/12
4BLOCKm 2/18
POWER
KWHP
0.370.50
0.550.75
0.751
1.11.5
Construction data of the 4BLOCK series
4BLOCK pump cutaway
Bearings
Pump side motor bearing6203
Opposite side engine bearing6203
Tree holding
Type of sealSingle Mechanical Seal in oil chamber
Engine side modelST1-16
LM diameter16
LM fixed ringCeramic
LM rotating ringGraphite
LM elastomerNBR
Materials
1.3 - Delivery bodyStainless steel EN 1.4301 (AISI 304)
2.1 - Seal holder coverBrass CW617N EN 12165
3.0 - ImpellerPOM acetal resin
4.0 - Pump shaftStainless steel EN 1.4301 (AISI 304)
4.1 - CrankshaftStainless steel EN 1.4057 (AISI 431)
5.0 - Stadium boxStainless steel EN 1.4301 (AISI 304)
5.1 - DiffuserReinforced technopolymer
6.2 - Engine sleeveStainless steel EN 1.4301 (AISI 304)
7.0 - LanternReinforced technopolymer
7.2 - Pump shirtStainless steel EN 1.4301 (AISI 304)
7.3 - Cable coverStainless steel EN 1.4301 (AISI 304)
8.0 - Suction Grid/FilterStainless steel EN 1.4301 (AISI 304)
