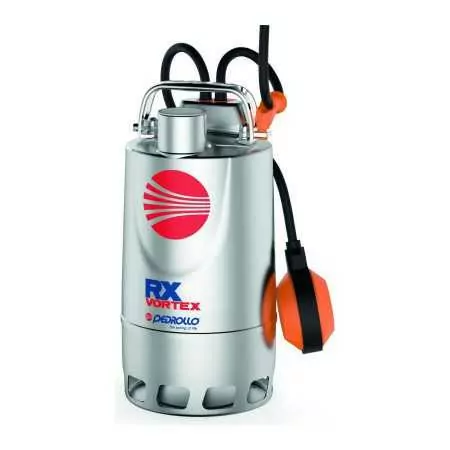

RXm 3/20 (5m) - Single-phase VORTEX electric pump for dirty water, 0.75 HP
Flow rate up to 180 l/min (10.8 m³/h). Head up to 8 m. 0.55 Kw (0.75 HP) motor.
Telephone support for information before purchasing.
After-sales assistance for product installation.
Description
The Pedrollo RXm 3/20 electric pump is suitable for draining dirty water.
The construction solutions guarantee operational safety, even in case of continuous use, thanks to the total cooling of the engine.
It is recommended for domestic use, for the evacuation of dirty water containing suspended solids.
Data sheet
- Motor connection
- SINGLE PHASE
- Power (HP)
- 0.75
- Absorption at 230V (A)
- 3.2
- Capacitor
- 14 µF450 VL
- Delivery port
- 1 "1/4
- Body Pump
- AISI 304 stainless steel
- Impeller
- AISI 304 stainless steel
- Number of impellers
- 1
- Motor shaft
- AISI 431 stainless steel
- Check valve
- no
- Degree of protection
- IP 68
- Flow rate min. (l./min.)
- 20
- Max flow (l./min.)
- 180
- Min head (m.)
- 3
- Max head (m.)
- 9
- Cable length (m)
- 5
- Employments
- drainage, drying up, slightly dirty waters
- Liquid temperature max. (° C)
- 40
- Height (cm)
- 32
- Width (cm)
- 14.7
- Weight kg)
- 7.9
- Guarantee
- 2
RXm models and performances - VORTEX
|
|
|
|
|
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Construction data of the RX 2/20 series
Bearings
| Pump side motor bearing | 6201 ZZ |
| Opposite side engine bearing | 6201 ZZ |
Tree holding
| Type of seal | Double Seal: Mechanical and Lip with oil chamber |
| LM diameter | 12 |
| LM elastomer | NBR |
| Shrinkage DN1=450 DN2=350 | STA-12R SIC |
| LP diameter | 12 |
| LP fixed ring | Ceramic |
| LP rotating ring | Silicon carbide |
| LP elastomer | NBR |
Materials
| 1.0 - Pump body | Stainless steel EN 1.4301 (AISI 304) |
| 3.0 - Impeller | Stainless steel EN 1.4301 (AISI 304) |
| 4.0 - Pump shaft | Stainless steel EN 1.4057 (AISI 431) |
| 5.1 - Diffuser | Stainless steel EN 1.4301 (AISI 304) |
| 6.0 - Motor holder | Stainless steel EN 1.4301 (AISI 304) |
| 6.1 - Engine cover | Reinforced technopolymer |
| 7.0 - Lantern | Stainless steel EN 1.4301 (AISI 304) |
| 8.0 - Suction Grid/Filter | Stainless steel EN 1.4301 (AISI 304) |
