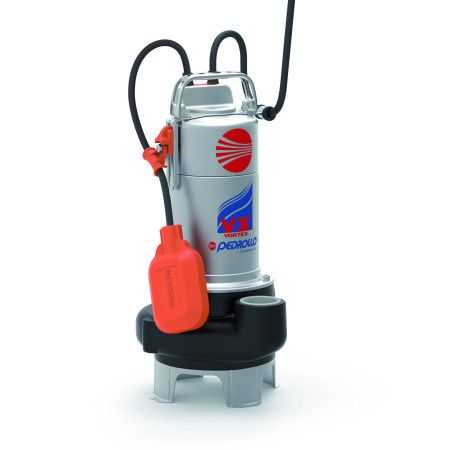

VXm 8/35 (10m) - Single-phase VORTEX electric pump for waste water, 0.75 HP

Name: VXm 8/35 (10m) - Single-phase VORTEX electric pump for waste water, 0.75 HP
Brand: Pedrollo
SKU: VXm 8/35 10MT
Price: 264.37 EUR
Availability: InStock

Flow rate up to 350 l/min (21 m³/h). Head up to 9 m. 0.55 Kw (0.75 HP) motor. 10 meters of cable with shuko plug.

Variants:

Make a purchase proposal

Telephone support for information before purchasing.

Reinforced packaging to reduce transport damage.

After-sales assistance for product installation.

We supply all spare parts on this product.

Description

It is recommended for domestic, civil and industrial use, in all cases where suspended solids of up to Ø 40 mm are present in the water, for example groundwater, surface water, sewage and loaded water.

Its use is recommended for draining flooded areas, such as basements, underground car parks, car wash areas, for domestic waste water, emptying cesspits, and disposing of sewage.

This pump stands out for its reliability, especially in fixed installations with automatic operation.

Data sheet

Motor connection: SINGLE-PHASE
Power (Kw): 0.55
Power (HP): 0.75
Absorption at 230V (A): 3.5
Capacitor: 20 µF 450 VL
Delivery mouth: 1" 1/2
Pump body: Cast iron
Impeller: AISI 304 stainless steel
Number of impellers: 1
Crankshaft: AISI 431 stainless steel
Check valve: No
Degree of protection: IP 68
Minimum flow rate (l./min.): 50
Max. flow rate (l./min.): 350
Min. head (m.): 1
Max. head (m.): 9
Cable length (m.): 10
Jobs: drainage, drying up, slightly dirty waters
Max. liquid temperature (°C): +40°C
Height (cm): 41
Width (cm): 24.3
Weight (Kg): 12.8
Warranty (years): 2

Attachments

Data sheet VX

Models, performance curves and construction features of Pedrollo pumps of the VX series.

Download (1.48MB)

VXm/35 Models and Performance

TYPE

single-phase

VXm 8/35

VXm 10/35

VXm 15/35

VXm 20/35

POWER
KW	HP
0.55	0.75
0.75	1
1.1	1.5
1.5	2

PERFORMANCES
Q liters/min	H meters
50 ÷ 350	9 ÷ 1
50 ÷ 400	11 ÷ 2
50 ÷ 500	14 ÷ 2
50 ÷ 600	15.5 ÷ 1.5

MOUTH

mand.

1 1/2"

SOLID BODIES

Ø 40

Q	m³/hour	0	3	6	12	18	21	24	27	30	33	36
Q	l/min	0	50	100	200	300	350	400	450	500	550	600
H	meters	9	8	7.5	5.5	2.7	1
		11	10	9.5	8	5.7	4	2
		14	13.5	12.8	11.2	9	7.7	6	4	2
		15.5	15	14.5	13	11.5	10.3	9	7.5	5.8	3.8	1.5

Compare with Similar Products

	VXm 8/35 (10m) - Single-phase VORTEX electric pump for waste water, 0.75 HP This product Flow rate up to 350 l/min (21 m³/h). Head up to 9 m. 0.55 Kw (0.75 HP) motor. 10 meters of cable with shuko plug.	VXm 10/35 (10m) - 1 HP single-phase VORTEX electric pump for waste water Quick View Flow rate up to 400 l/min (24 m³/h). Head up to 11 m. 0.75 Kw (1 HP) motor. 10 meters of cable with shuko plug.	VXm 15/35 - 1.5 HP single-phase VORTEX electric pump for waste water Quick View Flow rate up to 500 l/min (30 m³/h). Head up to 14 m. 1.1 kW (1.5 HP) motor.	VXm 20/35 - 2 HP single-phase VORTEX electric pump for waste water Quick View Flow rate up to 600 l/min (30 m³/h). Head up to 15.5 m. 1.5 kW (2 HP) motor.
Price	Price €480.68 -45% €264.37	Price €500.20 -45% €275.11	Price €583.16 -45% €320.74	Price €701.50 -45% €385.83
Motor connection	Motor connection SINGLE-PHASE	Motor connection SINGLE-PHASE	Motor connection SINGLE-PHASE	Motor connection SINGLE-PHASE
Power (Kw)	Power (Kw) 0.55	Power (Kw) 0.75	Power (Kw) 1.1	Power (Kw) 1.5
Power (HP)	Power (HP) 0.75	Power (HP) 1	Power (HP) 1.5	Power (HP) 2
Absorption at 230V (A)	Absorption at 230V (A) 3.5	Absorption at 230V (A) 4.8	Absorption at 230V (A) --	Absorption at 230V (A) --
Capacitor	Capacitor 20 µF 450 VL	Capacitor 20 µF 450 VL	Capacitor --	Capacitor --
Delivery mouth	Delivery mouth 1" 1/2	Delivery mouth 1" 1/2	Delivery mouth 1" 1/2	Delivery mouth 1" 1/2
Pump body	Pump body Cast iron	Pump body Cast iron	Pump body Cast iron	Pump body Cast iron
Impeller	Impeller AISI 304 stainless steel	Impeller AISI 304 stainless steel	Impeller AISI 304 stainless steel	Impeller AISI 304 stainless steel
Number of impellers	Number of impellers 1	Number of impellers 1	Number of impellers 1	Number of impellers 1
Crankshaft	Crankshaft AISI 431 stainless steel	Crankshaft AISI 431 stainless steel	Crankshaft AISI 431 stainless steel	Crankshaft AISI 431 stainless steel
Check valve	Check valve No	Check valve No	Check valve No	Check valve No
Degree of protection	Degree of protection IP 68	Degree of protection IP 68	Degree of protection IP 68	Degree of protection IP 68
Minimum flow rate (l./min.)	Minimum flow rate (l./min.) 50	Minimum flow rate (l./min.) 50	Minimum flow rate (l./min.) 50	Minimum flow rate (l./min.) 50
Max. flow rate (l./min.)	Max. flow rate (l./min.) 350	Max. flow rate (l./min.) 400	Max. flow rate (l./min.) 500	Max. flow rate (l./min.) 500
Min. head (m.)	Min. head (m.) 1	Min. head (m.) 2	Min. head (m.) 2	Min. head (m.) 2
Max. head (m.)	Max. head (m.) 9	Max. head (m.) 11	Max. head (m.) 14	Max. head (m.) 14
Cable length (m.)	Cable length (m.) 10	Cable length (m.) 10	Cable length (m.) 10	Cable length (m.) 10
Jobs	Jobs drainage, drying up, slightly dirty waters	Jobs drainage, drying up, slightly dirty waters	Jobs drainage, drying up, slightly dirty waters	Jobs drainage, drying up, slightly dirty waters
Max. liquid temperature (°C)	Max. liquid temperature (°C) +40°C	Max. liquid temperature (°C) +40°C	Max. liquid temperature (°C) +40°C	Max. liquid temperature (°C) +40°C
Height (cm)	Height (cm) 41	Height (cm) 41	Height (cm) 42.1	Height (cm) 42.1
Width (cm)	Width (cm) 24.3	Width (cm) 24.3	Width (cm) 24.3	Width (cm) 24.3
Depth (cm)	Depth (cm) --	Depth (cm) --	Depth (cm) --	Depth (cm) --
Weight (Kg)	Weight (Kg) 12.8	Weight (Kg) 13.7	Weight (Kg) 14.5	Weight (Kg) 14.5
Warranty (years)	Warranty (years) 2	Warranty (years) 2	Warranty (years) 2	Warranty (years) 2
