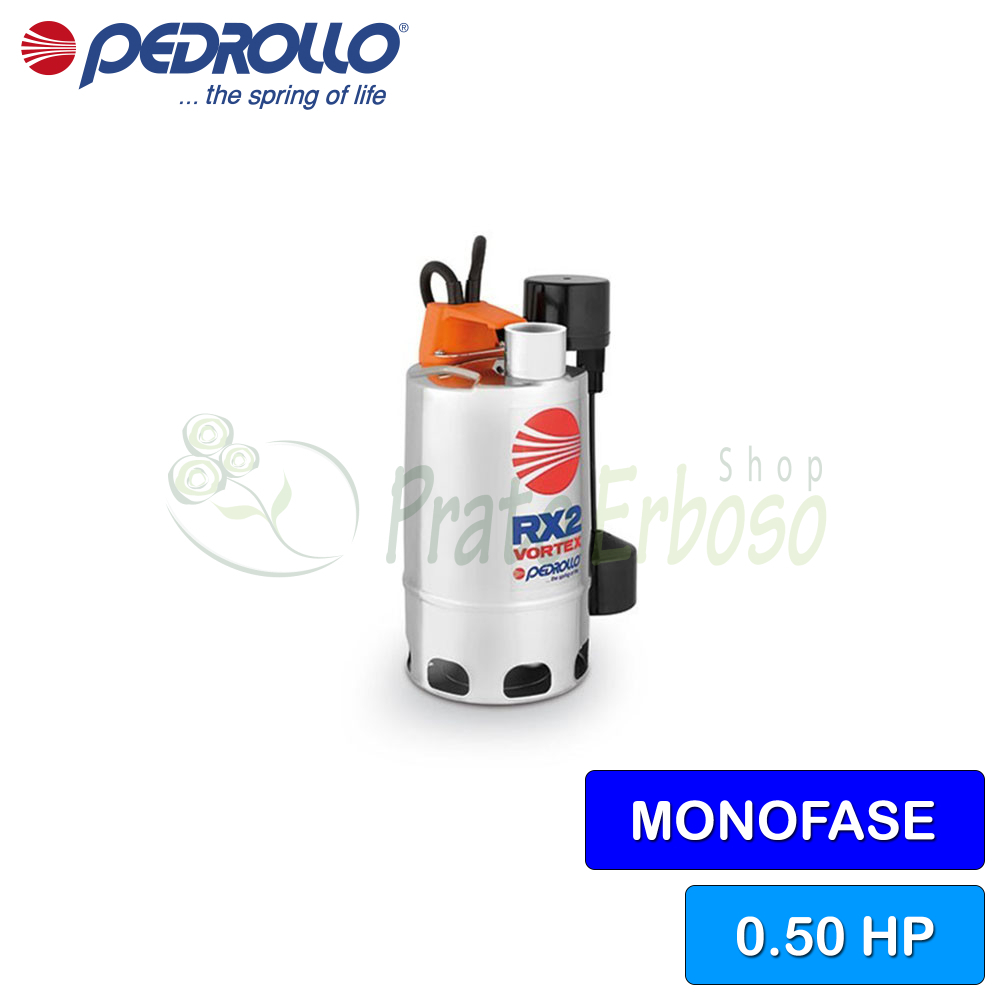

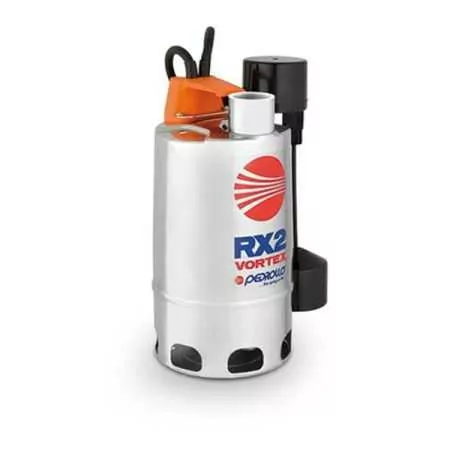

RXm 2/20 - GM (10m) - Single-phase VORTEX electric pump for dirty water, 0.50 HP
Flow rate up to 190 l/min (10.8 m³/h). Head up to 8 m. 0.37 Kw (0.50 HP) motor.
WITH MAGNETIC FLOAT
Telephone support for information before purchasing.
Reinforced packaging to reduce transport damage.
After-sales assistance for product installation.
We supply all spare parts on this product.
Description
The RX-VORTEX/GM series are suitable for draining dirty water and are equipped with a magnetic float switch, which allows them to operate even in particularly restricted spaces.
The construction solutions guarantee operational safety, even in case of continuous use, thanks to the total cooling of the engine.
They are recommended for domestic use, for the evacuation of dirty water containing suspended solids.
Data sheet
- Motor connection
- SINGLE PHASE
- Power (Kw)
- 0.37
- Power (HP)
- 0.50
- Absorption at 230V (A)
- 2.6
- Capacitor
- 10 µF450 VL
- Delivery mouth
- 1 "1/4
- Pump body
- AISI 304 stainless steel
- Impeller
- AISI 304 stainless steel
- Number of impellers
- 1
- Crankshaft
- AISI 431 stainless steel
- Check valve
- No
- Degree of protection
- IP 68
- Min. flow rate (l./min.)
- 20
- Max. flow rate (l./min.)
- 190
- Min. head (m.)
- 2
- Max. head (m.)
- 8
- Cable length (m)
- 10
- Jobs
- drainage, drying up, slightly dirty waters
- Max. liquid temperature (°C)
- 40
- Height (cm)
- 30.5
- Width (cm)
- 14.7
- Weight (Kg)
- 6.2
- Warranty (years)
- 2
Models and performances RXm - VORTEX - GM
|
|
|
|
| ||||||||||||||||||||||||||||||||||||||
Construction data of the RX 2/20 series
Bearings
| Pump side motor bearing | 6201 ZZ |
| Opposite side engine bearing | 6201 ZZ |
Tree holding
| Type of seal | Double Seal: Mechanical and Lip with oil chamber |
| LM diameter | 12 |
| LM elastomer | NBR |
| Shrinkage DN1=450 DN2=350 | STA-12R SIC |
| LP diameter | 12 |
| LP fixed ring | Ceramic |
| LP rotating ring | Silicon carbide |
| LP elastomer | NBR |
Materials
| 1.0 - Pump body | Stainless steel EN 1.4301 (AISI 304) |
| 3.0 - Impeller | Stainless steel EN 1.4301 (AISI 304) |
| 4.0 - Pump shaft | Stainless steel EN 1.4057 (AISI 431) |
| 5.1 - Diffuser | Stainless steel EN 1.4301 (AISI 304) |
| 6.0 - Motor holder | Stainless steel EN 1.4301 (AISI 304) |
| 6.1 - Engine cover | Reinforced technopolymer |
| 7.0 - Lantern | Stainless steel EN 1.4301 (AISI 304) |
| 8.0 - Suction Grid/Filter | Stainless steel EN 1.4301 (AISI 304) |
