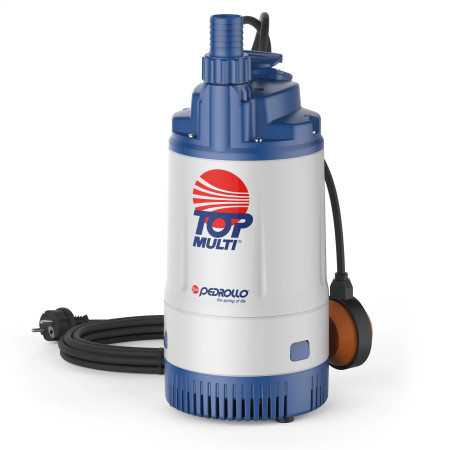

TOP MULTI 4 - 1 HP multi-impeller electric pump
Flow rate up to 80 l/min (4.8 m³/h). Head up to 52 m. 0.75 Kw (1 HP) motor.
Delivery Options
| Carrier | Description | Estimated Delivery | |
|---|---|---|---|
 | Mail Boxes - 2 giorni | This courier delivers within 48 hours from the moment we entrust the products to him. | Wednesday 3 December - Thursday 4 December |
 | Poste Italiane - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust them with the products. | Wednesday 3 December - Thursday 4 December |
 | DHL - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust the products to him. | Wednesday 3 December - Thursday 4 December |
 | Poste Italiane - 3 giorni punto di ritiro | This courier delivers within 24/72 hours from the moment we entrust them with the products. | Wednesday 3 December |
 | Ritiro in negozio | Choose where to collect your order within 24/48 hours. | Wednesday 3 December |
Carrier: Mail Boxes - 2 giorni
Description: This courier delivers within 48 hours from the moment we entrust the products to him.
Estimated delivery:
Wednesday 3 December - Thursday 4 December
Carrier: Poste Italiane - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust them with the products.
Estimated delivery:
Wednesday 3 December - Thursday 4 December
Carrier: DHL - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust the products to him.
Estimated delivery:
Wednesday 3 December - Thursday 4 December
Carrier: Poste Italiane - 3 giorni punto di ritiro
Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.
Estimated delivery:
Wednesday 3 December
Carrier: Ritiro in negozio
Description: Choose where to collect your order within 24/48 hours.
Estimated delivery:
Wednesday 3 December
The TOP MULTI 4 multi-impeller electric pump by Pedrollo is ideal for the domestic and civil sectors.
Recommended for pumping clean water and liquids that are not chemically aggressive towards the materials from which the pump is made.
The flow rate ranges from 10 to 120 liters per minute. The head ranges from 4.5 to 30.5 meters.
It must be powered by a single-phase voltage, has a horsepower of 0.75 HP and the temperature of the liquid to be pumped ranges from -10 degrees centigrade up to +40.
The TOP MULTI 4 is suitable for domestic water supply from relatively deep basins, tanks or wells, for drawing rainwater from cisterns for hand watering or for feeding an irrigation system.
Also complete with 10 meter long power cable.
The pump construction is solid. Pedrollo has used technopolymer, AISI 304 stainless steel and noryl which give the product robustness and allow it to last over time.
- Motor connection
- SINGLE-PHASE
- Power (Kw)
- 0.75
- Power (HP)
- 1
- Absorption at 230V (A)
- 3.9
- Delivery mouth
- 1" 1/4
- Pump body
- Technopolymer
- Impeller
- Noryl
- Number of impellers
- 4
- Crankshaft
- AISI 431 stainless steel
- Check valve
- No
- Degree of protection
- IP 68
- Minimum flow rate (l./min.)
- 10
- Max. flow rate (l./min.)
- 80
- Min. head (m.)
- 8
- Max. head (m.)
- 52
- Emptying level (mm)
- 35
- Cable length (m.)
- 10
- Jobs
- water supply, pressurization systems, irrigation
- Max. liquid temperature (°C)
- +40°C
- Height (cm)
- 41.5
- Width (cm)
- 17.8
- Depth (cm)
- 17.8
- Weight (Kg)
- 10.4
- Warranty (years)
- 2
|
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Bearings
| Pump side motor bearing | 6202 ZZ - C3 |
| Opposite side engine bearing | 6201 ZZ |
Tree holding
| Type of seal | Double Mechanical Seal in tandem with oil chamber |
| Engine side model | STA-13R |
| LM diameter | 13 |
| LM fixed ring | Ceramic |
| LM rotating ring | Graphite |
| LM elastomer | NBR |
| Shrinkage DN1=450 DN2=350 | STA-12R SG |
| LP diameter | 12 |
| LP fixed ring | Silicon carbide |
| LP rotating ring | Graphite |
| LP elastomer | NBR |
Materials
| 1.0 - Pump body | Reinforced technopolymer |
| 1.3 - Delivery body | Reinforced technopolymer |
| 3.0 - Impeller | Reinforced technopolymer |
| 4.0 - Pump shaft | Stainless steel EN 1.4057 (AISI 431) |
| 5.0 - Stadium box | Reinforced technopolymer |
| 5.1 - Diffuser | Reinforced technopolymer |
| 5.2 - Wear ring | POM acetal resin |
| 5.5 - Director Crown | Reinforced technopolymer |
| 6.0 - Motor holder | Stainless steel EN 1.4301 (AISI 304) |
| 6.1 - Engine cover | Stainless steel EN 1.4301 (AISI 304) |
| 8.0 - Suction Grid/Filter | Reinforced technopolymer |
Compare with Similar Products
 TOP MULTI 4 - 1 HP multi-impeller electric pumpThis product Flow rate up to 80 l/min (4.8 m³/h). Head up to 52 m. 0.75 Kw (1 HP) motor. |  TOP MULTI 2 - 0.75 HP multi-impeller electric pumpFlow rate up to 80 l/min (4.8 m³/h). Head up to 40 m. 0.55 Kw (0.75 HP) motor. |  TOP MULTI 3 - 0.75 HP multi-impeller electric pumpFlow rate up to 120 l/min (7.2 m³/h). Head up to 30.5 m. 0.55 Kw (0.75 HP) motor. |  TOP MULTI 5 - 1 HP multi-impeller electric pumpFlow rate up to 120 l/min (4.8 m³/h). Head up to 41 m. 0.75 Kw (1 HP) motor. | |
|---|---|---|---|---|
| Price | Price €483.12 -42% €280.21 | Price €400.16 -42% €232.09 | Price €414.80 -42% €240.58 | Price €497.76 -42% €288.70 |
| Motor connection | Motor connection SINGLE-PHASE | Motor connection SINGLE-PHASE | Motor connection SINGLE-PHASE | Motor connection SINGLE-PHASE |
| Power (Kw) | Power (Kw) 0.75 | Power (Kw) 0.55 | Power (Kw) 0.55 | Power (Kw) 0.75 |
| Power (HP) | Power (HP) 1 | Power (HP) 0.75 | Power (HP) 0.75 | Power (HP) 1 |
| Absorption at 230V (A) | Absorption at 230V (A) 3.9 | Absorption at 230V (A) 3.4 | Absorption at 230V (A) 3.6 | Absorption at 230V (A) 3.9 |
| Capacitor | Capacitor -- | Capacitor 12.5 µF 450 VL | Capacitor 12.5 µF 450 VL | Capacitor -- |
| Delivery mouth | Delivery mouth 1" 1/4 | Delivery mouth 1" 1/4 | Delivery mouth 1" 1/4 | Delivery mouth 1" 1/4 |
| Pump body | Pump body Technopolymer | Pump body Technopolymer | Pump body Technopolymer | Pump body Technopolymer |
| Impeller | Impeller Noryl | Impeller Noryl | Impeller Noryl | Impeller Noryl |
| Number of impellers | Number of impellers 4 | Number of impellers 3 | Number of impellers 3 | Number of impellers 5 |
| Crankshaft | Crankshaft AISI 431 stainless steel | Crankshaft AISI 431 stainless steel | Crankshaft AISI 431 stainless steel | Crankshaft AISI 431 stainless steel |
| Check valve | Check valve No | Check valve No | Check valve No | Check valve No |
| Degree of protection | Degree of protection IP 68 | Degree of protection IP 68 | Degree of protection IP 68 | Degree of protection IP 68 |
| Minimum flow rate (l./min.) | Minimum flow rate (l./min.) 10 | Minimum flow rate (l./min.) 10 | Minimum flow rate (l./min.) 10 | Minimum flow rate (l./min.) 10 |
| Max. flow rate (l./min.) | Max. flow rate (l./min.) 80 | Max. flow rate (l./min.) 80 | Max. flow rate (l./min.) 120 | Max. flow rate (l./min.) 120 |
| Min. head (m.) | Min. head (m.) 8 | Min. head (m.) 6 | Min. head (m.) 4.5 | Min. head (m.) 6 |
| Max. head (m.) | Max. head (m.) 52 | Max. head (m.) 40 | Max. head (m.) 30.5 | Max. head (m.) 41 |
| Emptying level (mm) | Emptying level (mm) 35 | Emptying level (mm) 35 | Emptying level (mm) 35 | Emptying level (mm) 35 |
| Cable length (m.) | Cable length (m.) 10 | Cable length (m.) 10 | Cable length (m.) 10 | Cable length (m.) 10 |
| Jobs | Jobs water supply, pressurization systems, irrigation | Jobs water supply, pressurization systems, irrigation | Jobs water supply, pressurization systems, irrigation | Jobs water supply, pressurization systems, irrigation |
| Max. liquid temperature (°C) | Max. liquid temperature (°C) +40°C | Max. liquid temperature (°C) +40°C | Max. liquid temperature (°C) +40°C | Max. liquid temperature (°C) +40°C |
| Height (cm) | Height (cm) 41.5 | Height (cm) 38 | Height (cm) 38 | Height (cm) 41.5 |
| Width (cm) | Width (cm) 17.8 | Width (cm) 17.8 | Width (cm) 17.8 | Width (cm) 17.8 |
| Depth (cm) | Depth (cm) 17.8 | Depth (cm) -- | Depth (cm) -- | Depth (cm) 17.8 |
| Weight (Kg) | Weight (Kg) 10.4 | Weight (Kg) 9.2 | Weight (Kg) 9.3 | Weight (Kg) 10.5 |
| Warranty (years) | Warranty (years) 2 | Warranty (years) 2 | Warranty (years) 2 | Warranty (years) 2 |
