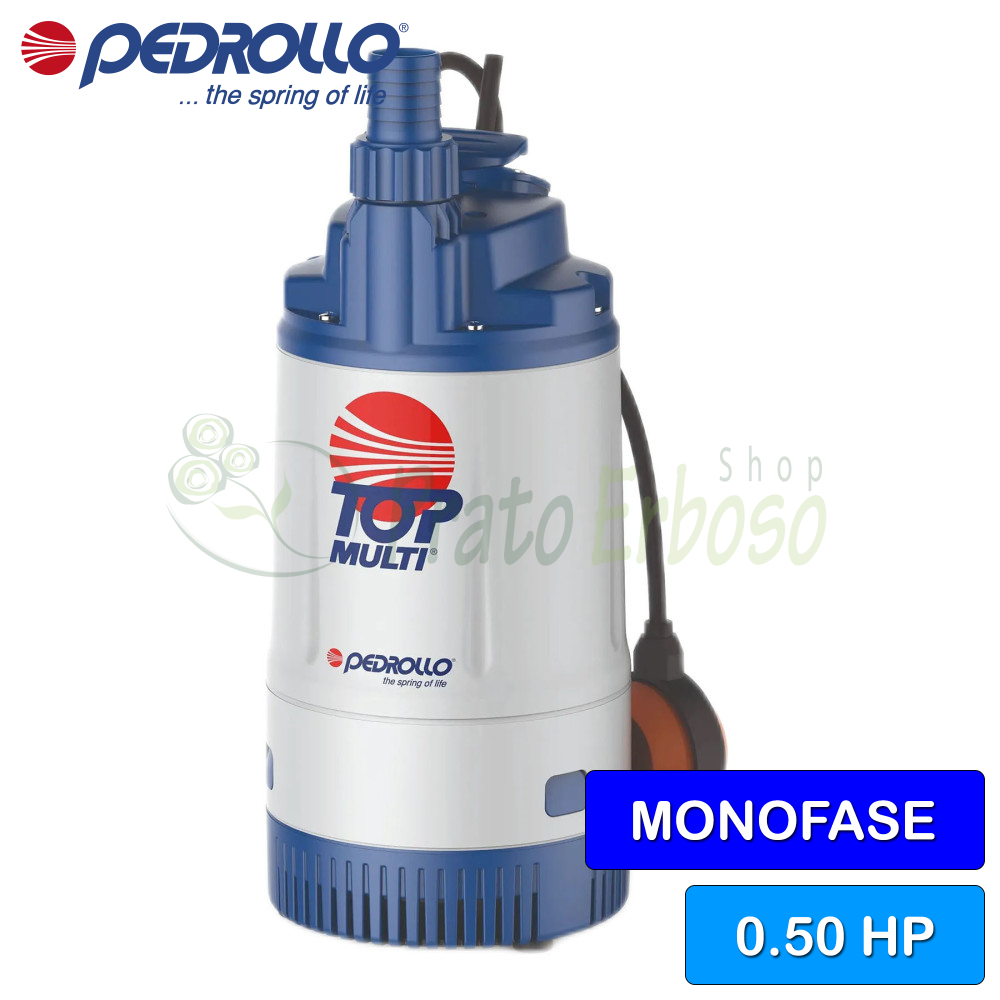

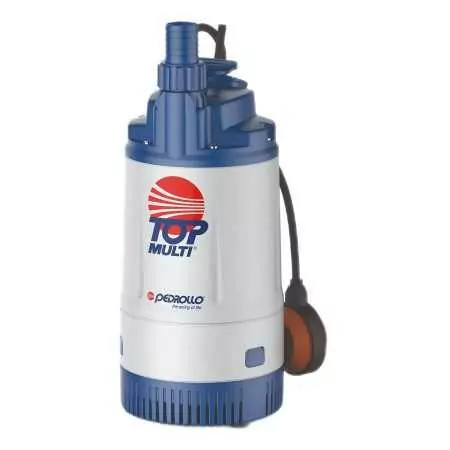

TOP MULTI 1 - 0.50 HP Submersible Electric Pump
Flow rate up to 70 l/min (4.2 m³/h). Head up to 26 m. 0.37 Kw (0.50 HP) motor.
Telephone support for information before purchasing.
Reinforced packaging to reduce transport damage.
After-sales assistance for product installation.
We supply all spare parts on this product.
Description
The TOP MULTI 1 electric pump from Pedrollo is recommended for pumping clean water and liquids that are chemically non-aggressive for the materials from which the pump is made.
Due to its high efficiency and reliability, it is suitable for domestic water supply from relatively deep basins, tanks or wells, for drawing rainwater from cisterns for hand watering or for feeding an irrigation system.
Data sheet
- Motor connection
- SINGLE PHASE
- Power (Kw)
- 0.37
- Power (HP)
- 0.50
- Absorption at 230V (A)
- 2
- Capacitor
- 10 µF450 VL
- Delivery mouth
- 1 "1/4
- Pump body
- Technopolymer
- Impeller
- Noryl
- Number of impellers
- 2
- Crankshaft
- AISI 431 stainless steel
- Check valve
- No
- Degree of protection
- IP 68
- Min. flow rate (l./min.)
- 10
- Max. flow rate (l./min.)
- 75
- Min. head (m.)
- 6
- Max. head (m.)
- 26
- Emptying level (mm)
- 25
- Cable length (m)
- 10
- Jobs
- water supply, pressurization systems, irrigation
- Max. liquid temperature (°C)
- +40°C
- Height (cm)
- 29.5
- Width (cm)
- 17
- Weight (Kg)
- 6.8
- Warranty (years)
- 2
Models and performances TOP MULTI 1-2-4
|
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Construction data of the TOP MULTI 1
Bearings
| Pump side motor bearing | 6201 ZZ - C3E |
| Opposite side engine bearing | 6201 ZZ - C3E |
Tree holding
| Type of seal | Double Mechanical Seal in tandem with oil chamber |
| Engine side model | Lip seal |
| LM diameter | 12 |
| LM elastomer | NBR |
| Shrinkage DN1=450 DN2=350 | STA-12R |
| LP diameter | 12 |
| LP fixed ring | Ceramic |
| LP rotating ring | Graphite |
| LP elastomer | NBR |
Materials
| 1.0 - Pump body | Reinforced technopolymer |
| 3.0 - Impeller | Reinforced technopolymer |
| 4.0 - Pump shaft | Stainless steel EN 1.4057 (AISI 431) |
| 5.0 - Stadium box | Reinforced technopolymer |
| 5.1 - Diffuser | Reinforced technopolymer |
| 5.2 - Wear ring | POM acetal resin |
| 5.4 - Stadium Containment | Reinforced technopolymer |
| 5.5 - Director Crown | Reinforced technopolymer |
| 6.0 - Motor holder | Stainless steel EN 1.4301 (AISI 304) |
| 6.1 - Engine cover | Stainless steel EN 1.4301 (AISI 304) |
| 8.0 - Suction Grid/Filter | Reinforced technopolymer |
Compare with Similar Products
 TOP MULTI 1 - 0.50 HP Submersible Electric PumpThis product Flow rate up to 70 l/min (4.2 m³/h). Head up to 26 m. 0.37 Kw (0.50 HP) motor. |  TOP MULTI 2 - 0.75 HP multi-impeller electric pumpFlow rate up to 80 l/min (4.8 m³/h). Head up to 40 m. 0.55 Kw (0.75 HP) motor. |  TOP MULTI 3 - 0.75 HP multi-impeller electric pumpFlow rate up to 120 l/min (7.2 m³/h). Head up to 30.5 m. 0.55 Kw (0.75 HP) motor. |  TOP MULTI 4 - 1 HP multi-impeller electric pumpFlow rate up to 80 l/min (4.8 m³/h). Head up to 52 m. 0.75 Kw (1 HP) motor. | |
|---|---|---|---|---|
| Availability | Availability -- | Availability Last items in stock | Availability -- | Availability -- |
| Motor connection | Motor connection SINGLE PHASE | Motor connection SINGLE PHASE | Motor connection SINGLE PHASE | Motor connection SINGLE PHASE |
| Power (Kw) | Power (Kw) 0.37 | Power (Kw) 0.55 | Power (Kw) 0.55 | Power (Kw) 0.75 |
| Power (HP) | Power (HP) 0.50 | Power (HP) 0.75 | Power (HP) 0.75 | Power (HP) 1 |
| Absorption at 230V (A) | Absorption at 230V (A) 2 | Absorption at 230V (A) 3.4 | Absorption at 230V (A) 3.6 | Absorption at 230V (A) 3.9 |
| Capacitor | Capacitor 10 µF450 VL | Capacitor 12.5 µF450 VL | Capacitor 12.5 µF450 VL | Capacitor -- |
| Delivery mouth | Delivery mouth 1 "1/4 | Delivery mouth 1 "1/4 | Delivery mouth 1 "1/4 | Delivery mouth 1 "1/4 |
| Pump body | Pump body Technopolymer | Pump body Technopolymer | Pump body Technopolymer | Pump body Technopolymer |
| Impeller | Impeller Noryl | Impeller Noryl | Impeller Noryl | Impeller Noryl |
| Number of impellers | Number of impellers 2 | Number of impellers 3 | Number of impellers 3 | Number of impellers 4 |
| Crankshaft | Crankshaft AISI 431 stainless steel | Crankshaft AISI 431 stainless steel | Crankshaft AISI 431 stainless steel | Crankshaft AISI 431 stainless steel |
| Check valve | Check valve No | Check valve No | Check valve No | Check valve No |
| Degree of protection | Degree of protection IP 68 | Degree of protection IP 68 | Degree of protection IP 68 | Degree of protection IP 68 |
| Min. flow rate (l./min.) | Min. flow rate (l./min.) 10 | Min. flow rate (l./min.) 10 | Min. flow rate (l./min.) 10 | Min. flow rate (l./min.) 10 |
| Max. flow rate (l./min.) | Max. flow rate (l./min.) 75 | Max. flow rate (l./min.) 80 | Max. flow rate (l./min.) 120 | Max. flow rate (l./min.) 80 |
| Min. head (m.) | Min. head (m.) 6 | Min. head (m.) 6 | Min. head (m.) 4.5 | Min. head (m.) 8 |
| Max. head (m.) | Max. head (m.) 26 | Max. head (m.) 40 | Max. head (m.) 30.5 | Max. head (m.) 52 |
| Emptying level (mm) | Emptying level (mm) 25 | Emptying level (mm) 35 | Emptying level (mm) 35 | Emptying level (mm) 35 |
| Cable length (m) | Cable length (m) 10 | Cable length (m) 10 | Cable length (m) 10 | Cable length (m) 10 |
| Jobs | Jobs water supply, pressurization systems, irrigation | Jobs water supply, pressurization systems, irrigation | Jobs water supply, pressurization systems, irrigation | Jobs water supply, pressurization systems, irrigation |
| Max. liquid temperature (°C) | Max. liquid temperature (°C) +40°C | Max. liquid temperature (°C) +40°C | Max. liquid temperature (°C) +40°C | Max. liquid temperature (°C) +40°C |
| Height (cm) | Height (cm) 29.5 | Height (cm) 38 | Height (cm) 38 | Height (cm) 41.5 |
| Width (cm) | Width (cm) 17 | Width (cm) 17.8 | Width (cm) 17.8 | Width (cm) 17.8 |
| Depth (cm) | Depth (cm) -- | Depth (cm) -- | Depth (cm) -- | Depth (cm) 17.8 |
| Weight (Kg) | Weight (Kg) 6.8 | Weight (Kg) 9.2 | Weight (Kg) 9.3 | Weight (Kg) 10.4 |
| Warranty (years) | Warranty (years) 2 | Warranty (years) 2 | Warranty (years) 2 | Warranty (years) 2 |
