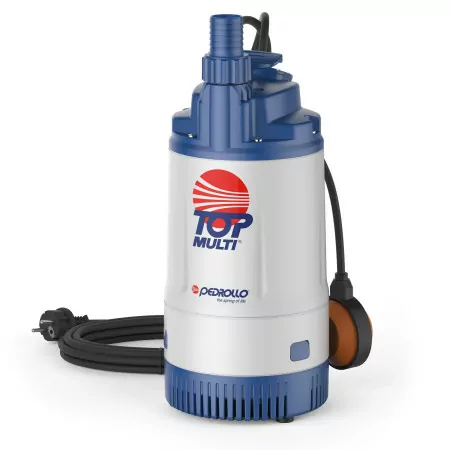

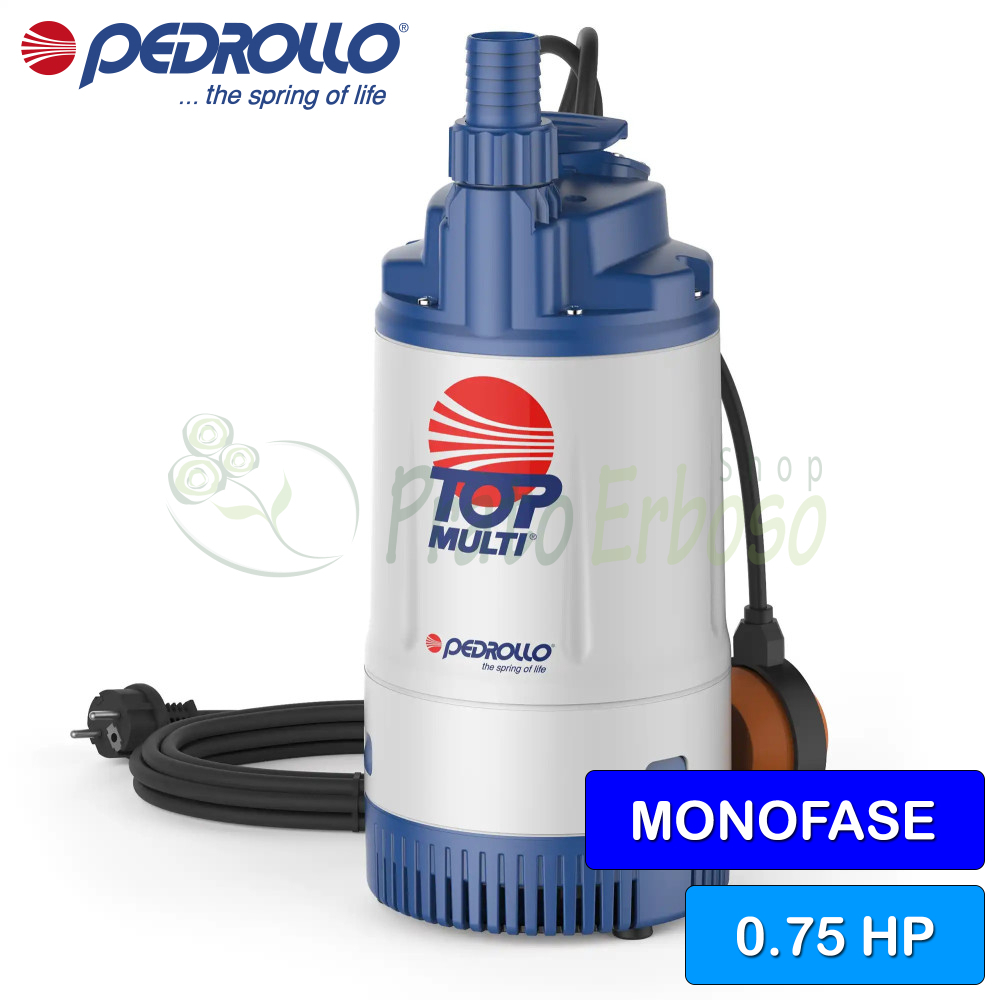

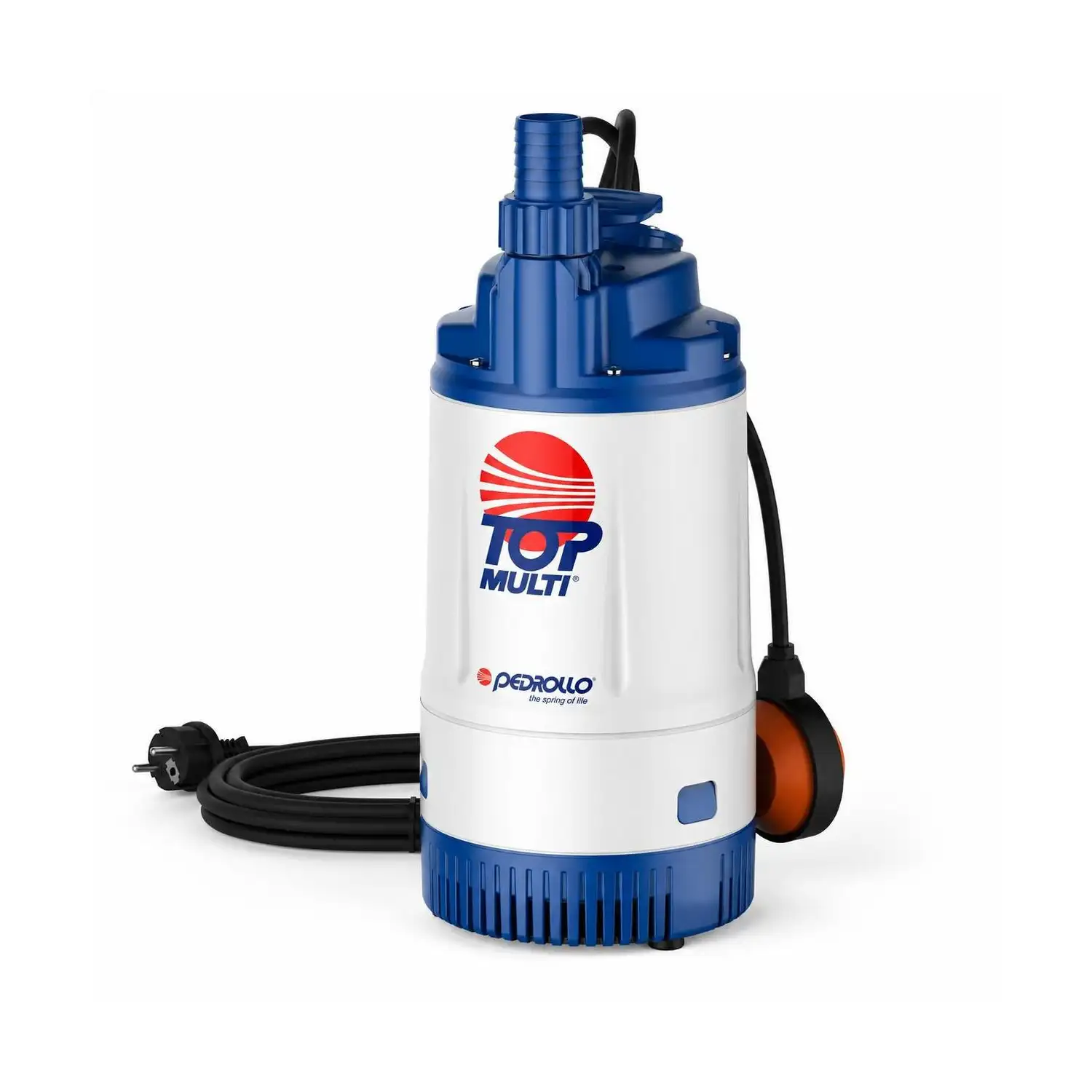

TOP MULTI 2 - 0.75 HP multi-impeller electric pump

Name: TOP MULTI 2 - 0.75 HP multi-impeller electric pump
Brand: Pedrollo
SKU: TOP MULTI 2
Price: 225.02 EUR
Availability: InStock
Rating: 5 (1 reviews)

Flow rate up to 80 l/min (4.8 m³/h). Head up to 40 m. 0.55 Kw (0.75 HP) motor.

Variants:

Order it before 12:00 of tomorrow and receive it between Thursday 24 April and Friday 25 April with Mail Boxes - 2 giorni

Delivery Options

	Description	Estimated Delivery
Mail Boxes - 2 giorni	This courier delivers within 48 hours from the moment we entrust the products to him.	Thursday 24 April - Friday 25 April
Poste Italiane - 2 giorni Italia	This courier delivers within 24/48 hours from the moment we entrust them with the products.	Thursday 24 April - Friday 25 April
DHL - 2 giorni Italia	This courier delivers within 24/48 hours from the moment we entrust the products to him.	Thursday 24 April - Friday 25 April

Carrier: Mail Boxes - 2 giorni

Description: This courier delivers within 48 hours from the moment we entrust the products to him.

Estimated delivery:
Thursday 24 April - Friday 25 April

Carrier: Poste Italiane - 2 giorni Italia

Description: This courier delivers within 24/48 hours from the moment we entrust them with the products.

Estimated delivery:
Thursday 24 April - Friday 25 April

Carrier: DHL - 2 giorni Italia

Description: This courier delivers within 24/48 hours from the moment we entrust the products to him.

Estimated delivery:
Thursday 24 April - Friday 25 April

✖

Make a purchase proposal

Telephone support for information before purchasing.

Reinforced packaging to reduce transport damage.

After-sales assistance for product installation.

We supply all spare parts on this product.

Description

The TOP MULTI 2 electric pump is recommended for pumping clean water and liquids that are chemically non-aggressive for the materials from which the pump is made.

Due to their high efficiency and reliability, they are suitable for domestic water supply from relatively deep basins, tanks or wells, for drawing rainwater from cisterns for hand watering or feeding an irrigation system, etc.

Data sheet

Motor connection: SINGLE PHASE
Power (Kw): 0.55
Power (HP): 0.75
Absorption at 230V (A): 3.4
Capacitor: 12.5 µF450 VL
Delivery mouth: 1 "1/4
Pump body: Technopolymer
Impeller: Noryl
Number of impellers: 3
Crankshaft: AISI 431 stainless steel
Check valve: No
Degree of protection: IP 68
Min. flow rate (l./min.): 10
Max. flow rate (l./min.): 80
Min. head (m.): 6
Max. head (m.): 40
Emptying level (mm): 35
Cable length (m): 10
Jobs: water supply, pressurization systems, irrigation
Max. liquid temperature (°C): +40°C
Height (cm): 38
Width (cm): 17.8
Weight (Kg): 9.2
Warranty (years): 2

Attachments

Top Multi 2 data sheet

Models, performance curves and construction features of the Top Multi 2 PEDROLLO pumps.

Download (1.49MB)

TOP MULTI technical sheet

Construction and operating characteristics. Work curves, limits of use and dimensions of the pumps of the Pedrollo TOP MULTI series.

Download (2.57MB)

Models and performances TOP MULTI 1-2-4

TYPE

single phase

TOP MULTI 1

TOP MULTI 2

POWER
KW	HP
0.37	0.50
0.55	0.75

PERFORMANCES
Q liters/min	H meters
10 ÷ 75	26 ÷ 6
10 ÷ 80	40 ÷ 6

MOUTH

send.

1 1/4"

RUBBER HOLDER

Ø 35

Q	m³/hour	0	0.6	1.2	1.8	2.4	3.0	3.6	4.2	4.5	4.8
Q	l/min	0	10	20	30	40	50	60	70	75	80
H	meters	26	25	23.3	21.1	18.3	15.1	11.6	7.9	6
H	meters	40	38.5	36	32.5	28	23.1	17.7	12	9	6

Construction data of the TOP MULTI 2

Bearings

Pump side motor bearing	6202 ZZ - C3
Opposite side engine bearing	6201 ZZ

Tree holding

Type of seal	Double Mechanical Seal in tandem with oil chamber
Engine side model	STA-13R
LM diameter	13
LM fixed ring	Ceramic
LM rotating ring	Graphite
LM elastomer	NBR
Shrinkage DN1=450 DN2=350	STA-12R SG
LP diameter	12
LP fixed ring	Silicon carbide
LP rotating ring	Graphite
LP elastomer	NBR

Materials

1.0 - Pump body	Reinforced technopolymer
1.3 - Delivery body	Reinforced technopolymer
3.0 - Impeller	Reinforced technopolymer
4.0 - Pump shaft	Stainless steel EN 1.4057 (AISI 431)
5.0 - Stadium box	Reinforced technopolymer
5.1 - Diffuser	Reinforced technopolymer
5.2 - Wear ring	POM acetal resin
5.5 - Director Crown	Reinforced technopolymer
6.0 - Motor holder	Stainless steel EN 1.4301 (AISI 304)
6.1 - Engine cover	Stainless steel EN 1.4301 (AISI 304)
8.0 - Suction Grid/Filter	Reinforced technopolymer

Compare with Similar Products

	TOP MULTI 2 - 0.75 HP multi-impeller electric pump This product Flow rate up to 80 l/min (4.8 m³/h). Head up to 40 m. 0.55 Kw (0.75 HP) motor.	TOP MULTI 1 - 0.50 HP Submersible Electric Pump Quick View Flow rate up to 70 l/min (4.2 m³/h). Head up to 26 m. 0.37 Kw (0.50 HP) motor.	TOP MULTI 3 - 0.75 HP multi-impeller electric pump Quick View Flow rate up to 120 l/min (7.2 m³/h). Head up to 30.5 m. 0.55 Kw (0.75 HP) motor.	TOP MULTI 4 - 1 HP multi-impeller electric pump Quick View Flow rate up to 80 l/min (4.8 m³/h). Head up to 52 m. 0.75 Kw (1 HP) motor.
Availability	Availability Last items in stock	Availability --	Availability --	Availability --
Motor connection	Motor connection SINGLE PHASE	Motor connection SINGLE PHASE	Motor connection SINGLE PHASE	Motor connection SINGLE PHASE
Power (Kw)	Power (Kw) 0.55	Power (Kw) 0.37	Power (Kw) 0.55	Power (Kw) 0.75
Power (HP)	Power (HP) 0.75	Power (HP) 0.50	Power (HP) 0.75	Power (HP) 1
Absorption at 230V (A)	Absorption at 230V (A) 3.4	Absorption at 230V (A) 2	Absorption at 230V (A) 3.6	Absorption at 230V (A) 3.9
Capacitor	Capacitor 12.5 µF450 VL	Capacitor 10 µF450 VL	Capacitor 12.5 µF450 VL	Capacitor --
Delivery mouth	Delivery mouth 1 "1/4	Delivery mouth 1 "1/4	Delivery mouth 1 "1/4	Delivery mouth 1 "1/4
Pump body	Pump body Technopolymer	Pump body Technopolymer	Pump body Technopolymer	Pump body Technopolymer
Impeller	Impeller Noryl	Impeller Noryl	Impeller Noryl	Impeller Noryl
Number of impellers	Number of impellers 3	Number of impellers 2	Number of impellers 3	Number of impellers 4
Crankshaft	Crankshaft AISI 431 stainless steel	Crankshaft AISI 431 stainless steel	Crankshaft AISI 431 stainless steel	Crankshaft AISI 431 stainless steel
Check valve	Check valve No	Check valve No	Check valve No	Check valve No
Degree of protection	Degree of protection IP 68	Degree of protection IP 68	Degree of protection IP 68	Degree of protection IP 68
Min. flow rate (l./min.)	Min. flow rate (l./min.) 10	Min. flow rate (l./min.) 10	Min. flow rate (l./min.) 10	Min. flow rate (l./min.) 10
Max. flow rate (l./min.)	Max. flow rate (l./min.) 80	Max. flow rate (l./min.) 75	Max. flow rate (l./min.) 120	Max. flow rate (l./min.) 80
Min. head (m.)	Min. head (m.) 6	Min. head (m.) 6	Min. head (m.) 4.5	Min. head (m.) 8
Max. head (m.)	Max. head (m.) 40	Max. head (m.) 26	Max. head (m.) 30.5	Max. head (m.) 52
Emptying level (mm)	Emptying level (mm) 35	Emptying level (mm) 25	Emptying level (mm) 35	Emptying level (mm) 35
Cable length (m)	Cable length (m) 10	Cable length (m) 10	Cable length (m) 10	Cable length (m) 10
Jobs	Jobs water supply, pressurization systems, irrigation	Jobs water supply, pressurization systems, irrigation	Jobs water supply, pressurization systems, irrigation	Jobs water supply, pressurization systems, irrigation
Max. liquid temperature (°C)	Max. liquid temperature (°C) +40°C	Max. liquid temperature (°C) +40°C	Max. liquid temperature (°C) +40°C	Max. liquid temperature (°C) +40°C
Height (cm)	Height (cm) 38	Height (cm) 29.5	Height (cm) 38	Height (cm) 41.5
Width (cm)	Width (cm) 17.8	Width (cm) 17	Width (cm) 17.8	Width (cm) 17.8
Depth (cm)	Depth (cm) --	Depth (cm) --	Depth (cm) --	Depth (cm) 17.8
Weight (Kg)	Weight (Kg) 9.2	Weight (Kg) 6.8	Weight (Kg) 9.3	Weight (Kg) 10.4
Warranty (years)	Warranty (years) 2	Warranty (years) 2	Warranty (years) 2	Warranty (years) 2
