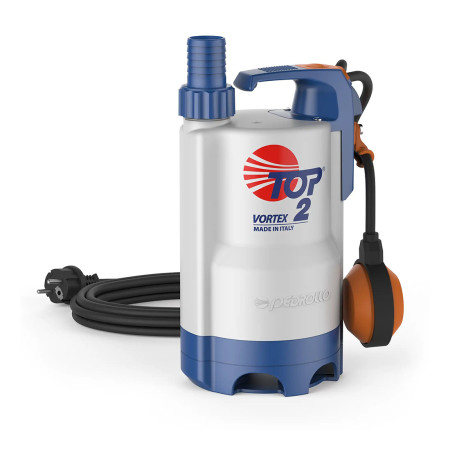

TOP 2 - VORTEX (5m) - 0.50 HP Electric Drainage Pump for Dirty Water
Flow rate up to 180 l/min (10.8 m³/h). Head up to 7 m. 0.37 Kw (0.5 HP) motor. 5 meters of cable with shuko plug.
The TOP 2 - VORTEX pump by Pedrollo is suitable for draining dirty water that is not chemically aggressive towards the materials from which the pump is made.
The construction solutions employed guarantee ease of use and operational safety thanks to the total cooling of the motor and the double seal on the shaft.
It is recommended for domestic use, for the evacuation of dirty water, emptying of tanks, domestic drains, emptying of collection pits even in the presence of suspended solid bodies of dimensions up to Ø 20 mm.
- Motor connection
- SINGLE PHASE
- Power (HP)
- 0.50
- Absorption at 230V (A)
- 2
- Capacitor
- 10 µF450 VL
- Delivery port
- 1 "1/4
- Body Pump
- Technopolymer
- Impeller
- Technopolymer
- Number of impellers
- 1
- Motor shaft
- AISI 431 stainless steel
- Check valve
- no
- Degree of protection
- IP 68
- Flow rate min. (l./min.)
- 20
- Max flow (l./min.)
- 180
- Min head (m.)
- 1.5
- Max head (m.)
- 7
- Cable length (m)
- 5
- Employments
- drainage, drying up, slightly dirty waters
- Liquid temperature max. (° C)
- 40
- Height (cm)
- 28.8
- Width (cm)
- 15.2
- Weight kg)
- 5.2
- Guarantee
- 2
|
|
|
|
|
|
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Bearings
| Pump side motor bearing | 6201 ZZ |
| Opposite side engine bearing | 6201 ZZ |
Tree holding
| Type of seal | Double Seal: Mechanical and Lip with oil chamber |
| Engine side model | Lip seal |
| LM diameter | 12 |
| LM elastomer | NBR |
| Shrinkage DN1=450 DN2=350 | STA-12R |
| LP diameter | 12 |
| LP fixed ring | Ceramic |
| LP rotating ring | Graphite |
| LP elastomer | NBR |
Materials
| 1.0 - Pump body | Reinforced technopolymer |
| 2.2 - Suction cover | Reinforced technopolymer |
| 3.0 - Impeller | Reinforced technopolymer |
| 4.0 - Pump shaft | Stainless steel EN 1.4057 (AISI 431) |
| 5.1 - Diffuser | Reinforced technopolymer |
| 6.0 - Motor holder | Stainless steel EN 1.4301 (AISI 304) |
| 6.1 - Engine cover | Stainless steel EN 1.4301 (AISI 304) |
| 8.0 - Suction Grid/Filter | Reinforced technopolymer |
