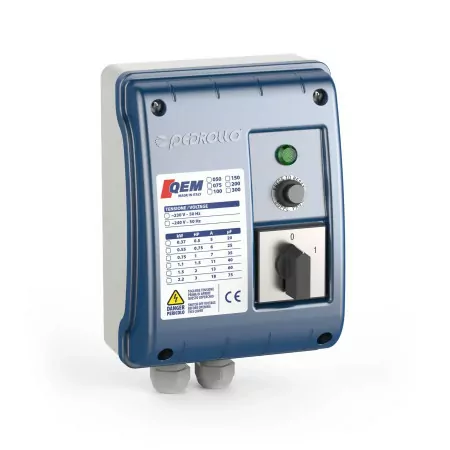

QEM 050 - Electrical panel for single-phase electric pump 0.50 HP
zoom_out_map
chevron_left chevron_right
-36%

QEM 050 - Electrical panel for single-phase electric pump 0.50 HP

For starting 1 4" submersible electric pump. Power: 0.37 Kw (0.50 HP). Manual operation. Overload protection. Capacitor.

€59.34 Tax included

€48.64 Tax excluded

€92.72-36%

Variants:
QEM 050 - Quadro elettrico per elettropompa monofase 0.50 HP
QEM 075 - Quadro elettrico per elettropompa monofase 0.75 HP
QEM 100 - Quadro elettrico per elettropompa monofase 1 HP
QEM 150 - Quadro elettrico per elettropompa monofase 1.5 HP
QEM 200 - Quadro elettrico per elettropompa monofase 2 HP
QEM 300 - Quadro elettrico per elettropompa monofase 3 HP
(5/5) out of 2 total ratings
Read the reviews
Close
Make a purchase proposal

Your Offer is sent.

Your Offer is accepted, please check your inbox.

QEM 050 - Electrical panel for single-phase electric pump 0.50 HP
  • Use dot instead of comma

Loading

Telephone support for information before purchasing.
After-sales assistance for product installation.
Description

Pedrollo QEM electrical panel for submersible electric pumps made of self-extinguishing thermoplastic material.

The panel allows basic level control, with ON/OFF activation status and protection system of the electric pump against overloads and short circuits.

Available in different versions suitable to support the characteristics of the various Pedrollo electric pumps: for motors from 0.37 Kw up to 2.2 Kw.

Data sheet
Pedrollo
QEM 050
10 Items
Power (HP)
0.50
Capacitor
20 µF450 VL
Degree of protection
IP 55
Line power supply
single phase
Supply voltage (Volt)
230
Motor power supply
single phase
Motor phase current
5
Overcurrent protection
thermal circuit breaker
Amperometric protection
No
Short circuit protection
Yes
Dry running protection
no
Height (cm)
Width (cm)
Depth (cm)
Weight kg)
Guarantee
2
Attachments

QEM Technical Data Sheet

Technical data sheet with features, specifications and dimensions of the single-phase electrical panels of the Pedrollo QEM series.

file_download Download (1MB)

Buy it with

  • QEM 050 - Electrical panel for single-phase electric pump 0.50 HP
  • +
  • GPS 1 - Cable joint kit
  • +
  • H07 RN-F 4x1 - Electric cable for submersible pump 4x1 mm2
  • €100.21-10 %
    Total price: €90.19
QEM models and performances
GUY
single phase
QEM 050
QEM 075
QEM 100
QEM 150
QEM 200
QEM 300
ENGINE POWER
KWHP
0.370.50
0.550.75
0.751
1.11.5
1.52
2.23
