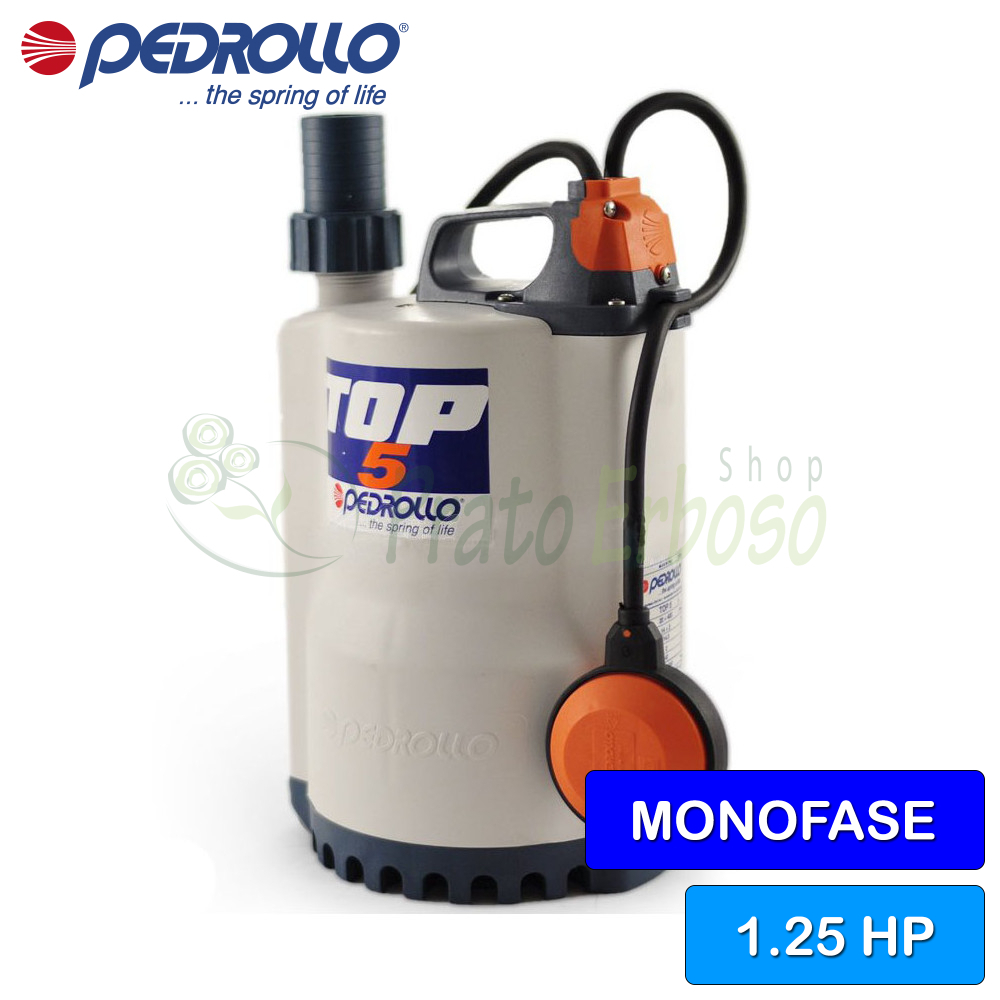

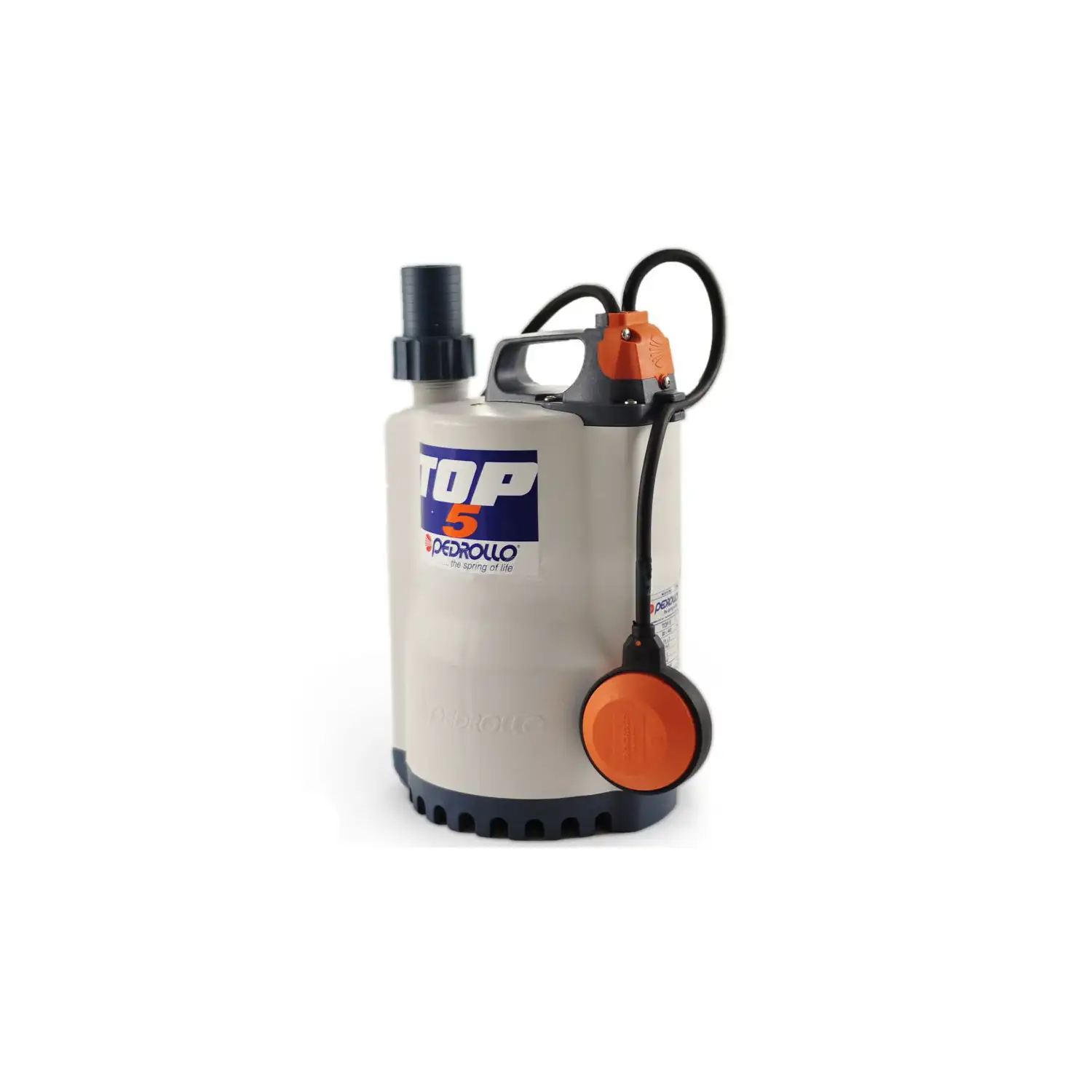

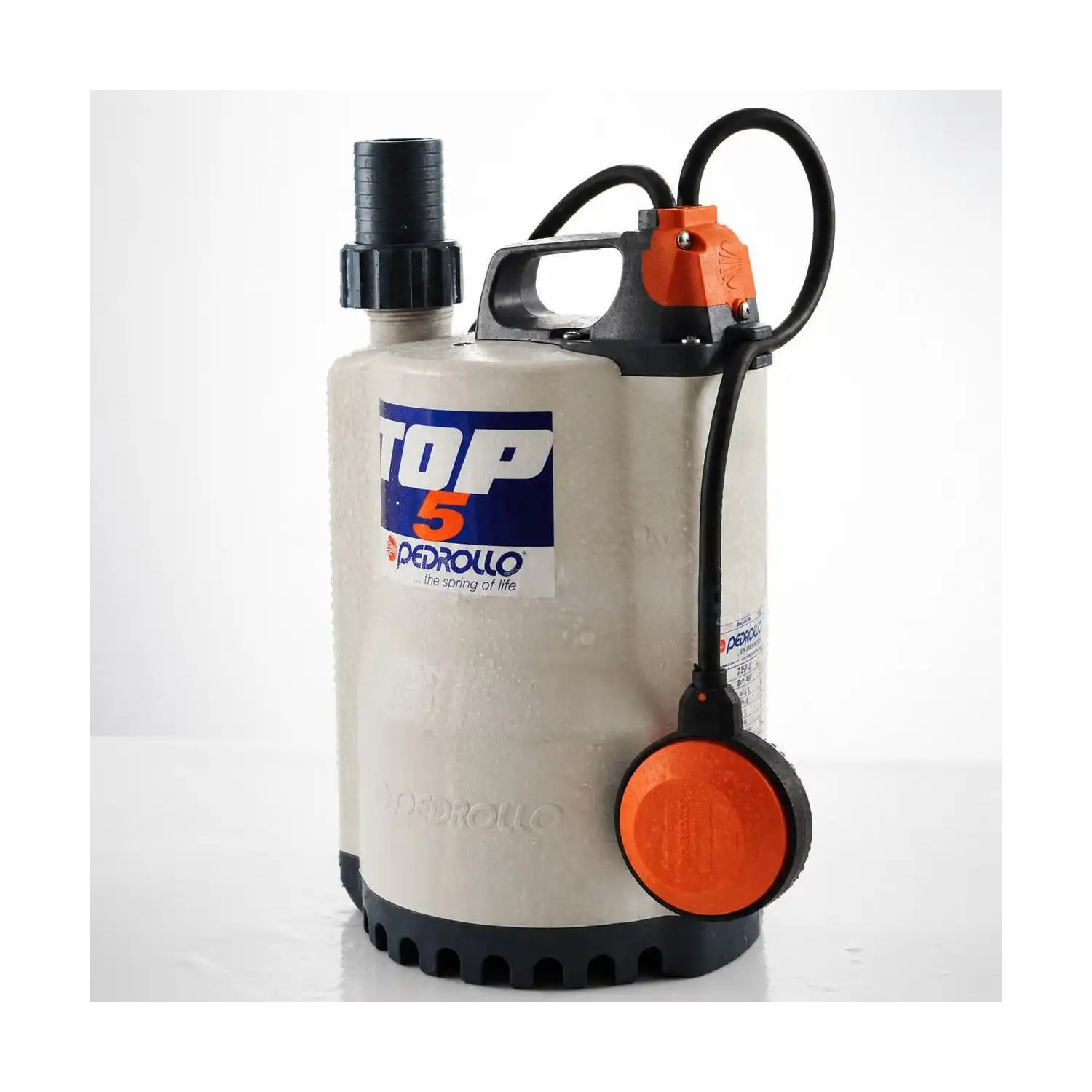

TOP 5 - 1.25 HP Electric Drainage Pump for Clear Water
Flow rate up to 360 l/min (21.6 m³/h). Head up to 15.5 m. 0.92 Kw (1.25 HP) motor.
Delivery Options
| Carrier | Description | Estimated Delivery | |
|---|---|---|---|
 | Mail Boxes - 2 giorni | This courier delivers within 48 hours from the moment we entrust the products to him. | Monday 23 February - Tuesday 24 February |
 | Poste Italiane - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust them with the products. | Monday 23 February - Tuesday 24 February |
 | DHL - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust the products to him. | Monday 23 February - Tuesday 24 February |
 | Poste Italiane - 3 giorni punto di ritiro | This courier delivers within 24/72 hours from the moment we entrust them with the products. | Friday 20 February |
 | Ritiro in negozio | Choose where to collect your order within 24/48 hours. | Friday 20 February |
Carrier: Mail Boxes - 2 giorni
Description: This courier delivers within 48 hours from the moment we entrust the products to him.
Estimated delivery:
Monday 23 February - Tuesday 24 February
Carrier: Poste Italiane - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust them with the products.
Estimated delivery:
Monday 23 February - Tuesday 24 February
Carrier: DHL - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust the products to him.
Estimated delivery:
Monday 23 February - Tuesday 24 February
Carrier: Poste Italiane - 3 giorni punto di ritiro
Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.
Estimated delivery:
Friday 20 February
Carrier: Ritiro in negozio
Description: Choose where to collect your order within 24/48 hours.
Estimated delivery:
Friday 20 February
The TOP 5 submersible electric pump from Pedrollo 's TOP series is recommended for domestic installations.
Emergency drainage of small flooded areas such as rooms, basements, and garages is recommended, as is the disposal of used domestic water from dishwashers and washing machines, and the emptying of collection pits.
The TOP 5, thanks to the construction solutions employed by Pedrollo , guarantees ease of use and operational safety thanks to the total cooling of the motor and the double seal on the shaft.
Pedrollo used a mix of noryl, technopolymer and AISI 304 and 431 stainless steel for a solid and robust result.
The TOP 5 is among the best in the submersible drainage category.
- Motor connection
- SINGLE-PHASE
- Power (Kw)
- 0.90
- Power (HP)
- 1.25
- Absorption at 230V (A)
- 5.5
- Capacitor
- 20 µF 450 VL
- Delivery mouth
- 1" 1/2
- Pump body
- Technopolymer
- Impeller
- Noryl
- Number of impellers
- 1
- Crankshaft
- AISI 431 stainless steel
- Check valve
- Yes
- Degree of protection
- IP 68
- Minimum flow rate (l./min.)
- 20
- Max. flow rate (l./min.)
- 360
- Min. head (m.)
- 2.5
- Max. head (m.)
- 15.5
- Cable length (m.)
- 10
- Jobs
- drainage, drying up
- Max. liquid temperature (°C)
- +40°C
- Height (cm)
- 33.7
- Width (cm)
- 20.4
- Weight (Kg)
- 11.3
- Warranty (years)
- 2
|
|
|
|
|
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Bearings
| Pump side motor bearing | 6203 ZZ |
| Opposite side engine bearing | 6203 ZZ |
Tree holding
| Type of seal | Double mechanical seal in oil chamber |
| LM diameter | 14 |
| LM fixed ring | Silicon carbide |
| LM rotating ring | Graphite |
| LM elastomer | NBR |
| Shrinkage DN1=450 DN2=350 | MG1-14D SIC |
| LP diameter | 14 |
| LP fixed ring | Silicon carbide |
| LP rotating ring | Silicon carbide |
| LP elastomer | NBR |
Materials
| 1.0 - Pump body | Reinforced technopolymer |
| 2.2 - Suction cover | Stainless steel EN 1.4301 (AISI 304) |
| 3.0 - Impeller | Reinforced technopolymer |
| 4.0 - Pump shaft | Stainless steel EN 1.4057 (AISI 431) |
| 5.1 - Diffuser | Reinforced technopolymer |
| 6.0 - Motor holder | Stainless steel EN 1.4301 (AISI 304) |
| 6.1 - Engine cover | Stainless steel EN 1.4301 (AISI 304) |
| 8.0 - Suction Grid/Filter | Reinforced technopolymer |
Compare with Similar Products

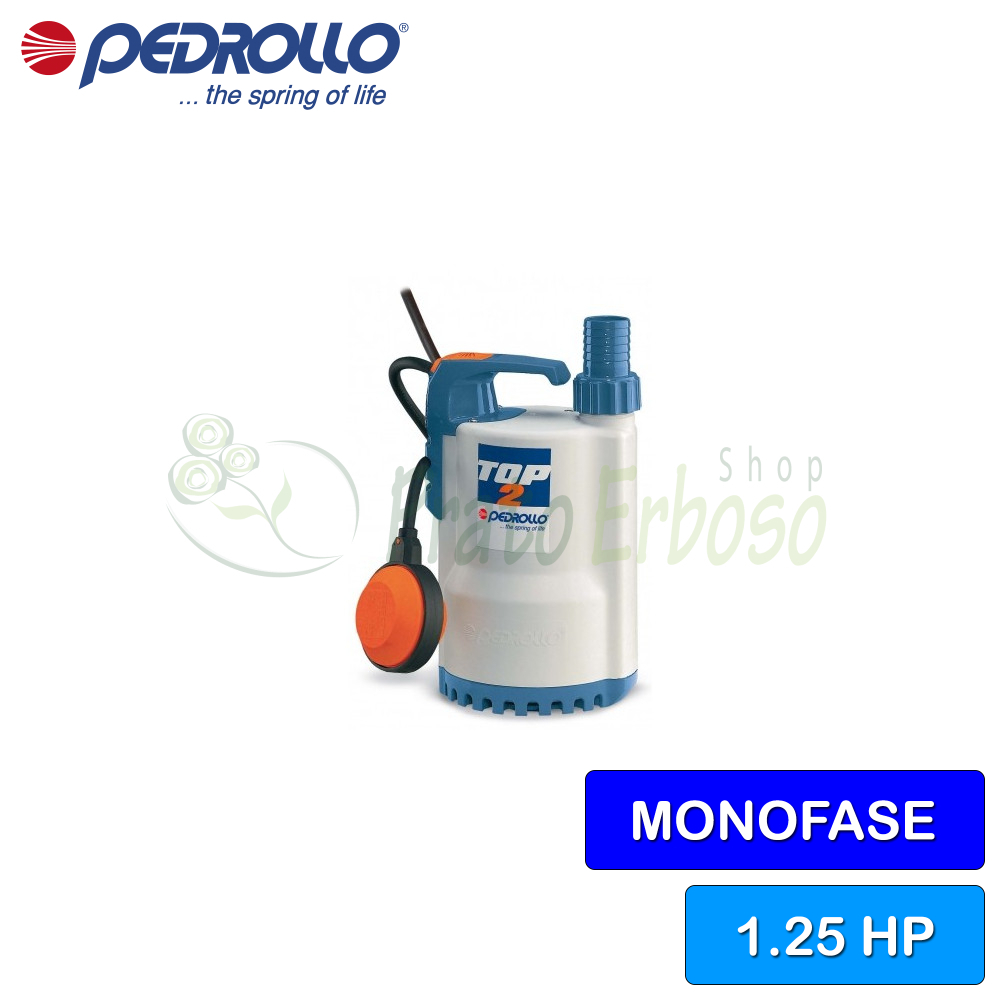

 TOP 5 - 1.25 HP Electric Drainage Pump for Clear WaterThis product Flow rate up to 360 l/min (21.6 m³/h). Head up to 15.5 m. 0.92 Kw (1.25 HP) motor. |  TOP 2 (5m) - 0.50 HP clear water drainage pumpFlow rate up to 220 l/min (13.2 m³/h). Head up to 8.5 m. 0.37 kW (0.50 HP) motor. 5-meter cable with Schuko plug. |  TOP 3 (5m) - 0.75 HP clear water drainage pumpFlow rate up to 260 l/min (15.6 m³/h). Head up to 10.4 m. 0.55 kW (0.75 HP) motor. 5-meter cable with Schuko plug. |  TOP 4 - 1 HP Electric Drainage Pump for Clear WaterFlow rate up to 320 l/min (19.2 m³/h). Head up to 13 m. 0.75 Kw (1 HP) motor. | |
|---|---|---|---|---|
| Price | Price €401.38 -42% €232.80 | Price €213.50 -42% €123.83 | Price €248.88 -42% €144.35 | Price €386.74 -42% €224.31 |
| Motor connection | Motor connection SINGLE-PHASE | Motor connection SINGLE-PHASE | Motor connection SINGLE-PHASE | Motor connection SINGLE-PHASE |
| Power (Kw) | Power (Kw) 0.90 | Power (Kw) 0.37 | Power (Kw) 0.55 | Power (Kw) 0.75 |
| Power (HP) | Power (HP) 1.25 | Power (HP) 0.50 | Power (HP) 0.75 | Power (HP) 1 |
| Absorption at 230V (A) | Absorption at 230V (A) 5.5 | Absorption at 230V (A) 2 | Absorption at 230V (A) 3.2 | Absorption at 230V (A) 4.5 |
| Capacitor | Capacitor 20 µF 450 VL | Capacitor 10 µF 450 VL | Capacitor 14 µF 450 VL | Capacitor 16 µF 450 VL |
| Delivery mouth | Delivery mouth 1" 1/2 | Delivery mouth 1" 1/4 | Delivery mouth 1" 1/4 | Delivery mouth 1" 1/2 |
| Pump body | Pump body Technopolymer | Pump body Technopolymer | Pump body Technopolymer | Pump body Technopolymer |
| Impeller | Impeller Noryl | Impeller Noryl | Impeller Noryl | Impeller Noryl |
| Number of impellers | Number of impellers 1 | Number of impellers 1 | Number of impellers 1 | Number of impellers 1 |
| Crankshaft | Crankshaft AISI 431 stainless steel | Crankshaft AISI 431 stainless steel | Crankshaft AISI 431 stainless steel | Crankshaft AISI 431 stainless steel |
| Check valve | Check valve Yes | Check valve No | Check valve No | Check valve Yes |
| Degree of protection | Degree of protection IP 68 | Degree of protection IP 68 | Degree of protection IP 68 | Degree of protection IP 68 |
| Minimum flow rate (l./min.) | Minimum flow rate (l./min.) 20 | Minimum flow rate (l./min.) 20 | Minimum flow rate (l./min.) 20 | Minimum flow rate (l./min.) 20 |
| Max. flow rate (l./min.) | Max. flow rate (l./min.) 360 | Max. flow rate (l./min.) 220 | Max. flow rate (l./min.) 260 | Max. flow rate (l./min.) 320 |
| Min. head (m.) | Min. head (m.) 2.5 | Min. head (m.) 1 | Min. head (m.) 2 | Min. head (m.) 2 |
| Max. head (m.) | Max. head (m.) 15.5 | Max. head (m.) 8.5 | Max. head (m.) 10.4 | Max. head (m.) 13 |
| Cable length (m.) | Cable length (m.) 10 | Cable length (m.) 5 | Cable length (m.) 5 | Cable length (m.) 10 |
| Jobs | Jobs drainage, drying up | Jobs drainage, drying up | Jobs drainage, drying up | Jobs drainage, drying up |
| Max. liquid temperature (°C) | Max. liquid temperature (°C) +40°C | Max. liquid temperature (°C) +40°C | Max. liquid temperature (°C) +40°C | Max. liquid temperature (°C) +40°C |
| Height (cm) | Height (cm) 33.7 | Height (cm) 26 | Height (cm) 29 | Height (cm) 33.7 |
| Width (cm) | Width (cm) 20.4 | Width (cm) 15.2 | Width (cm) 15.2 | Width (cm) 20.4 |
| Weight (Kg) | Weight (Kg) 11.3 | Weight (Kg) 5.3 | Weight (Kg) 6.7 | Weight (Kg) 10.3 |
| Warranty (years) | Warranty (years) 2 | Warranty (years) 2 | Warranty (years) 2 | Warranty (years) 2 |
