TIGm 0.55 - Submersible electric pump with single-phase grinder 0.75 HP
Flow rate up to 130 l/min (7.2 m³/h). Head up to 16 m. 0.55 Kw (0.75 HP) motor.
Delivery Options
| Carrier | Description | Estimated Delivery | |
|---|---|---|---|
 | Mail Boxes - 2 giorni | This courier delivers within 48 hours from the moment we entrust the products to him. | Thursday 13 November - Friday 14 November |
 | Poste Italiane - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust them with the products. | Thursday 13 November - Friday 14 November |
 | DHL - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust the products to him. | Thursday 13 November - Friday 14 November |
 | Poste Italiane - 3 giorni punto di ritiro | This courier delivers within 24/72 hours from the moment we entrust them with the products. | Wednesday 12 November |
 | Ritiro in negozio | Choose where to collect your order within 24/48 hours. | Wednesday 12 November |
Carrier: Mail Boxes - 2 giorni
Description: This courier delivers within 48 hours from the moment we entrust the products to him.
Estimated delivery:
Thursday 13 November - Friday 14 November
Carrier: Poste Italiane - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust them with the products.
Estimated delivery:
Thursday 13 November - Friday 14 November
Carrier: DHL - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust the products to him.
Estimated delivery:
Thursday 13 November - Friday 14 November
Carrier: Poste Italiane - 3 giorni punto di ritiro
Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.
Estimated delivery:
Wednesday 12 November
Carrier: Ritiro in negozio
Description: Choose where to collect your order within 24/48 hours.
Estimated delivery:
Wednesday 12 November

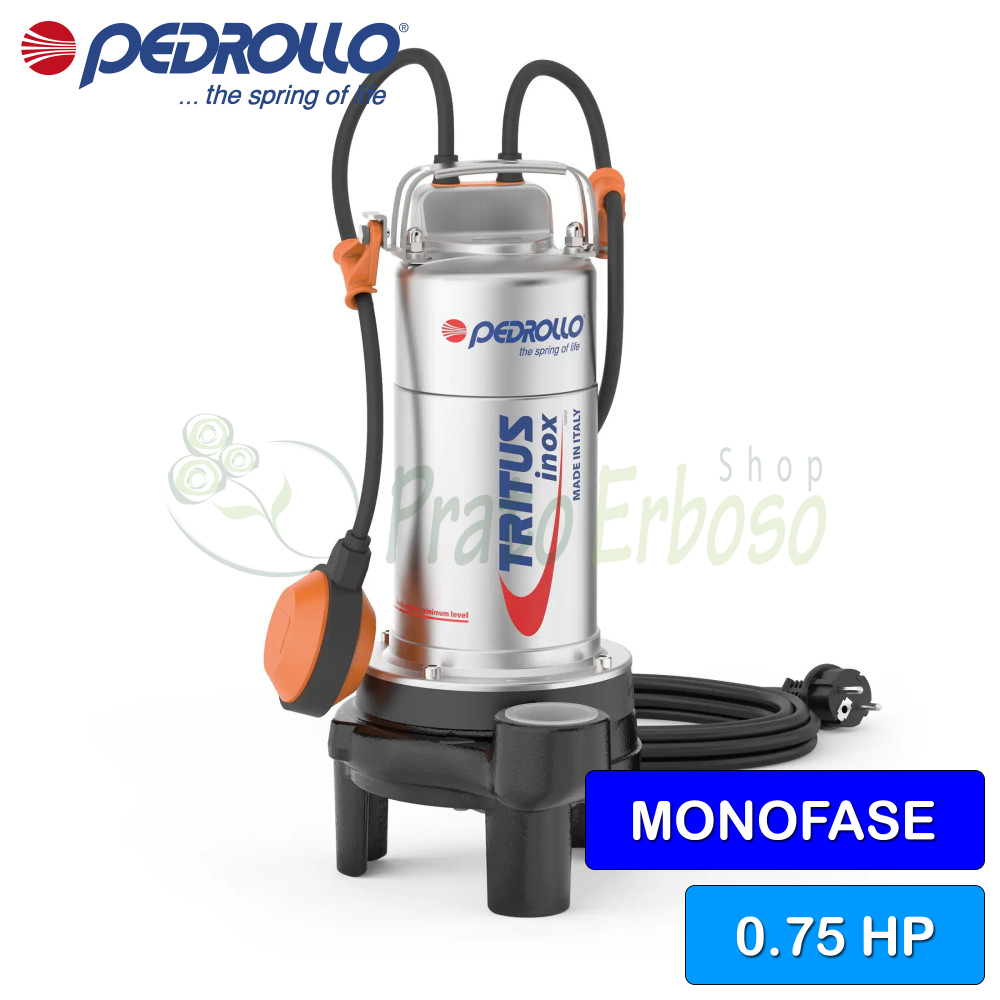

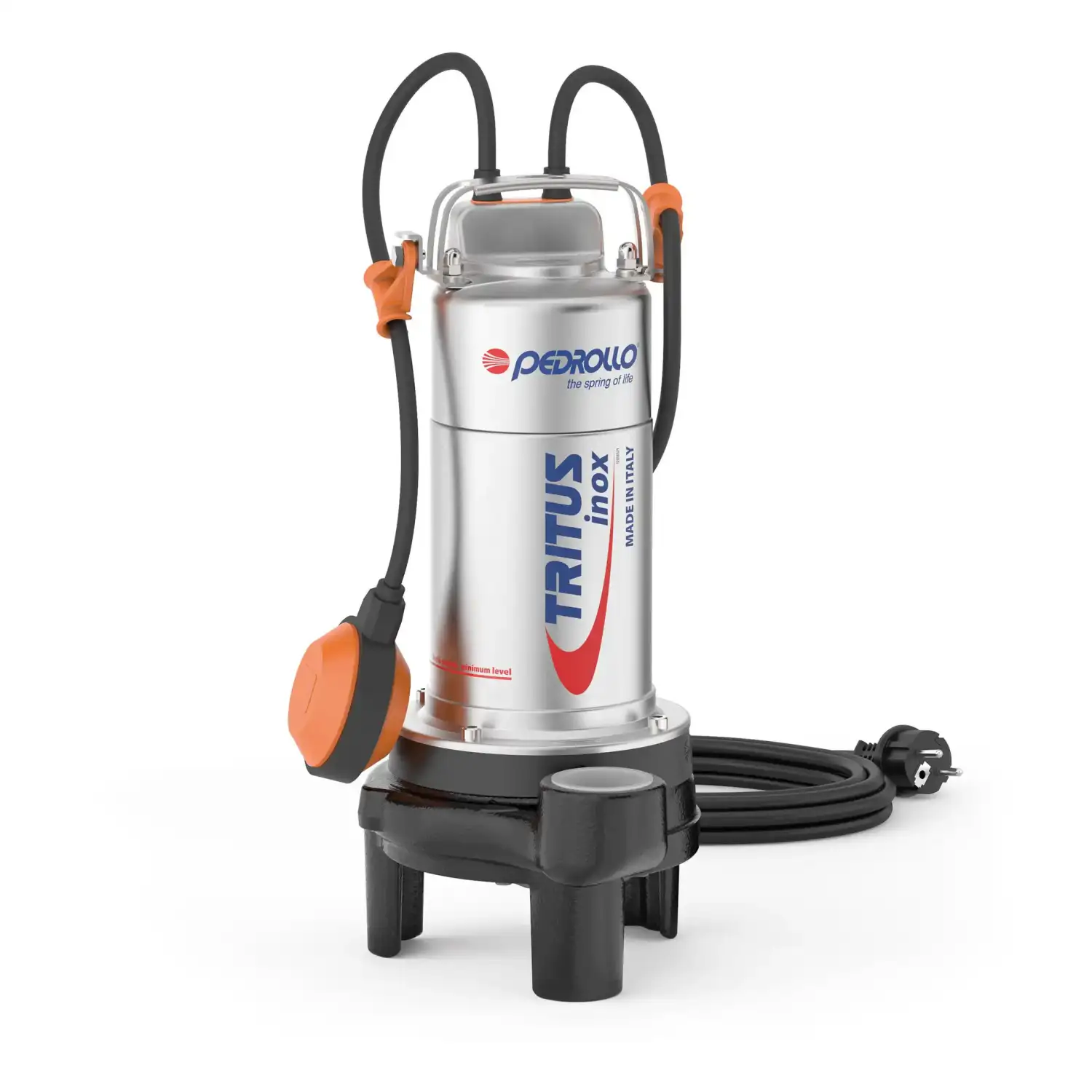

The Pedrollo TIGm 0.55 single-phase grinder pump is ideal for working safely when working conditions become challenging.
The TIGm 0.55 pump of the TRITUS-INOX series is equipped with a high-tempered stainless steel grinder that allows for the complete grinding of solid bodies and fibres contained in waste water and waste water in the domestic and civil sectors, for conveying under pressure into the sewer system through small diameter pipes.
The maximum flow rate is 130 litres per minute and the head is up to 16 metres.
The pump is equipped with a 10 meter cable, it can be immersed up to 5 meters underwater.
It has an IP68 certification which is safe from dust and water ingress.
- Motor connection
- SINGLE-PHASE
- Power (Kw)
- 0.55
- Power (HP)
- 0.75
- Absorption at 230V (A)
- 4.5
- Delivery mouth
- 1" 1/2
- Pump body
- Cast iron
- Impeller
- Technopolymer
- Number of impellers
- 1
- Crankshaft
- AISI 431 stainless steel
- Check valve
- No
- Degree of protection
- IP 68
- Minimum flow rate (l./min.)
- 20
- Max. flow rate (l./min.)
- 130
- Min. head (m.)
- 2
- Max. head (m.)
- 16
- Cable length (m.)
- 10
- Jobs
- slightly dirty waters, drainage, drying up
- Max. liquid temperature (°C)
- +40°C
- Height (cm)
- 39.8
- Width (cm)
- 17.7
- Depth (cm)
- 23.2
- Weight (Kg)
- 15.9
- Warranty (years)
- 2
Construction
Bearings
| Pump side motor bearing | 6303 2RS-C3 |
| Opposite side engine bearing | 6203 ZZ-C3E |
Tree seal
| Type of seal | Double Mechanical Seal in oil chamber |
| LM diameter | 14 |
| LM fixed ring | Silicon Carbide |
| LM rotating ring | Graphite |
| LM Elastomer | NBR |
| Narrowing DN1=450 DN2=350 | MG1-14D SIC |
| LP diameter | 14 |
| LP fixed ring | Silicon Carbide |
| LP Rotating Ring | Silicon Carbide |
| LP Elastomer | NBR |
Materials
| 1.0 - Pump Body | Cast iron GJL 200 EN 1561 |
| 3.0 - Impeller | Technopolymer |
| 3.2 - Shredder | Stainless steel EN 1.4125 (AISI 440C) hardened |
| 4.0 - Pump Tree | Stainless steel EN 1.4057 (AISI 431) |
| 6.0 - Engine carrier | Stainless steel EN 1.4301 (AISI 304) |
| 7.0 - Lantern | Cast iron GJL 200 EN 1561 |
