TRm 0.75 - 1 HP single-phase submersible electric pump with grinder
Flow rate up to 125 l/min (7.2 m³/h). Head up to 16.5 m. 0.75 Kw (1 HP) motor.
Delivery Options
| Carrier | Description | Estimated Delivery | |
|---|---|---|---|
 | Mail Boxes - 2 giorni | This courier delivers within 48 hours from the moment we entrust the products to him. | Wednesday 25 February - Thursday 26 February |
 | Poste Italiane - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust them with the products. | Wednesday 25 February - Thursday 26 February |
 | DHL - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust the products to him. | Wednesday 25 February - Thursday 26 February |
 | Poste Italiane - 3 giorni punto di ritiro | This courier delivers within 24/72 hours from the moment we entrust them with the products. | Tuesday 24 February |
 | Ritiro in negozio | Choose where to collect your order within 24/48 hours. | Tuesday 24 February |
Carrier: Mail Boxes - 2 giorni
Description: This courier delivers within 48 hours from the moment we entrust the products to him.
Estimated delivery:
Wednesday 25 February - Thursday 26 February
Carrier: Poste Italiane - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust them with the products.
Estimated delivery:
Wednesday 25 February - Thursday 26 February
Carrier: DHL - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust the products to him.
Estimated delivery:
Wednesday 25 February - Thursday 26 February
Carrier: Poste Italiane - 3 giorni punto di ritiro
Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.
Estimated delivery:
Tuesday 24 February
Carrier: Ritiro in negozio
Description: Choose where to collect your order within 24/48 hours.
Estimated delivery:
Tuesday 24 February

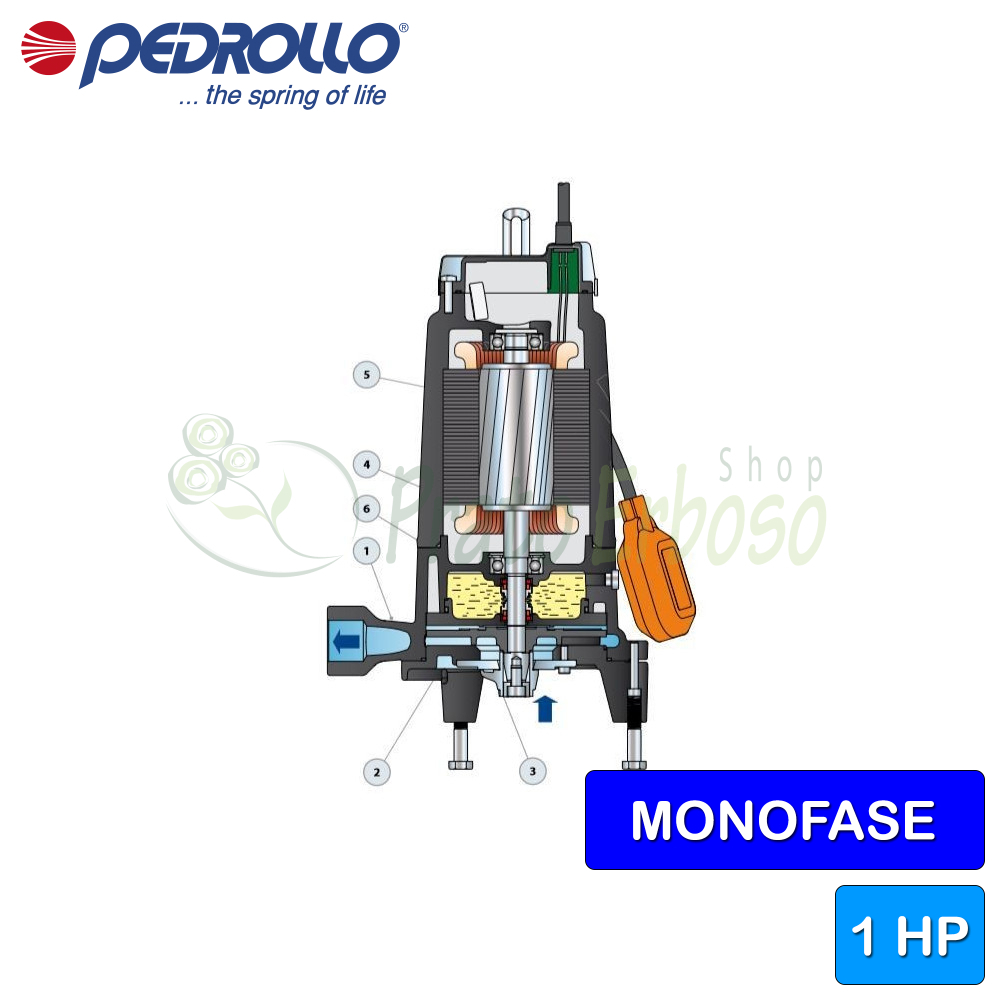

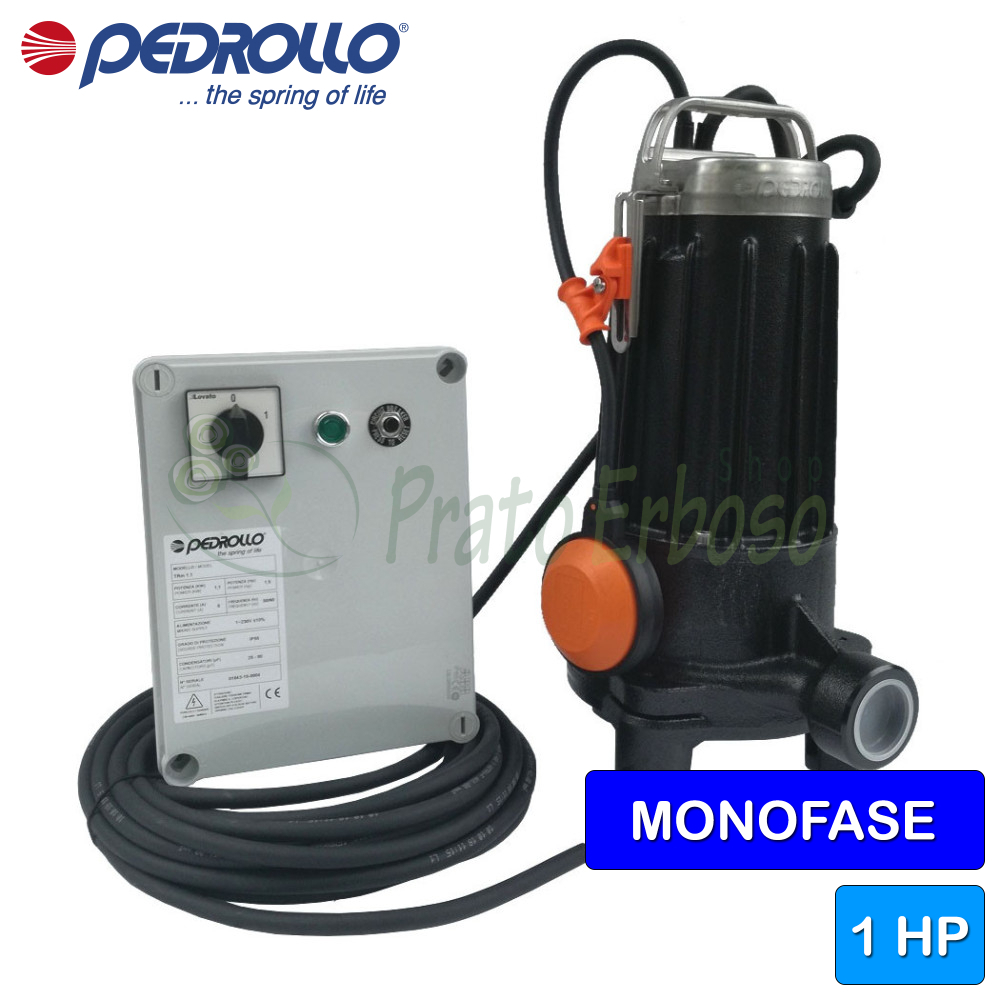

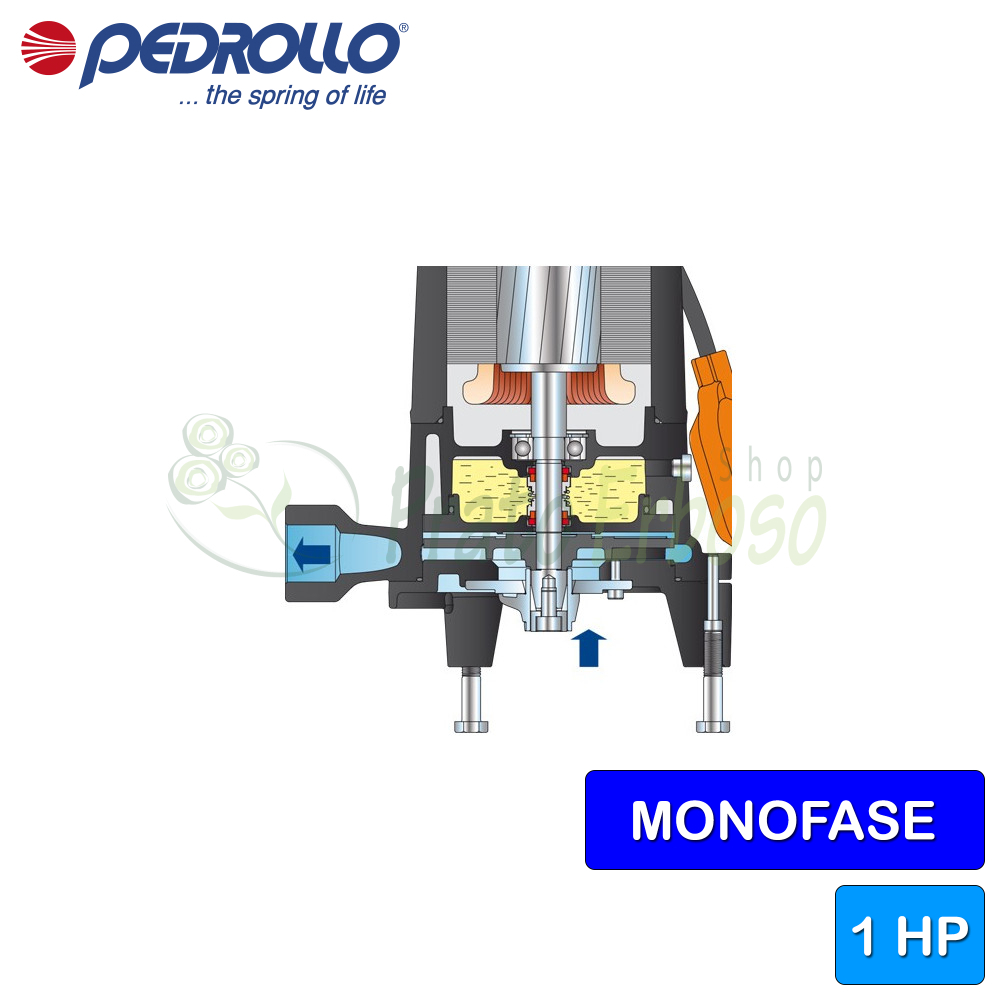

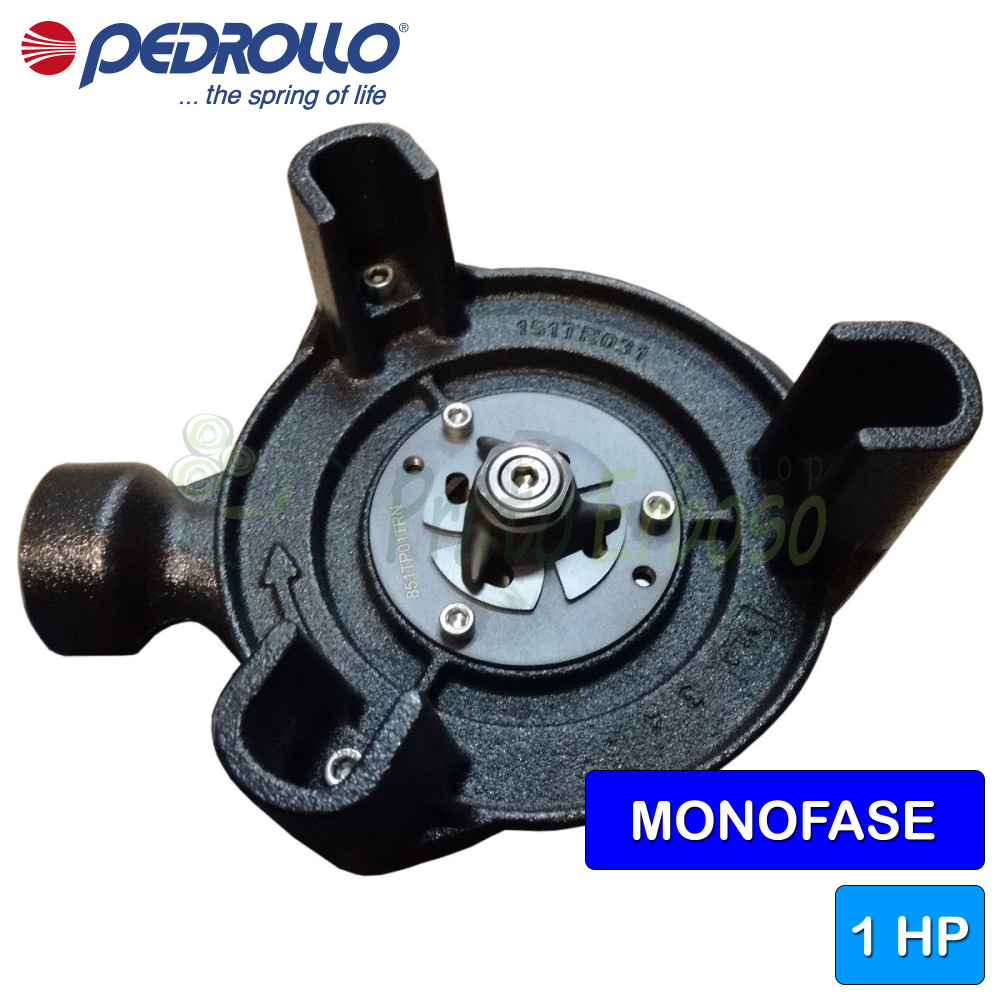

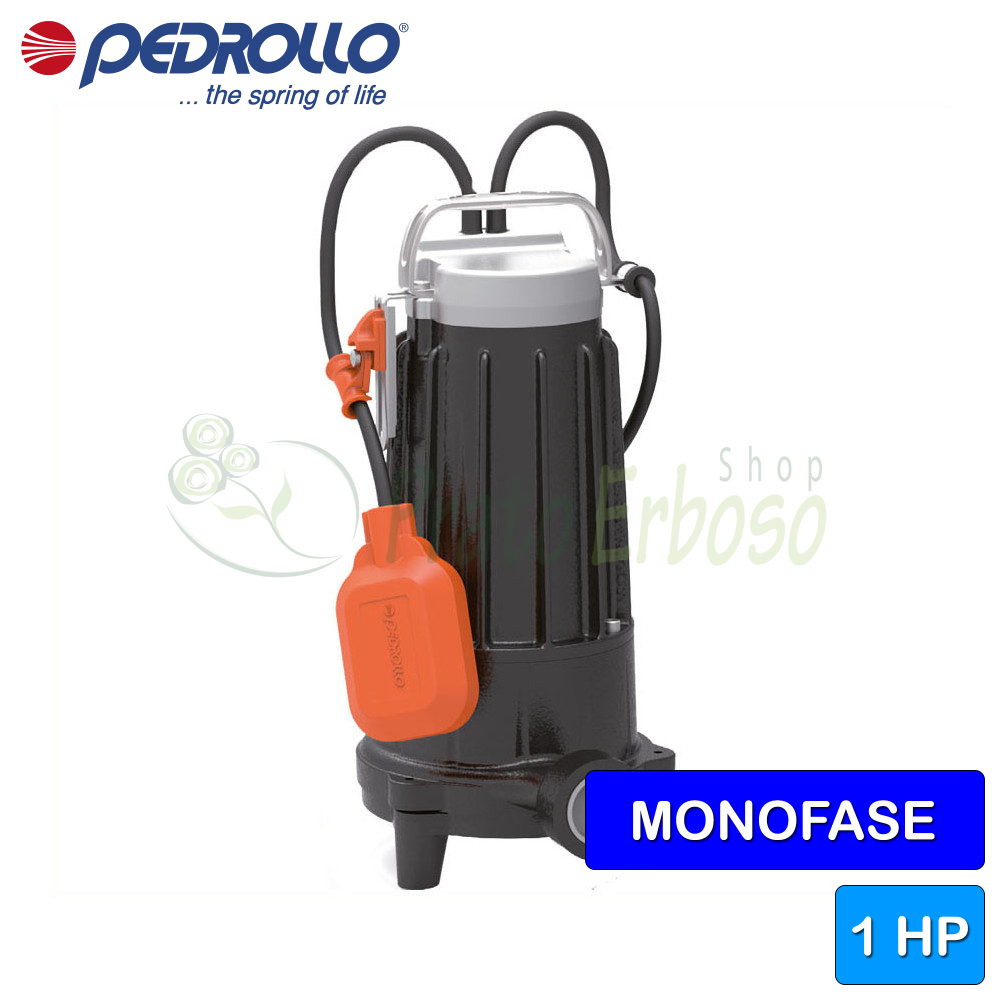

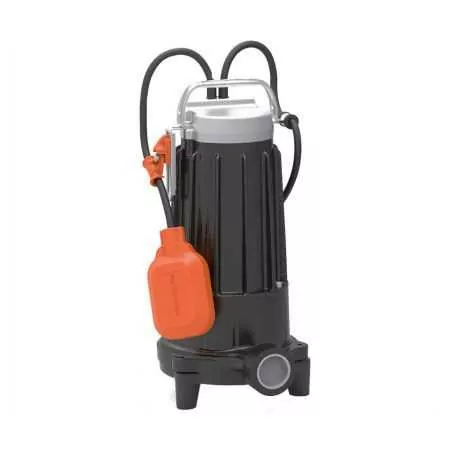

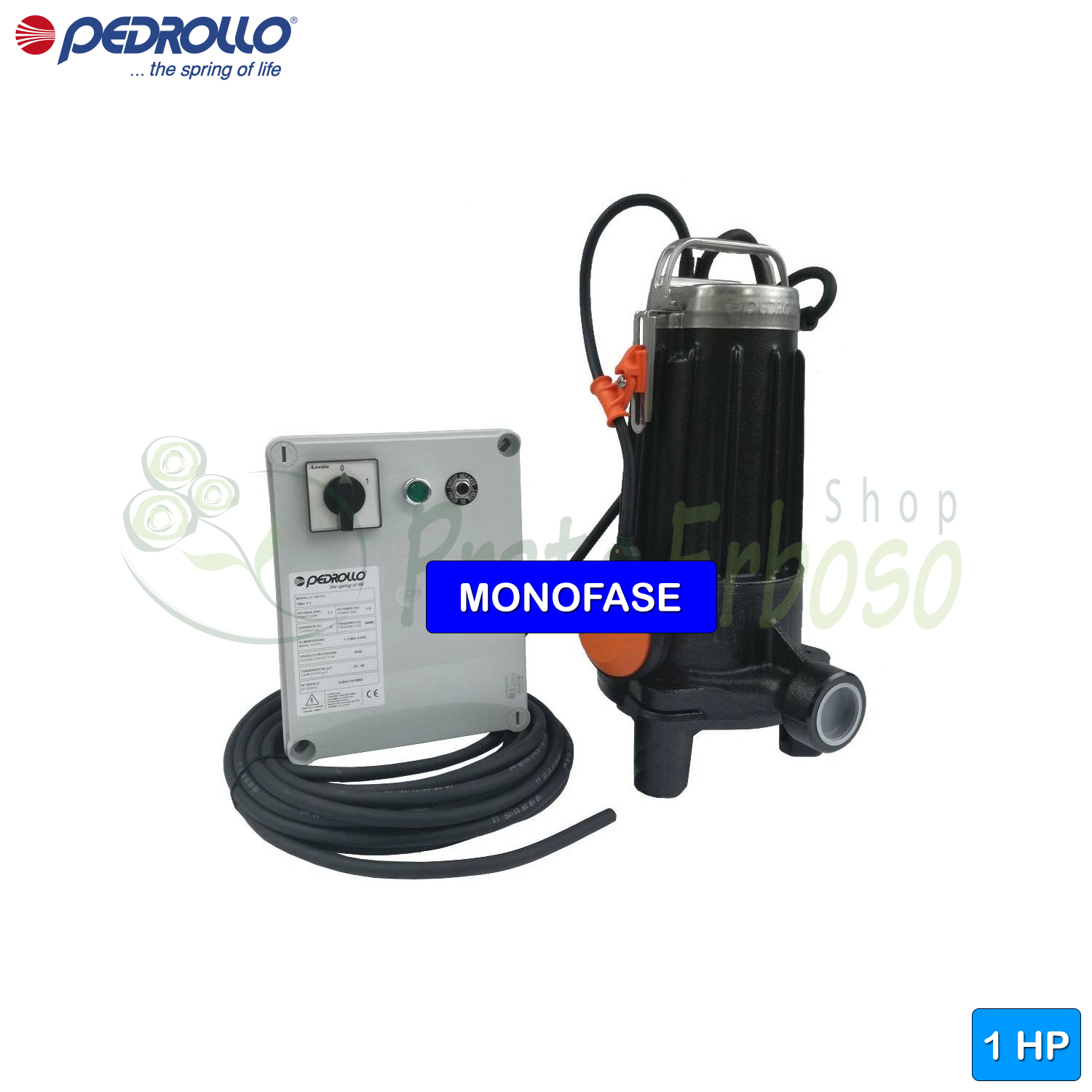

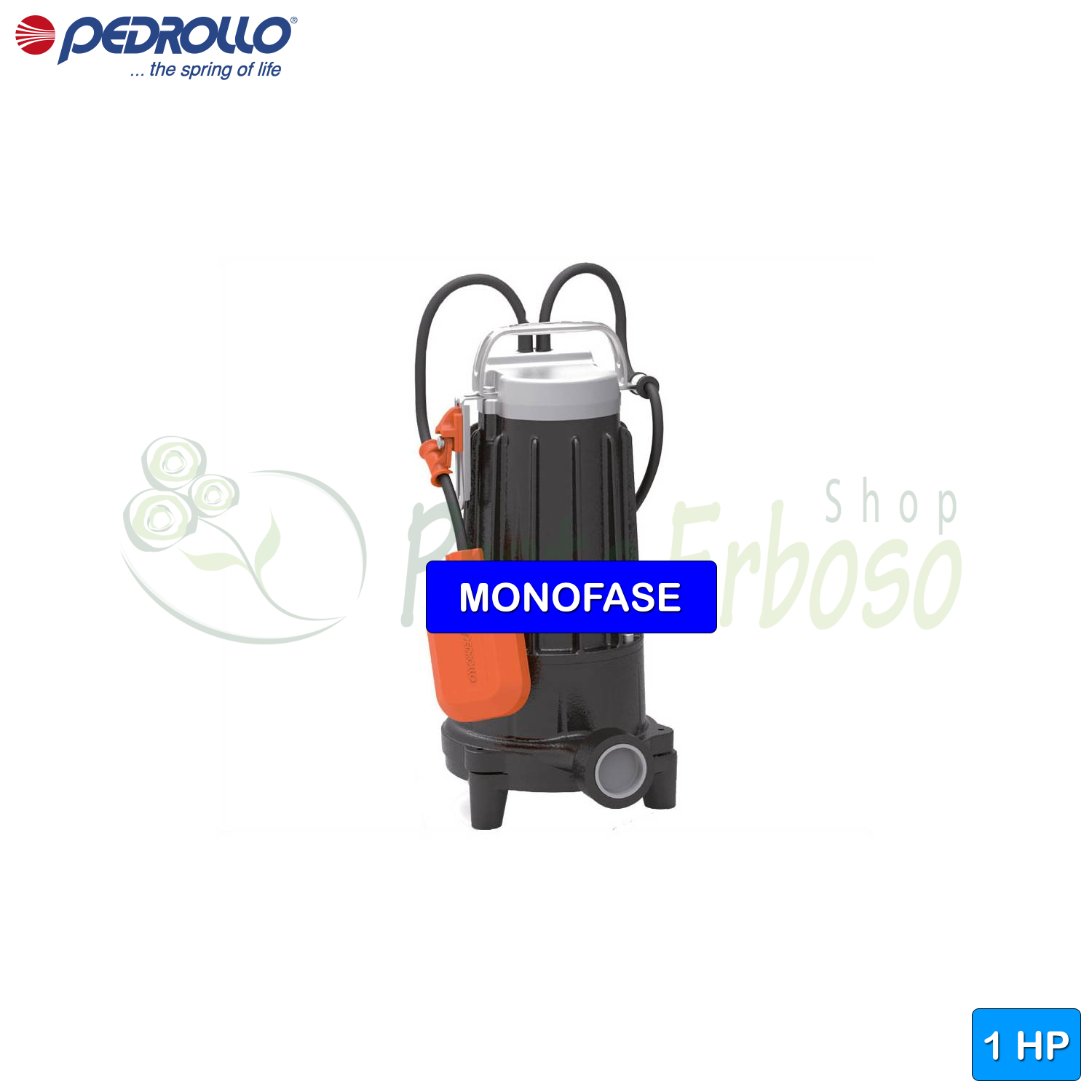

The TRm 0.75 submersible electric pump from the Tritus series by Pedrollo is equipped with a grinder in high-resistance tempered stainless steel.
It allows for the complete shredding of solid bodies and fibres contained in wastewater and waste water.

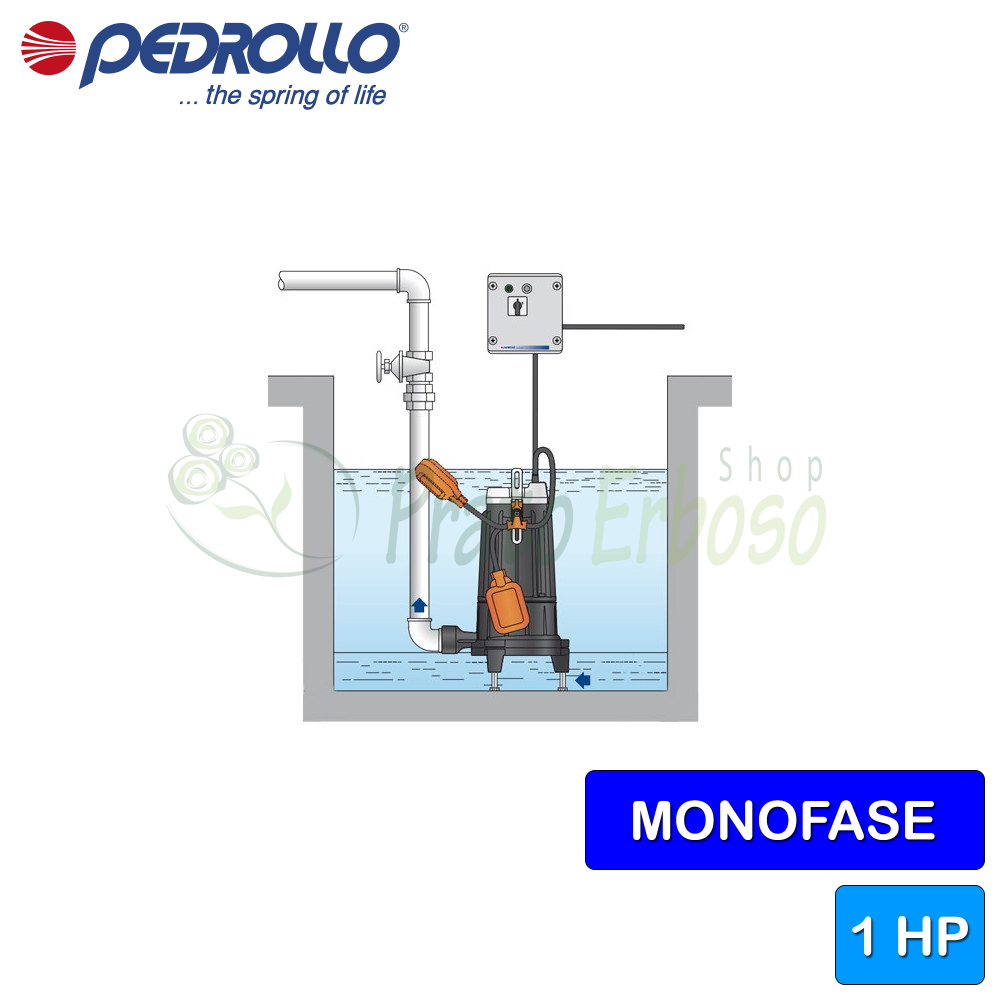

Recommended for installations in the domestic and civil sector for pressurized conveyance in the sewer system through small diameter pipes.
The TRm 0.75 is made of cast iron of considerable thickness which provides greater strength, abrasion resistance and durability over time.
The supplied power cable is 10 meters long.
- Motor connection
- SINGLE-PHASE
- Power (Kw)
- 0.75
- Power (HP)
- 1
- Absorption at 230V (A)
- 5.5
- Capacitor
- 25 µF 450 VL
- Delivery mouth
- 1" 1/4
- Pump body
- Cast iron
- Impeller
- Technopolymer
- Number of impellers
- 1
- Crankshaft
- AISI 431 stainless steel
- Check valve
- No
- Degree of protection
- IP 68
- Minimum flow rate (l./min.)
- 20
- Max. flow rate (l./min.)
- 125
- Min. head (m.)
- 2
- Max. head (m.)
- 16.5
- Cable length (m.)
- 10,
- Jobs
- drainage, drying up, slightly dirty waters
- Max. liquid temperature (°C)
- +40°C
- Height (cm)
- 40.6
- Weight (Kg)
- 24
- Warranty (years)
- 2
|
|
|
|
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Reviews (1) - Review moderation
Compare with Similar Products
 TRm 0.75 - 1 HP single-phase submersible electric pump with grinderThis product Flow rate up to 125 l/min (7.2 m³/h). Head up to 16.5 m. 0.75 Kw (1 HP) motor. |  TRm 0.9 - 1.25 HP single-phase submersible electric pump with grinderFlow rate up to 170 l/min (10.2 m³/h). Head up to 16 m. 0.90 Kw (1.25 HP) motor. |  TRm 1.1 - 1.5 HP single-phase submersible electric pump with grinderFlow rate up to 140 l/min (7.2 m³/h). Head up to 23 m. 1.1 kW (1.5 HP) motor. |  TRm 1.3 - 1.75 HP single-phase submersible electric pump with grinderFlow rate up to 220 l/min (13.2 m³/h). Head up to 23.5 m. 1.3 kW (1.75 HP) motor. | |
|---|---|---|---|---|
| Price | Price €1,210.24 -45% €665.63 | Price €1,149.24 -45% €632.08 | Price €1,206.58 -45% €663.62 | Price €1,230.98 -45% €677.04 |
| Motor connection | Motor connection SINGLE-PHASE | Motor connection SINGLE-PHASE | Motor connection SINGLE-PHASE | Motor connection SINGLE-PHASE |
| Power (Kw) | Power (Kw) 0.75 | Power (Kw) 0.90 | Power (Kw) 1.1 | Power (Kw) 1.3 |
| Power (HP) | Power (HP) 1 | Power (HP) 1.25 | Power (HP) 1.5 | Power (HP) 1.75 |
| Absorption at 230V (A) | Absorption at 230V (A) 5.5 | Absorption at 230V (A) 6 | Absorption at 230V (A) 7.4 | Absorption at 230V (A) 9 |
| Capacitor | Capacitor 25 µF 450 VL | Capacitor 25 µF 450 VL | Capacitor 25 µF 450 VL | Capacitor 25 µF 450 VL |
| Delivery mouth | Delivery mouth 1" 1/4 | Delivery mouth 1" 1/4 | Delivery mouth 1" 1/4 | Delivery mouth 1" 1/4 |
| Pump body | Pump body Cast iron | Pump body Cast iron | Pump body Cast iron | Pump body Cast iron |
| Impeller | Impeller Technopolymer | Impeller Technopolymer | Impeller Technopolymer | Impeller Technopolymer |
| Number of impellers | Number of impellers 1 | Number of impellers 1 | Number of impellers 1 | Number of impellers 1 |
| Crankshaft | Crankshaft AISI 431 stainless steel | Crankshaft AISI 431 stainless steel | Crankshaft AISI 431 stainless steel | Crankshaft AISI 431 stainless steel |
| Check valve | Check valve No | Check valve No | Check valve No | Check valve No |
| Degree of protection | Degree of protection IP 68 | Degree of protection IP 68 | Degree of protection IP 68 | Degree of protection IP 68 |
| Minimum flow rate (l./min.) | Minimum flow rate (l./min.) 20 | Minimum flow rate (l./min.) 20 | Minimum flow rate (l./min.) 20 | Minimum flow rate (l./min.) 20 |
| Max. flow rate (l./min.) | Max. flow rate (l./min.) 125 | Max. flow rate (l./min.) 170 | Max. flow rate (l./min.) 140 | Max. flow rate (l./min.) 220 |
| Min. head (m.) | Min. head (m.) 2 | Min. head (m.) 2 | Min. head (m.) 2 | Min. head (m.) 2 |
| Max. head (m.) | Max. head (m.) 16.5 | Max. head (m.) 16 | Max. head (m.) 23 | Max. head (m.) 23.5 |
| Cable length (m.) | Cable length (m.) 10, | Cable length (m.) -- | Cable length (m.) -- | Cable length (m.) -- |
| Jobs | Jobs drainage, drying up, slightly dirty waters | Jobs drainage, drying up, slightly dirty waters | Jobs drainage, drying up, slightly dirty waters | Jobs drainage, drying up, slightly dirty waters |
| Max. liquid temperature (°C) | Max. liquid temperature (°C) +40°C | Max. liquid temperature (°C) +40°C | Max. liquid temperature (°C) +40°C | Max. liquid temperature (°C) +40°C |
| Height (cm) | Height (cm) 40.6 | Height (cm) 40.6 | Height (cm) 40.6 | Height (cm) 40.6 |
| Weight (Kg) | Weight (Kg) 24 | Weight (Kg) 23.9 | Weight (Kg) 25.7 | Weight (Kg) 25.5 |
| Warranty (years) | Warranty (years) 2 | Warranty (years) 2 | Warranty (years) 2 | Warranty (years) 2 |
