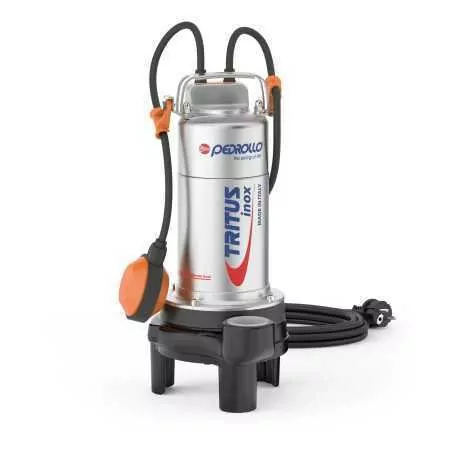

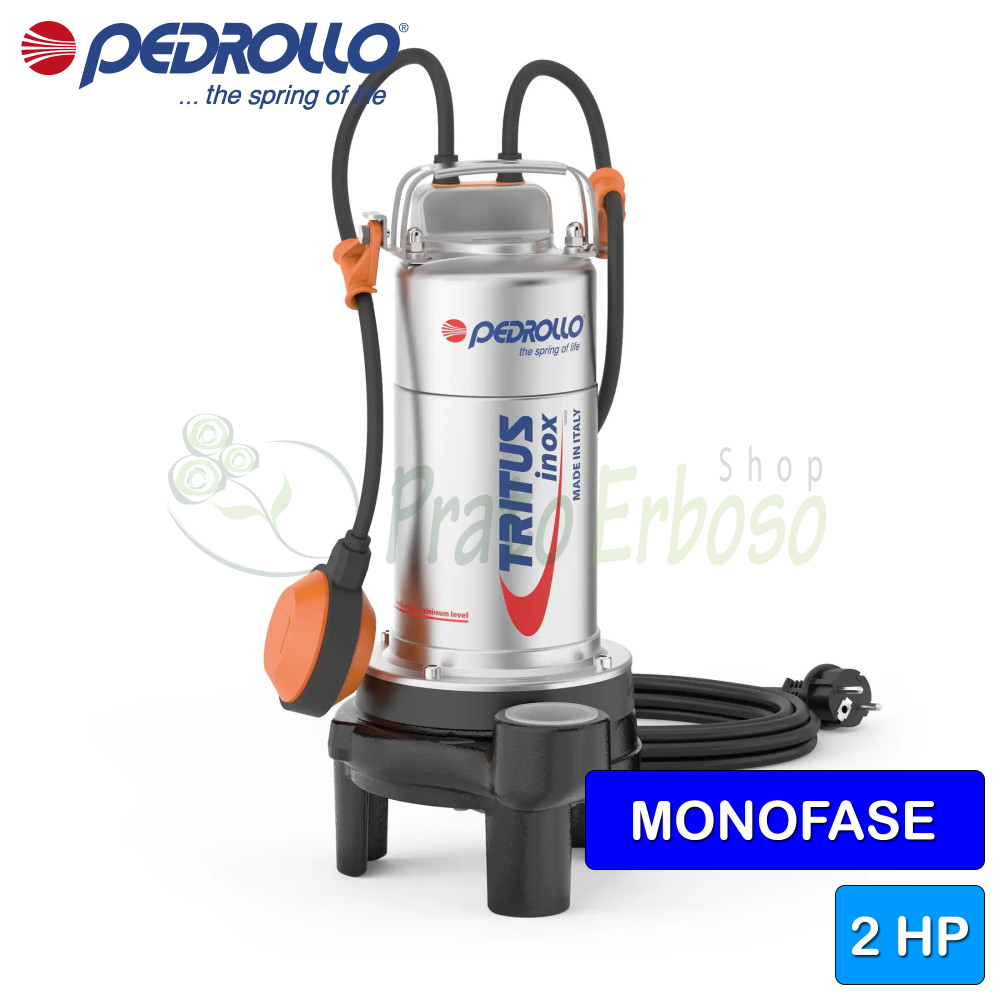

TIGm 1.5 - Submersible electric pump with 2 HP single-phase grinder
Flow rate up to 250 l/min (9 m³/h). Head up to 21 m. 1.5 Kw (2 HP) motor.
The Pedrollo TIGm 1.5 single-phase grinder pump is recommended for use in the domestic and civil fields.
This pump is particularly recommended for its reliability even when working conditions become challenging.
The special feature of the TIGm 1.5 is the high-resistance tempered stainless steel shredder with which it is equipped, which allows for the complete shredding of solid bodies and fibres contained in waste water and waste water in the domestic and civil sectors, for conveying under pressure into the sewer system through small diameter pipes.
It has a flow rate that varies from 20 to 250 litres per minute with a head of 2 to 21 metres.
It must be powered by a single-phase voltage, has a horsepower of 2 HP and the temperature of the liquid to be pumped ranges from -15 degrees centigrade up to +40.
It has an IP68 certification which is safe from dust and water ingress.
The TIGm 1.5 is equipped with an external electrical panel for greater operational safety thanks to the special capacitor that significantly increases torque. The panel includes a manually reset motor protection switch.
The electric pump has a cast iron pump body, a technopolymer impeller and a stainless steel motor shaft. These materials give the pump strength and resistance.
- Motor connection
- SINGLE PHASE
- Power (Kw)
- 1.5
- Power (HP)
- 2
- Absorption at 230V (A)
- 7.0
- Delivery mouth
- 1 "1/2
- Pump body
- Cast iron
- Impeller
- Technopolymer
- Number of impellers
- 1
- Crankshaft
- AISI 431 stainless steel
- Check valve
- No
- Degree of protection
- IP 68
- Min. flow rate (l./min.)
- 20
- Max. flow rate (l./min.)
- 250
- Min. head (m.)
- 2
- Max. head (m.)
- 21
- Cable length (m)
- 10
- Jobs
- slightly dirty waters, drainage, drying up
- Max. liquid temperature (°C)
- +40°C
- Height (cm)
- 43.2
- Width (cm)
- 19.5
- Depth (cm)
- 24.0
- Weight (Kg)
- 18.3
- Warranty (years)
- 2
Construction
Bearings
| Pump side motor bearing | 6303 2RS-C3 |
| Opposite side engine bearing | 6203 ZZ-C3E |
Tree seal
| Type of seal | Double Mechanical Seal in oil chamber |
| LM diameter | 14 |
| LM fixed ring | Silicon Carbide |
| LM rotating ring | Graphite |
| LM Elastomer | NBR |
| Narrowing DN1=450 DN2=350 | MG1-14D SIC |
| LP diameter | 14 |
| LP fixed ring | Silicon Carbide |
| LP Rotating Ring | Silicon Carbide |
| LP Elastomer | NBR |
Materials
| 1.0 - Pump Body | Cast iron GJL 200 EN 1561 |
| 3.0 - Impeller | Technopolymer |
| 3.2 - Shredder | Stainless steel EN 1.4125 (AISI 440C) hardened |
| 4.0 - Pump Tree | Stainless steel EN 1.4057 (AISI 431) |
| 6.0 - Engine carrier | Stainless steel EN 1.4301 (AISI 304) |
| 7.0 - Lantern | Cast iron GJL 200 EN 1561 |
