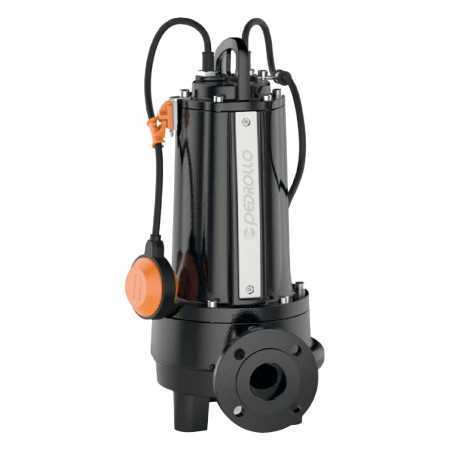

TR 5 - 6.7 HP single-phase submersible electric pump with grinder

Name: TR 5 - 6.7 HP single-phase submersible electric pump with grinder
Brand: Pedrollo
SKU: TR 5
Price: 2502.16 EUR
Availability: InStock

Flow rate up to 420 l/min (25.2 m³/h). Head up to 47 m. 5 kW (6.7 HP) motor.

Variants:

Make a purchase proposal

Telephone support for information before purchasing.

Reinforced packaging to reduce transport damage.

After-sales assistance for product installation.

We supply all spare parts on this product.

Description

The Pedrollo TR 5 grinder pump is particularly suitable for pressurized conveyance in the sewer system through small diameter pipes.

Recommended for use in the domestic and industrial sectors.

The shredder made of high-strength tempered stainless steel allows for the complete shredding of solid bodies and fibres contained in waste water.

The TR 5 stands out for its robust construction. Made of thick cast iron, it is abrasion-resistant and built to last.

The flow rate ranges from 20 to 410 litres per hour and the head ranges from 2 to 47 metres.

The pump can be installed up to 10 meters below the water level.

The TR 5 also comes with a 10-meter cable.

Data sheet

Motor connection: THREE-PHASE
Power (Kw): 5
Power (HP): 6.7
Current consumption at 400V (A): 7.5
Delivery mouth: 2"
Pump body: Cast iron
Impeller: AISI 304 stainless steel
Number of impellers: 1
Crankshaft: AISI 431 stainless steel
Check valve: No
Degree of protection: IP 68
Minimum flow rate (l./min.): 20
Max. flow rate (l./min.): 410
Min. head (m.): 2
Max. head (m.): 40
Cable length (m.): 10
Jobs: slightly dirty waters, drainage, drying up
Max. liquid temperature (°C): +40°C
Height (cm): 48.0
Width (cm): 25.6
Depth (cm): 32.9
Weight (Kg): 54
Warranty (years): 2

Attachments

TRITUS data sheet

Construction and operating characteristics. Working curves, limits of use and dimensions of the pumps of the TRITUS series by Pedrollo.

Download (6.03MB)

TR 5-6 models and performance

TYPE

three-phase

TR 5

TR 6

POWER
KW	HP
5	6.7
6	8

PERFORMANCES
Q liters/min	H meters
20 ÷ 420	47 ÷ 2
20 ÷ 430	55 ÷ 2

MOUTH
DN 40
2"

Q	m³/hour	0	1.2	3	6	9	12	15	18	21	24	25.2	25.8
Q	l/min	0	20	50	100	150	200	250	300	350	400	420	430
H	meters	47	46	44.7	42	40	37.4	34.5	31.1	27.2	22.5	2
H		55	54	52.5	50.3	48.1	45.6	42.8	39.5	35.3	30.2	25	2
