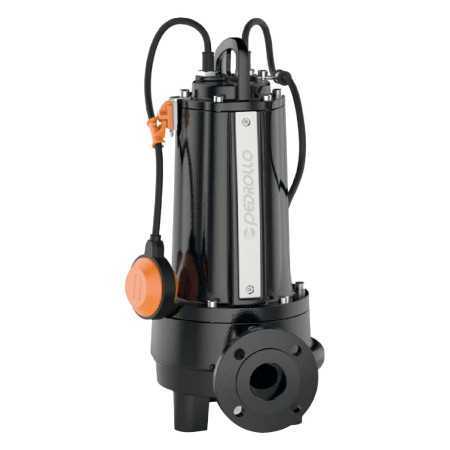

TR 6 - 8 HP single-phase submersible electric pump with grinder

Name: TR 6 - 8 HP single-phase submersible electric pump with grinder
Brand: Pedrollo
SKU: TR 6
Price: 2577.98 EUR
Availability: InStock

Flow rate up to 430 l/min (25.8 m³/h). Head up to 55 m. 6 kW (8 HP) motor.

Variants:

Make a purchase proposal

Telephone support for information before purchasing.

Reinforced packaging to reduce transport damage.

After-sales assistance for product installation.

We supply all spare parts on this product.

Description

The TR 6 grinder pump from Pedrollo stands out for its robust construction.

Made entirely of cast iron of considerable thickness, it is resistant to abrasion and allows it to last over time.

The TR 6 is equipped with a high-resistance, tempered stainless steel shredder that allows for the complete shredding of solids and fibres contained in waste water.

Recommended for use in the domestic and industrial sectors for pressurized conveyance into the sewer system through small diameter pipes.

The flow rate ranges from 20 to 305 litres per hour and the head ranges from 2 to 44.5 metres.

The pump can be installed up to 10 meters below the water level.

The TR 6 also comes with a 10-meter cable.

Data sheet

Motor connection: THREE-PHASE
Power (Kw): 6
Power (HP): 8
Current consumption at 400V (A): 7.5
Delivery mouth: 2"
Pump body: Cast iron
Impeller: AISI 304 stainless steel
Number of impellers: 1
Crankshaft: AISI 431 stainless steel
Check valve: No
Degree of protection: IP 68
Minimum flow rate (l./min.): 20
Max. flow rate (l./min.): 410
Min. head (m.): 2
Max. head (m.): 40
Cable length (m.): 10
Jobs: slightly dirty waters, drainage, drying up
Max. liquid temperature (°C): +40°C
Height (cm): 48.0
Width (cm): 25.6
Depth (cm): 32.9
Weight (Kg): 54
Warranty (years): 2

Attachments

TRITUS data sheet

Construction and operating characteristics. Working curves, limits of use and dimensions of the pumps of the TRITUS series by Pedrollo.

Download (6.03MB)

TR 5-6 models and performance

TYPE

three-phase

TR 5

TR 6

POWER
KW	HP
5	6.7
6	8

PERFORMANCES
Q liters/min	H meters
20 ÷ 420	47 ÷ 2
20 ÷ 430	55 ÷ 2

MOUTH
DN 40
2"

Q	m³/hour	0	1.2	3	6	9	12	15	18	21	24	25.2	25.8
Q	l/min	0	20	50	100	150	200	250	300	350	400	420	430
H	meters	47	46	44.7	42	40	37.4	34.5	31.1	27.2	22.5	2
H		55	54	52.5	50.3	48.1	45.6	42.8	39.5	35.3	30.2	25	2
