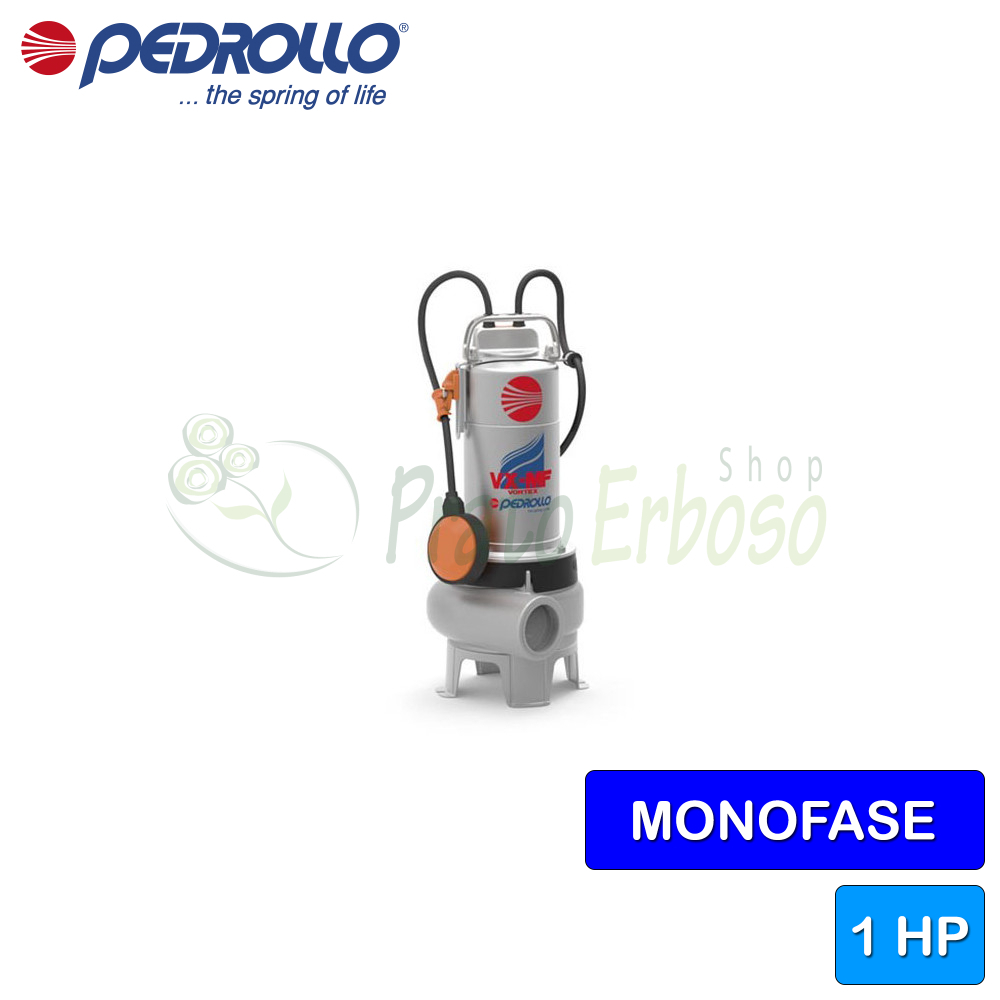

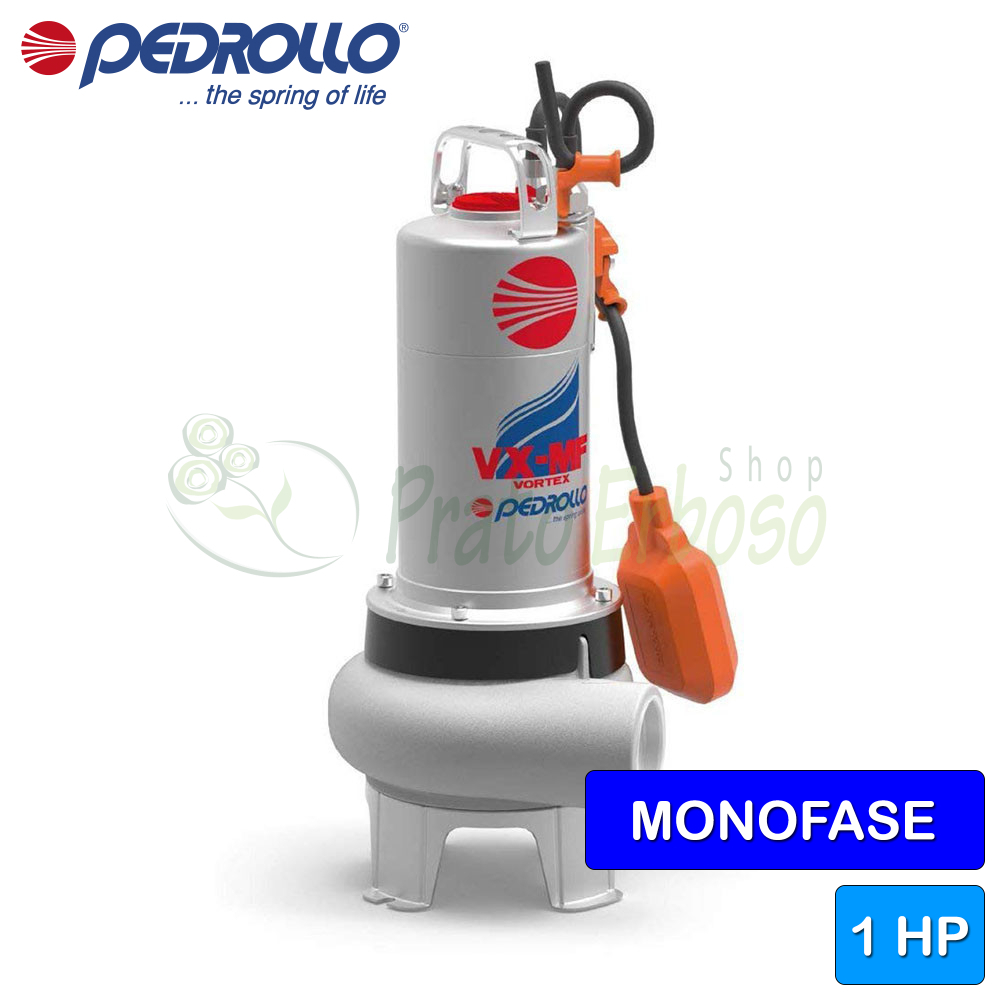

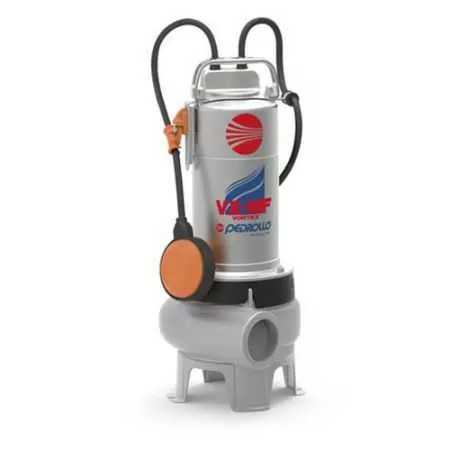

VXm 10/50-MF - 1 HP single-phase VORTEX sewage pump
Flow rate up to 550 l/min (33 m³/h). Head up to 9 m. 0.75 Kw (1 HP) motor.
Variants:
Telephone support for information before purchasing.
Reinforced packaging to reduce transport damage.
After-sales assistance for product installation.
We supply all spare parts on this product.
Description
The VX-MF series pumps are recommended for the drainage of waste water in the domestic, civil and industrial sectors, in all cases where suspended solids are present in the water, for example water mixed with mud, groundwater, surface water.
Its use is recommended for draining flooded areas such as basements, underground car parks, car wash areas, for emptying cesspits and for the disposal of sewage.
The VX-MF pumps are made of micro-cast stainless steel, particularly robust and highly reliable, offering high performance for professional, chemical and industrial use.
These pumps stand out for their reliability in fixed installations with automatic operation.
Data sheet
- Motor connection
- SINGLE-PHASE
- Power (Kw)
- 0.75
- Power (HP)
- 1
- Absorption at 230V (A)
- 5.0
- Capacitor
- 20 µF 450 VL
- Delivery mouth
- 2"
- Pump body
- AISI 304 stainless steel
- Impeller
- AISI 304 stainless steel
- Number of impellers
- 1
- Crankshaft
- AISI 304 stainless steel
- Check valve
- No
- Degree of protection
- IP 68
- Minimum flow rate (l./min.)
- 50
- Max. flow rate (l./min.)
- 550
- Min. head (m.)
- 1.5
- Max. head (m.)
- 9
- Cable length (m.)
- 10
- Jobs
- drainage, drying up, slightly dirty waters
- Max. liquid temperature (°C)
- +40°C
- Height (cm)
- 43.2
- Weight (Kg)
- 13.9
- Warranty (years)
- 2
Construction data of the VX-MF series
Bearings
| Pump side motor bearing | 6203 ZZ |
| Opposite side engine bearing | 6203 ZZ |
Tree holding
| Type of seal | Double mechanical seal in oil chamber |
| LM diameter | 14 |
| LM fixed ring | Silicon carbide |
| LM rotating ring | Graphite |
| LM elastomer | NBR |
| Shrinkage DN1=450 DN2=350 | MG1-14D SIC |
| LP diameter | 14 |
| LP fixed ring | Silicon carbide |
| LP rotating ring | Silicon carbide |
| LP elastomer | NBR |
Materials
| 1.0 - Pump body | Stainless steel EN 1.4404 (AISI 316L) |
| 1.4 - Basic | Stainless steel EN 1.4301 (AISI 304) |
| 3.0 - Impeller | Stainless steel EN 1.4301 (AISI 304) |
| 4.0 - Pump shaft | Stainless steel EN 1.4404 (AISI 316L) |
| 6.0 - Motor holder | Stainless steel EN 1.4301 (AISI 304) |
| 6.1 - Engine cover | Stainless steel EN 1.4301 (AISI 304) |
| 7.0 - Lantern | Stainless steel EN 1.4301 (AISI 304) |
VXm/50-MF Models and Performance
|
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Compare with Similar Products
 VXm 10/50-MF - 1 HP single-phase VORTEX sewage pumpThis product Flow rate up to 550 l/min (33 m³/h). Head up to 9 m. 0.75 Kw (1 HP) motor. |  VXm 8/50-MF - Single-phase VORTEX sewage pump 0.75 HPFlow rate up to 450 l/min (27 m³/h). Head up to 6.5 m. 0.55 Kw (0.75 HP) motor. |  VXm 15/50-MF - 1.5 HP Single-phase VORTEX electric pump for waste waterFlow rate up to 650 l/min (39 m³/h). Head up to 11.5 m. 1.1 Kw (1.5 HP) motor. |  VXm 20/50-MF - 2 HP single-phase VORTEX sewage pumpFlow rate up to 750 l/min (45 m³/h). Head up to 13.5 m. 1.5 kW (2 HP) motor. | |
|---|---|---|---|---|
| Price | Price €867.42 -42% €503.10 | Price €854.00 -42% €495.32 | Price €962.58 -42% €558.30 | Price €1,083.36 -42% €628.35 |
| Motor connection | Motor connection SINGLE-PHASE | Motor connection SINGLE-PHASE | Motor connection SINGLE-PHASE | Motor connection SINGLE-PHASE |
| Power (Kw) | Power (Kw) 0.75 | Power (Kw) 0.55 | Power (Kw) 1.1 | Power (Kw) 1.5 |
| Power (HP) | Power (HP) 1 | Power (HP) 0.75 | Power (HP) 1.5 | Power (HP) 2 |
| Absorption at 230V (A) | Absorption at 230V (A) 5.0 | Absorption at 230V (A) 3.7 | Absorption at 230V (A) 7.1 | Absorption at 230V (A) 7.1 |
| Capacitor | Capacitor 20 µF 450 VL | Capacitor 20 µF 450 VL | Capacitor 25 µF 450 VL | Capacitor 25 µF 450 VL |
| Delivery mouth | Delivery mouth 2" | Delivery mouth 2" | Delivery mouth 2" | Delivery mouth 2" |
| Pump body | Pump body AISI 304 stainless steel | Pump body AISI 304 stainless steel | Pump body AISI 304 stainless steel | Pump body AISI 304 stainless steel |
| Impeller | Impeller AISI 304 stainless steel | Impeller AISI 304 stainless steel | Impeller AISI 304 stainless steel | Impeller AISI 304 stainless steel |
| Number of impellers | Number of impellers 1 | Number of impellers 1 | Number of impellers 1 | Number of impellers 1 |
| Crankshaft | Crankshaft AISI 304 stainless steel | Crankshaft AISI 304 stainless steel | Crankshaft AISI 304 stainless steel | Crankshaft AISI 304 stainless steel |
| Check valve | Check valve No | Check valve No | Check valve No | Check valve No |
| Degree of protection | Degree of protection IP 68 | Degree of protection IP 68 | Degree of protection IP 68 | Degree of protection IP 68 |
| Minimum flow rate (l./min.) | Minimum flow rate (l./min.) 50 | Minimum flow rate (l./min.) 50 | Minimum flow rate (l./min.) 50 | Minimum flow rate (l./min.) 50 |
| Max. flow rate (l./min.) | Max. flow rate (l./min.) 550 | Max. flow rate (l./min.) 450 | Max. flow rate (l./min.) 650 | Max. flow rate (l./min.) 650 |
| Min. head (m.) | Min. head (m.) 1.5 | Min. head (m.) 1.5 | Min. head (m.) 2 | Min. head (m.) 2 |
| Max. head (m.) | Max. head (m.) 9 | Max. head (m.) 6.5 | Max. head (m.) 11.5 | Max. head (m.) 11.5 |
| Cable length (m.) | Cable length (m.) 10 | Cable length (m.) 10 | Cable length (m.) 10 | Cable length (m.) 10 |
| Jobs | Jobs drainage, drying up, slightly dirty waters | Jobs drainage, drying up, slightly dirty waters | Jobs drainage, drying up, slightly dirty waters | Jobs drainage, drying up, slightly dirty waters |
| Max. liquid temperature (°C) | Max. liquid temperature (°C) +40°C | Max. liquid temperature (°C) +40°C | Max. liquid temperature (°C) +40°C | Max. liquid temperature (°C) +40°C |
| Height (cm) | Height (cm) 43.2 | Height (cm) 43.2 | Height (cm) 44.7 | Height (cm) 44.7 |
| Weight (Kg) | Weight (Kg) 13.9 | Weight (Kg) 12.9 | Weight (Kg) 15.4 | Weight (Kg) 15.4 |
| Warranty (years) | Warranty (years) 2 | Warranty (years) 2 | Warranty (years) 2 | Warranty (years) 2 |
