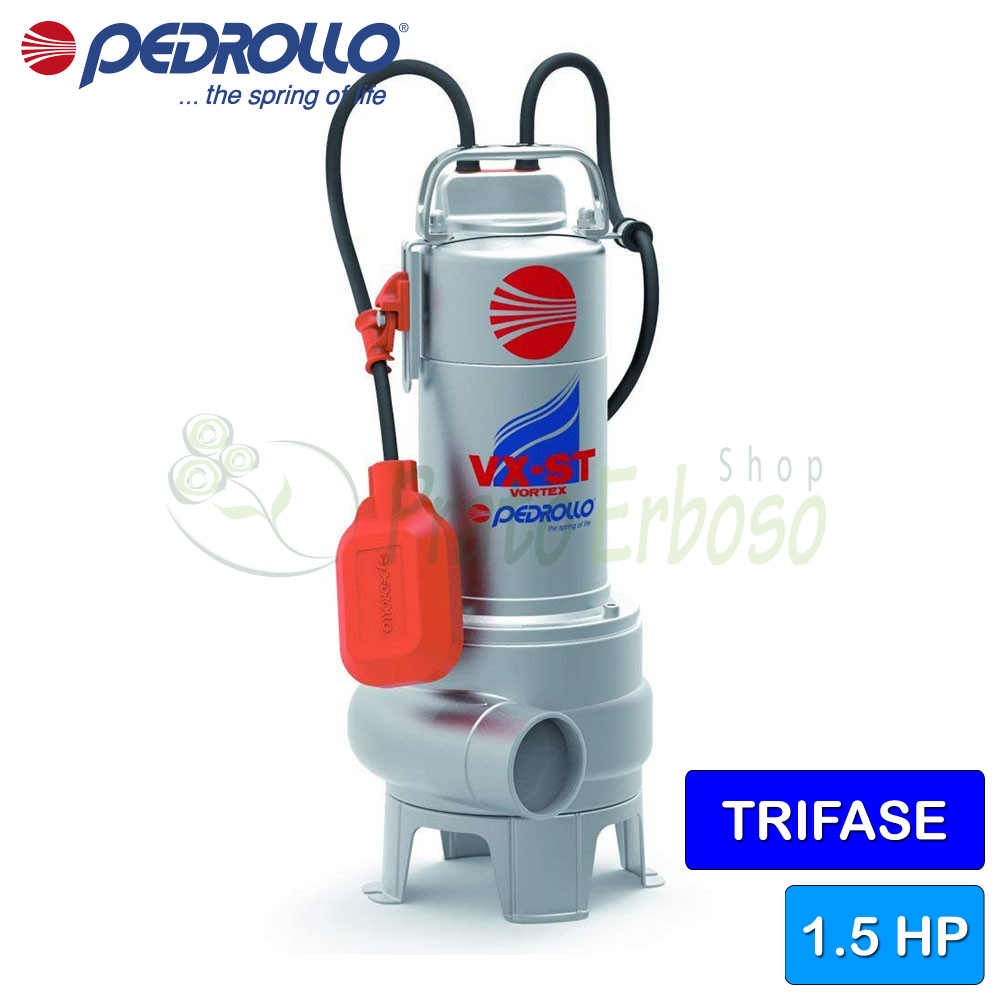

VX 15/35-ST - 1.5 HP three-phase VORTEX electric pump for waste water
Flow rate up to 500 l/min (35 m³/h). Head up to 15 m. 1.1 Kw (1.5 HP) motor.
Telephone support for information before purchasing.
Reinforced packaging to reduce transport damage.
After-sales assistance for product installation.
We supply all spare parts on this product.
Description
The VX-ST series pumps are recommended for the drainage of waste water in the domestic, civil and industrial sectors, in all cases where suspended solids are present in the water, for example water mixed with mud, groundwater, surface water.
Its use is recommended for draining flooded areas such as basements, underground car parks, car wash areas, for emptying cesspits and for disposing of sewage.
The VX-ST pumps are made of stamped stainless steel, particularly robust and highly reliable, and offer high performance for professional, chemical and industrial use.
These pumps are distinguished by their reliability, in fixed installations with automatic operation.
Data sheet
- Motor connection
- THREE-PHASE
- Power (Kw)
- 1.1
- Power (HP)
- 1.5
- Absorption at 400V (A)
- 3.0
- Delivery mouth
- 1 "1/2
- Pump body
- AISI 304 stainless steel
- Impeller
- AISI 304 stainless steel
- Number of impellers
- 1
- Crankshaft
- AISI 431 stainless steel
- Check valve
- No
- Degree of protection
- IP 68
- Min. flow rate (l./min.)
- 50
- Max. flow rate (l./min.)
- 500
- Min. head (m.)
- 2
- Max. head (m.)
- 15
- Cable length (m)
- 10
- Jobs
- drainage, drying up, slightly dirty waters
- Max. liquid temperature (°C)
- 40
- Height (cm)
- 42.1
- Weight (Kg)
- 11.9
- Warranty (years)
- 2
Construction data of the VX 15/35-ST
Bearings
| Pump side motor bearing | 6203 2RS - C3 |
| Opposite side engine bearing | 6203 ZZ |
Tree holding
| Type of seal | Double mechanical seal in oil chamber |
| LM diameter | 14 |
| LM fixed ring | Silicon carbide |
| LM rotating ring | Graphite |
| LM elastomer | NBR |
| Shrinkage DN1=450 DN2=350 | MG1-14D SIC |
| LP diameter | 14 |
| LP fixed ring | Silicon carbide |
| LP rotating ring | Silicon carbide |
| LP elastomer | NBR |
Materials
| 1.0 - Pump body | Stainless steel EN 1.4301 (AISI 304) |
| 1.4 - Basic | Stainless steel EN 1.4301 (AISI 304) |
| 2.0 - Lid | Stainless steel EN 1.4301 (AISI 304) |
| 3.0 - Impeller | Stainless steel EN 1.4301 (AISI 304) |
| 4.0 - Pump shaft | Stainless steel EN 1.4057 (AISI 431) |
| 6.0 - Motor holder | Stainless steel EN 1.4301 (AISI 304) |
| 6.1 - Engine cover | Stainless steel EN 1.4301 (AISI 304) |
| 7.0 - Lantern | Cast iron GJL 200 EN 1561 |
VX /35-ST Models and Performance
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Compare with Similar Products
 VX 15/35-ST - 1.5 HP three-phase VORTEX electric pump for waste waterThis product Flow rate up to 500 l/min (35 m³/h). Head up to 15 m. 1.1 Kw (1.5 HP) motor. |  VX 8/35-ST - 0.75 HP three-phase VORTEX electric pump for waste waterFlow rate up to 350 l/min (21 m³/h). Head up to 9.5 m. 0.55 Kw (0.75 HP) motor. |  VX 10/35-ST - 1 HP three-phase VORTEX electric pump for waste waterFlow rate up to 400 l/min (24 m³/h). Head up to 11.5 m. 0.75 Kw (1 HP) motor. |  VX 20/35-ST - 2 HP three-phase VORTEX electric pump for waste waterFlow rate up to 525 l/min (31.5 m³/h). Head up to 17 m. 1.5 Kw (2 HP) motor. | |
|---|---|---|---|---|
| Motor connection | Motor connection THREE-PHASE | Motor connection THREE-PHASE | Motor connection THREE-PHASE | Motor connection THREE-PHASE |
| Power (Kw) | Power (Kw) 1.1 | Power (Kw) 0.55 | Power (Kw) 0.75 | Power (Kw) 1.5 |
| Power (HP) | Power (HP) 1.5 | Power (HP) 0.75 | Power (HP) 1 | Power (HP) 2 |
| Absorption at 400V (A) | Absorption at 400V (A) 3.0 | Absorption at 400V (A) 1.7 | Absorption at 400V (A) 2.0 | Absorption at 400V (A) 3.7 |
| Delivery mouth | Delivery mouth 1 "1/2 | Delivery mouth 1 "1/2 | Delivery mouth 1 "1/2 | Delivery mouth 1 "1/2 |
| Pump body | Pump body AISI 304 stainless steel | Pump body AISI 304 stainless steel | Pump body AISI 304 stainless steel | Pump body AISI 304 stainless steel |
| Impeller | Impeller AISI 304 stainless steel | Impeller AISI 304 stainless steel | Impeller AISI 304 stainless steel | Impeller AISI 304 stainless steel |
| Number of impellers | Number of impellers 1 | Number of impellers 1 | Number of impellers 1 | Number of impellers 1 |
| Crankshaft | Crankshaft AISI 431 stainless steel | Crankshaft AISI 431 stainless steel | Crankshaft AISI 431 stainless steel | Crankshaft AISI 431 stainless steel |
| Check valve | Check valve No | Check valve No | Check valve No | Check valve No |
| Degree of protection | Degree of protection IP 68 | Degree of protection IP 68 | Degree of protection IP 68 | Degree of protection IP 68 |
| Min. flow rate (l./min.) | Min. flow rate (l./min.) 50 | Min. flow rate (l./min.) 50 | Min. flow rate (l./min.) 50 | Min. flow rate (l./min.) 50 |
| Max. flow rate (l./min.) | Max. flow rate (l./min.) 500 | Max. flow rate (l./min.) 350 | Max. flow rate (l./min.) 400 | Max. flow rate (l./min.) 525 |
| Min. head (m.) | Min. head (m.) 2 | Min. head (m.) 1 | Min. head (m.) 2 | Min. head (m.) 2.5 |
| Max. head (m.) | Max. head (m.) 15 | Max. head (m.) 9.5 | Max. head (m.) 11.5 | Max. head (m.) 17 |
| Cable length (m) | Cable length (m) 10 | Cable length (m) 10 | Cable length (m) 10 | Cable length (m) 10 |
| Jobs | Jobs drainage, drying up, slightly dirty waters | Jobs drainage, drying up, slightly dirty waters | Jobs drainage, drying up, slightly dirty waters | Jobs drainage, drying up, slightly dirty waters |
| Max. liquid temperature (°C) | Max. liquid temperature (°C) 40 | Max. liquid temperature (°C) 40 | Max. liquid temperature (°C) 40 | Max. liquid temperature (°C) 40 |
| Height (cm) | Height (cm) 42.1 | Height (cm) 40.6 | Height (cm) 40.6 | Height (cm) 50.2 |
| Depth (cm) | Depth (cm) -- | Depth (cm) -- | Depth (cm) -- | Depth (cm) 28.0 |
| Weight (Kg) | Weight (Kg) 11.9 | Weight (Kg) 10.6 | Weight (Kg) 10.7 | Weight (Kg) 15.5 |
| Warranty (years) | Warranty (years) 2 | Warranty (years) 2 | Warranty (years) 2 | Warranty (years) 2 |
