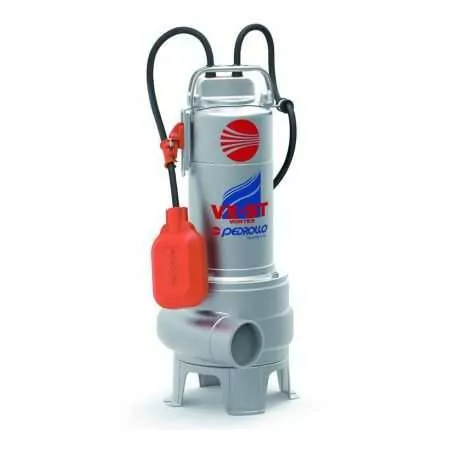

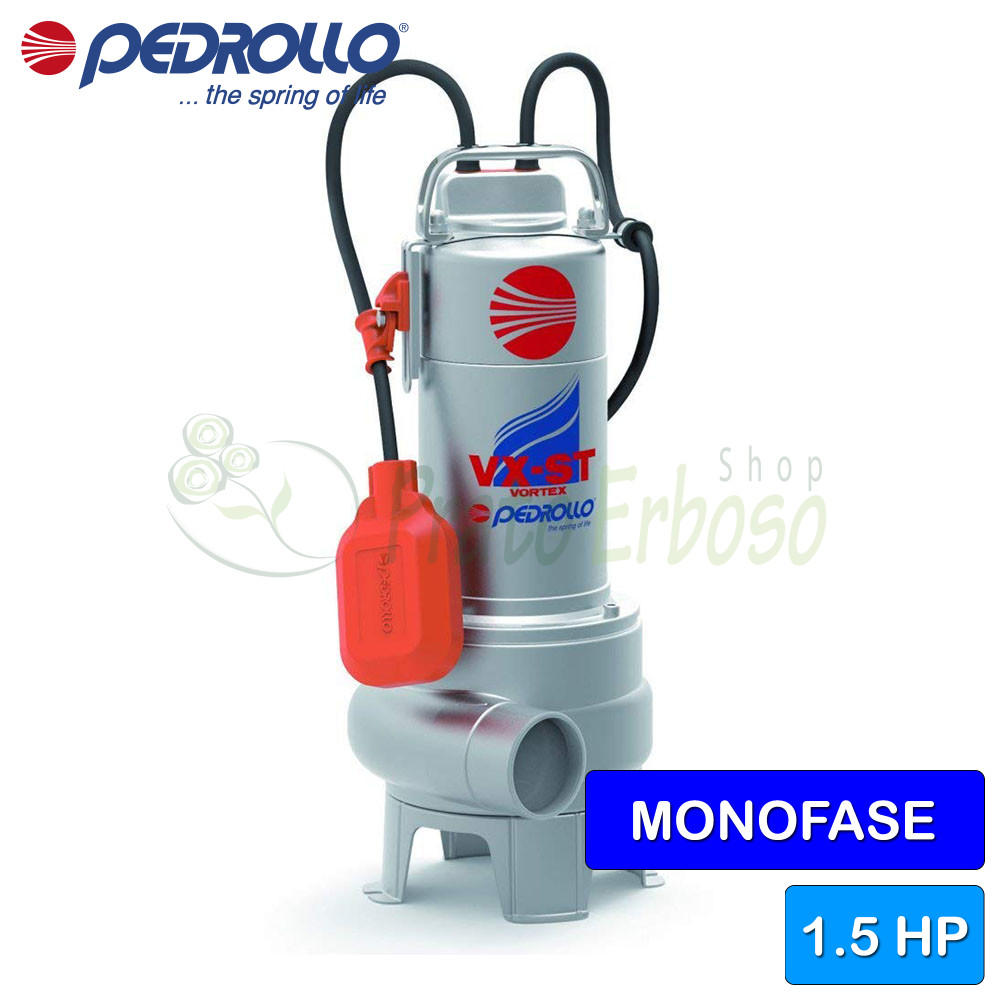

VXm 15/50-ST - 1.5 HP single-phase VORTEX electric sewage pump
Flow rate up to 650 l/min (39 m³/h). Head up to 13.5 m. 1.1 Kw (1.5 HP) motor.
Telephone support for information before purchasing.
Reinforced packaging to reduce transport damage.
After-sales assistance for product installation.
We supply all spare parts on this product.
Description
The VXm 15/50-ST submersible electric pump from the VX-ST series by Pedrollo is characterised by particular resistance to corrosion and abrasion.
Made entirely of stainless steel which guarantees strength, resistance and long-lasting operation.
Pedrollo has studied various construction solutions that make the VXm 15/50-ST powerful, highly efficient but also reliable.
The VORTEX impeller allows the pumping of solids up to 40 millimetres and, thanks to its particular design, guarantees safe operation against clogging.
The hydraulic geometry of the volute and impeller allows for high performance, high efficiency which translates into significant energy savings.
Data sheet
- Motor connection
- SINGLE-PHASE
- Power (Kw)
- 1.1
- Power (HP)
- 1.5
- Absorption at 230V (A)
- 7.1
- Capacitor
- 25 µF 450 VL
- Delivery mouth
- 2"
- Pump body
- AISI 304 stainless steel
- Impeller
- AISI 304 stainless steel
- Number of impellers
- 1
- Crankshaft
- AISI 431 stainless steel
- Check valve
- No
- Degree of protection
- IP 68
- Minimum flow rate (l./min.)
- 50
- Max. flow rate (l./min.)
- 650
- Min. head (m.)
- 2
- Max. head (m.)
- 13.5
- Jobs
- drainage, drying up, slightly dirty waters
- Max. liquid temperature (°C)
- +40°C
- Height (cm)
- 44.7
- Weight (Kg)
- 13.1
- Warranty (years)
- 2
Construction data of the VX 15/35-ST
Bearings
| Pump side motor bearing | 6203 2RS - C3 |
| Opposite side engine bearing | 6203 ZZ |
Tree holding
| Type of seal | Double mechanical seal in oil chamber |
| LM diameter | 14 |
| LM fixed ring | Silicon carbide |
| LM rotating ring | Graphite |
| LM elastomer | NBR |
| Shrinkage DN1=450 DN2=350 | MG1-14D SIC |
| LP diameter | 14 |
| LP fixed ring | Silicon carbide |
| LP rotating ring | Silicon carbide |
| LP elastomer | NBR |
Materials
| 1.0 - Pump body | Stainless steel EN 1.4301 (AISI 304) |
| 1.4 - Basic | Stainless steel EN 1.4301 (AISI 304) |
| 2.0 - Lid | Stainless steel EN 1.4301 (AISI 304) |
| 3.0 - Impeller | Stainless steel EN 1.4301 (AISI 304) |
| 4.0 - Pump shaft | Stainless steel EN 1.4057 (AISI 431) |
| 6.0 - Motor holder | Stainless steel EN 1.4301 (AISI 304) |
| 6.1 - Engine cover | Stainless steel EN 1.4301 (AISI 304) |
| 7.0 - Lantern | Cast iron GJL 200 EN 1561 |
VXm /50-ST Models and Performance
