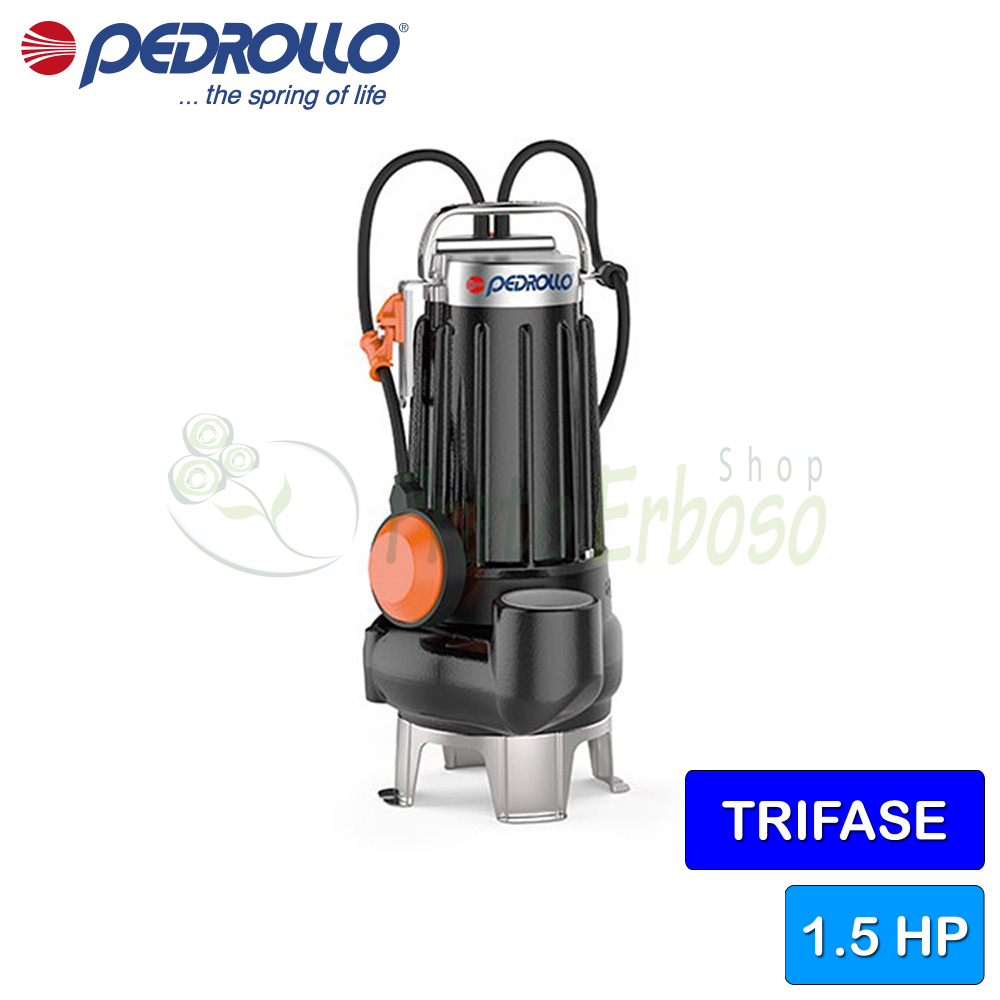

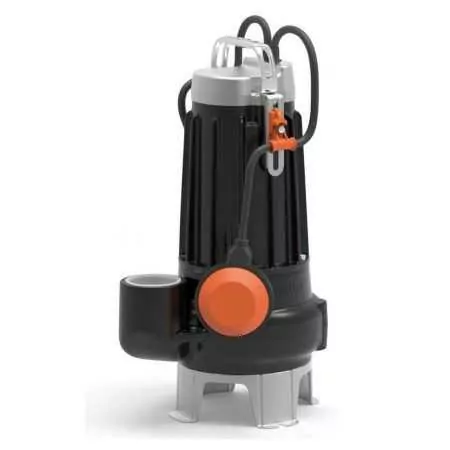

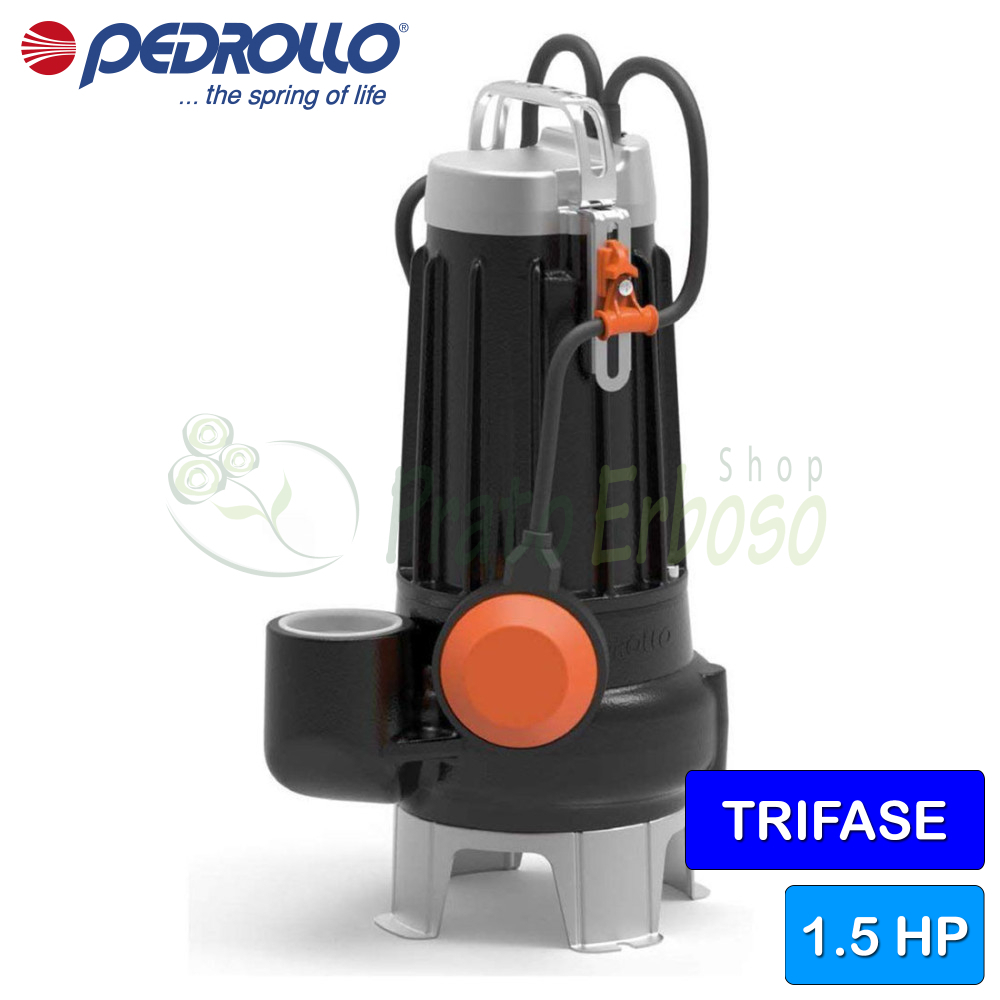

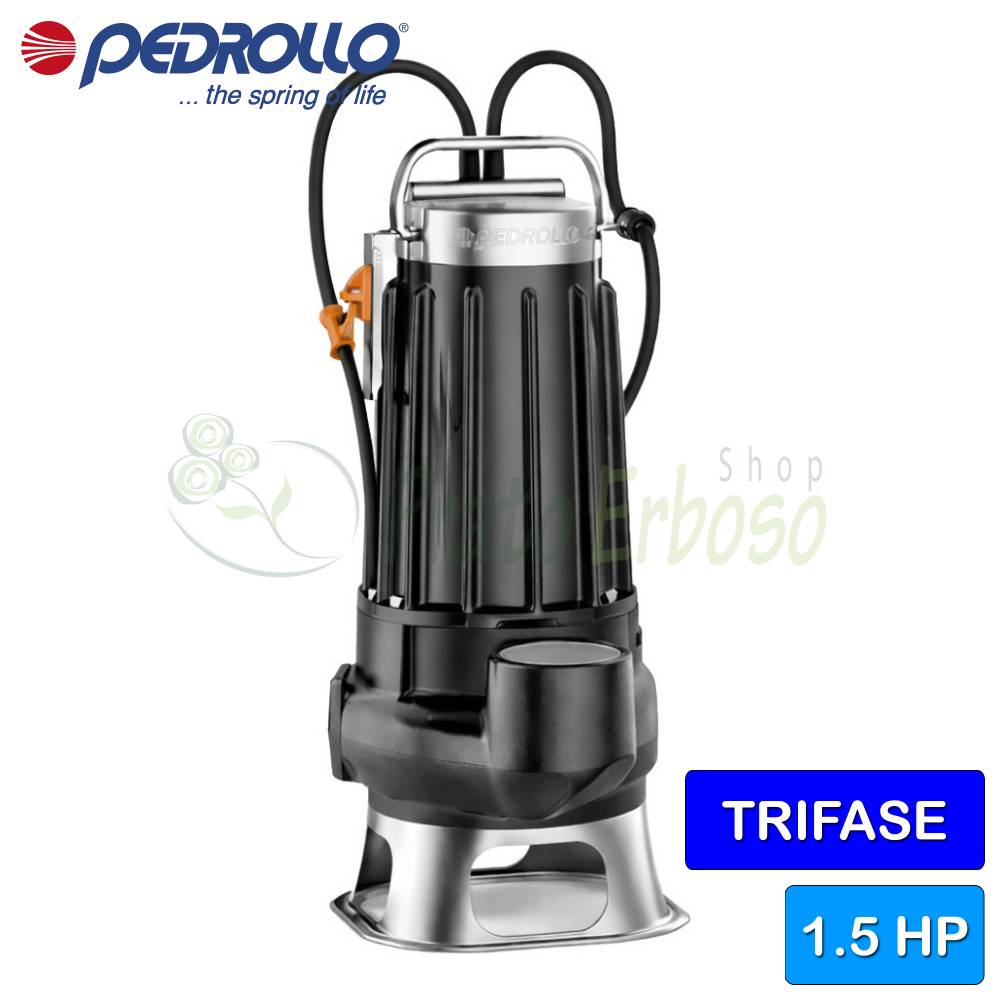

VXC 15/35 - 1.5 HP three-phase VORTEX sewage pump
Flow rate up to 500 l/min (30 m³/h). Head up to 14 m. 1.1 kW (1.5 HP) motor.
Telephone support for information before purchasing.
Reinforced packaging to reduce transport damage.
After-sales assistance for product installation.
We supply all spare parts on this product.
Description
The VXC 15/35 submersible electric pump from the VXC series by Pedrollo is the right choice when looking for great reliability.
Suitable for draining water containing suspended solids up to 40 millimetres in diameter.
Recommended for civil and domestic installations for continuous service activities.
The VXC 15/35 is made of cast iron of considerable thickness, exceptional strength and abrasion resistance.
It can be installed up to 10 meters below the water level. For continuous operation, it requires a depth of 305 mm.
Data sheet
- Motor connection
- THREE-PHASE
- Power (Kw)
- 1.1
- Power (HP)
- 1.5
- Current consumption at 400V (A)
- 3
- Delivery mouth
- 1" 1/2
- Pump body
- Cast iron
- Impeller
- AISI 304 stainless steel
- Number of impellers
- 35
- Crankshaft
- Stainless steel EN 10088-3 1.4104
- Minimum flow rate (l./min.)
- 50
- Max. flow rate (l./min.)
- 500
- Min. head (m.)
- 2
- Max. head (m.)
- 14
- Cable length (m.)
- Jobs
- slightly dirty waters, drainage, drying up
- Max. liquid temperature (°C)
- +40°C
- Height (cm)
- 40.3
- Weight (Kg)
- 18.4
- Warranty (years)
- 2
VXC 35-45 models and performances
|
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Construction data of the VXC series
Bearings
| Pump side motor bearing | 6203 ZZ |
| Opposite side engine bearing | 6203 ZZ |
Tree holding
| Type of seal | Double mechanical seal in oil chamber |
| LM diameter | 14 |
| LM fixed ring | Silicon carbide |
| LM rotating ring | Graphite |
| LM elastomer | NBR |
| Shrinkage DN1=450 DN2=350 | MG1-14D SIC |
| LP diameter | 14 |
| LP fixed ring | Silicon carbide |
| LP rotating ring | Silicon carbide |
| LP elastomer | NBR |
Materials
| 1.0 - Pump body | Cast iron GJL 200 EN 1561 |
| 1.4 - Basic | Stainless steel EN 1.4301 (AISI 304) |
| 3.0 - Impeller | Stainless steel EN 1.4301 (AISI 304) |
| 4.0 - Pump shaft | Stainless steel EN 1.4057 (AISI 431) |
| 6.0 - Motor holder | Cast iron GJL 200 EN 1561 |
| 6.1 - Engine cover | Reinforced technopolymer |
| 7.0 - Lantern | Stainless steel EN 1.4301 (AISI 304) |
