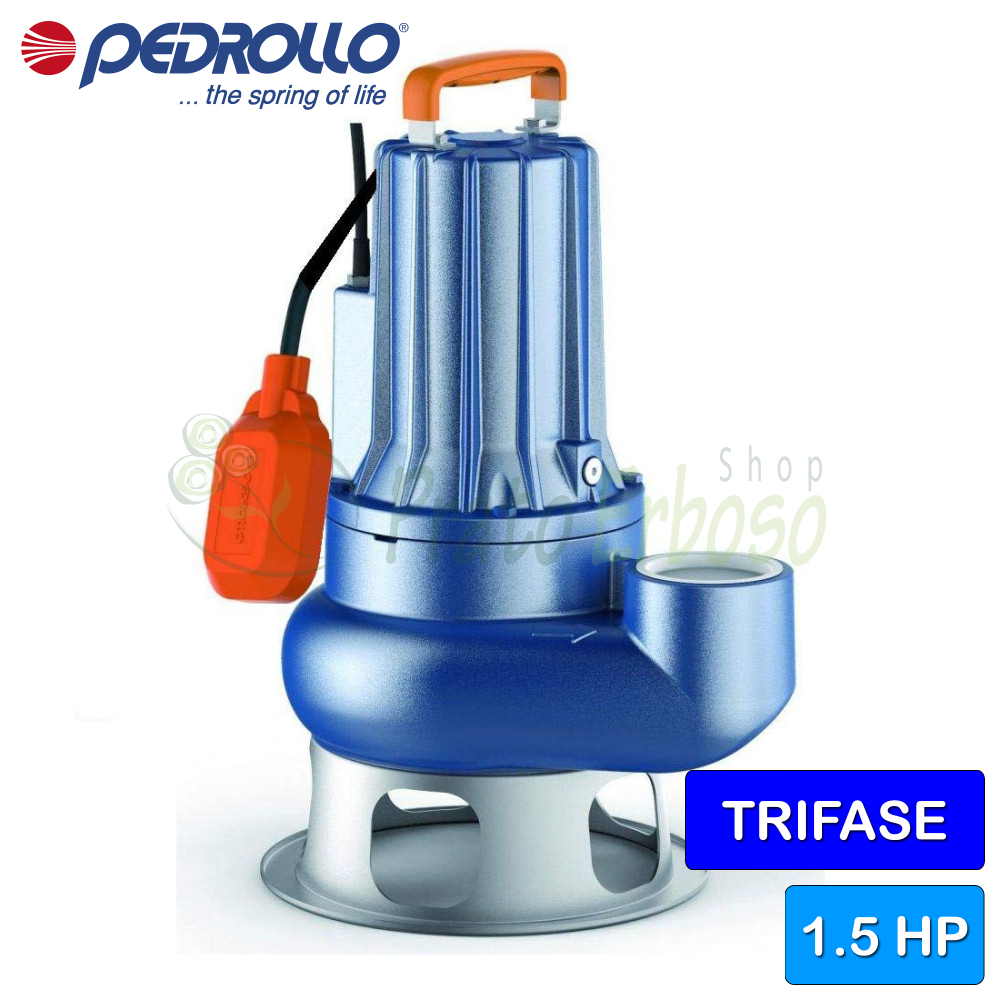

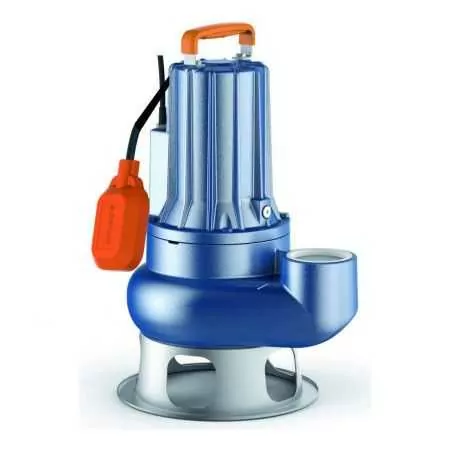

VXC 15/50 - 1.5 HP three-phase VORTEX electric pump for waste water
Flow rate up to 600 l/min (36 m³/h). Head up to 12 m. 1.1 Kw (1.5 HP) motor.
Telephone support for information before purchasing.
Reinforced packaging to reduce transport damage.
After-sales assistance for product installation.
We supply all spare parts on this product.
Description
The VXC series pumps, built in cast iron of considerable thickness, exceptional strength and resistance to abrasion and durability over time, are equipped with a VORTEX type impeller.
They are suitable for draining dirty, sewage, waste water, water mixed with mud, revived and putrid sludge.
Suitable for installation in sewers, tunnels, excavations, canals, underground car parks, etc.
Data sheet
- Motor connection
- THREE-PHASE
- Power (Kw)
- 1.1
- Power (HP)
- 1.5
- Absorption at 230V (A)
- 5.9
- Absorption at 400V (A)
- 3.4
- Delivery mouth
- 2 "1/2
- Pump body
- Cast iron
- Impeller
- Cast iron
- Number of impellers
- 50
- Crankshaft
- AISI 431 stainless steel
- Min. flow rate (l./min.)
- 100
- Max. flow rate (l./min.)
- 600
- Min. head (m.)
- 2
- Max. head (m.)
- 12
- Cable length (m)
- 10
- Jobs
- drainage, drying up, slightly dirty waters
- Max. liquid temperature (°C)
- +40°C
- Height (cm)
- 48.7
- Weight (Kg)
- 40.5
- Warranty (years)
- 2
VXC 50-65 models and performance
|
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Construction data of the VXC 50 - 65 series
Bearings
| Pump side motor bearing | 6305 CM D 6 |
| Opposite side engine bearing | 6204 ZZ-C3 |
Tree holding
| Type of seal | Double Mechanical Seal in tandem with oil chamber |
| Engine side model | STA-22 |
| LM diameter | 22 |
| LM fixed ring | Ceramic |
| LM rotating ring | Graphite |
| LM elastomer | NBR |
| Shrinkage DN1=450 DN2=350 | STA-20 |
| LP diameter | 20 |
| LP fixed ring | Silicon carbide |
| LP rotating ring | Silicon carbide |
| LP elastomer | NBR |
Materials
| 1.0 - Pump body | Cast iron GJL 200 EN 1561 |
| 3.0 - Impeller | Cast iron GJL 200 EN 1561 |
| 4.0 - Pump shaft | Stainless steel EN 1.4057 (AISI 431) |
| 6.0 - Motor holder | Cast iron GJL 200 EN 1561 |
| 6.1 - Engine cover | Cast iron GJL 200 EN 1561 |
